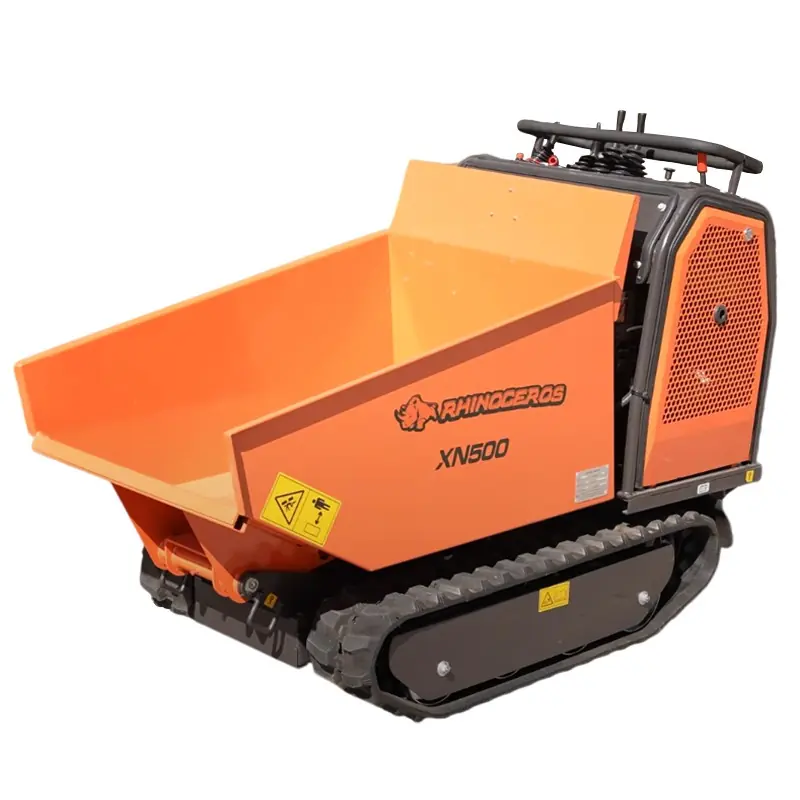

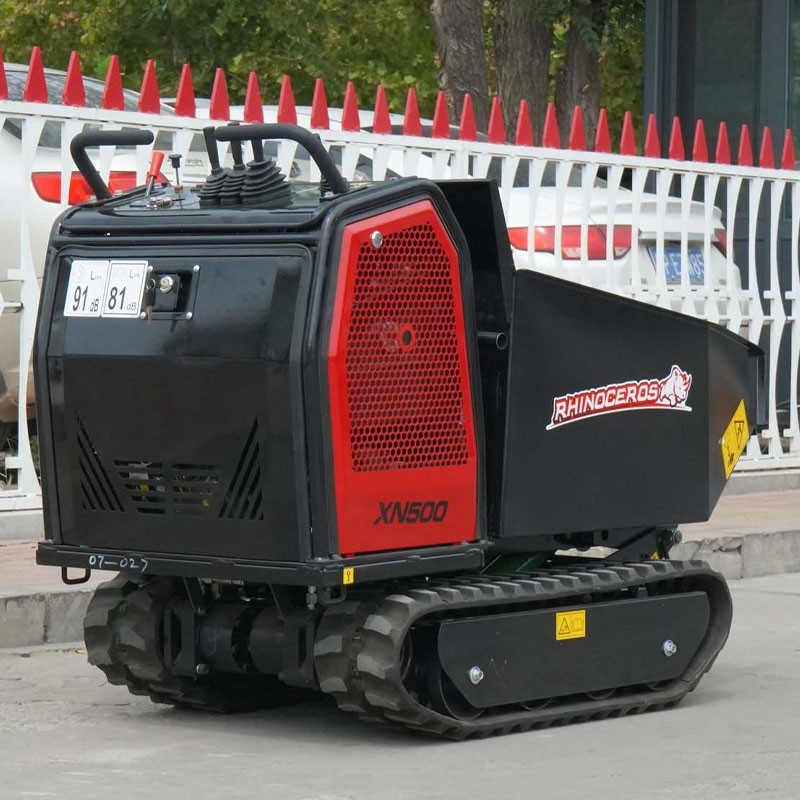

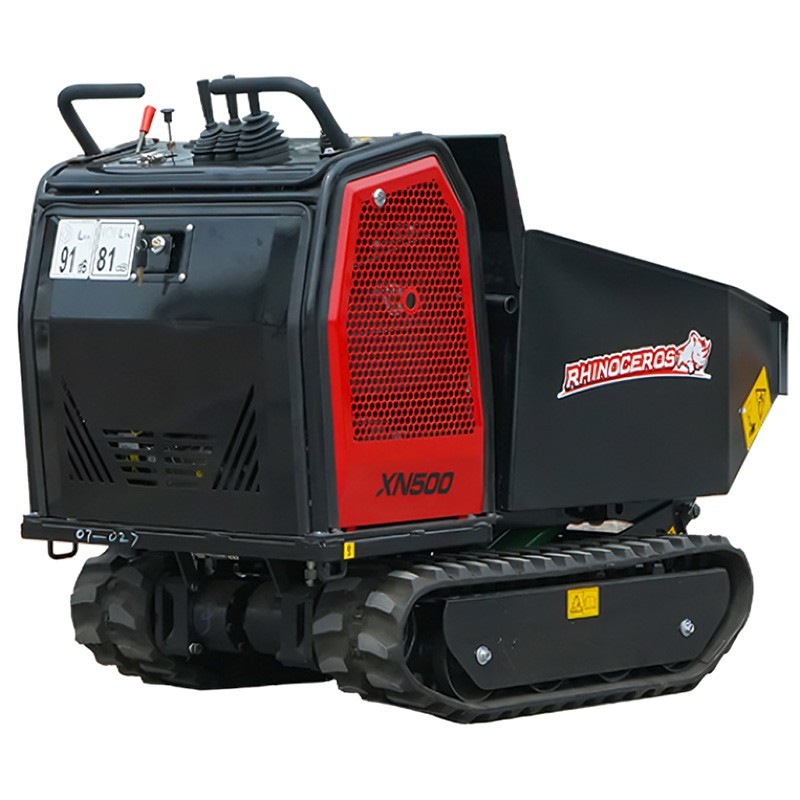

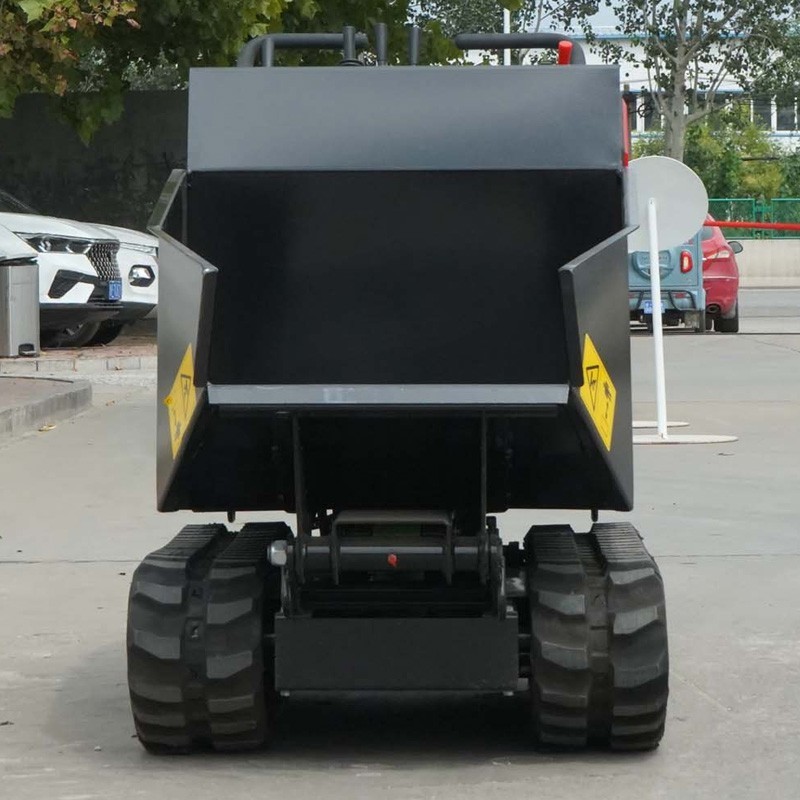

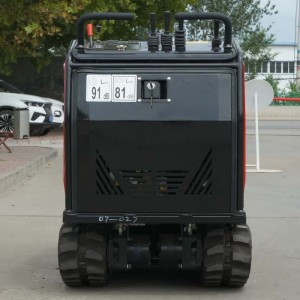

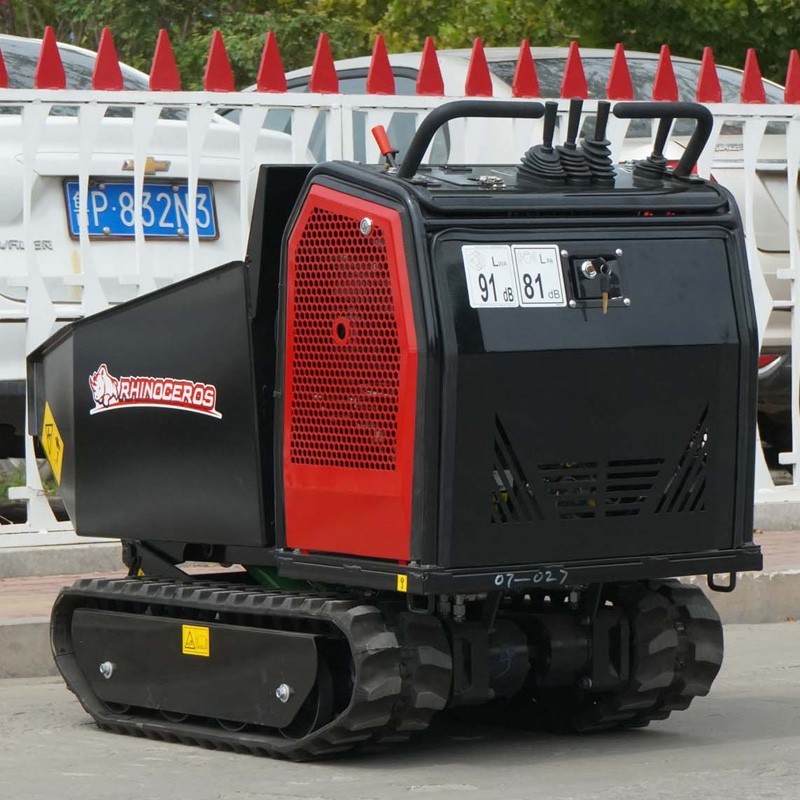

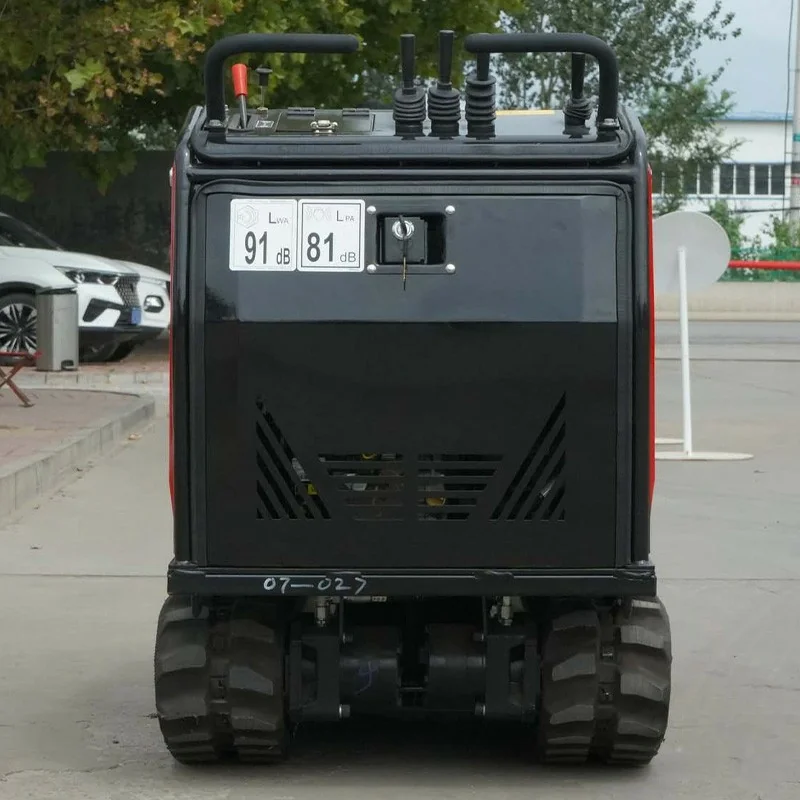

The Minidumper Zeppelin Rhinoceros XN500 is a compact and versatile machine, ideal for loading and transport work in difficult terrain. Equipped with a 10 hp Briggs & Stratton engine and a load capacity of up to 500 kg, it is perfect for handling heavy materials in confined spaces.

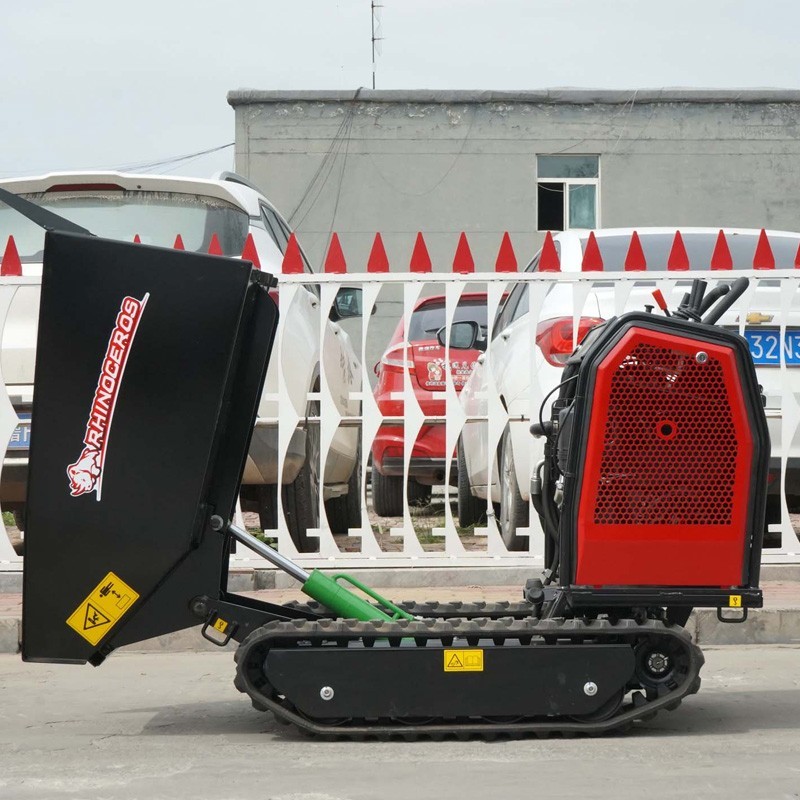

Its highly efficient hydraulic system and transmission from tracked allow exceptional performance even on slopes of up to 30%. With a 0.22 m³ bucket and a capacity of 9.1 liters of hydraulic oil, the XN500 facilitates easy loading and unloading, thanks to its 90° unloading angle.
Its robust design, together with the rubber tracked, provides excellent traction and stability, making this mini-dumper the perfect tool for construction or landscaping projects on uneven terrain.
| Engine | |
| Brand | Briggs & Stratton |
| Type | Gasoline, 4 stroke |
| Displacement | 306 cc |
| Power | 10 hp |
| Fuel tank capacity | 6.0 L |
| Transmission and hydraulics | |
| Pump type | Double gear pump |
| Hydraulic working pressure | 16 MPa |
| Flow rate | 36 L/min |
| Hydraulic oil tank capacity | 9.1 L |
| Performance | |
| Maximum speed | 4.9 km/h |
| Minimum speed | 2.5 km/h |
| Maximum gradeability | 30 % |
| Load capacity | 500 kg |
| Bucket capacity | 0.22 m³ |
| Dimensions and structure | |
| Operating weight | 350 kg |
| Discharge angle | 90º |
| Type of traction | Tracked rubber |
| Track length | 1120 mm |
| Track height | 275 mm |
| Wheelbase | 600 mm |
| Bucket height from ground | 665 mm |
| Overall width | 710 mm |
| Bucket front width | 440 mm |
| Rear bucket width | 650 mm |
| Armrest height | 840 mm |
| Control panel height | 970 mm |
| Ground clearance (platform) | 380 mm |
| Armrest spacing | 600 mm |
| Floor pressure | 15.04 kPa |
| Type of tensioning tracked | Screw adjustment |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
