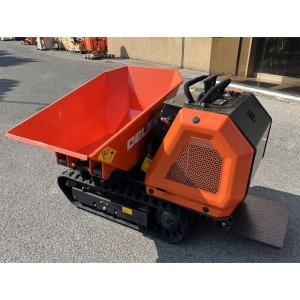

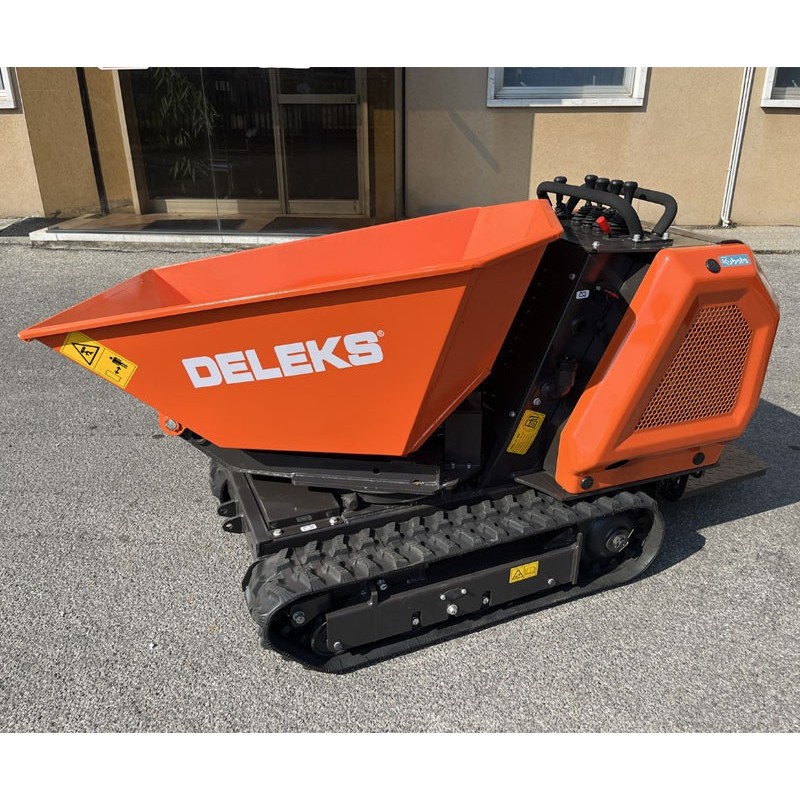

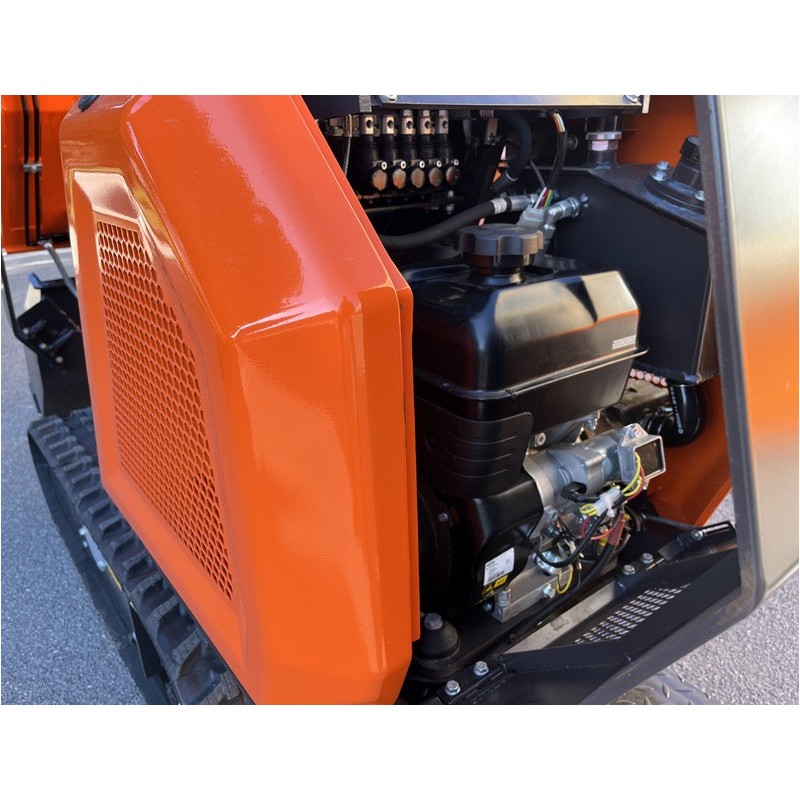

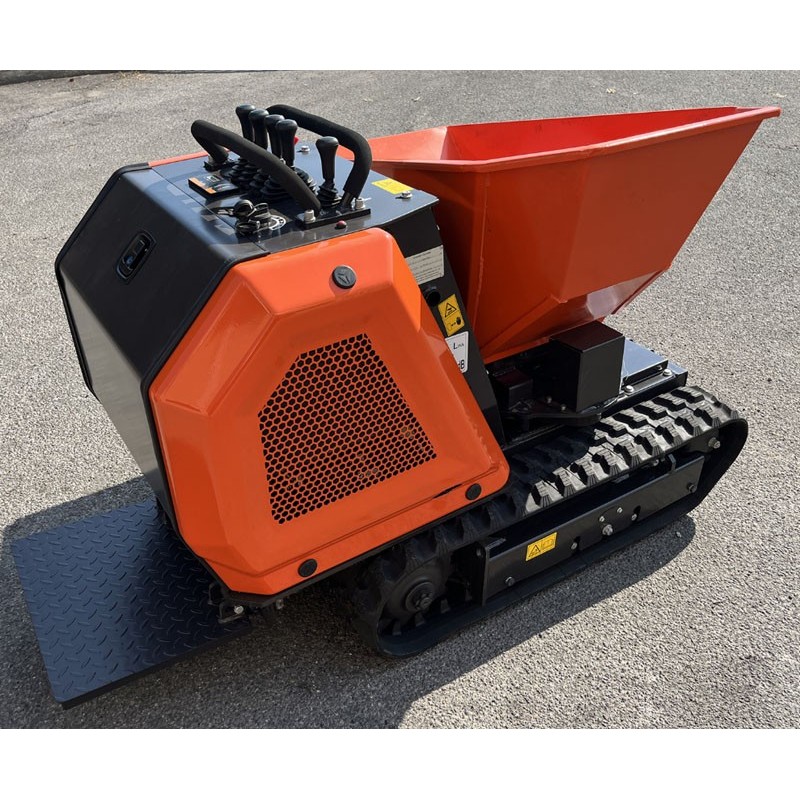

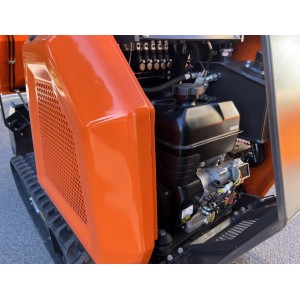

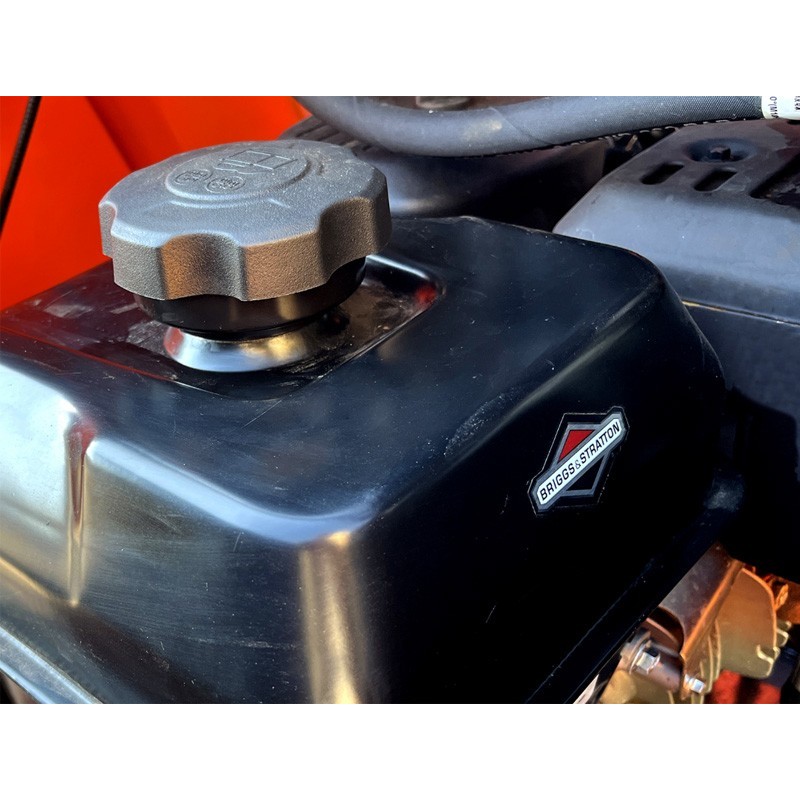

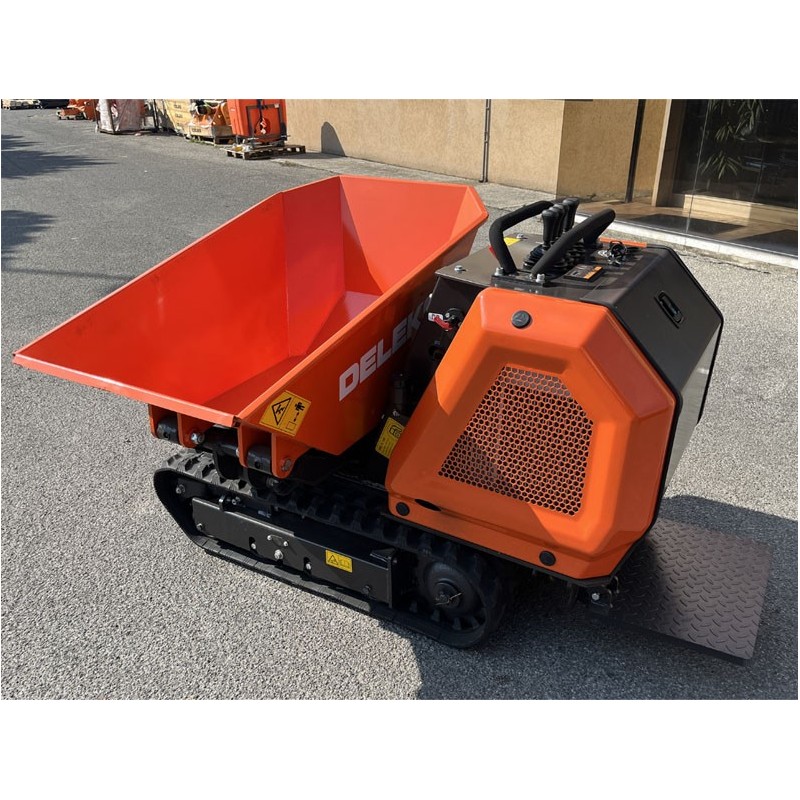

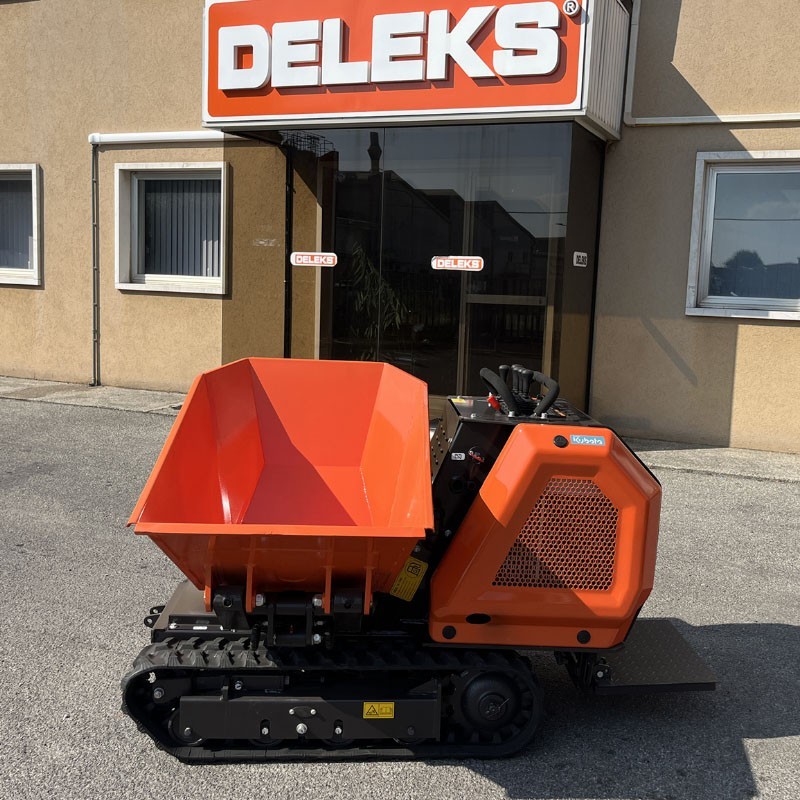

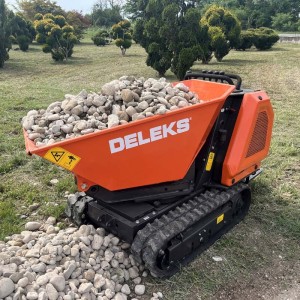

The Mini Dumper Deleks M8000R-BS is designed for maximum efficiency and versatility on demanding jobs. Equipped with a Briggs&Stratton XR2100 420cc, 13.5 HP engine, it ensures reliable and consistent power.

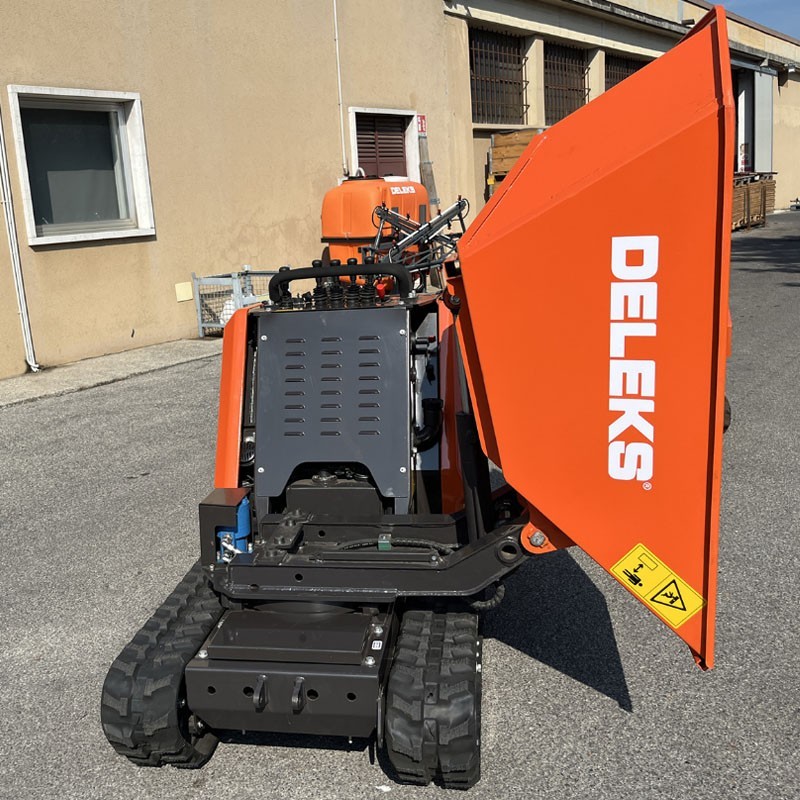

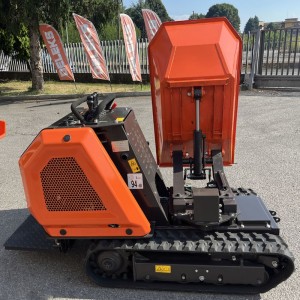

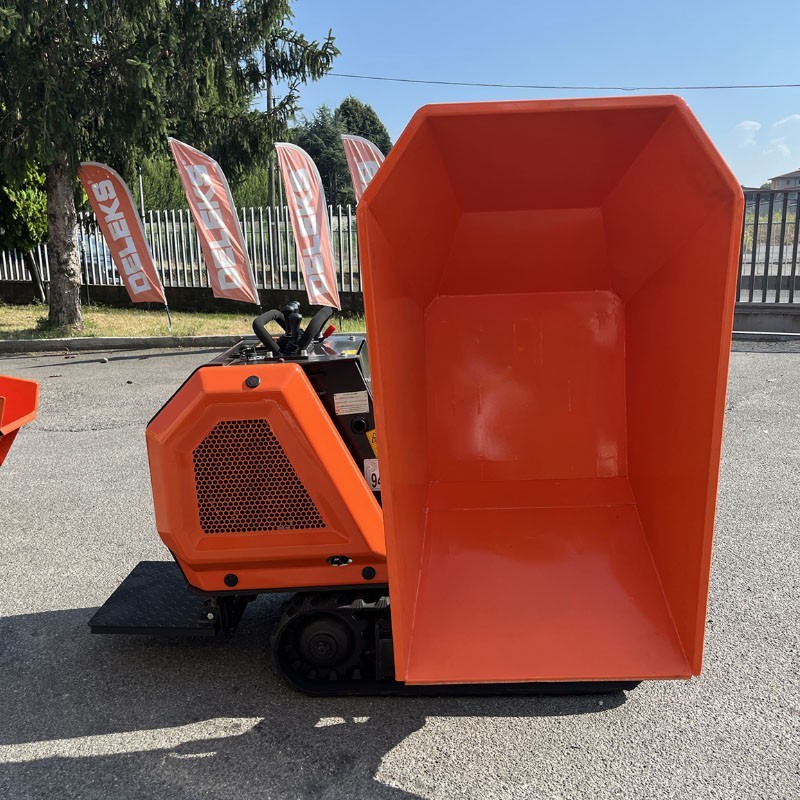

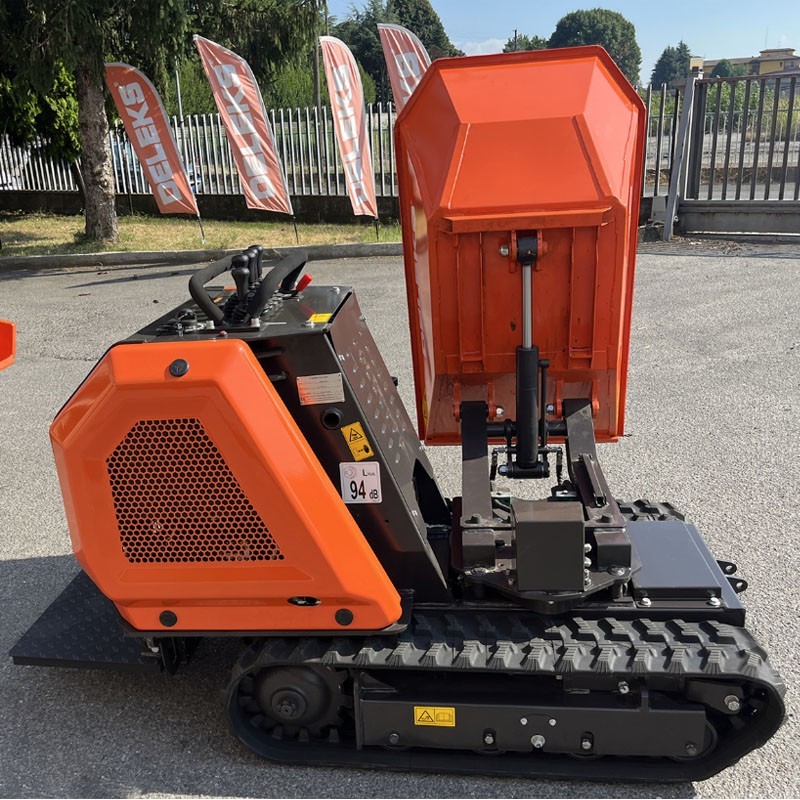

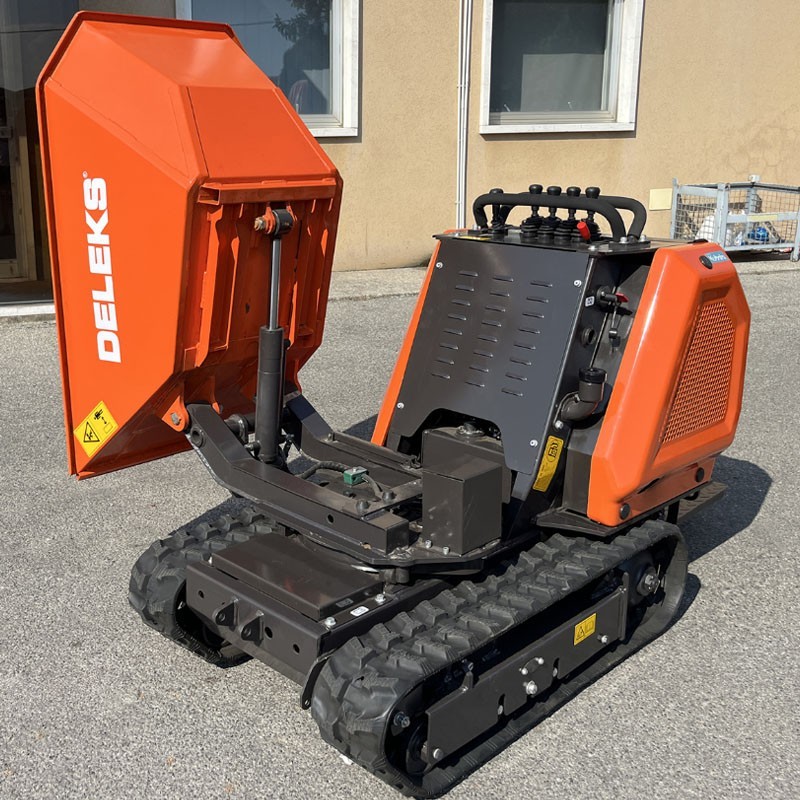

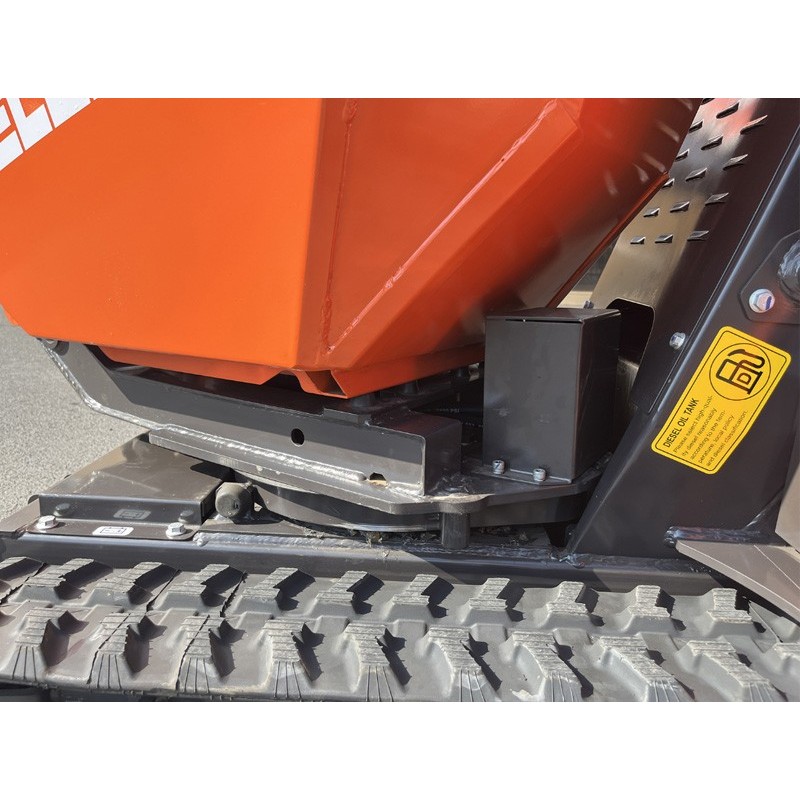

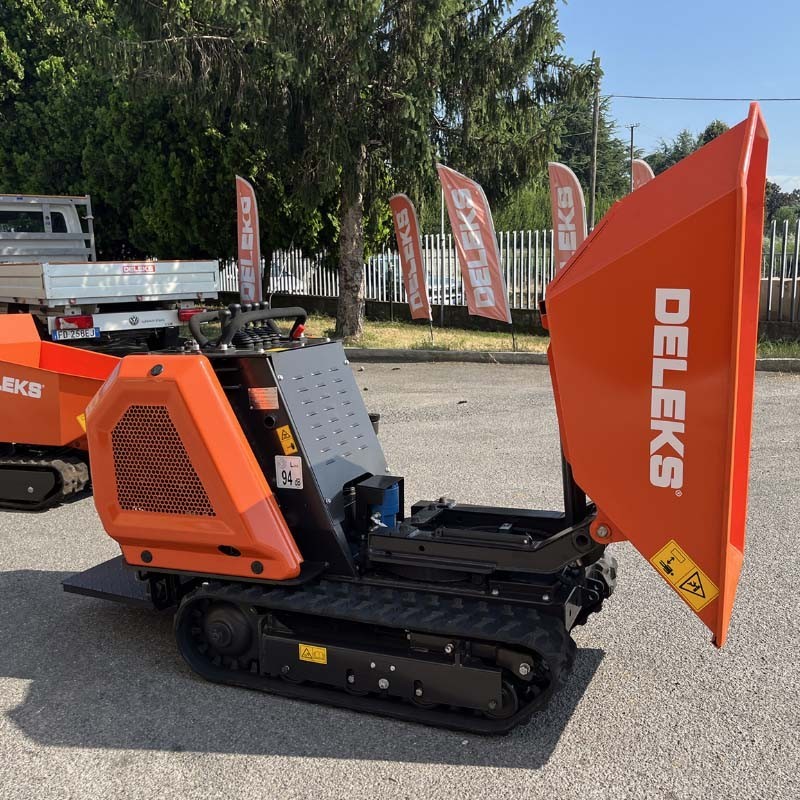

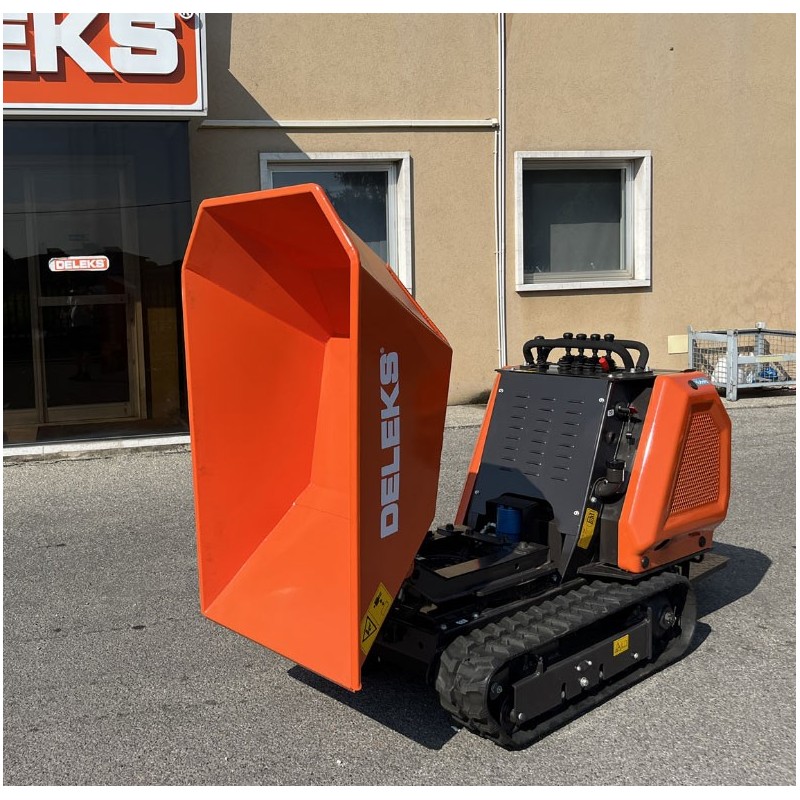

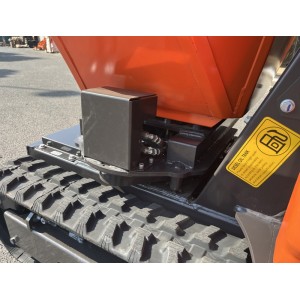

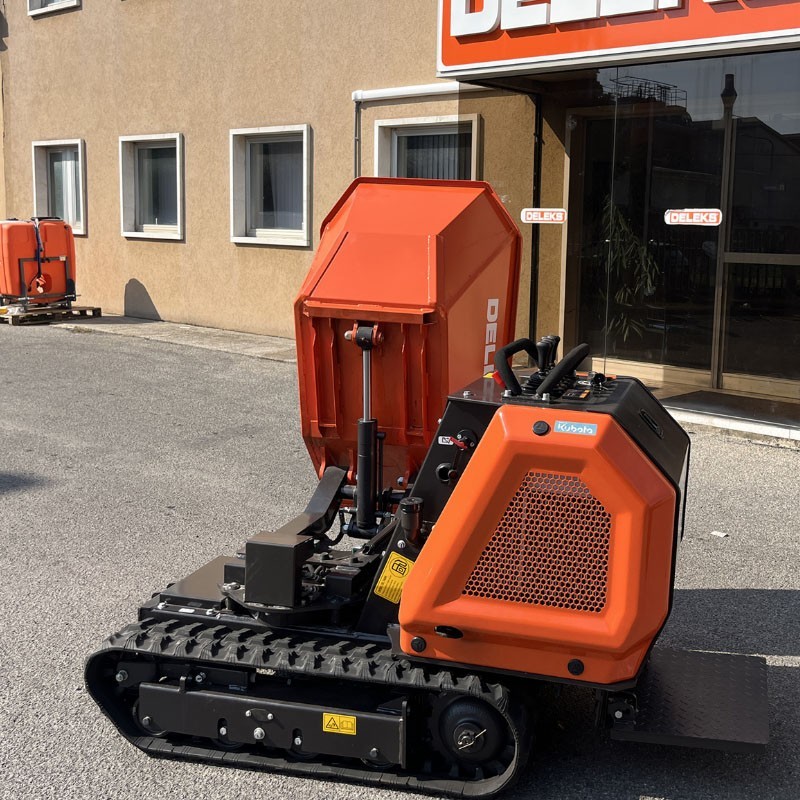

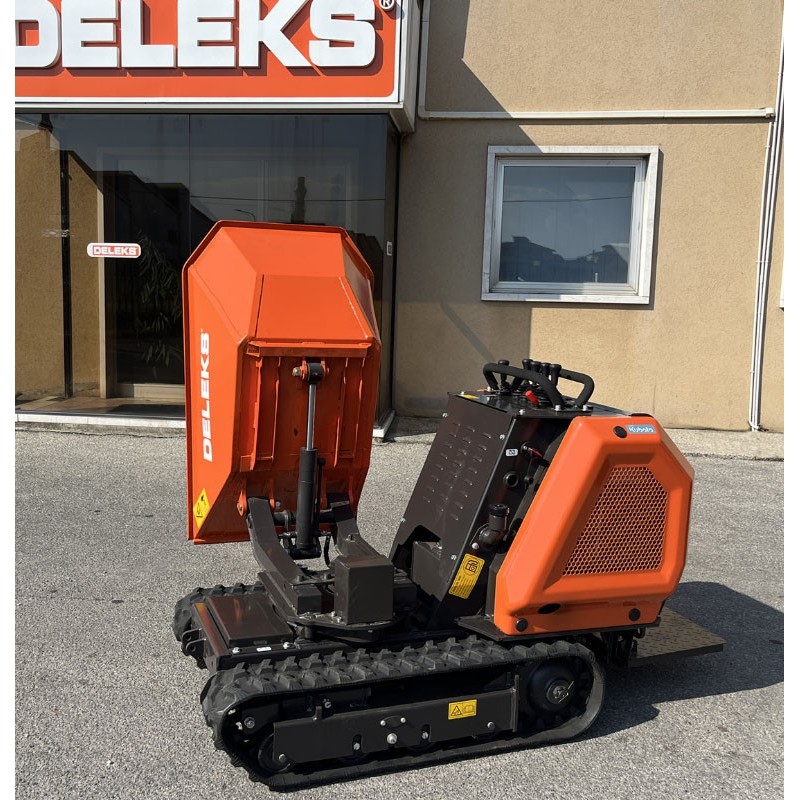

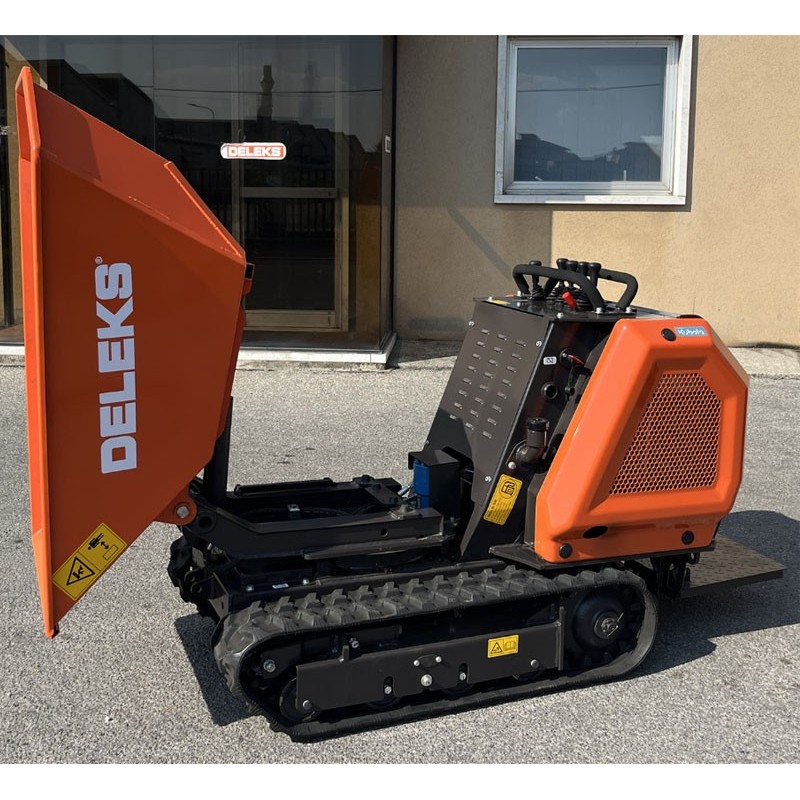

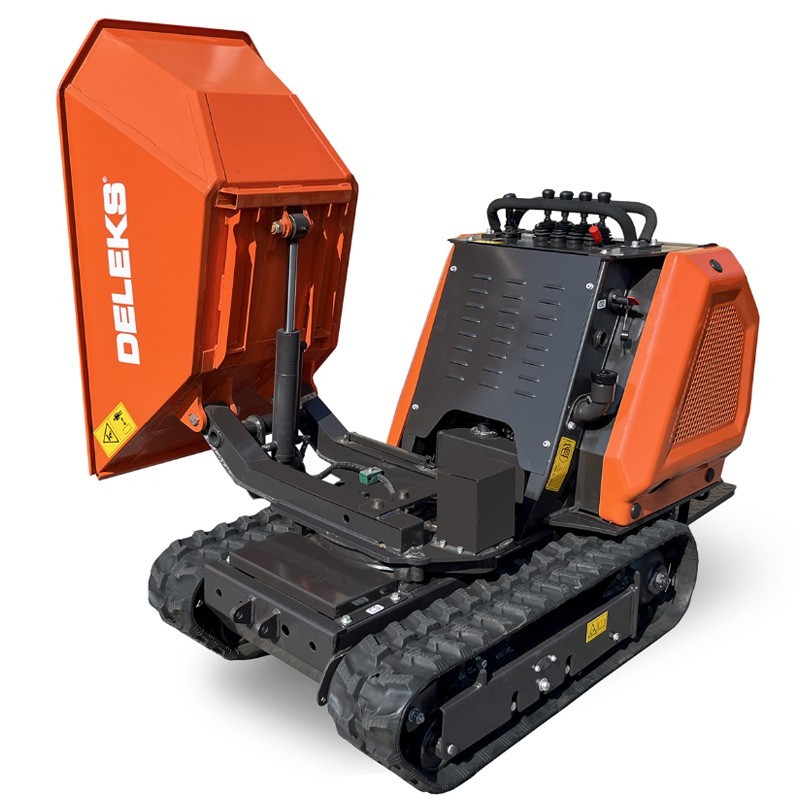

Its adjustable side dump system allows the load to be dumped at any angle between 90° to the left and 90° to the right, providing flexibility when handling materials in complex terrain.

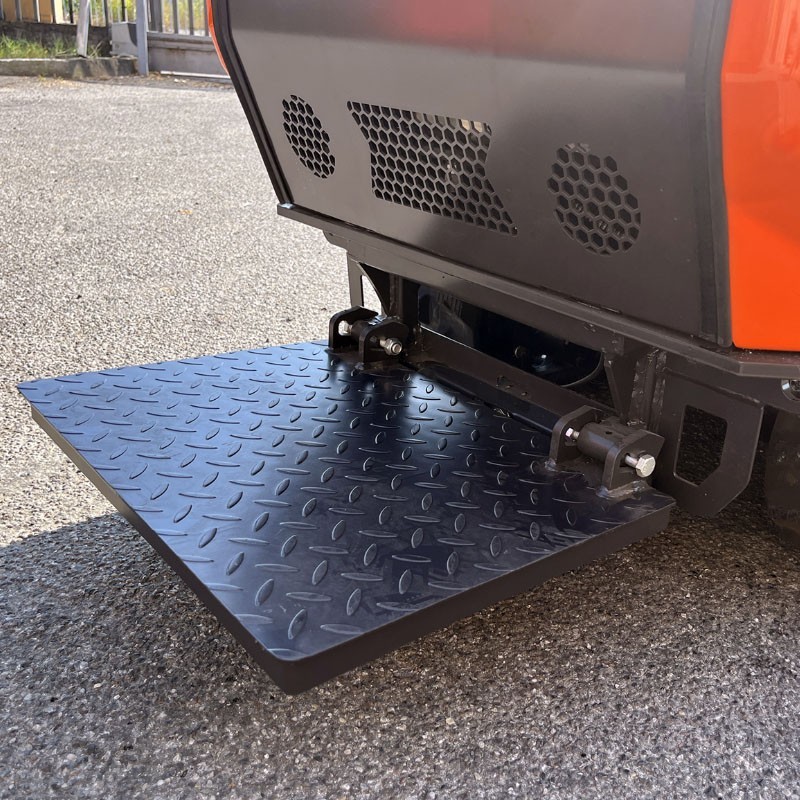

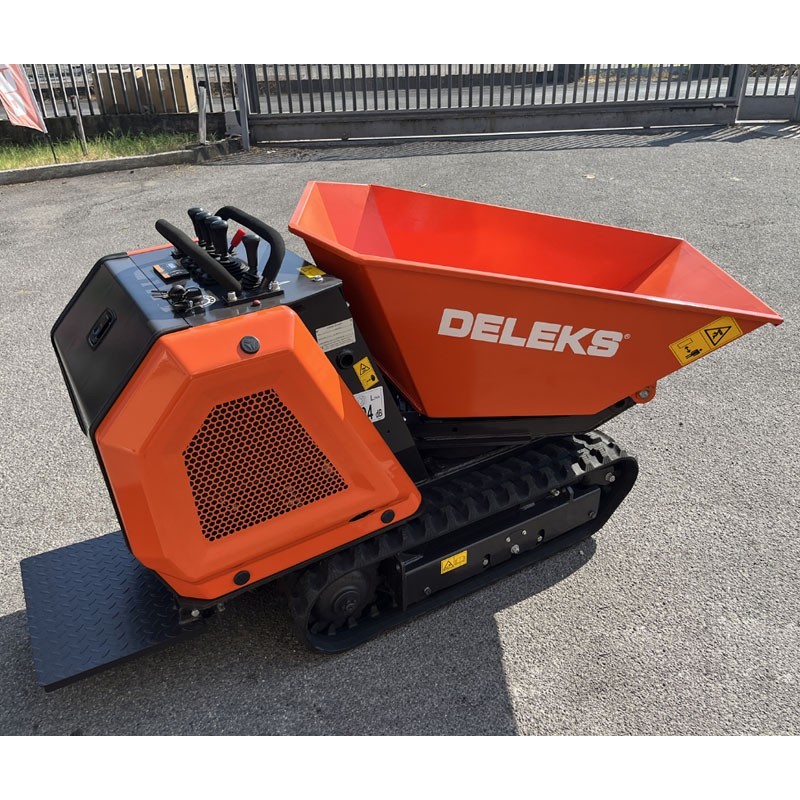

In addition, it incorporates an operator platform, enhancing comfort during extended use. The electric key start facilitates start-up, optimizing working time.

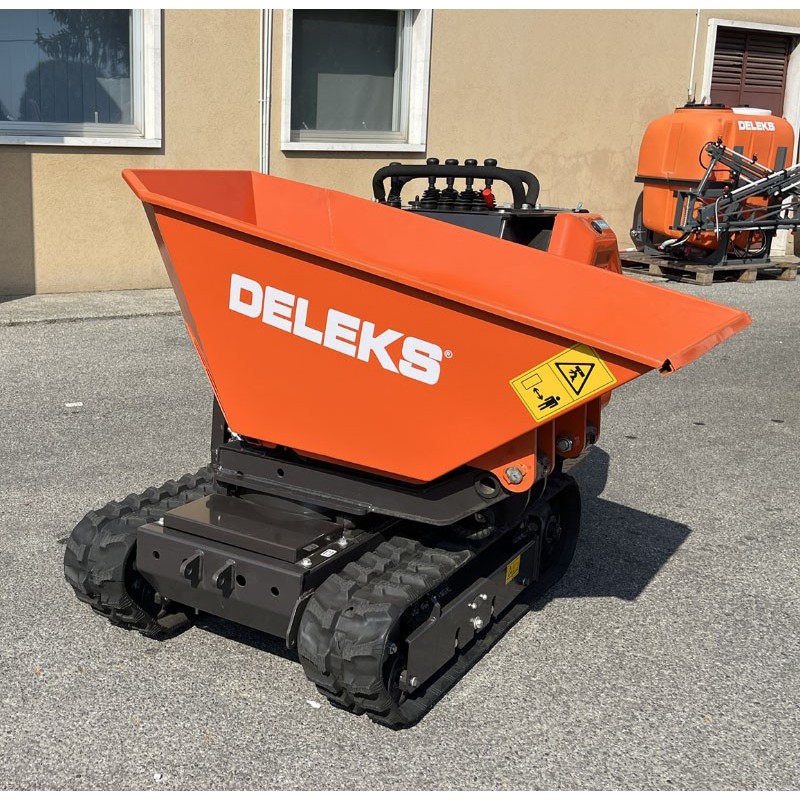

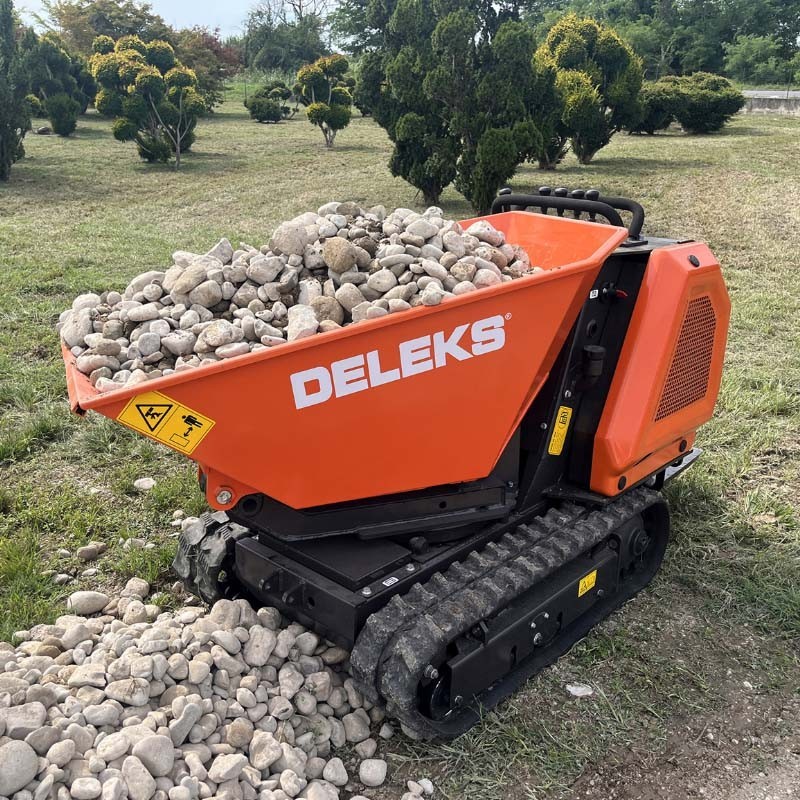

The reinforced box ensures durability and strength, ideal for transporting heavy loads on construction sites or difficult terrain.
| Overall width | 820.0 mm |
| Weight | 750.0 kg |
| Load capacity | 800.0 kg |
| Total length | 1795.0 mm |
| Tilting system | Hydraulic |
| Engine | Briggs&Stratton |
| Power | 13.5 HP |
| Displacement | 420 cc |
| Starter | Electric |
| Fuel consumption | 1 l/h |
| Packing dimension | 1800.0*900.0*1200.0 mm |
| Double speed | 2 - 4 km/h |
| Transmission | Hydrostatic |
| Engine model | XR2100 |
| Engine (additional details) | 13.5cv/10 kw at 3600 r/min (7.5kw at 3000 r/min) |
| Fuel | Gasoline |
| Drawer | Dumper type with 180° side discharge |
| Load capacity | 800 kg |
| Dumper | Hydraulic |

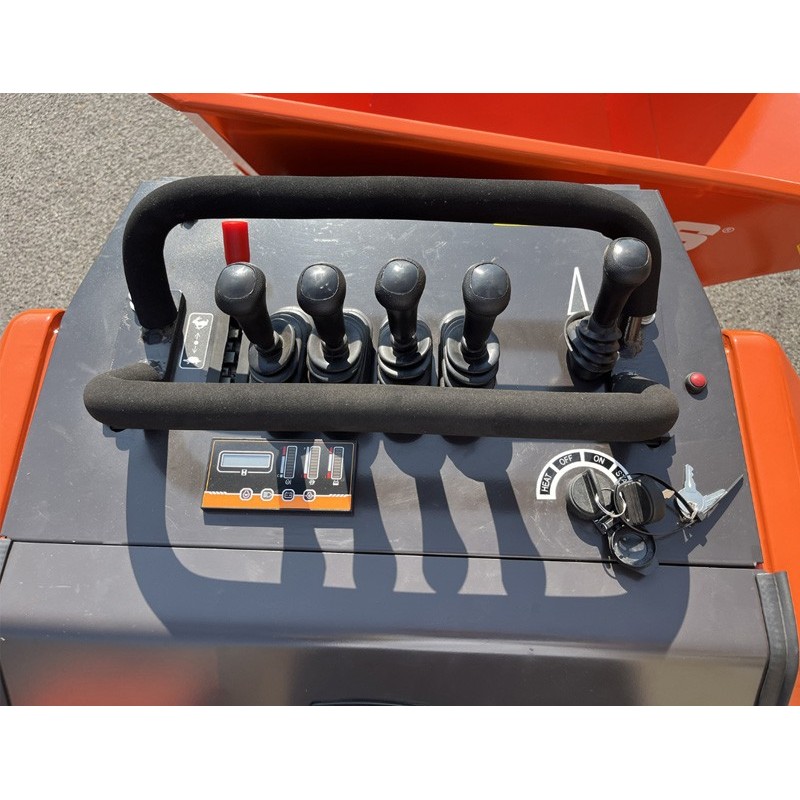

| Driving system | Lever controls |

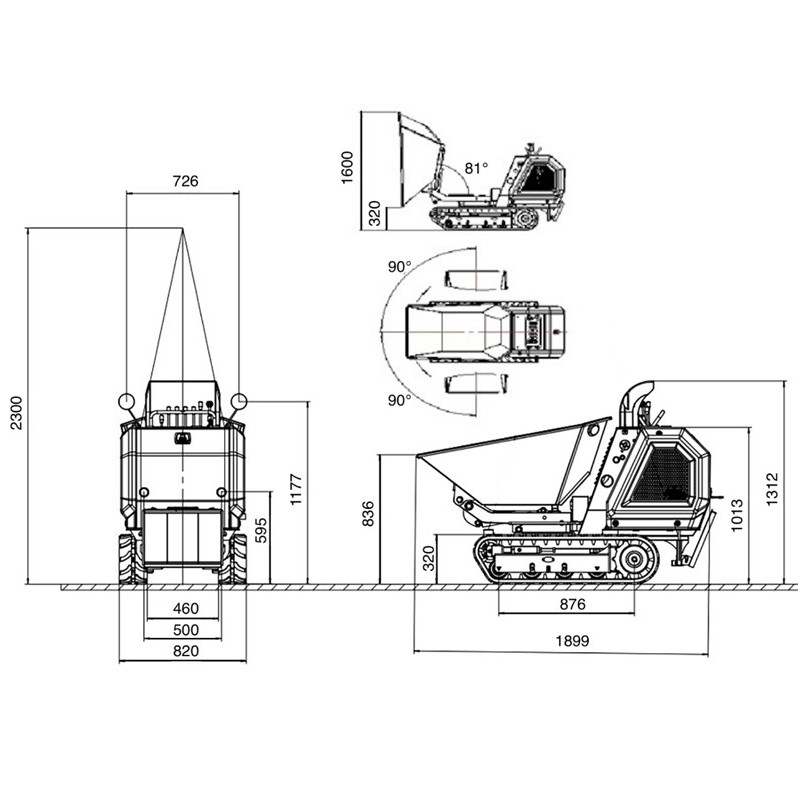

| Dimensions | See photos |
| Track width/length | 180 mm x 1200 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
