Mini Excavator KT10S PRO Koop Engine KD192F 920 kg
Mini Excavator KT10S PRO Koop Engine KD192F 920 kg
⚠️ Legal notice on copyright

The unauthorized use, copying or distribution of the information, images or links contained on this website constitutes a violation of intellectual property rights and will be prosecuted in accordance with the Law. If any improper use of any link or any type of data from our website is detected, legal action will be immediately initiated, as well as notification to the Spanish Data Protection Agency for the relevant purposes.

Mini Excavator KT10S PRO Koop Engine KD192F 920 kg


  • Operating weight: 920 kg | Engine: Koop KD192F Stage V (499 cc)
  • Max. digging depth: 1520 mm
  • Dimensions: 2976 x 840 x 2200 mm
  • Max. digging radius: 3125 mm
En stock
icon Power Supply
Power Supply
Diesel
icon Forklift Type
Forklift Type
From Tracked
icon Engine
Engine
KOOP
icon Engine model
Engine model
KD 192F
icon Power
Power
9.38 HP
icon Engine type
Engine type
4 times
icon Standard ladle
Standard ladle
40 cm
icon Operating weight
Operating weight
0,9 T
icon Excavator
Excavator
With roof
icon Cylinders
Cylinders
1
icon ✔️
✔️
Multifunction
icon Position of controls
Position of controls
Front joysticks
icon Weight
Weight
920 Kg
€11,022.96 excl. VAT
€13,337.78 VAT incl.
Finance your purchase with Pago Aplazame
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Mini Excavator KT10S PRO Koop Engine KD192F 920 kg
€13,337.78
Qty

Mini Excavator KT10S PRO Koop KD192F Engine

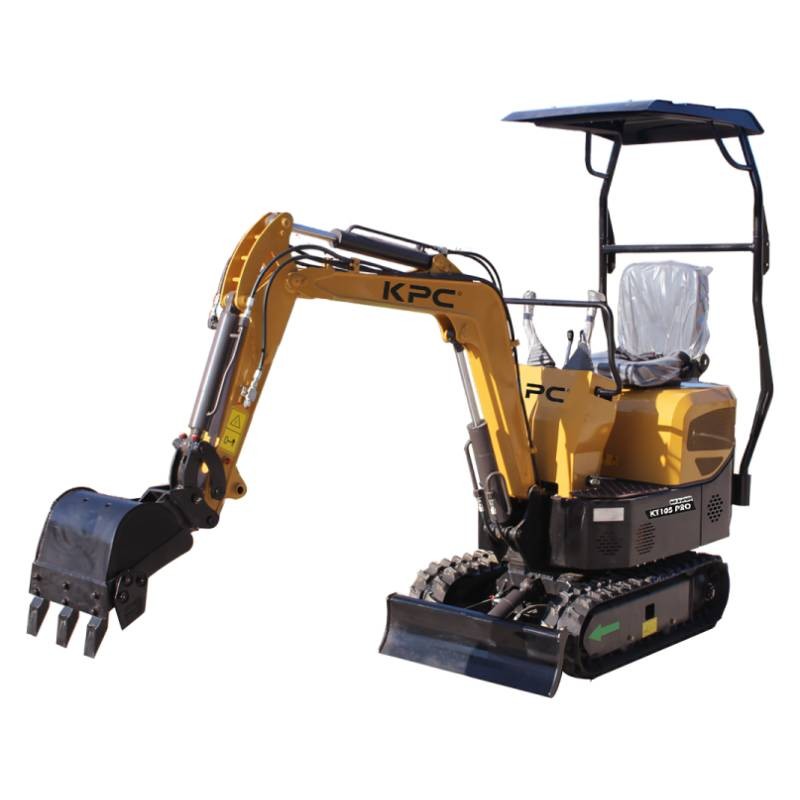

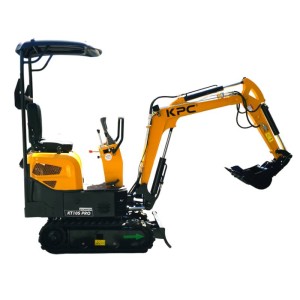

The KT10S PRO Mini Excavator is a high-performance professional machine designed to perform excavation, demolition and trench cleaning jobs with exceptional agility. With a total weight of 920 kg and a width of only 840 mm, this excavator is the perfect solution for operating in tight areas, building interiors or hard-to-reach gardens, where flexibility is as important as power.

At its core is a robust 499 cc Koop KD192F Stage V engine, which complies with the most stringent EU emissions regulations. Its advanced hydraulic system, equipped with hydraulic piston motors for travel and slewing, allows a drilling depth of up to 1520 mm and a dump height of 1715 mm. In addition, the boom features a deflection angle of up to 70°, facilitating lateral work without the need to constantly reposition the machine.

The KT10S PRO stands out for its durability, incorporating tracked, a 180 mm rubber and steel mix that ensures superior traction on any surface. It includes an 840 mm leveling blade with optimized lifting capacity and a quick coupling system for accessories such as hammers, augers or clamps. With a minimum turning radius of 1595 mm, this mini excavator establishes itself as the most flexible and efficient tool for contractors and green space maintenance experts.

Technical Specifications

Model KT10S PRO
Model / Type KOOP KD192F Stage V (diesel)
Displacement 499 cc
Rated power 7.0 kW
Fuel tank 7 L
Total operating weight 920 kg
Max. digging depth 1520 mm
Max. digging radius 3125 mm
Max. dump height 1715 mm
Standard bucket 0.022 m³ (400 mm)
Pump type Gear pump
Motors (swing / drive) Hydraulic piston motor
Leveling depth 260 mm
Travel speed 1.9 km/h
Boom swing speed 13 rpm
Deflection angle (left/right) 50° / 70°
Maximum slope 15º
Overall dimensions 2976 x 840 x 2200 mm
Track width 180 mm (rubber and steel)
Ground clearance 385 mm
Leveler (width / height) 840 mm / 226 mm
Lift (up/down) 340 mm


Main dimensions

A - Track wheel 900 mm
B - Overall length of undercarriage 1233 mm
C - Distance between the platform and the ground 385 mm
D - Distance between the tail of the platform and the ground 815 mm
E - Chassis width 840 mm
F - Width over the tracked 180 mm
H - Height over the tracked 324 mm
I - Transport length 2976 mm
J - Overall height (cab) 1495 mm
Angle of deviation left / right 50° / 70°
Dimensiones principales KT10S PRO

Operating dimensions

A - Maximum digging radius above ground 3125 mm
B - Maximum digging depth 1520 mm
C - Maximum drilling height 2585 mm
D - Maximum discharge height 1715 mm
F - Minimum turning radius 1595 mm
G - Maximum dozer blade lift height 340 mm
H - Dozer blade maximum drilling depth 260 mm
Total weight of the machine 920 kg
Standard bucket capacity 0.022 m³
Rated power 7.0 kw
Dimensiones operativas KT10S PRO
