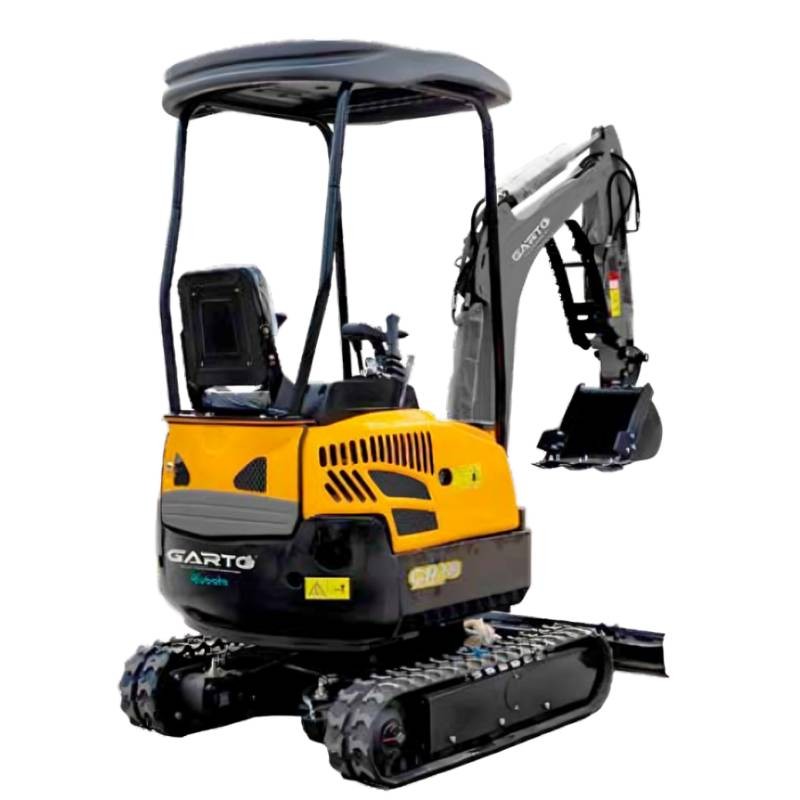

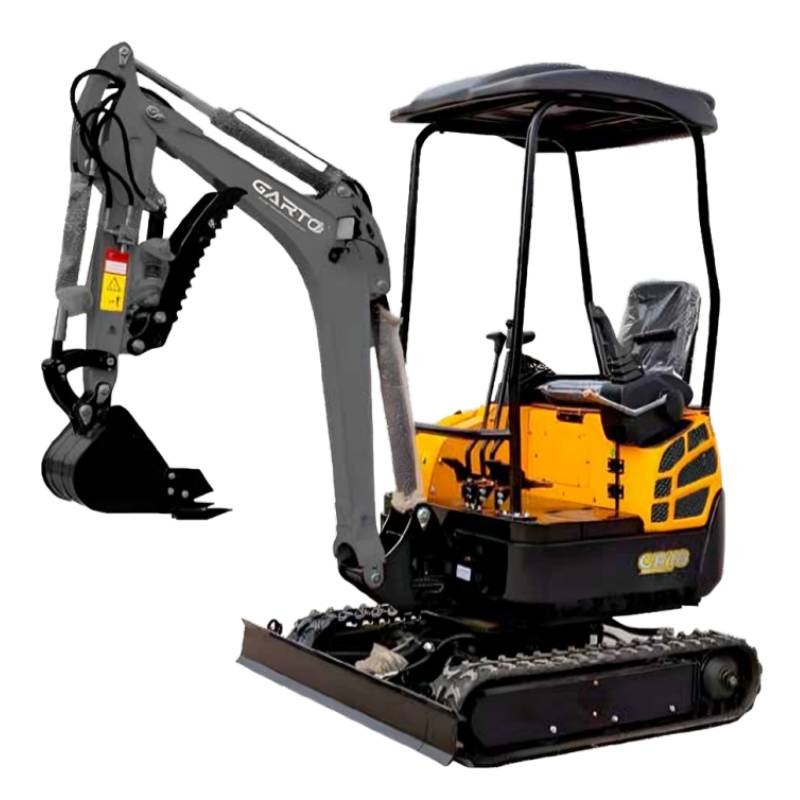

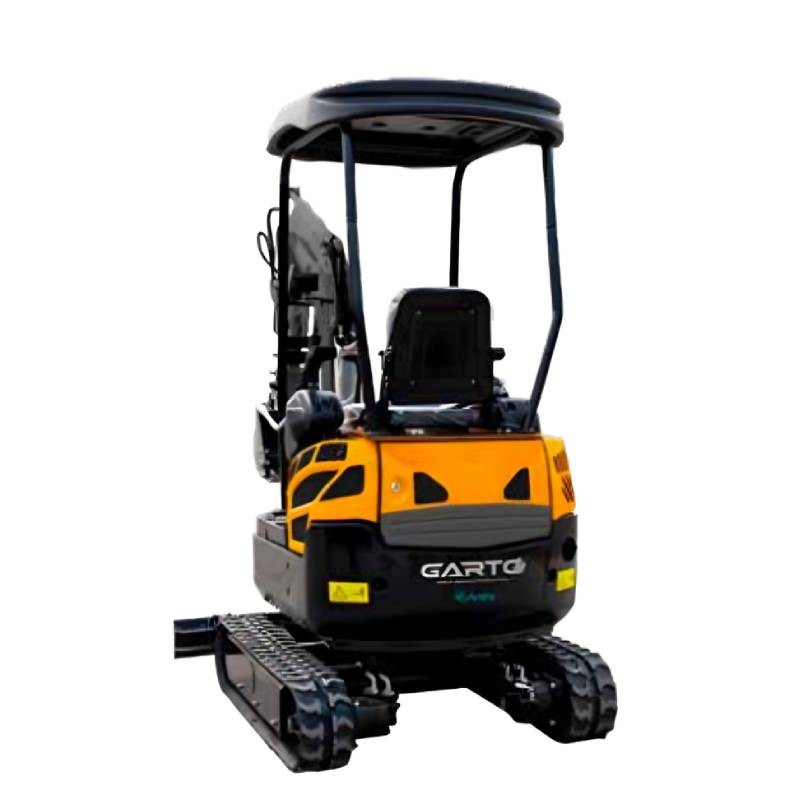

The GARTO GAR-18 is a mini excavator designed for more advanced jobs that require greater stability, power and precision. With an operating weight of 1650 kg, it features joystick control, which improves maneuverability and significantly reduces operator fatigue over long working days.
It is equipped with the reliable KUBOTA D902 three-cylinder EURO5 engine, offering professional performance and fuel efficiency. It includes an auxiliary hydraulic output for the connection of attachments such as a hydraulic drill, as well as a front leveling blade for stabilization and finishing work. As an option, it can incorporate offset boom foot and extendable tracks, increasing its versatility in confined spaces.

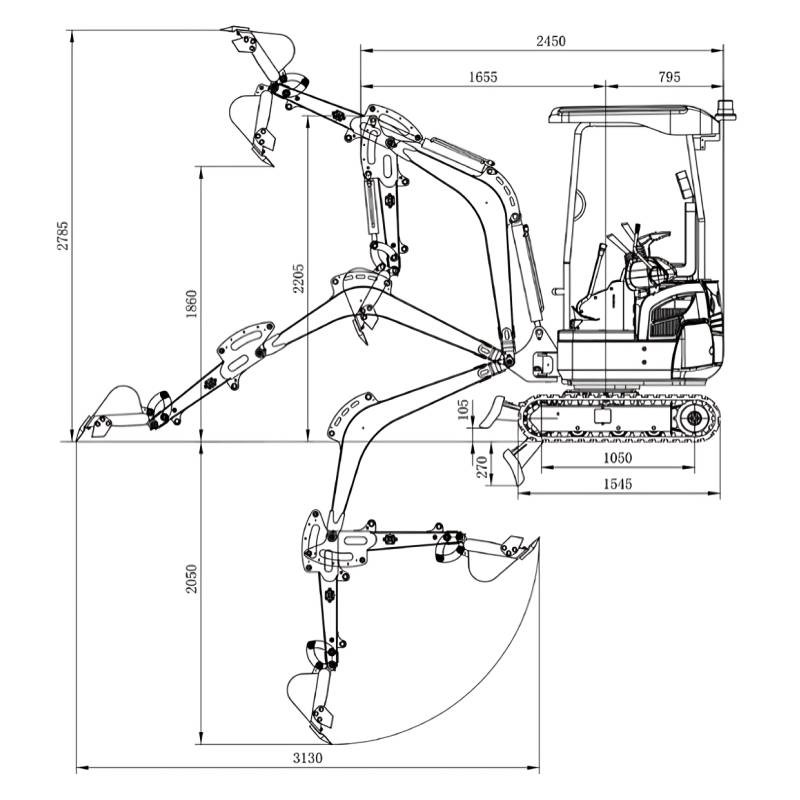

With a digging capacity of up to 2150 mm deep and a maximum radius of 3560 mm, the GAR-18 is a powerful and compact solution for construction, installation and landscaping professionals who need precision in every movement.
| Model | GAR-18 | |
| Engine | KUBOTA D902 | |
| Type | Diesel, 3 cylinders | |
| Standards Standard | EURO5 | |
| Control | Joysticks | |
| Auxiliary hydraulic output | Yes | |
| Options | Offset arm foot / Extendable track | |
| Operating weight | 1650 kg | |

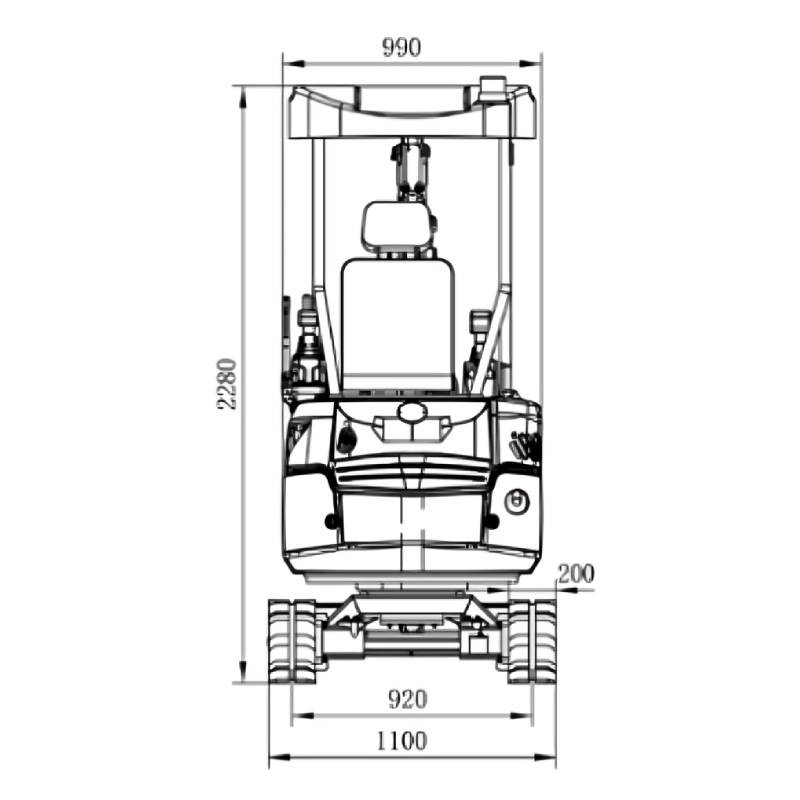

| Chassis width | 1110 mm | |
| Track width | 230 mm | |
| Track height | 320 mm | |
| Track length | 1130 mm | |
| Total length of tracks | 1450 mm | |
| Platform height | 437 mm | |
| Platform length | 790 mm | |
| Transport length | 3160 mm | |
| Total height without roof | 1637 mm | |
| Total height with roof | 2377 mm | |
| Maximum digging length | 3470 mm | |
| Maximum digging radius | 3560 mm | |
| Maximum digging depth | 2150 mm | |
| Maximum vertical depth | 1740 mm | |
| Maximum lift height | 3275 mm | |
| Maximum discharge height | 2310 mm | |
| Minimum turning radius | 1440 mm | |
| Maximum blade height | 262 mm | |
| Maximum blade depth | 192 mm | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
