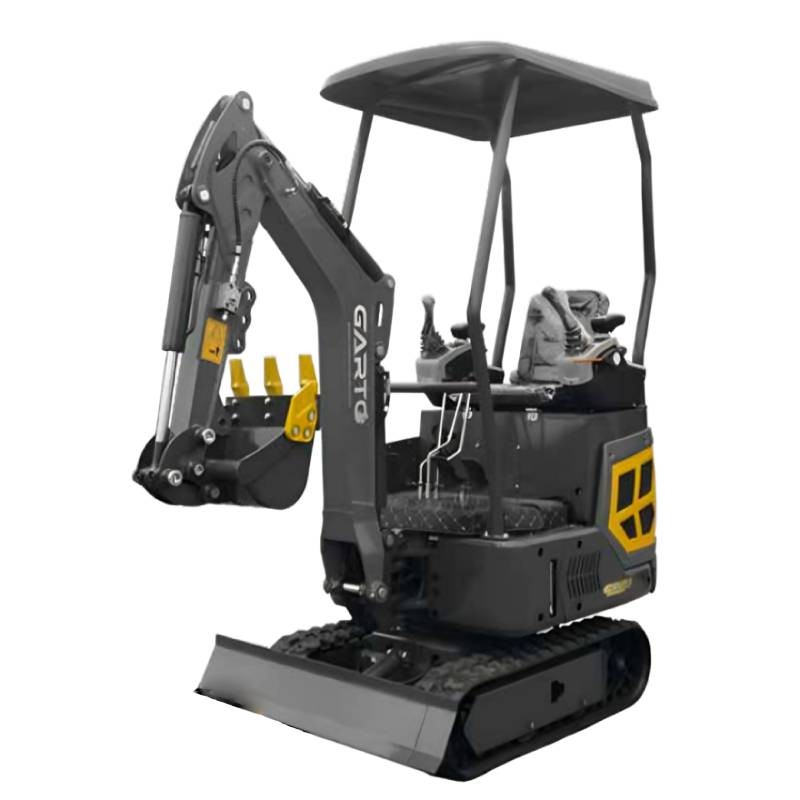

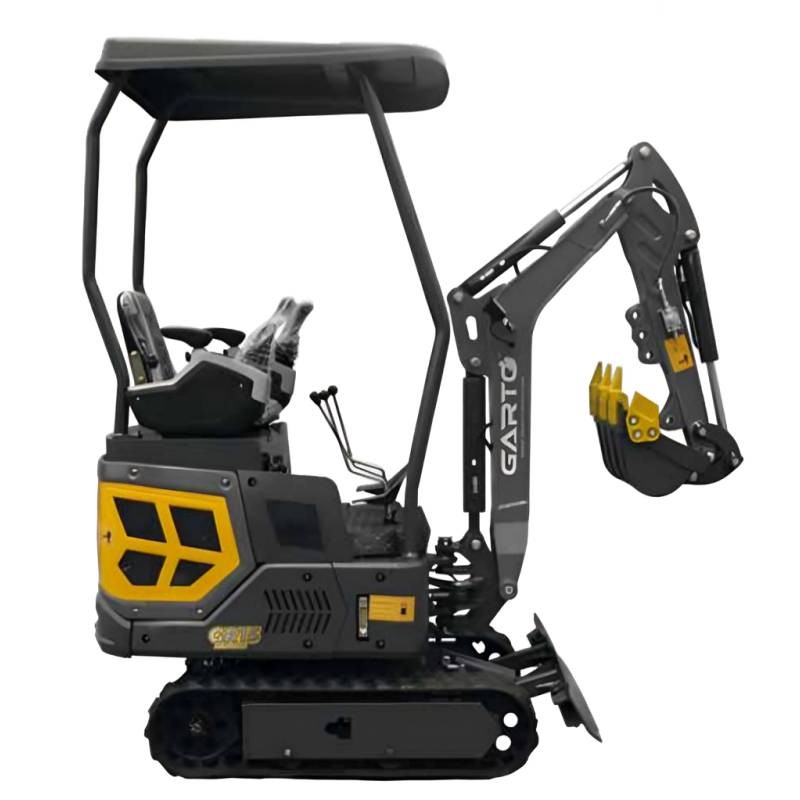

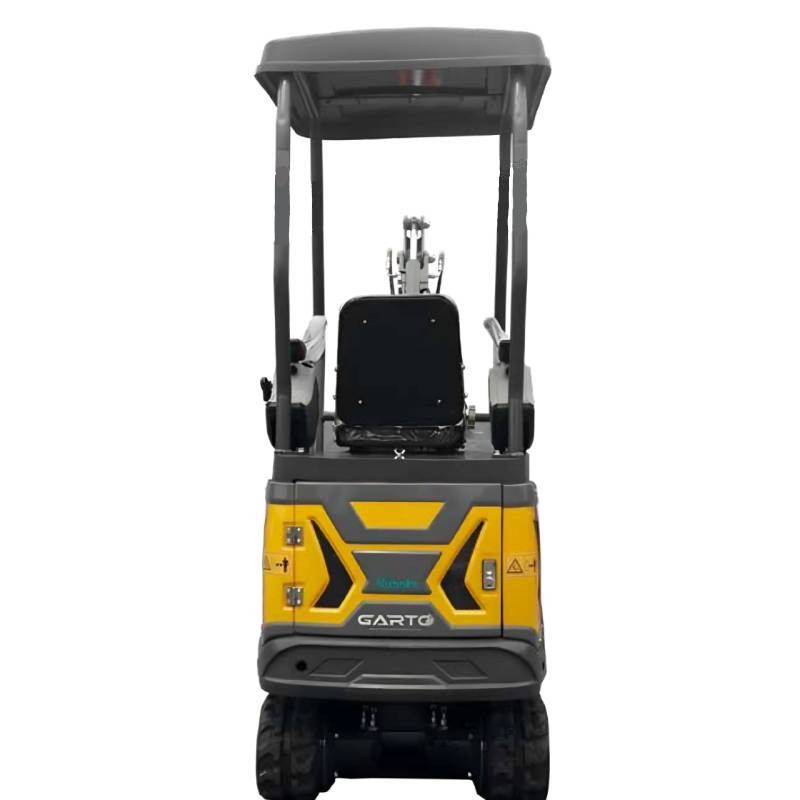

The GARTO GAR-15 is a mini excavator designed for demanding jobs that require more power and stability. With an operating weight of 1450 kg and equipped with the renowned KUBOTA D902 three-cylinder EURO5 engine, it offers superior performance in deeper excavations and demanding load movements. Its two-speed system improves maneuverability and optimizes site travel.
Thanks to its KDK hydraulic pump, the GAR-15 reaches a digging capacity of 400 kg at the bucket end, providing strength and precision in every movement. It also incorporates an auxiliary hydraulic output, allowing the connection of attachments such as a drill or hydraulic hammer (BRH), significantly expanding its professional applications.
In terms of safety and control, it has a reinforced roof, battery disconnect for emergencies and a digital display that shows engine temperature and fuel level. Its front leveling blade improves stability during work and facilitates ground finishing and leveling tasks.
| Model | GAR-15 | |
| Engine Model | KUBOTA D902 | |
| Type | Diesel, 3-cylinder | |
| Standards | EURO5 | |
| Speeds | 2 | |
| Weight | 1450 Kg | |
| Bucket capacity | 0,025 m³ | |
| Digging capacity | 400 kg | |
| Max. digging depth | 1750 mm | |
| Max. digging height | 3060 mm | |
| Max. unloading height | 1950 mm | |
| Max. digging radius | 3040 mm | |

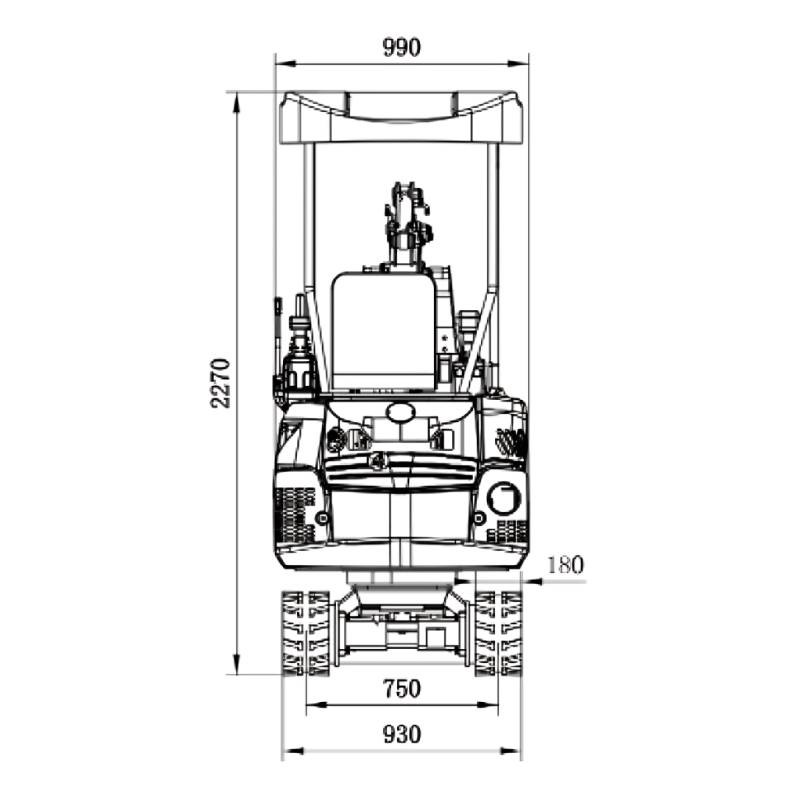

| Transport length | 2100 mm | |
| Transport width | 947 mm | |
| Transport height (with roof) | 2200 mm | |
| Bucket width | 400 mm | |
| Clear height of upper plate | 390 mm | |
| Lift capacity | 35 % | |
| Ground pressure | 32 kPa | |
| Auxiliary hydraulic output | Yes | |
| Front leveling blade | Yes | |
| Digital display | Temperature + fuel | |
| Reinforced roof | Yes | |
| Battery disconnect | Yes | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
