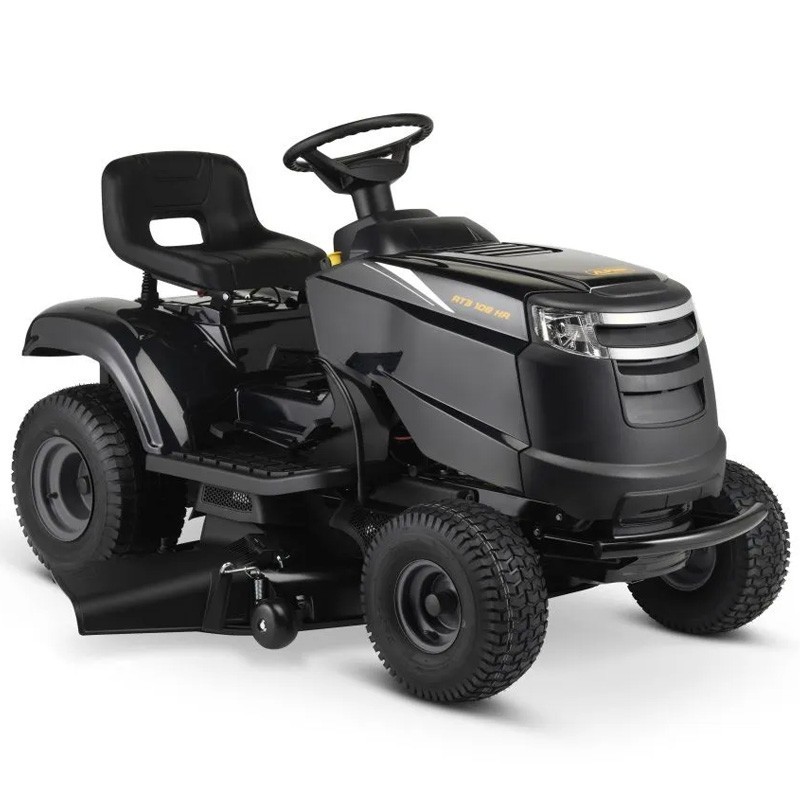

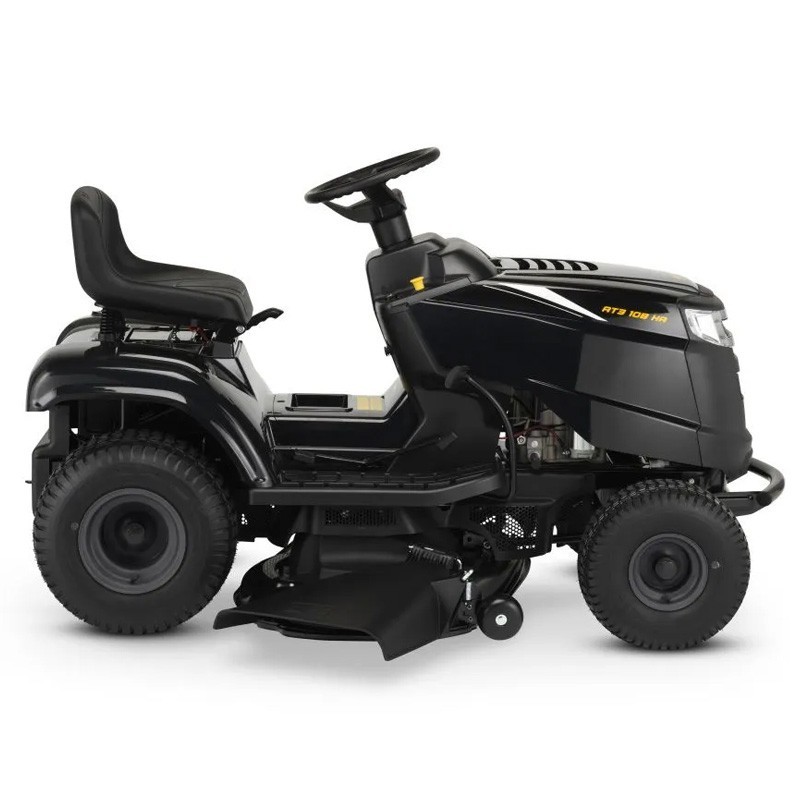

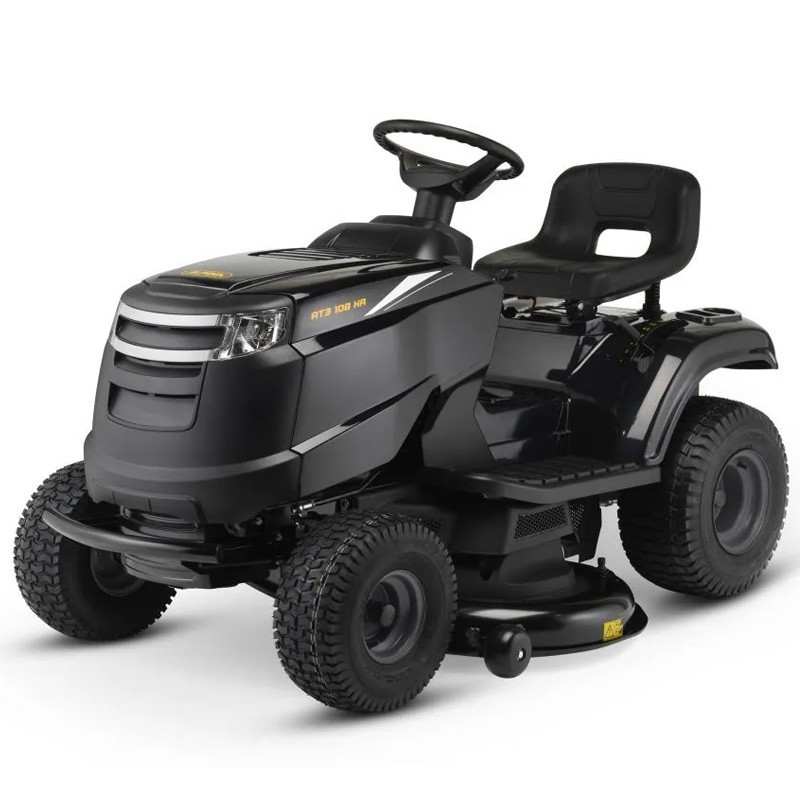

The Alpina mower tractor is the perfect solution for managing lawns of up to 6,500 m² up to 6,500 m² with efficiency and precision. Equipped with a robust ST 450 single-cylinder engine of 432 cc of STIGA and a pedal-operated hydrostatic transmission, this tractor offers superior performance and easy speed management.
The platform of 108 cm cut and the funnel of side discharge ensure a clean, even cut, while the optional mulching kit provides additional versatility.
| Power | |
|---|---|
| Battery capacity | 18 Ah |
| Power | 7.5 kW |
| Source of power Supply | Gasoline |
| Engine make | STIGA |
| Engine model | ST 450 Powered by STIGA |
| Displacement | 432 cm³ |
| Motor rotation speed | 2800 rpm |
| Battery voltage | 12 V |
| Choke (air) | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 6 l |
| Suggested work area | 6000 ㎡ |
| Cutting system | |
| Minimum radius without cutoff | 65 cm |
| Cutting width | 108 cm |
| Backward cut | Yes |
| Blade rotation | Asynchronous |
| Cutting height adjustment | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting heights | 25 - 80 mm |
| Number of blades | 2 |
| Blade type | Mulching |
| Additional cutting method | Mulching |
| Type of blade coupling | Electric |
| Guiding system | |
| Traction | Rear-wheel drive |
| Transmission | |
| Method of transmission | By pedal |
| Transmission | Hydrostatics |
| Team | |
| Flyer | Alpina ergonomic |
| Seat type | Alpina smart with low back support |
| Seat adjustment | Screws |
| Dashboard | No |
| Front wheel size | 15x6.00-6 |
| Rear wheel size | 18x8.50-8 |
| Hour meter | No |
| Headlights | Conventional |
| Cruising speed | No |
| Bumper | Yes |
| Water union pipe | Yes |
| Glove compartment | Yes |
| Cup holder | Yes |
| Oscillating front axle | Yes |
| Blade protection wheels | 2 |
| Safety system | Seat with safety switch |
| Tool kit | |
| Mulching kit | Optional |
| Battery charger | Optional |
| Trailer hitch kit | Optional |
| Vibration and noise power data | |
| Sound power level (LwA) - dB(A) | 100 |
| Maximum vibration of driver's seat (m/s2 ) | 1.2 |
| Maximum flywheel vibration (m/s2) | 3 |
| Measured sound power level dB(A) | 99 |
| Measured sound power level at the operator's ear dB(A) | 87 |
| Overall dimension | |
| Packing weight | 207.7 kg |
| Product length | 1726 mm |
| Product width | 1315 mm |
| Product height | 1100 mm |
| Weight | 169 kg |
