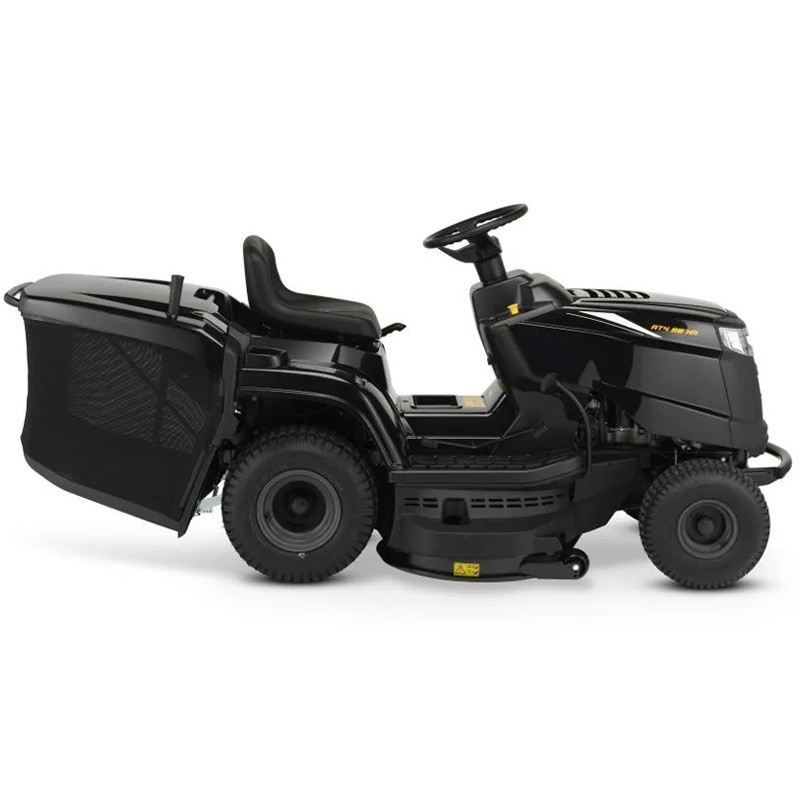

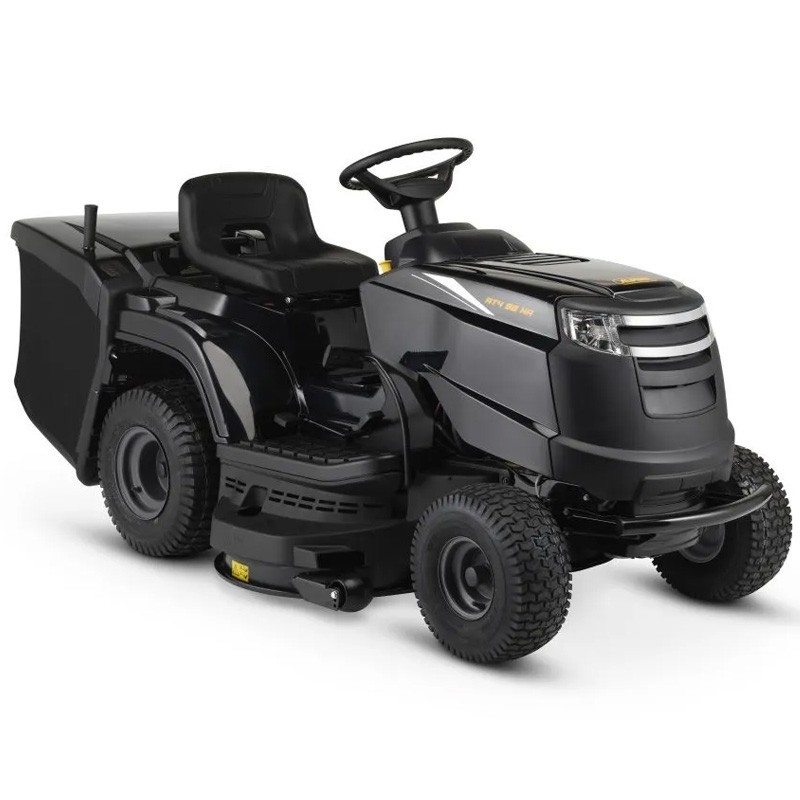

Discover the exceptional performance of the lawn tractor equipped with a powerful 432 cc STIGA engine, guaranteeing durability and efficiency in every lawn maintenance task. With a generous 98 cm cutting width, this mower offers wide and efficient coverage, reducing labor time and improving productivity.
Experience effortless control with its hydrostatic foot pedal transmission, allowing intuitive speed adjustments to adapt to any terrain with precision and comfort. Plus, its ability to recycle clippings into mulching or store them in a 240-liter collector offers versatility and convenience in lawn maintenance.
Enjoy an optimal driving experience with an ergonomic seat and steering wheel designed for comfort during long work sessions. With a focus on superior quality, the mower tractor combines exceptional performance with unsurpassed comfort, ensuring flawless results with every use.
| Power | |
|---|---|
| Battery capacity | 18 Ah |
| Power | 7.2 kW |
| Fuel source power Supply | Gasoline |
| Engine brand | STIGA |
| Engine Model | ST 450 Powered by STIGA |
| Displacement | 432 cubic centimeters |
| Engine rotation speed | 2600 rpm |
| Battery voltage | 12 V |
| Choke (air) | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 6 l |
| Suggested working area | 4500 ㎡ |
| Cutting system | |
| Cutting width | 98 cm |
| Minimum radius without cutting: | 70 cm |
| Cutting backwards: | Yes |
| Blade rotation: | Asynchronous |
| Cutting height adjustment: | Manual with lever |
| Cutting height positions: | 7 positions |
| Cutting heights: | 25 - 80 mm |
| Number of blades: | 2 |
| Additional cutting method: | Rear discharge, Mulching |
| Type of blade coupling: | Electric |
| Transmission | |
| Transmission method: | Foot pedal |
| Transmission: | Hydrostatic |
| Equipment | |
| Picker emptying: | Manual |

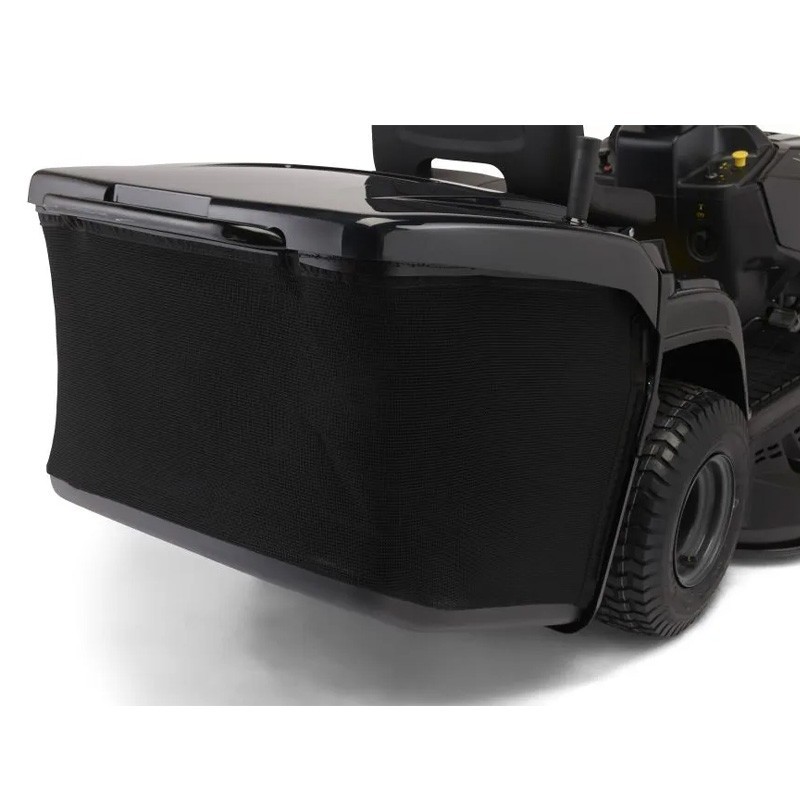

| Collector capacity: | 240 l |
| Handwheel: | Alpina ergonomic |
| Seat type: | Alpina smart with low back support |
| Front wheel size: | 15x6.00-6 |
| Rear wheel size: | 18x8.50-8 |
| Front swing axle: | Yes |
| Blade protection wheels: | 2 |
| Safety system: | Seat with safety switch |
| Tool kit: | Mulching kit (Optional) |
| Trailer hitch kit: | Optional |
| Vibration and sound power data | |
| Sound power level (LwA) - db(A): | 100 |
| Maximum driver's seat vibration (m/s2): | 0.7 |
| Maximum vibration of steering wheel (m/s2): | 8.2 |
| Measured sound power level dB(A): | 100 |
| Measured sound power level at operator's ear dB(A): | 86 |
| Overall dimension | |
| Weight: | 204 kg |
| Packing weight: | 243.5 kg |
| Product length: | 2338 mm |
| Product width: | 1020 mm |
| Product height: | 1100 mm |
