Discover the exceptional performance of the lawn tractor Stiga, a powerful machine designed to deliver flawless results with every cut! With an impressive power of 12.6 kW and a battery capacity of 18 Ah, this gasoline lawnmower features the reliability of the Kawasaki engine with displacement and an engine rotation speed of 2500 rpm.
The versatility of this lawn tractor Stiga is reflected in its wide suggested work area of 7000 m², providing an efficient cut in large areas. Its cutting system, with a cutting width of 102 cm and the ability to cut backwards ensures complete coverage. The synchronization and manual adjustment of the cutting height, with 7 adjustable positions from 30 to 90 mm, allow you to adapt to the specific needs of your lawn.
Equipped with 2 blades, this lawnmower Stiga goes further by offering additional cutting methods such as the Rear discharge and Multiclip mulching, ensuring optimal care for your lawn. The electric blade coupling facilitates control, while the traction guidance system and hydrostatic transmission ensure smooth and efficient handling.
With additional features such as the manual choke, air-cooled engine, and 8-liter fuel tank, this lawn tractor Stiga stands out as a reliable and powerful choice. Discover the comfort of adjustment with manual height regulation and the safety provided by the synchronized cutting system.
| Category | Value |
|---|---|
| Power | 12.6 kW |
| Battery capacity | 18 Ah |
| Source of power Supply | Gasoline |
| Engine brand | Honda |
| Engine model | GXV 630 |
| Displacement | 688 cm³ |
| Motor rotation speed | 2500 rpm |
| Battery voltage | 12 V |
| Air choke | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 8 l |
| Suggested work area | 7000 sqm |
| Cutting system | |
| Minimum radius without cut | 96 cm |

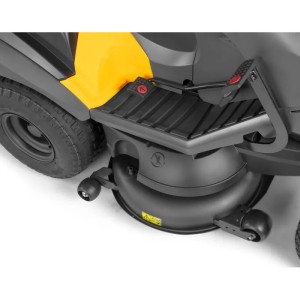

| Cutting width | 102 cm |
| Back cut | Yes |
| Blade rotation | Synchronized |
| Cutting height regulation | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting heights | 30 - 90 mm |
| Number of blades | 2 |
| Additional cutting method | Rear discharge, Multiclip mulching |
| Blade coupling type | Electric |
| Guidance system | Traction |
| Transmission | |
| Transmission | Hydrostatics |
| Transmission method | By pedal |
| Team | |
| Emptying the dustpan | Manual |
| Dustpan capacity | 320 l |
| Steering wheel | STIGA premium with soft grip |
| Type of seat | STIGA comfort plus with armrests |
| Seat adjustment | Simple lever |

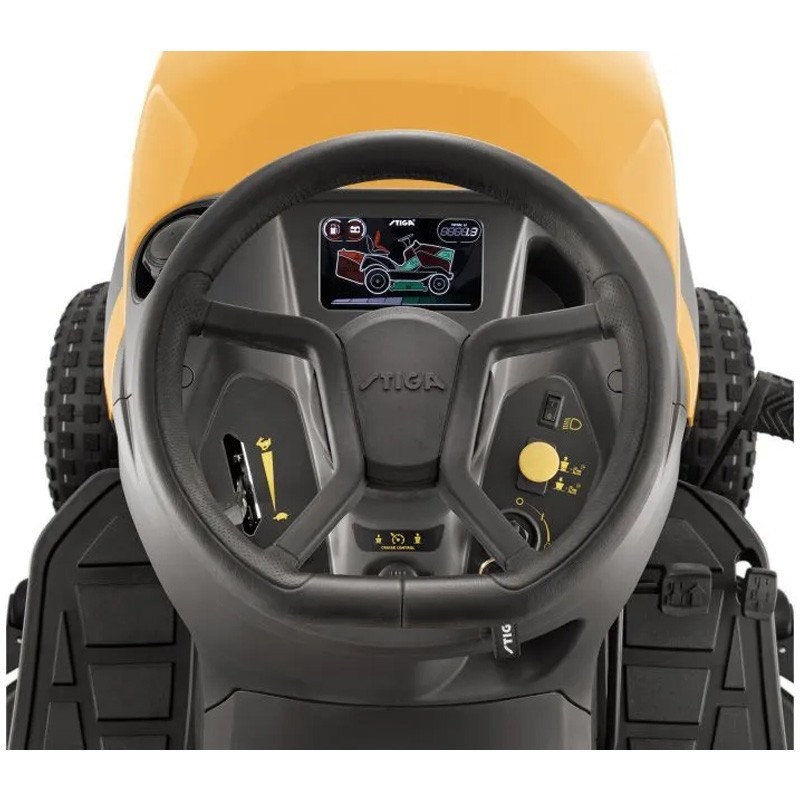

| Dashboard | Yes, with a large wide screen |
| Front wheel size | 15x6.00-6 |
| Rear wheel size | 18x8.50-8 |
| Time counter | Yes - on screen |
| Lighthouses | LED - Advanced |
| Cruise speed | Yes |
| Cast iron front axle | Yes |
| Bumper | Yes |
| Water union tube | Yes |
| Type of dustpan | Fabric |
| Glove compartment | Yes |
| Coaster | Yes |
| Swing front axle | Yes |
| Blade guard wheels | 4 |
| Security system | |
| Seat | with safety switch |
| Tool kit | |
| Mulching kit | Optional |
| Battery charger | Optional |
| Trailer hitch kit | Optional |
| Vibration and noise power data | |
| Sound power level (LwA) - dB(A) | 100 |
| Sound power level measured at the operator's ear dB(A) | 84 |
| Maximum steering wheel vibration (m/s²) | 4 |
| Maximum vibration of the driver's seat (m/s²) | 1 |
| Measured sound power level dB(A) | 100 |
| Total dimension | |
| Packaging weight | 309 kg |
| Product length | 2550 mm |
| Product width | 1060 mm |
| Product height | 1310 mm |
| Weight | 251 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
