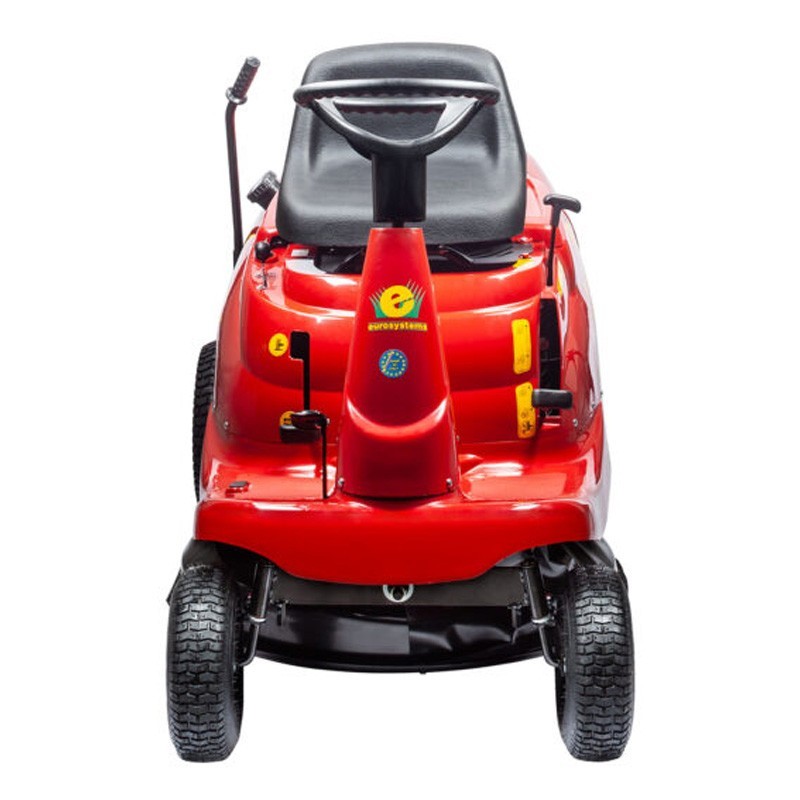

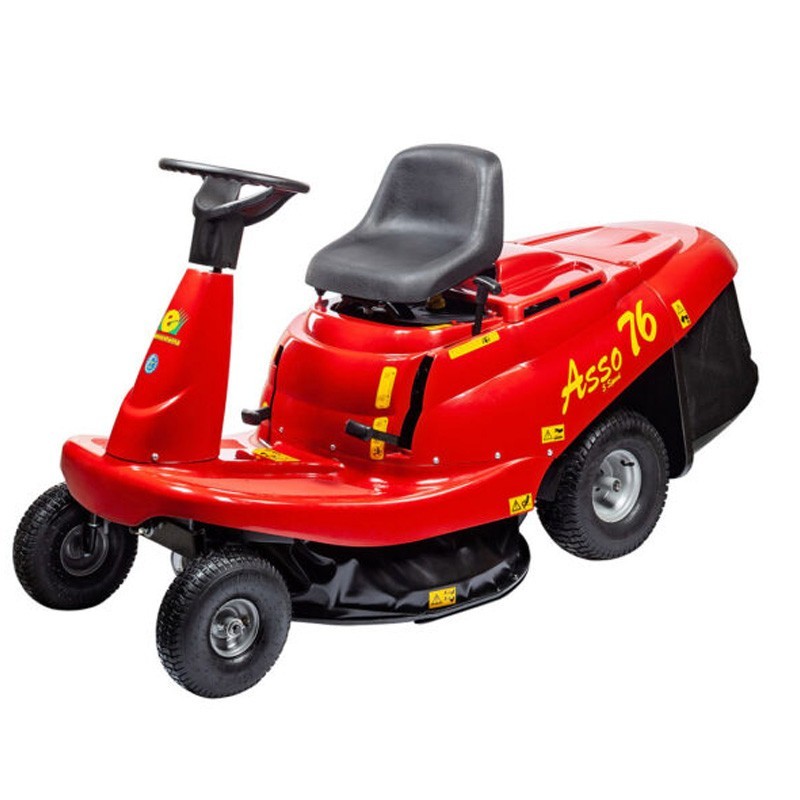

Riding lawn mower Eurosystems ASSO 76, equipped with a powerful engine 13 HP Briggs & Stratton gasoline engine! The perfect economical and compact option for the average user, with a 76 cm deck and a generous 150-liter rear collector, this lawn tractor is ideal for keeping gardens and small to medium-sized areas, up to 3,000 m², in pristine condition!

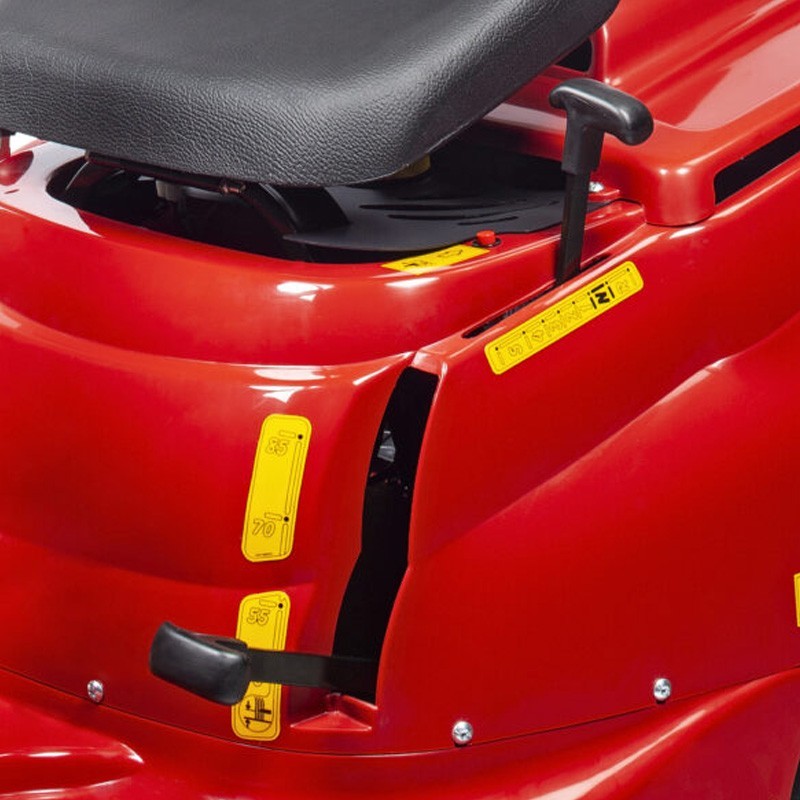

Your rear mechanical transmission with differential and its 5 speeds (more one reverse) make this lawnmower a gem for open spaces with few obstacles, offering speeds from 1.9 to 7.7 km/h. The blade width of 76 cm cut The width can be adjusted in 4 different settings, with cutting heights of 4±8.5 cm to suit your specific needs.

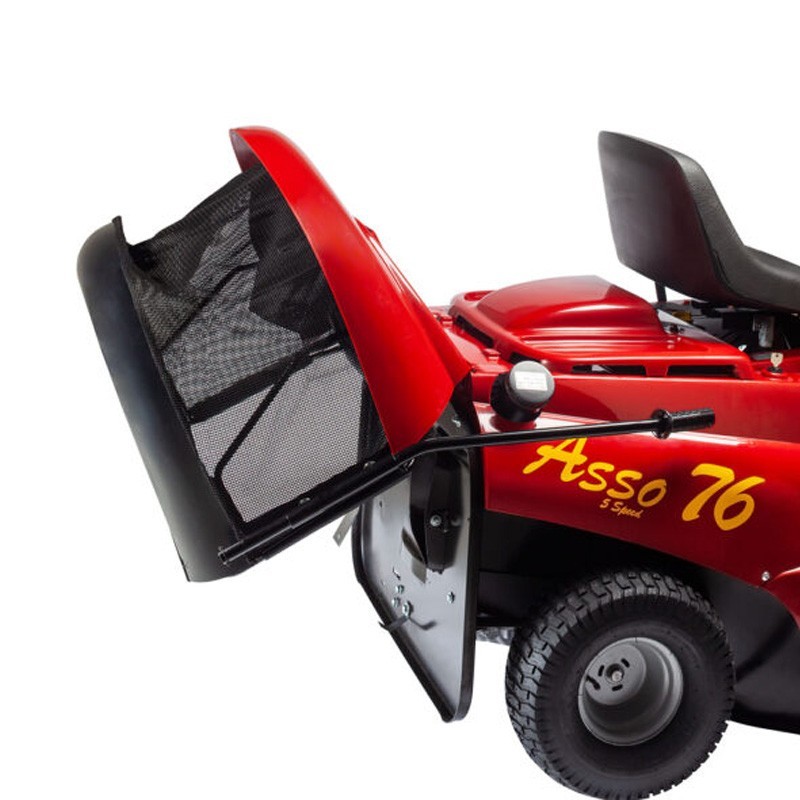

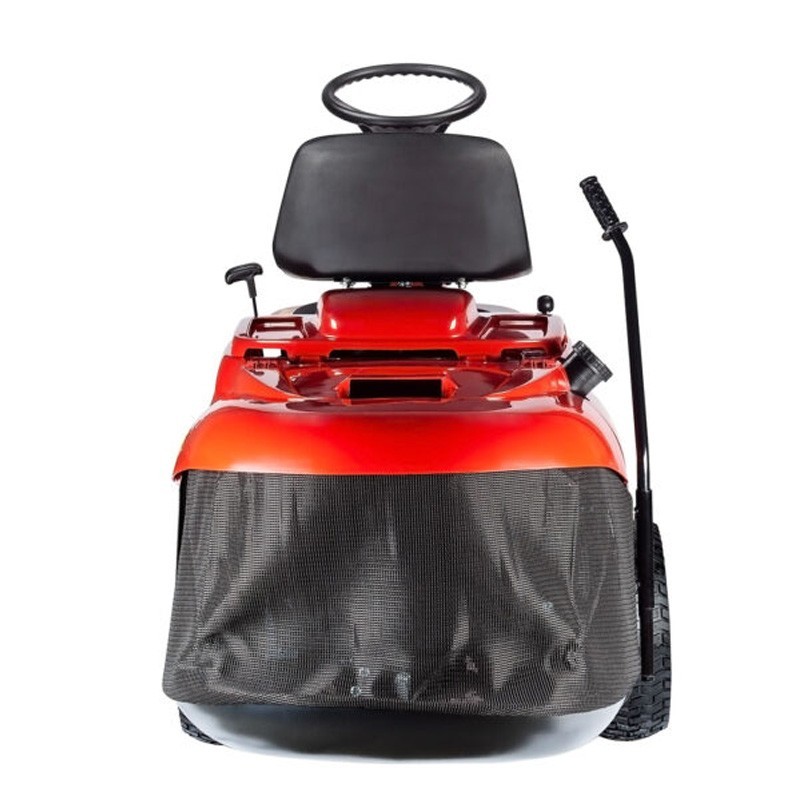

The rear collection system with a wide 150-liter collector ensures efficient cleaning while keeping your garden in perfect condition. Safety is a priority with the triple safety start system, the seat sensor, and the collector sensor that guarantee safe and reliable operation.
| General characteristics | |
| Cut with dustpan | standard |
| Recommended surface | 3000 m2 |
| Start | Electric |
| 2-in-1 lawn tractor | dustpan + rear exit |
| Dustpan capacity | 150 l |
| Engine | |
| Model | Briggs & Stratton INTEK 3130 AVS |
| Number of cylinders | Single-cylinder |
| Deposit | 5 L |
| Power | 13 HP 344cc 4-stroke |
| Power Supply | Gasoline |
| Transmission | |
| Exchange rate | Mechanic of gears |
| Gear shift mechanism | gears in an oil bath |
| Gears | 5+1 |
| Drive | Gear lever |
| Cutting plate data | |
| Chassis | Steel |
| Cutting width | 76 cm |
| Minimum cutting height | 40 mm |
| Blade drive | with leverage |
| Number of cut positions | 4 |
| Blades | 1 |
| Maximum cutting height | 85 mm |
| Team | |
| Dustpan | standard |
| Rear wheel dimensions | 15x6.00-6 |
| Front wheel dimensions | 11x4.00-4 |

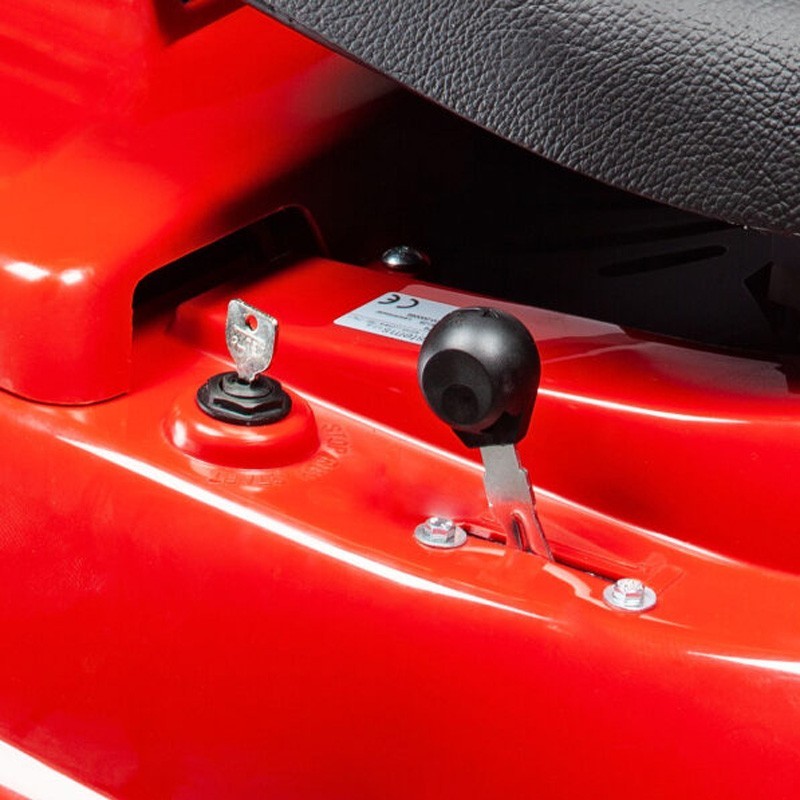

| Electric start with key | Yes |
| Seat adjustment | Yes |
| Product dimensions | 195x84x104 cm |
| Net weight | 143 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
