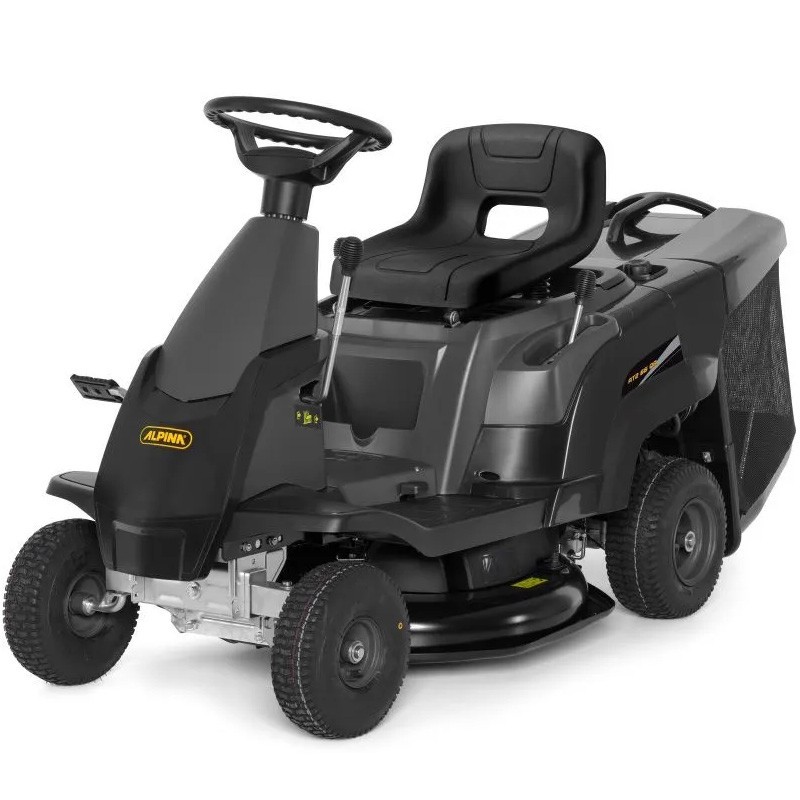

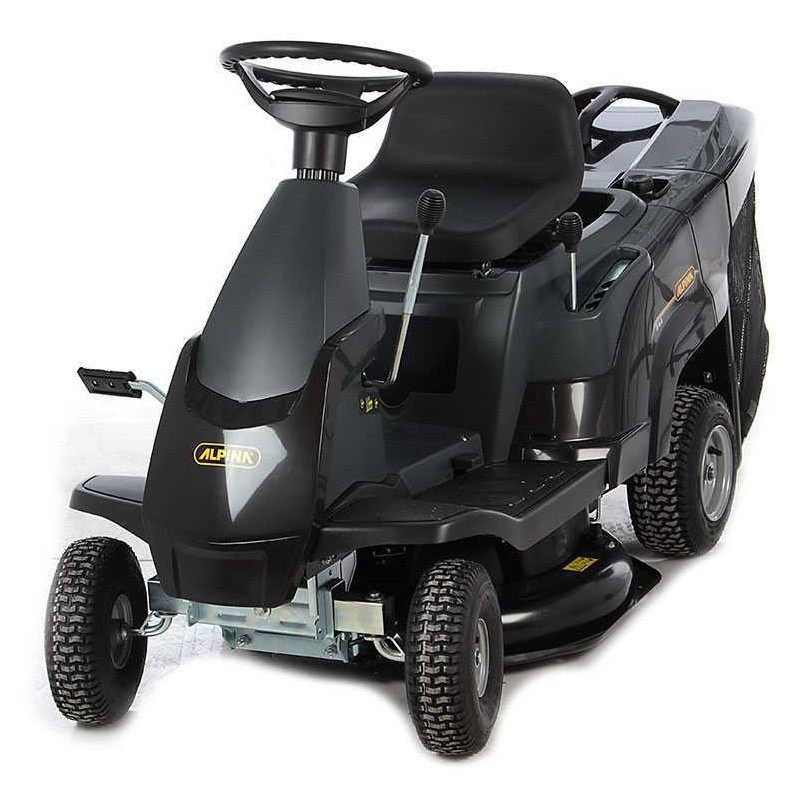

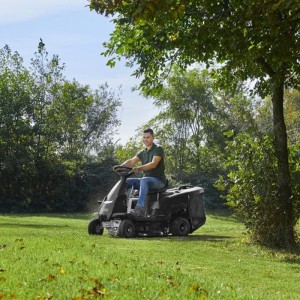

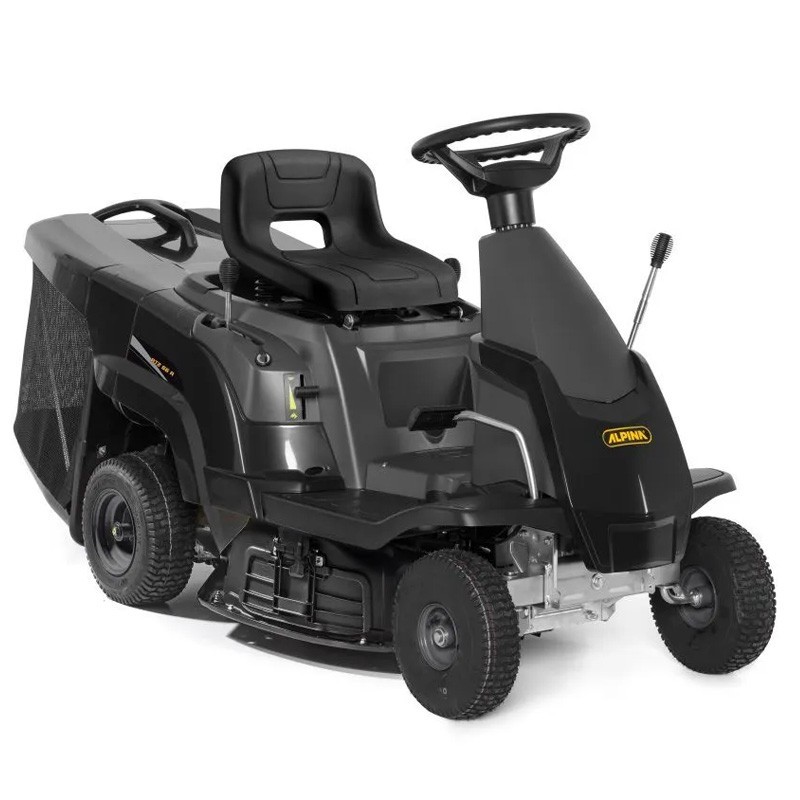

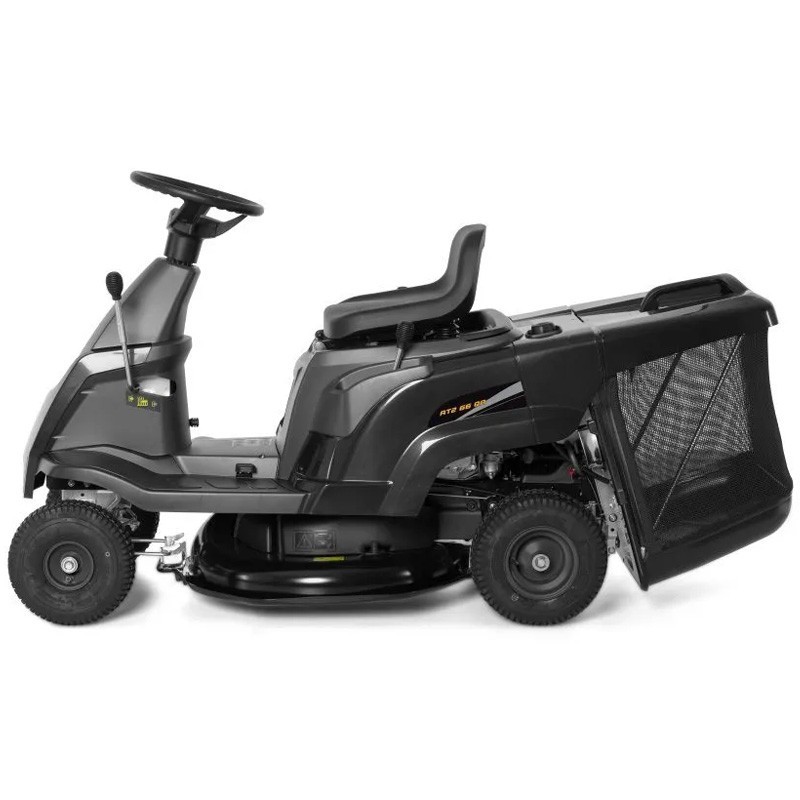

The compact lawn tractor AT2 66 QA stands out for its maneuverability and driving comfort. Equipped with a single-cylinder STIGA ST 250 ES engine. 224 cc The 3.6 kW generator ensures reliable and efficient performance. Its cast iron cylinder lining ensures durability even under heavy use conditions, while its OHV design provides quiet operation and fuel efficiency.

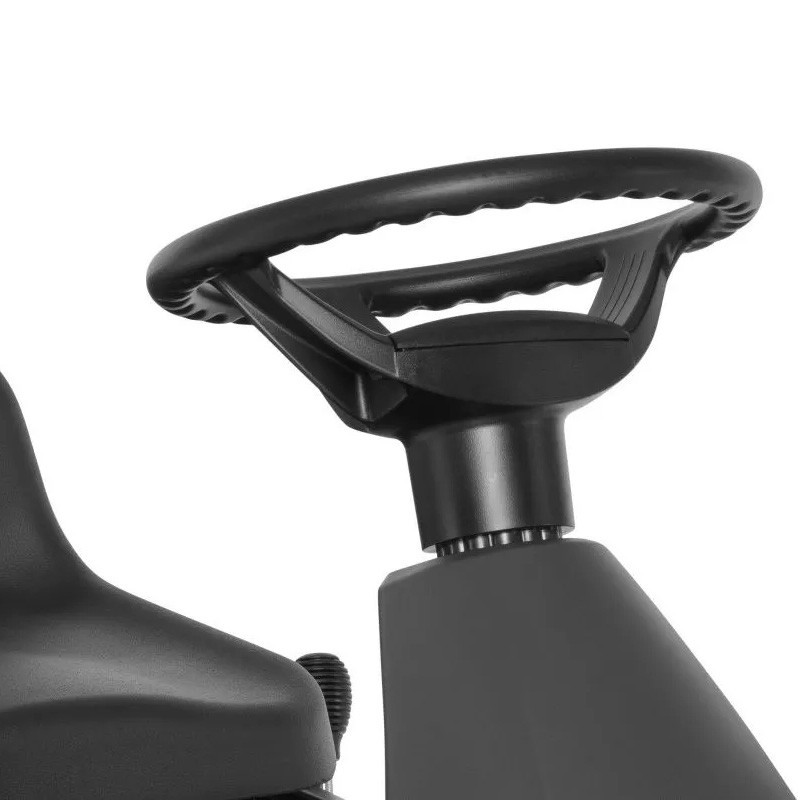

This tractor offers category-leading versatility, with five-position cutting height adjustment and configuration options for collection, mulching, or side discharge. Its steering wheel Alpina Ergonomic and seat Alpina Smart seats with lumbar support provide a comfortable driving experience.
With the capacity for four functions in one machine. 66 cm, This lawn tractor is powered by a high-performance STIGA OHV engine, offering versatile cutting options including collection, mulching, and side discharge.
Technical sheet |
|
|---|---|
| EAN/UPC | 8008984851313 |
| SKU stands for Stock Keeping Unit. It is a unique code assigned to each product to identify it within a company's inventory system. | 2T0053404/A22 |
| Power | |
| Power (kW) | 3.6 kW |
| Battery capacity | 9 Ah |
| Source of power Supply | Gasoline |
| Engine brand | STIGA |
| Engine model | ST 250 ES Powered by STIGA |
| Displacement | 224 cm³ |
| Motor rotation speed | 2450 rpm |
| Battery voltage | 12 V |
| Air choke | Automatic |
| Engine cooling | Air |
| Fuel tank capacity | 3.8 liters |
| Suggested work area | 1500 square meters |
| Cutting system | |
| Minimum uninterrupted radius: | 77.5 cm |
| Cutting width: | 66 cm |
| Backward cut: | Yes |

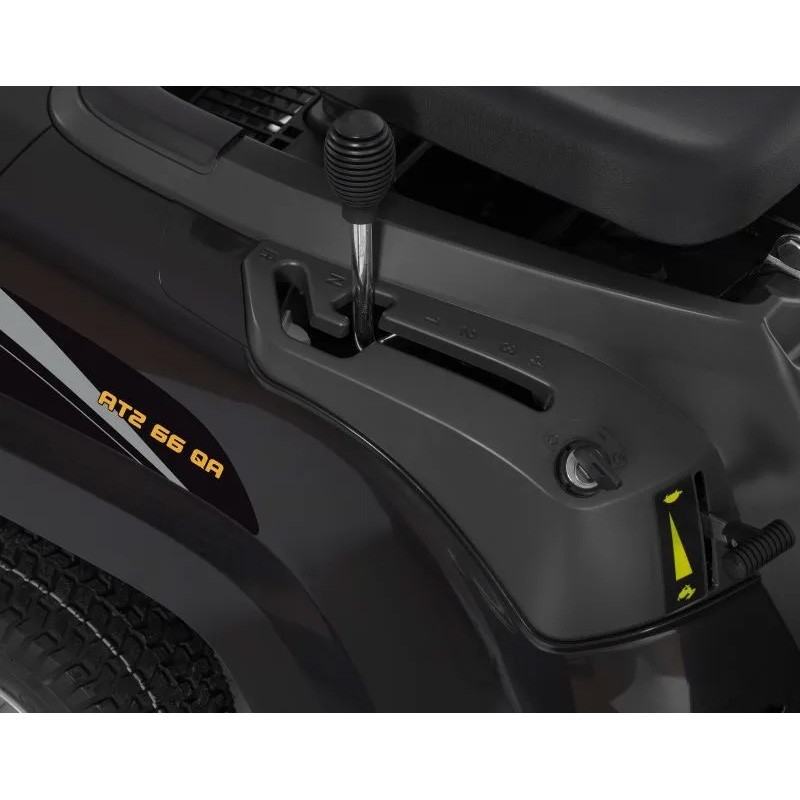

| Cutting height regulation | Manual with lever |
| Positions: | 5 positions |
| Cutting heights: | 30 - 64 mm |

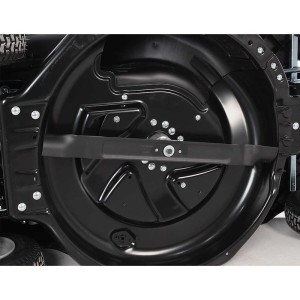

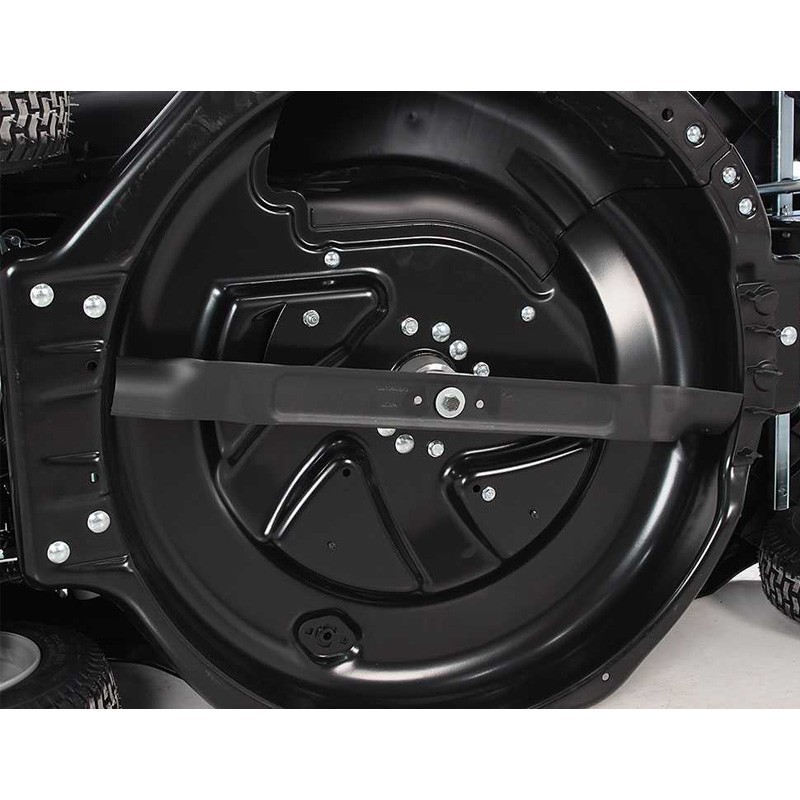

| Number of blades | 1 |

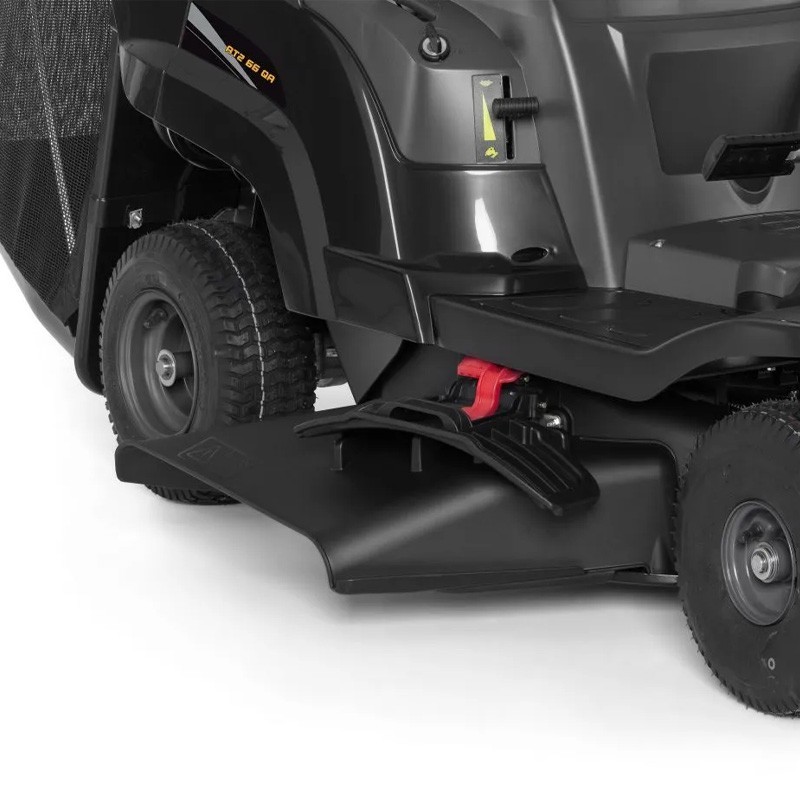

| Additional cutting method | Mulching, side discharge |
| Blade coupling type | Manual |
| Guidance system | Rear-wheel drive |
| Transmission | |
| Number of gearsI'm sorry, but you did not provide any text to be translated. Please provide the text you would like me to translate from Spanish to English. | 4 forward + 1 backward |
| Transmission method: | By manual lever |
| Transmission: | Mechanic |
| Team | |

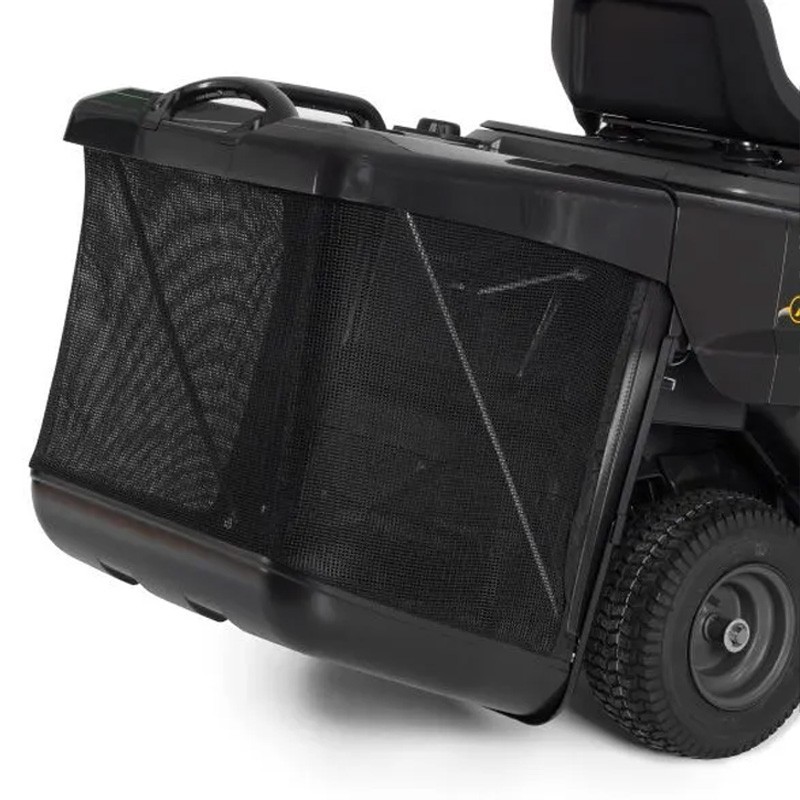

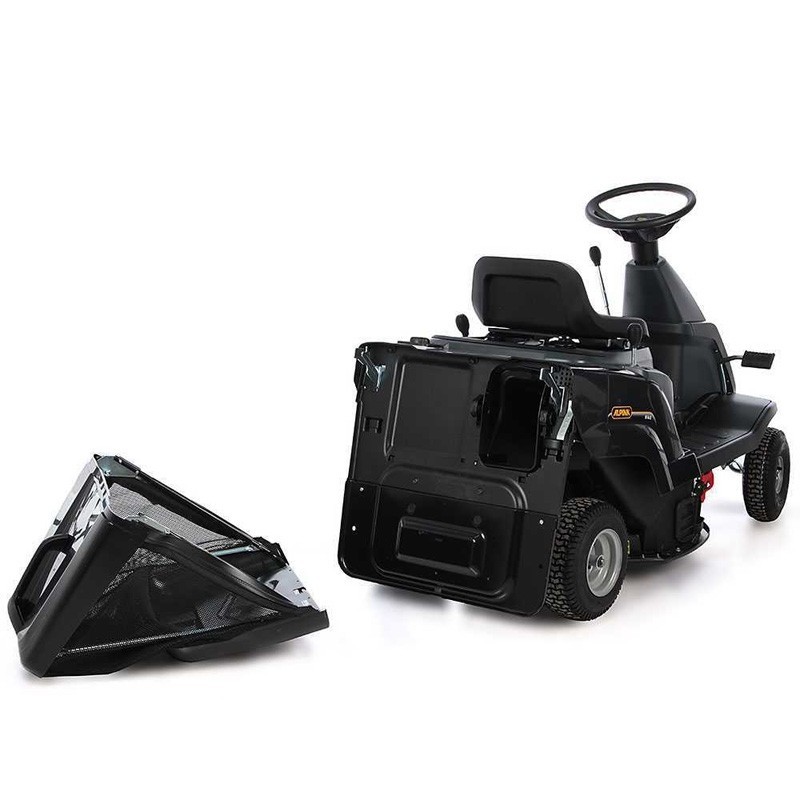

| Emptying the dustpan: | Manual |

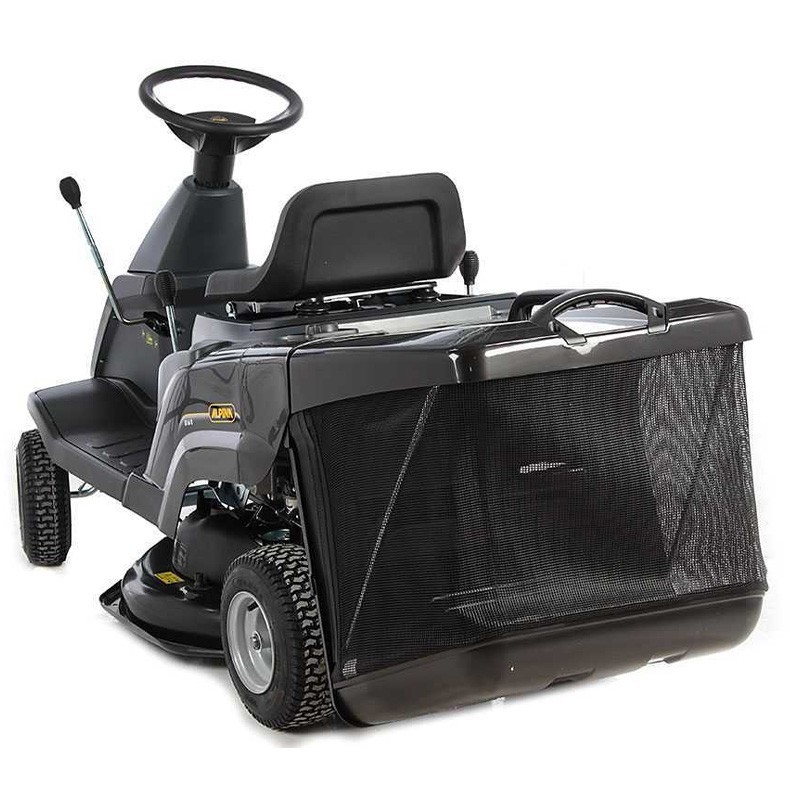

| Capacity of the dustpan: | 150 liters |
| Flyer: | Alpina ergonomic |
| Type of seat: | Alpina Smart with lower back support |
| Seat adjustment: | Screws |
| Front wheel size: | 11x4.00-4 This expression represents a mathematical operation. It means 11 multiplied by 4.00, and then subtracting 4. So, the result would be: 11 x 4.00 = 44 44 - 4 = 40 Therefore, the result of 11x4.00-4 is 40. |
| Size of rear wheels: | 13x5.00-6 refers to a tire size specification. The tire is 13 inches in diameter, 5 inches in width, and is designed to fit a 6-inch diameter wheel. |
| Water union pipe: | Yes |
| Type of dustpan: | Fabric or tissue |
| Glove compartment: | Yes |
| Swing front axle: | Yes |
| Security system: | Seat with safety switch |
| Tool kit: | Yes |
| Mulching kit: | Optional |
| Battery charger: | Simple standard |
| Vibration data and noise power | Sound power level (LwA) - db(A): 98 Maximum driver's seat vibration (m/s2): 2.94 Maximum steering wheel vibration (m/s2): 7.76 Sound power level measured in dB(A): 98 Sound power level measured at the operator's ear dB(A): 87 |
| Total dimension | Package weight: 147 kg Product length: 1830 mm Product width: 725 mm Product height: 1085 mm Weight: 127 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before starting. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement. except for pending exam. |
Data sheet
Specific References
- Batteries not included
