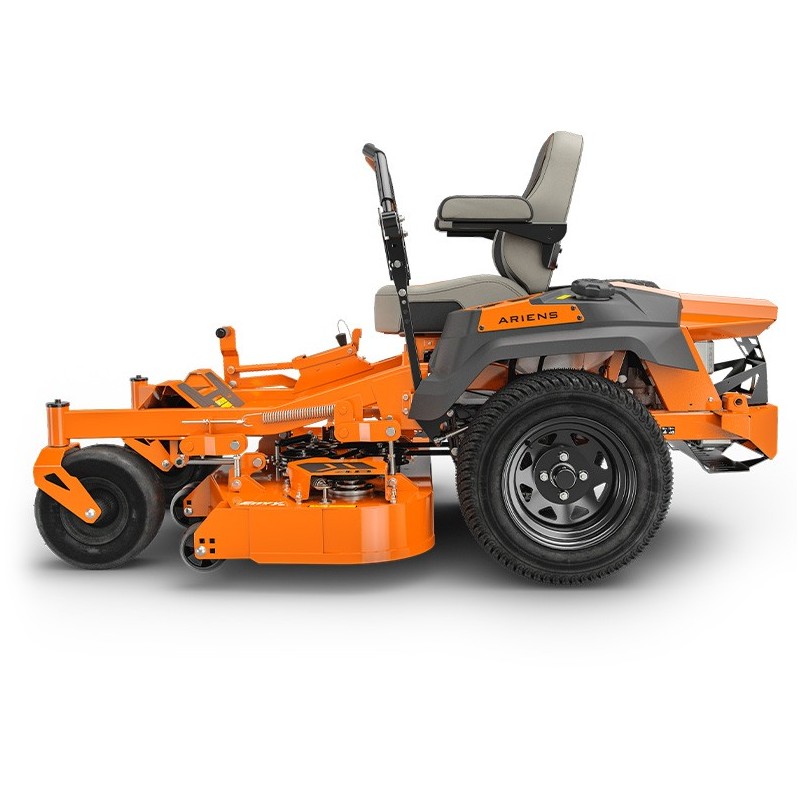

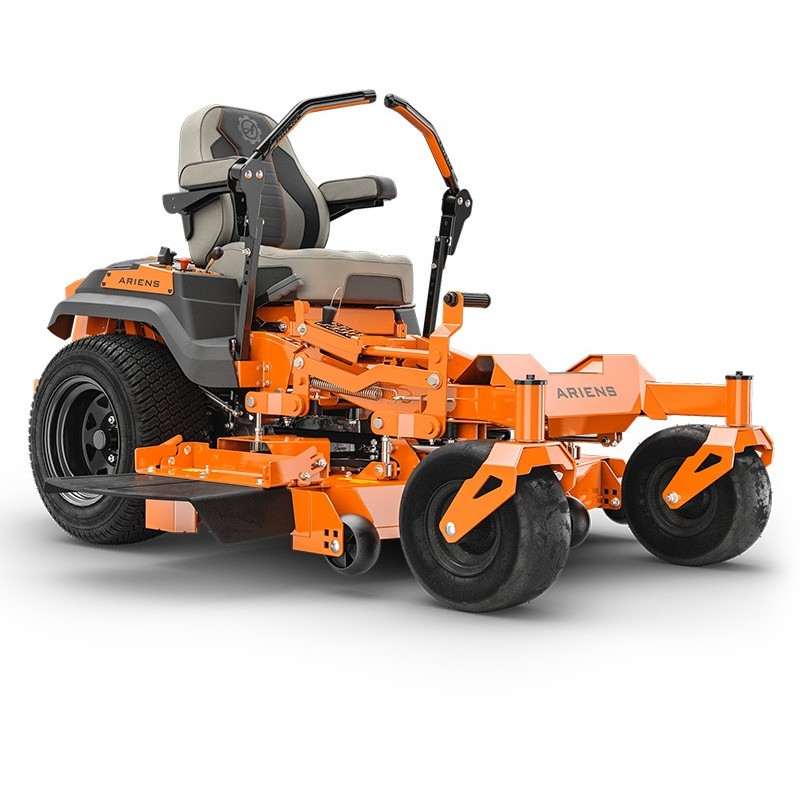

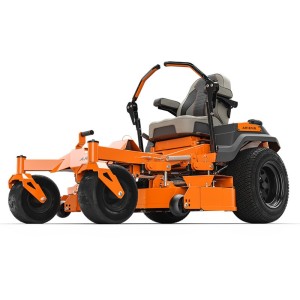

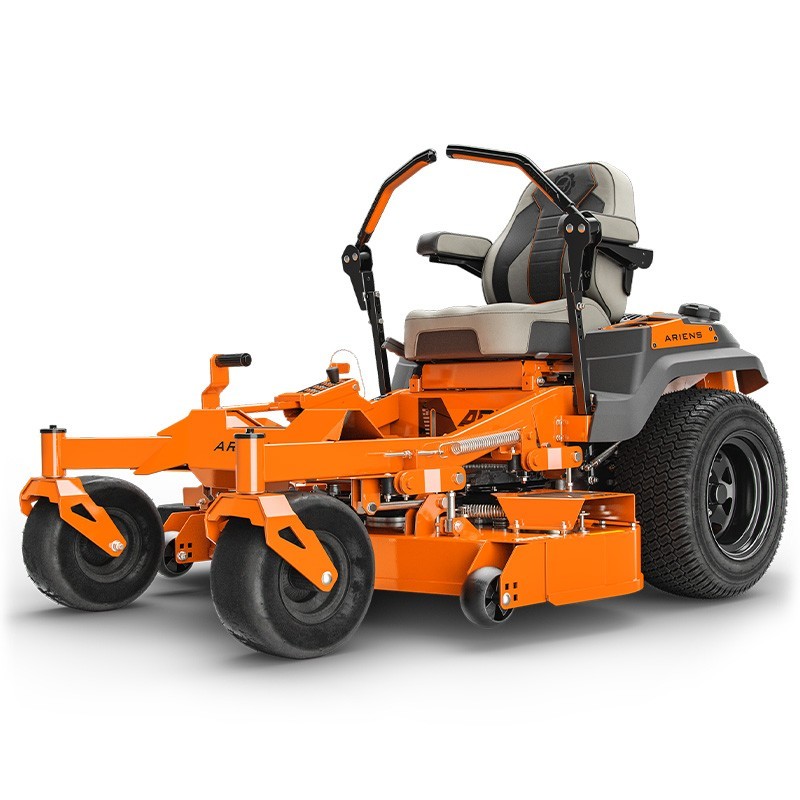

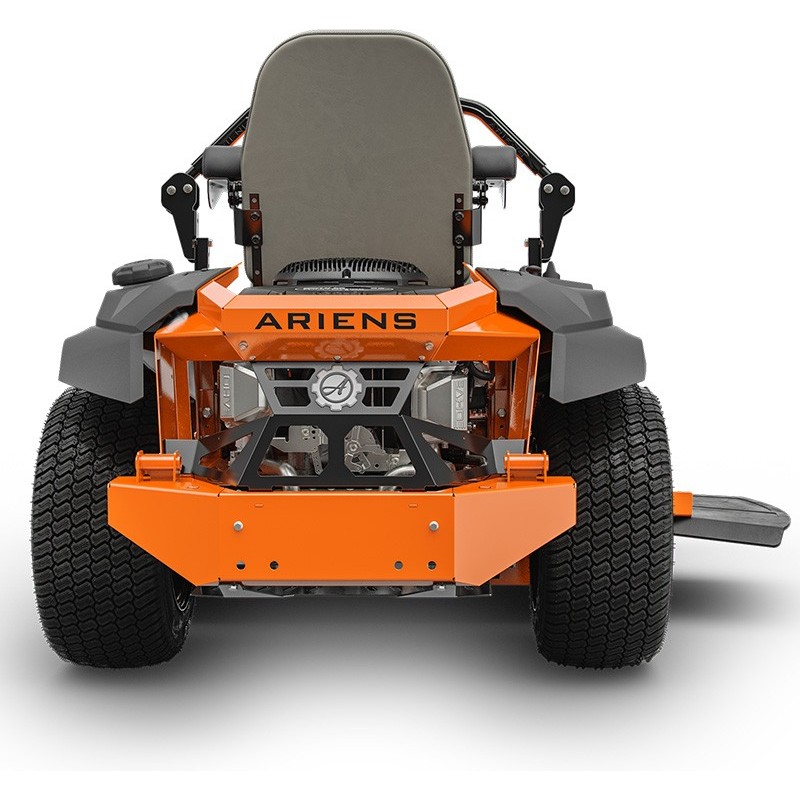

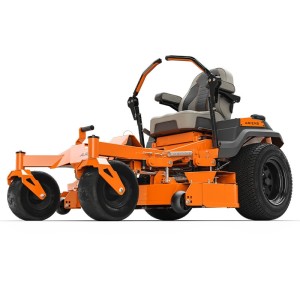

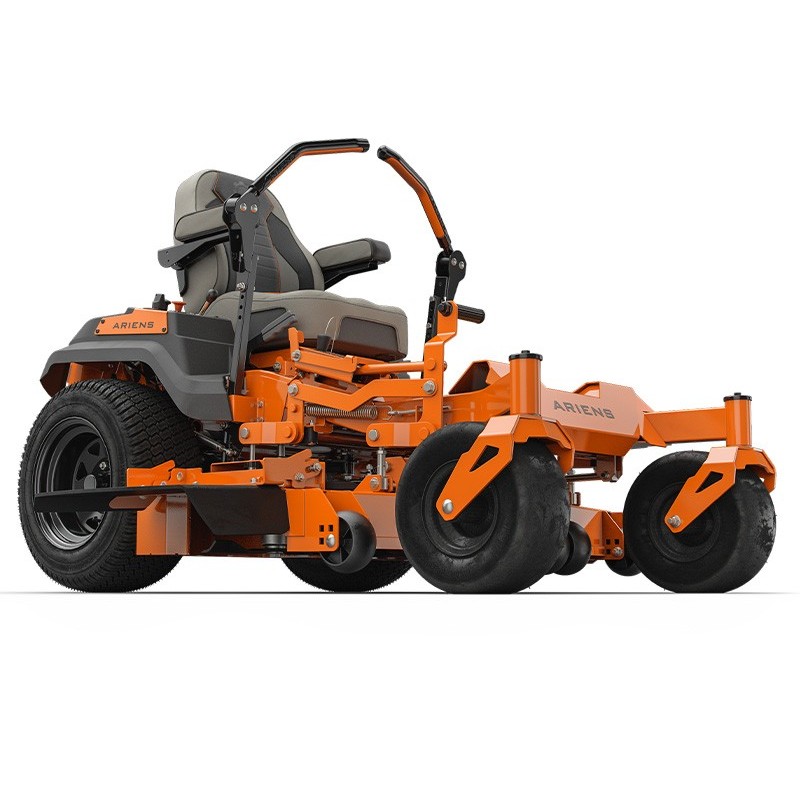

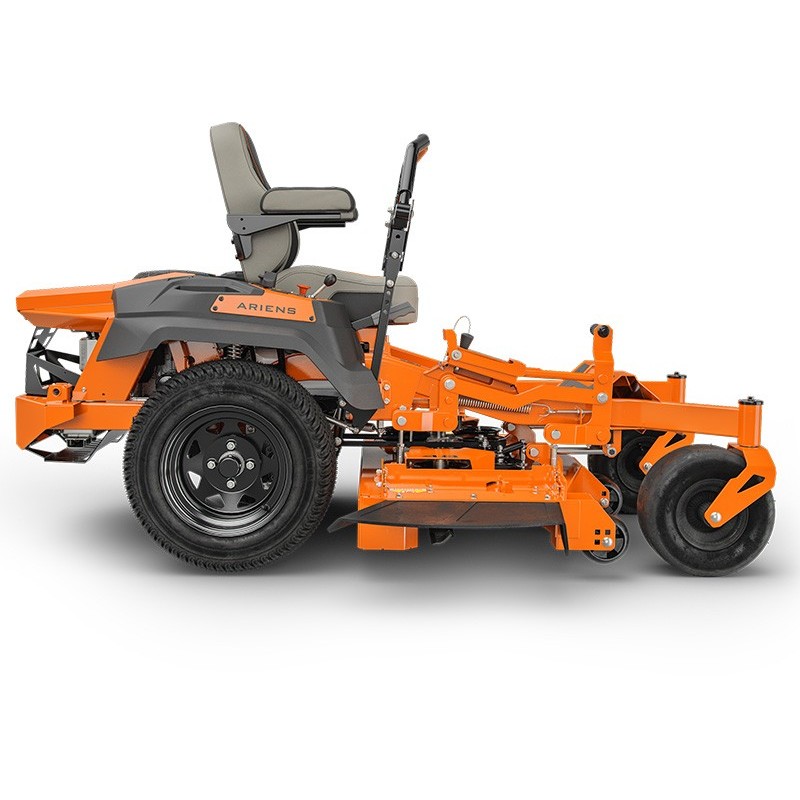

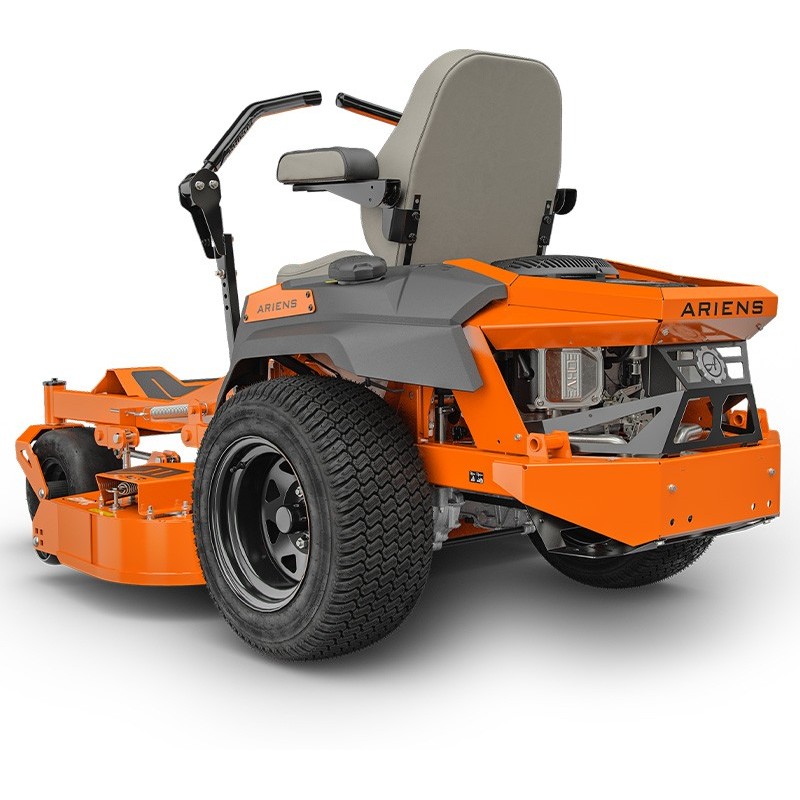

The Ariens Apex 48 SD mower is a robust and efficient machine designed to deliver exceptional performance on large lawns. Its 122 cm cutting deck, made of 10 gauge steel and with a depth of 14 cm, ensures superior cutting quality, even in demanding conditions.
In addition, its 726 cc Kawasaki FR691 V-Twin engine provides the power needed to tackle large tasks with ease. This model features a 4-point suspension system on the cutting deck, which improves airflow and ensures a clean and precise cut, lifting the grass efficiently.
Automatic belt tensioning technology (CBT) maintains constant tension, which prolongs the life of the belt and improves cutting performance for longer. In addition, the deck lift system via a foot pedal facilitates quick and convenient15-position cutting height adjustment , from 3.8 to 12.7 cm, quickly and conveniently.
The fully welded tubular steel chassis provides a solid and resistant structure, capable of withstanding impacts and vibrations over the years. With ergonomically designed control levers and an elevated seat with padded armrests, the Ariens Apex 48 SD is designed to ensure operator comfort, even during long cutting sessions.
| Engine | Kawasaki FR 691 V-Twin |
| Displacement | 726 cc |
| Cutting adjustment | 3,8 - 12,70 cm |
| Cutting width | 122 cm |
| Weight | 375 kg |
| Blade drive | Electromagnetic Warner |
| Unloading | Side |
| Front wheels | 13 x 6.5 x 6 mm/inches |
| Rear wheels | 22 x 9.5 x 12 mm/inches |
| Electric start | Yes |
| Fuel tank | 19,30 l |
| Height positions | 15 |
| Transmission | Hydrostatic - Hydro Gear |
| Maximum speed (forward) | 6.4 km/h |
| Maximum speed (rear) | 12.90 km/h |
| Frame thickness | 3.7 mm |
| Axles | 3 |
| Seat | Premium high backrest with padded armrests |
| Mulching kit | Optional |
| Air filter | Donaldson |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
