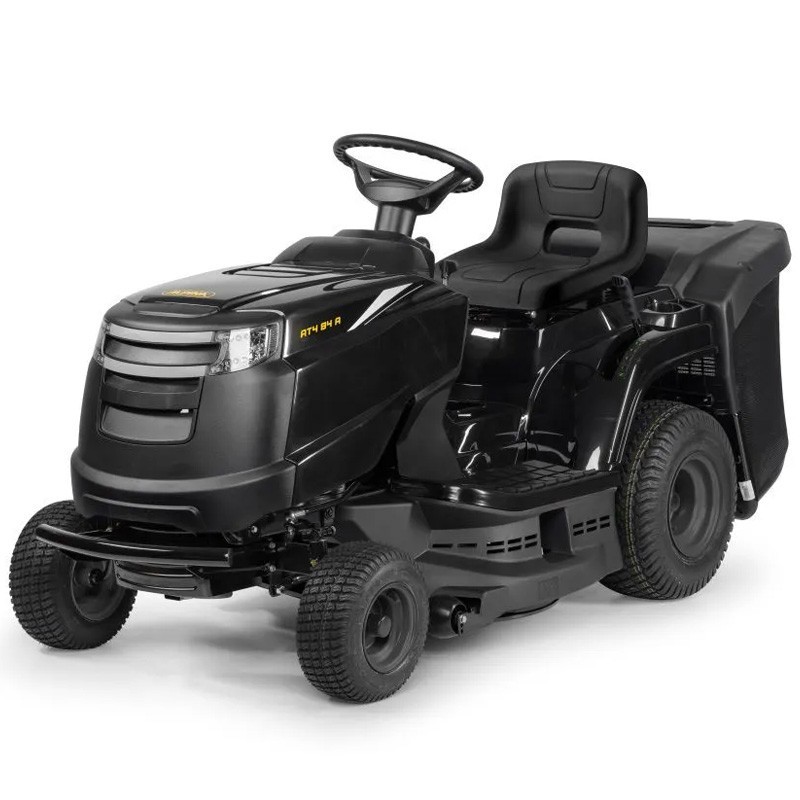

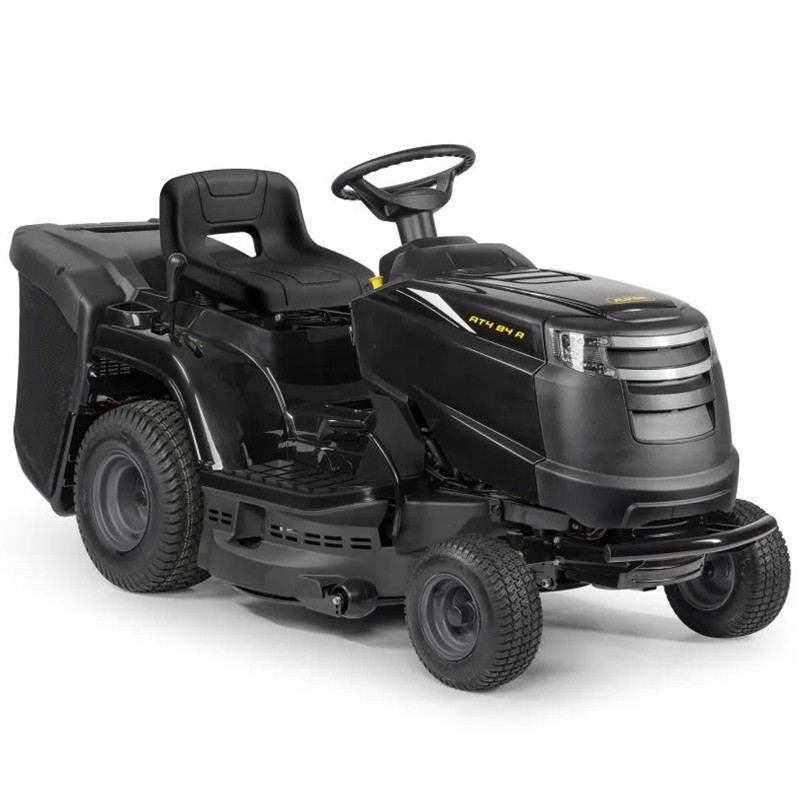

The Alpina lawn tractor is powered by a gasoline engine with a power of 352 cc and 5.8kW able to work comfortably on a surface of up to 2800 m2.

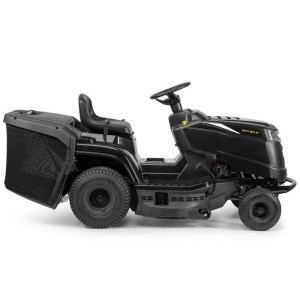

The Alpina AT4 84 A lawn mower tractor has a cutting width of 84 cm and a 200 liters collector, with the possibility of including an optional mulching kit.
The Alpina has 7 cutting positions that vary between 25 to 80 mm, with a manual cutting adjustment lever.
| Power | |
|---|---|
| Battery capacity | 18 Ah |
| Power | 5.8 kW |
| Source of power Supply | Gasoline |
| Engine make | STIGA |
| Engine model | ST 350 Powered by STIGA |
| Displacement | 352 cm³ |
| Motor rotation speed | 2400 rpm |
| Battery voltage | 12 V |
| Choke (air) | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 6 l |
| Suggested work area | 3000 ㎡ |
| Cutting system | |
| Minimum radius without cut: | 80 cm |
| Cutting width: | 84 cm |
| Cut backwards: | Yes |
| Blade rotation: | Asynchronous |

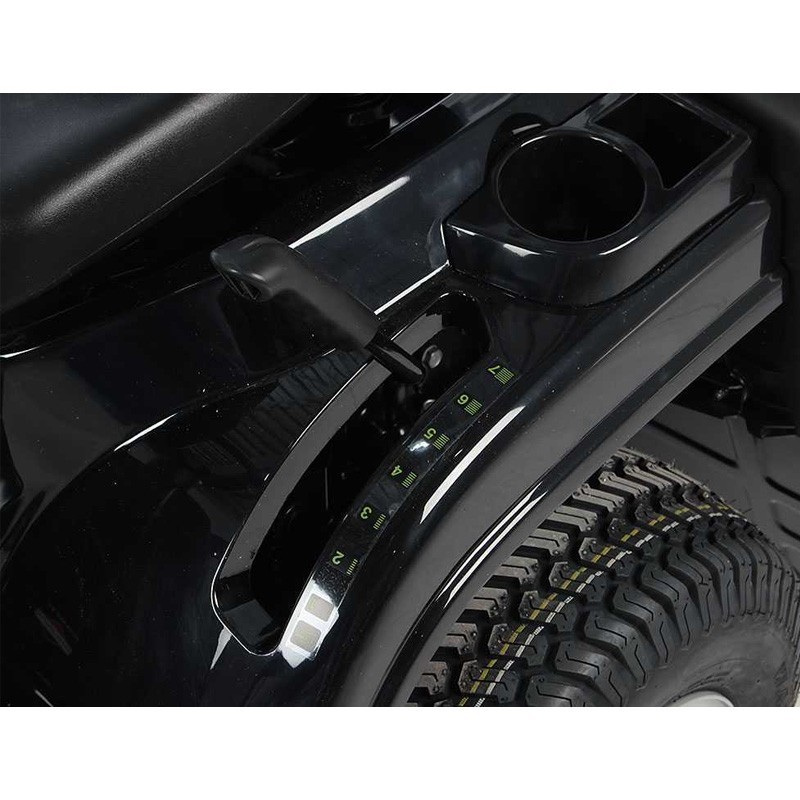

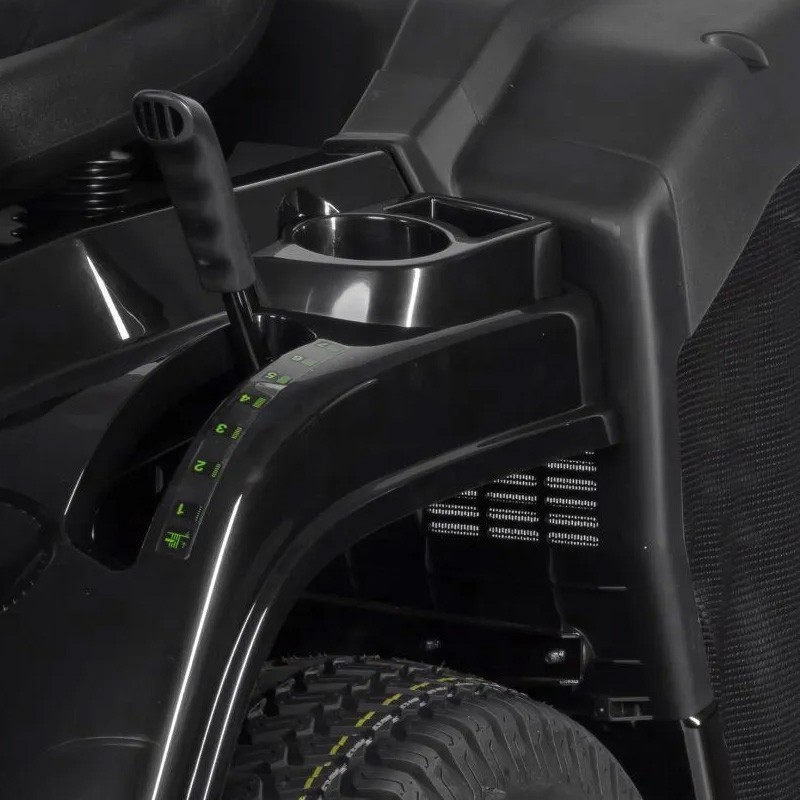

| Cutting height adjustment: | Manual with lever |
| Cutting height positions: | 7 positions |
| Cutting heights: | 25 - 80 mm |
| Number of blades: | 2 |
| Additional cutting method: | Rear discharge, Mulching |

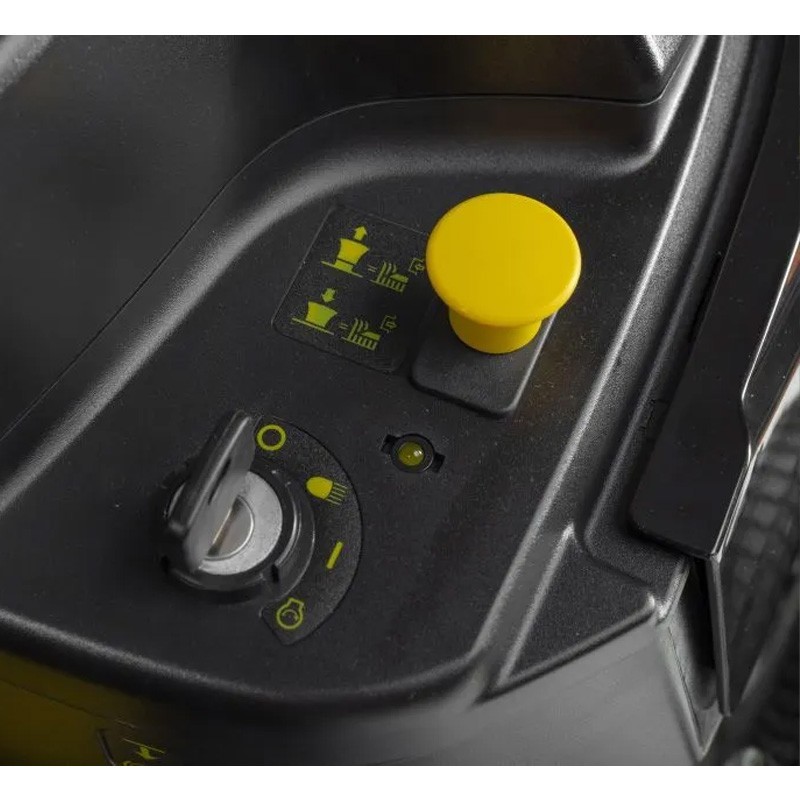

| Type of blade coupling: | Electric |
| Guiding system | Traction |
| Rear-wheel drive | Yes |
| Transmission | |
| Number of gears: | 5 forward + 1 backward |
| Method of transmission: | By manual lever |
| Transmission: | Mechanic |
| Team | |
| Emptying the dustpan: | Manual |

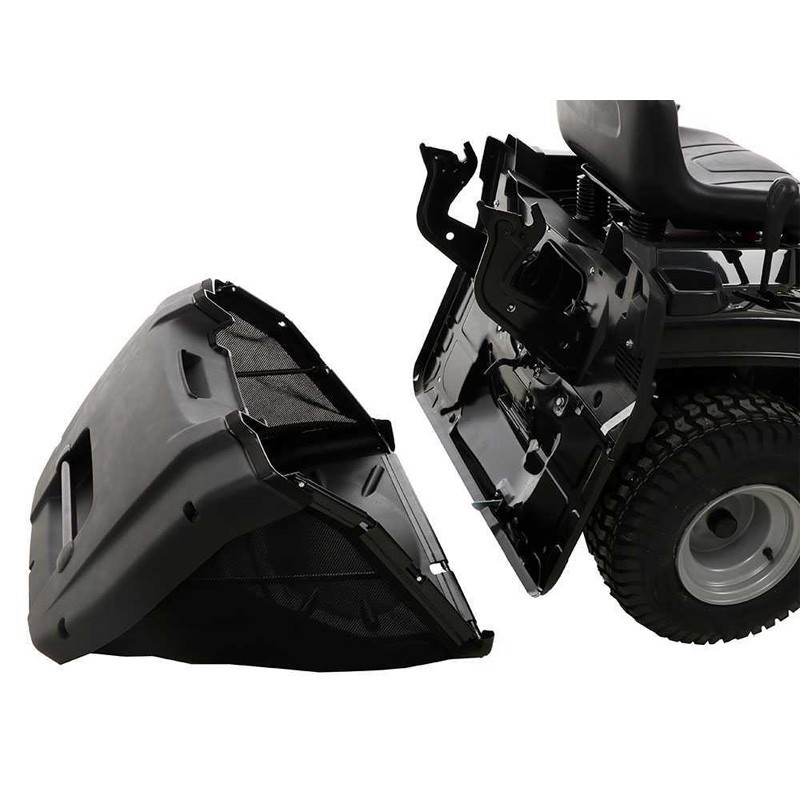

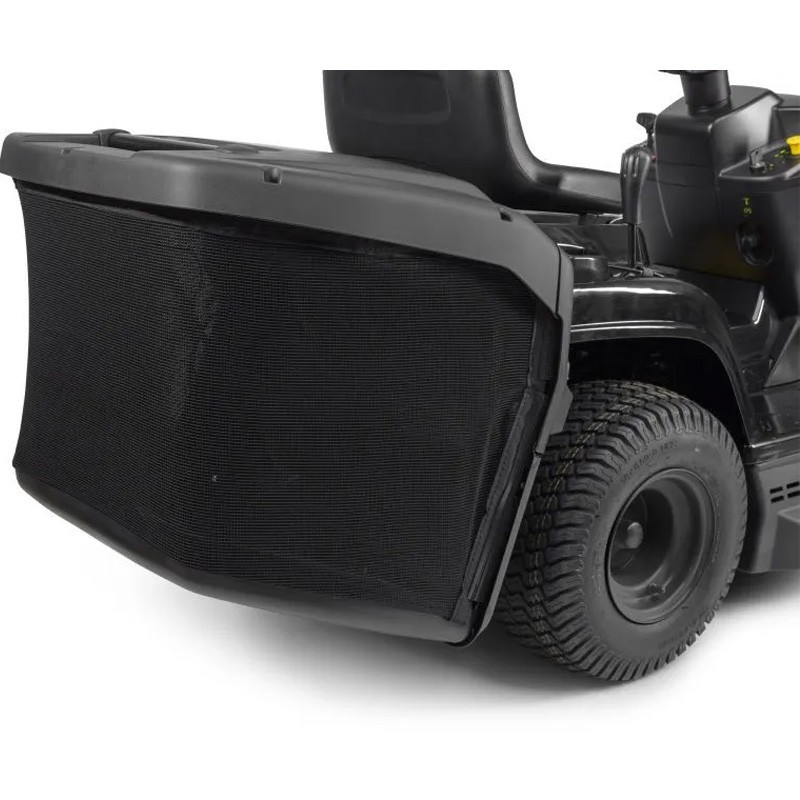

| Picker capacity: | 200 l |
| Flyer: | Alpina ergonomic |
| Seat type: | Alpina smart with low back support |
| Seat adjustment: | Screws |

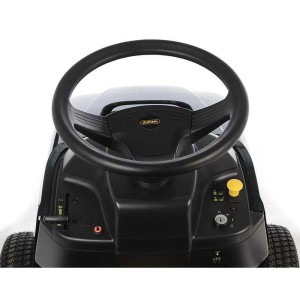

| Dashboard: | Yes, with LED |
| Size of front wheels: | 13x5.00-6 |
| Rear wheel size: | 18x8.50-8 |

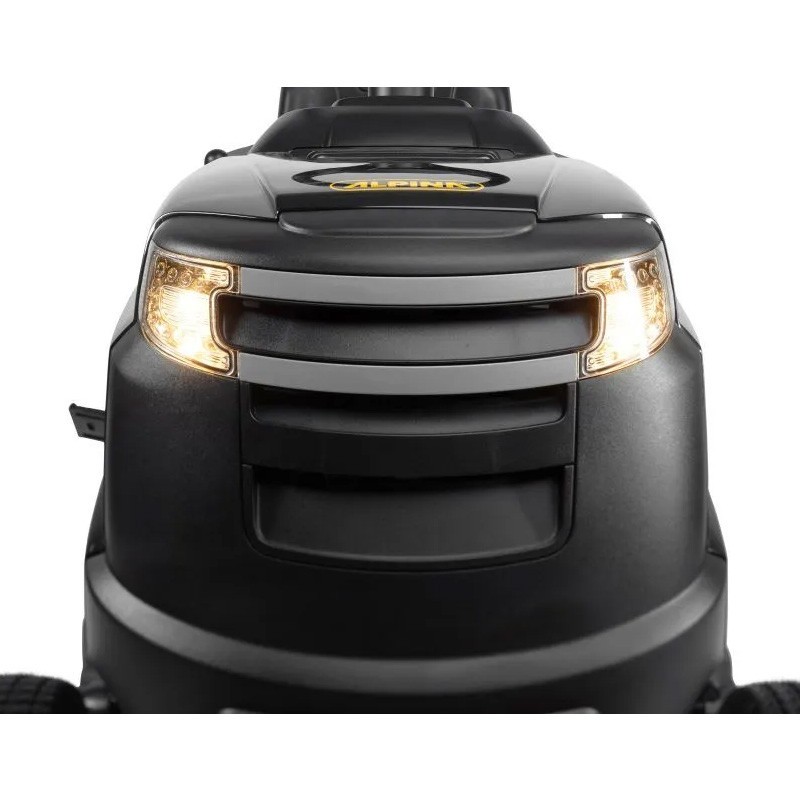

| Headlamps: | Conventional |
| Bumper: | Yes |
| Water union pipe: | Yes |
| Type of dustpan: | Fabric |
| Front oscillating axle: | Yes |
| Blade protection wheels: | |
| Security system: | Seat with safety switch |
| Tool kit: | Mulching kit (Optional) |
| Battery charger: | Optional |
| Trailer hitch kit: | Optional |
| Vibration and noise power data | Sound power level (LwA) - db(A): 100 Maximum driver's seat vibration (m/s2): 1.06 Maximum flywheel vibration (m/s2): 6.37 Measured sound power level dB(A): 100 Sound power level measured at operator's ear dB(A): 86 |
| Overall dimension | Packing weight: 230 kg Product length: 2338 mm Product width: 880 mm Product height: 1100 mm Weight: 191 kg |
