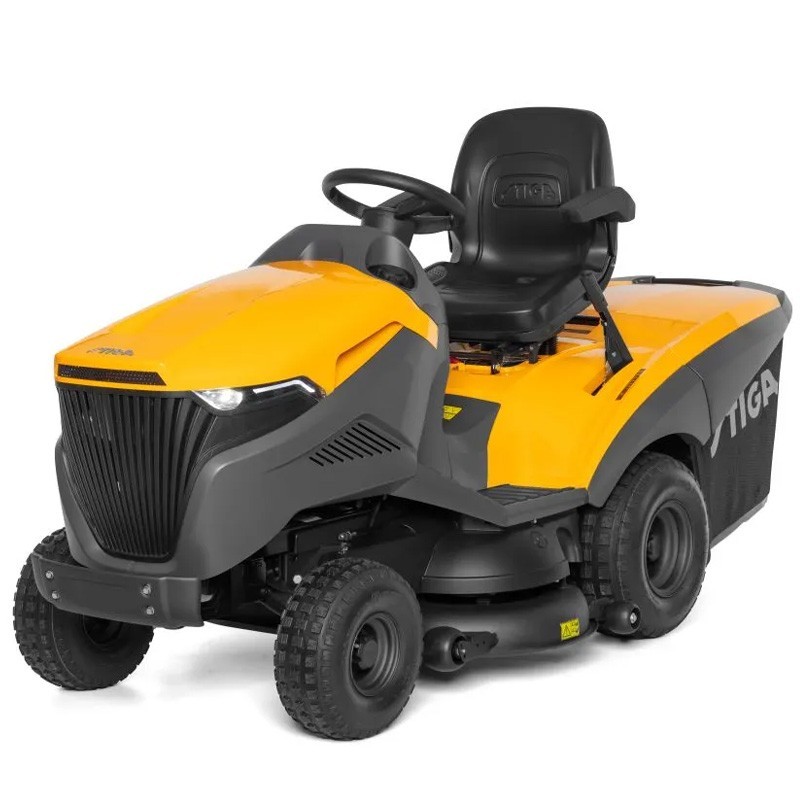

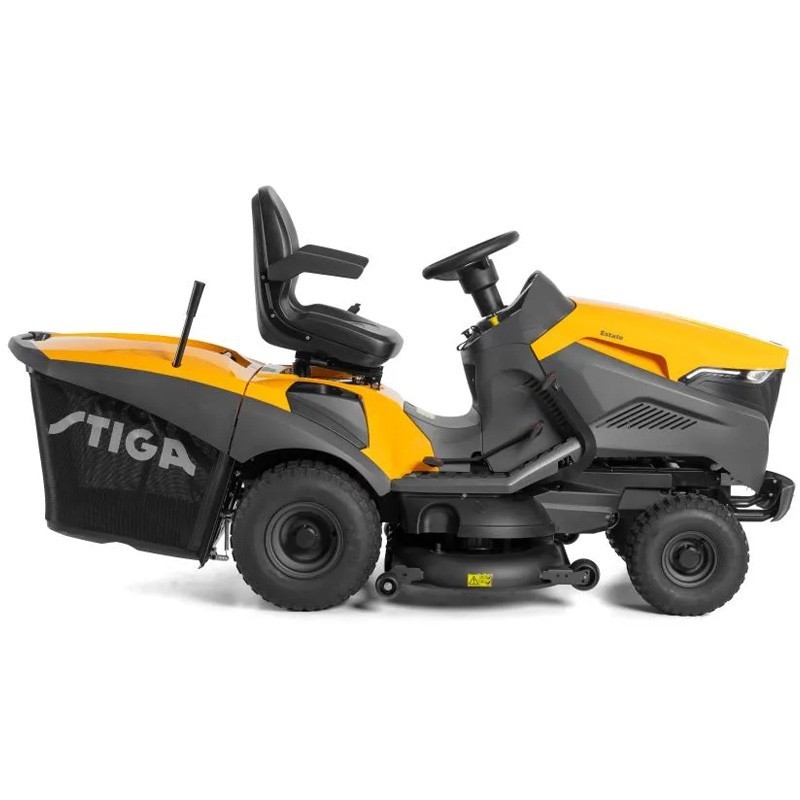

Professional Lawn Tractor equipped with cutting-edge features to deliver exceptional performance in any environment. With an impressive power of 13.4 kW and a battery capacity of 18 Ah, this gasoline-powered lawn mower, powered by a Honda GXV 630 engine, guarantees reliable and efficient performance.
Your advanced cutting system offers a cutting width of 122 cm, with adjustable height options in 7 positions ranging from 30 to 90 mm. The rear-wheel drive and the transmission hydrostatics They provide precise and smooth control, while the additional cutting system, which includes rear discharge and multiclip mulching, ensures a flawless lawn in every work session.
This professional lawn tractor not only offers performance but also comfort and durability. With a comfortable adjustable seat, a premium steering wheel with a soft grip, and a wide dashboard display, you will experience maximum comfort during long work sessions.
| Power | |
| Power | 13.4 kW |
| Battery capacity | 18 Ah |
| Source of power Supply | Gasoline |
| Engine brand | Honda |
| Engine model | GXV 630 |
| Displacement | 688 cm³ |
| Motor rotation speed | 2700 rpm |
| Battery voltage | 12 V |
| Air choke | Manual |
| Engine cooling | Air |
| Fuel tank capacity | 8 l |
| Suggested work area | 8000 sqm |

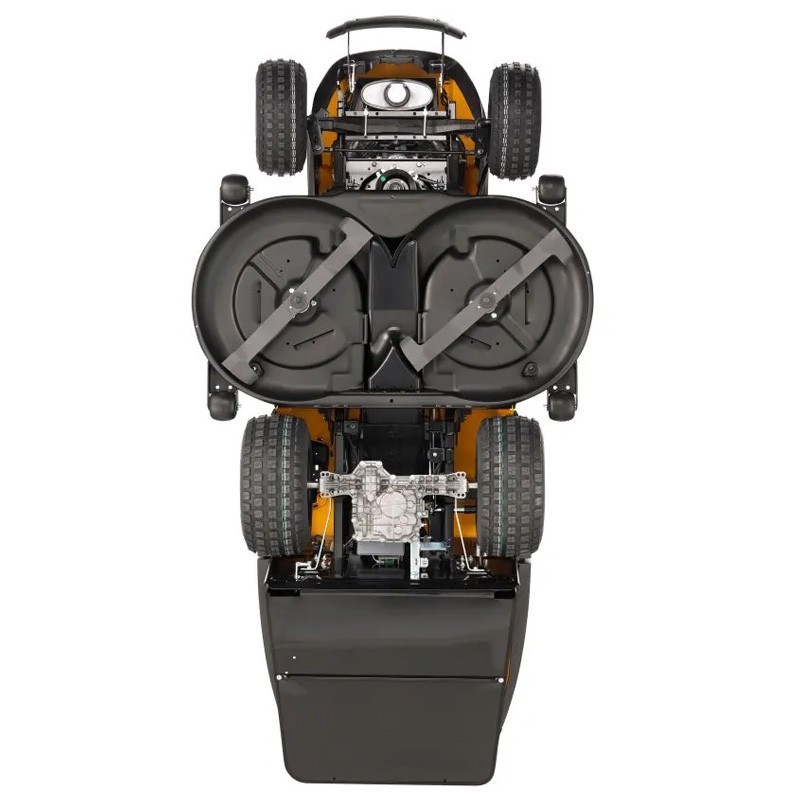

| Cutting system | |
| Minimum radius without cut | 90 cm |
| Cutting width | 122 cm |
| Back cut | Yes |
| Blade rotation | Synchronized |
| Cutting height regulation | Manual with lever |
| Cutting height positions | 7 positions |
| Cutting heights | 30 - 90 mm |
| Number of blades | 2 |
| Additional cutting method | Rear discharge, Multiclip mulching |
| Blade coupling type | Electric |
| Guidance system | |
| Traction | Rear-wheel drive |
| Transmission | Hydrostatic Transmission |
| Transmission method | By pedal |
| Team | |
| Emptying the dustpan | Manual |
| Dustpan capacity | 320 l |
| Steering wheel | Stiga Premium with soft grip |

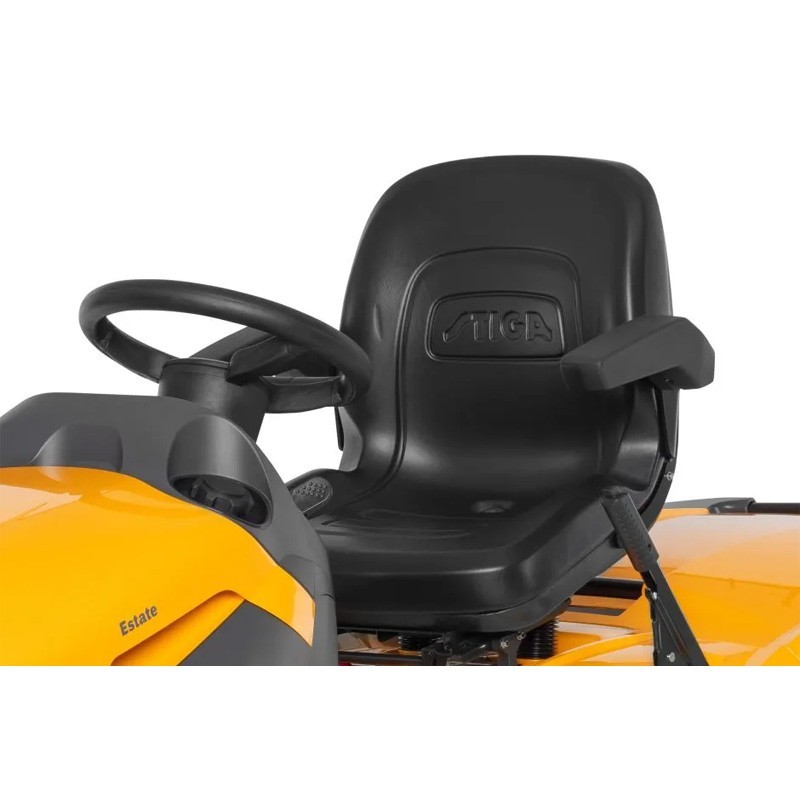

| Type of seat | STIGA comfort plus with armrests |
| Seat adjustment | Singular lever |
| Dashboard | Yes, with a large wide screen. |
| Front wheel size | 15x6.00-6 |
| Rear wheel size | 18x8.50-8 |
| Time counter | Yes - on screen |
| Lighthouses | LED - Advanced |
| Cruise speed | Yes |
| Cast iron front axle | Yes |
| Bumper | Yes |
| Water union tube | Yes |

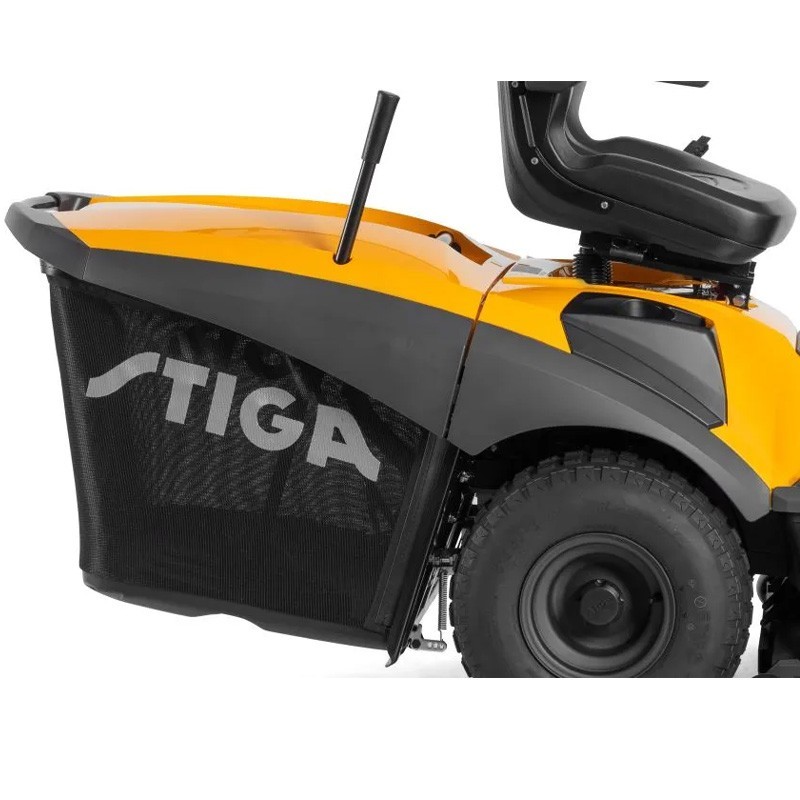

| Type of dustpan | Fabric |
| Glove compartment | Yes |
| Coaster | Yes |
| Swing front axle | Yes |
| Blade guard wheels | 4 |
| Security system | Seat with safety switch |
| Tool kit | Mulching kit (Optional) |
| Battery charger | Optional |
| Trailer hitch kit | Optional |
| Vibration and noise power data | |
| Sound power level (LwA) - dB(A) | 105 |
| Sound power level measured at the operator's ear dB(A) | 89.2 |
| Maximum steering wheel vibration (m/s²) | 3.22 |
| Maximum vibration of the driver's seat (m/s²) | 0.54 |
| Measured sound power level dB(A) | 104 |
| Total dimension | |
| Packaging weight | 311 kg |
| Product length | 2418 mm |
| Product width | 1260 mm |
| Product height | 1070 mm |
| Weight | 249 kg |
| IMPORTANT NOTICE |
| Mandatory on the part of the client, review oil levels and lubrication before startup. If the goods cannot be checked at the time of receipt, it should be noted on the carrier's sheet that the customer is in agreement. except for pending exam. |
