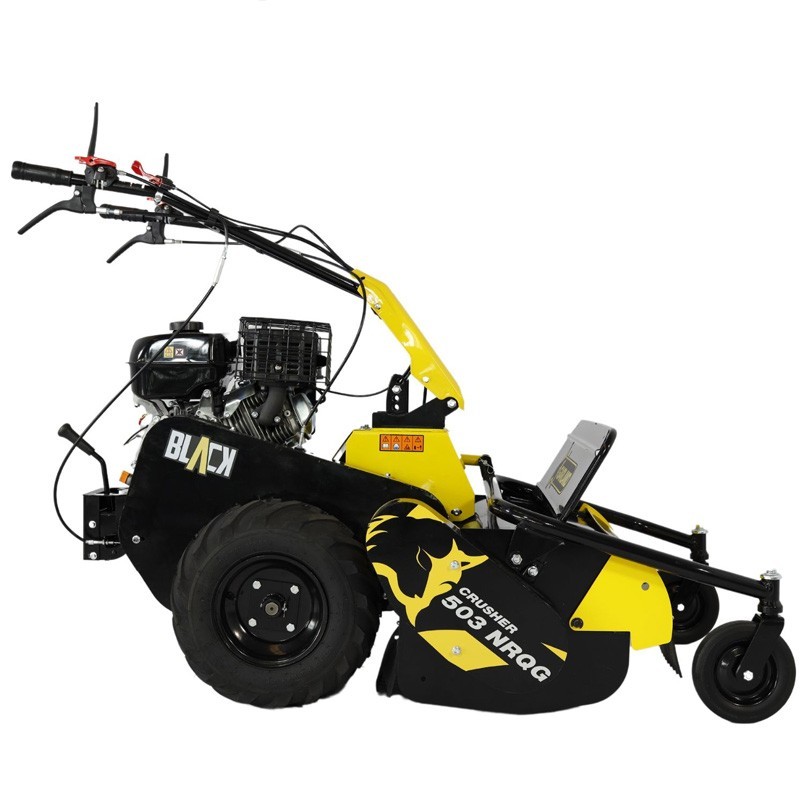

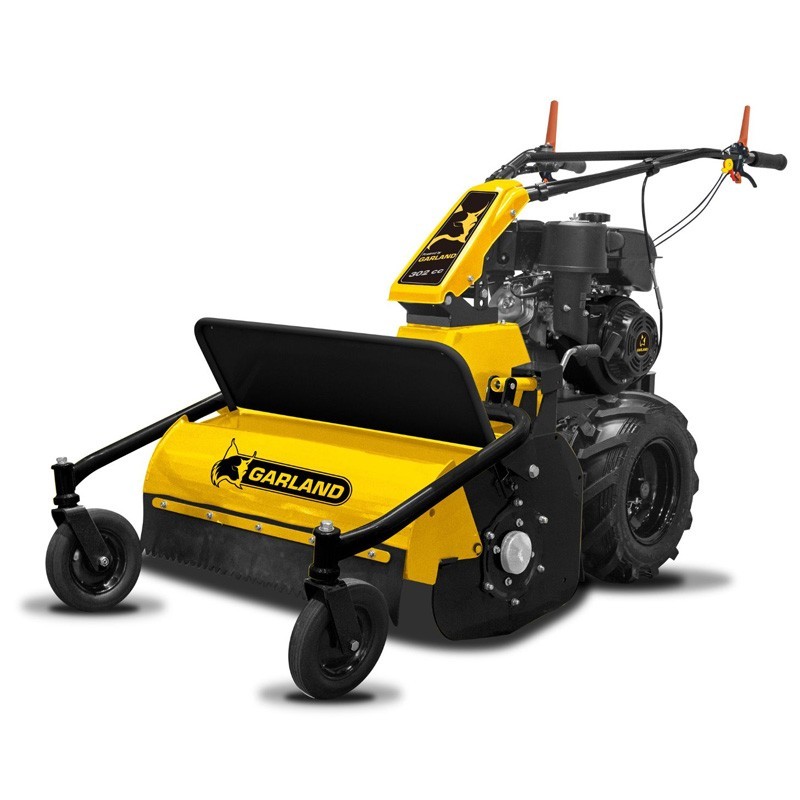

The brushcutter Garland CRUSHER 503 NRQG-V22 has a very powerful engine. It provides a total power of 6.5 kW. This brushcutter model has a large area clearing function, with a displacement of 302cc.
The CRUSHER 503 NRQG-V22 brushcutter model from Garland offers 3 speeds plus reverse. Three of these speeds are forward and the fourth speed is reverse. The model has a weight of only 180 kg.
The brushcutter Garland CRUSHER 503 NRQG-V22 guarantees a good safety and protection of the machine. The engine of this model is a 4-stroke engine. The weight of the packaged product is 184 kg

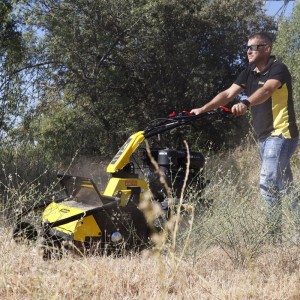

This brushcutter model is very useful for clearing large areas. Thanks to these features provided by the model, we are guaranteed to perform the work in a comfortable way.

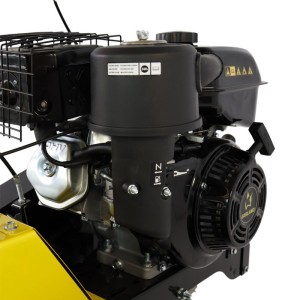

| Engine | |
|---|---|
| Type | Garland 4T |
| Displacement | 302 cc |
| Power | 6.5 kW / 8.7 hp |
| Torque | 18 Nm |
| Maximum revolutions | 3800 min-¹ |
| Oil type | 10W-40 |
| Fuel tank volume | 6,5 L |
| Oil sump volume | 1,1 L |
| Transmission oil volume | 1,5 L |
| Transmission | |

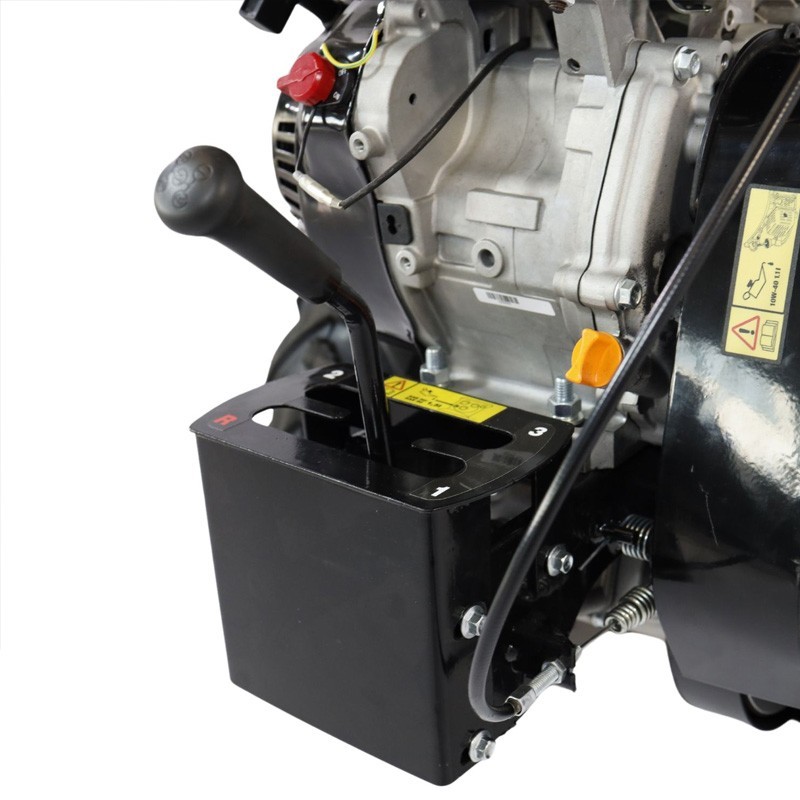

| Speeds | 3 forward + 1 reverse |
| Clutch | Belt tensioner |
| Differential | Yes |
| Cutting | |

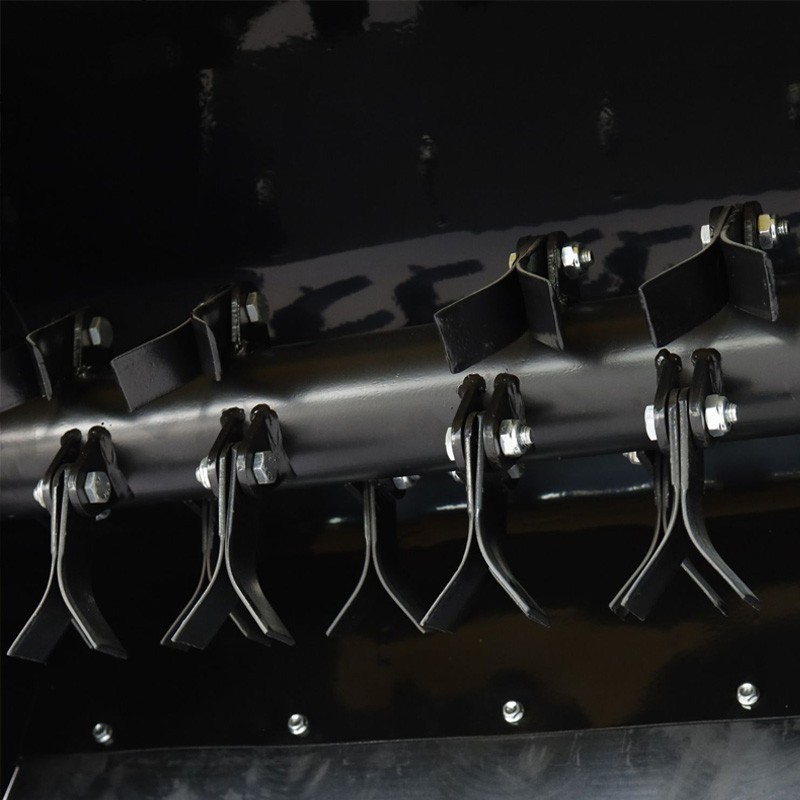

| Cutting type | Hammers |
| Working width | 690 mm |
| Working height (min - max) | 30 - 80 mm |
| Central height adjustment | Yes |
| Number of hammers | 36 |
| Handlebar | |

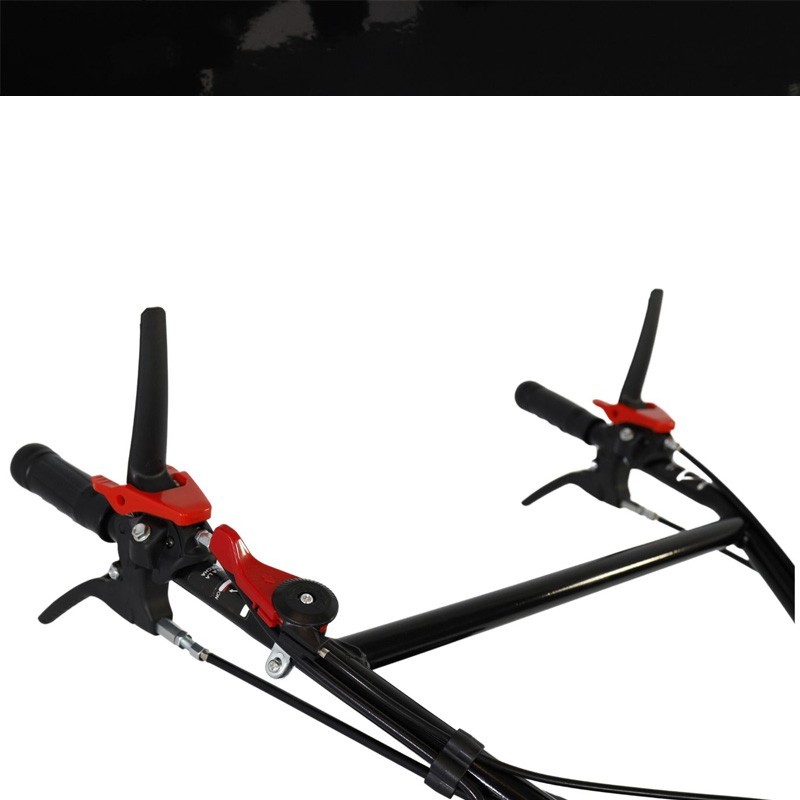

| Type | Folding |
| Foldable without tools | No |
| Vibration and Sound | |
| Average vibration level | 6.4 m/s² (6.4 m/s²) |
| Vibration uncertainty | 1.5 m/s² |
| Sound pressure | 104.7 dB(A) |
| Sound power (guaranteed/measured) | 84.1 dB(A) |
| Dimensions and weight | |
| Travel speed | 2.56 km/h |
| Empty machine weight | 180 kg |
| Length in use | 165 cm |
| Width in use | 75 cm |
| Height in use | 125 cm |
| Packing weight | 198 kg |
| Packing length | 167 cm |
| Packing width | 83 cm |
| Packing height | 87 cm |
|
 |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
