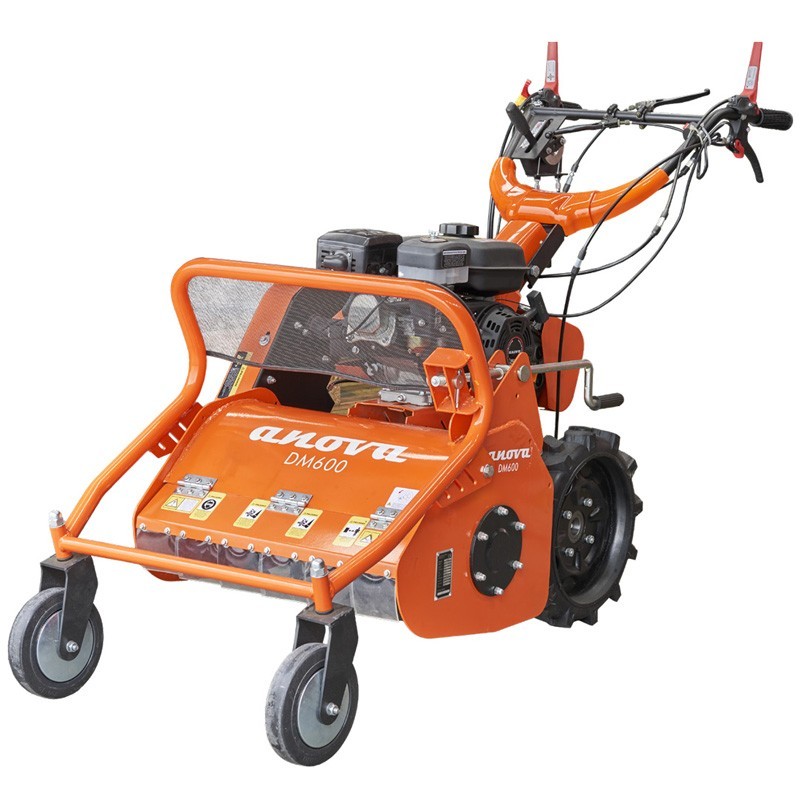

The flail mower Anova DM600 is equipped with an engine. Anova Euro V with a 6.5HP power. This brushcutter model of Anova offers us a work width of 60cm and an adjustable height greater than 30mm.

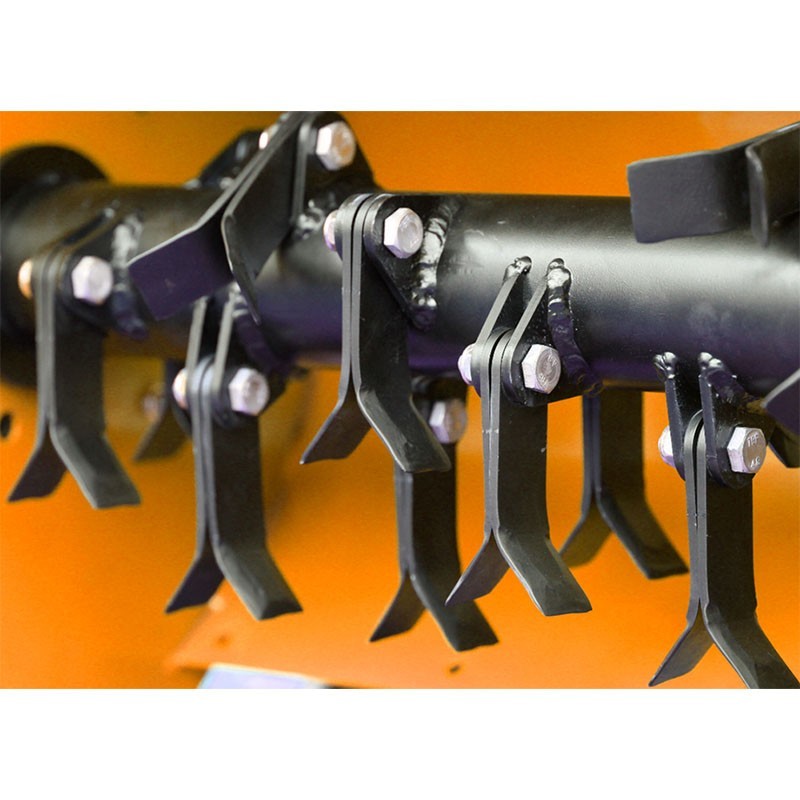

The flail mower is equipped with a cutting unit with a rotor and 32 floating hammers. This model uses free-spinning wheels for the front and 13x500-6" wheels for the rear.
The DM600 hammer brush cutter operates through belt transmission. It features a tensioned belt clutch and independent steering. It also offers extreme versatility thanks to its gearbox, which includes three speeds, two forward and one backward. It weighs only 130 kg.
This powerful flail mower model ensures excellent ground, orchard, and vineyard cleaning. Thanks to its efficient and powerful cutting unit, and the large working width, we can achieve excellent cleaning.
| Engine | Anova Euro V |
| Displacement | 223 cc |
| Power | 6.5 HP |
| Gears | 2+1 gears |
| Transmission | Straps |
| Blade speed | 2,820 rpm |
| Working width | 600mm |
| Starting system | Manual |
| Crushing system | 32 floating hammers |
| Traction | Self-propelled |
| Rear wheels | 13×5.00-6 tires |
| Front wheels | Free spin |
| Performance | Until 1.750m² |
| Protection system | Of projections |
| Handlebar | Height adjustable |
| System | Centralized height regulation |
| Amount of gearbox oil | 1.6 L |
| Engine oil quantity | 0.6 L |
| Weight | 130 Kg |
 |
 |
| IMPORTANT Mandatory by the client, check oil levels and lubrication before starting! |
| If the merchandise cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement pending examination. |
