The flail mower Bertolini BTS 65 is equipped with a Honda GX 340 engine with a power of 10.7 HP. This flail mower model Bertolini offers us a work width of 65 cm and an adjustable height between 20 and 80 mm.
It also features extreme versatility thanks to its gearbox. It has four speeds, three forward and one backward. The dimensions of this flail mower model are 1216 mm x 1657 mm x 814 mm.
The BTS 65 hammer brush cutterIt operates through transmission with gears in an oil bath. It features a clutch with belt Tensioned and with independent steering with a wheel block. It weighs only 173 kg.

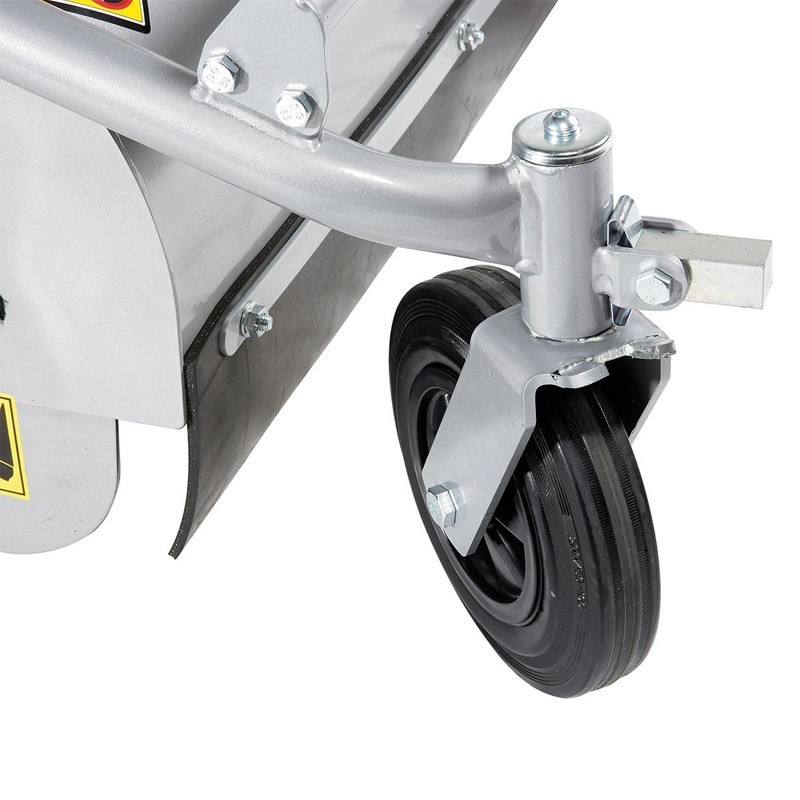

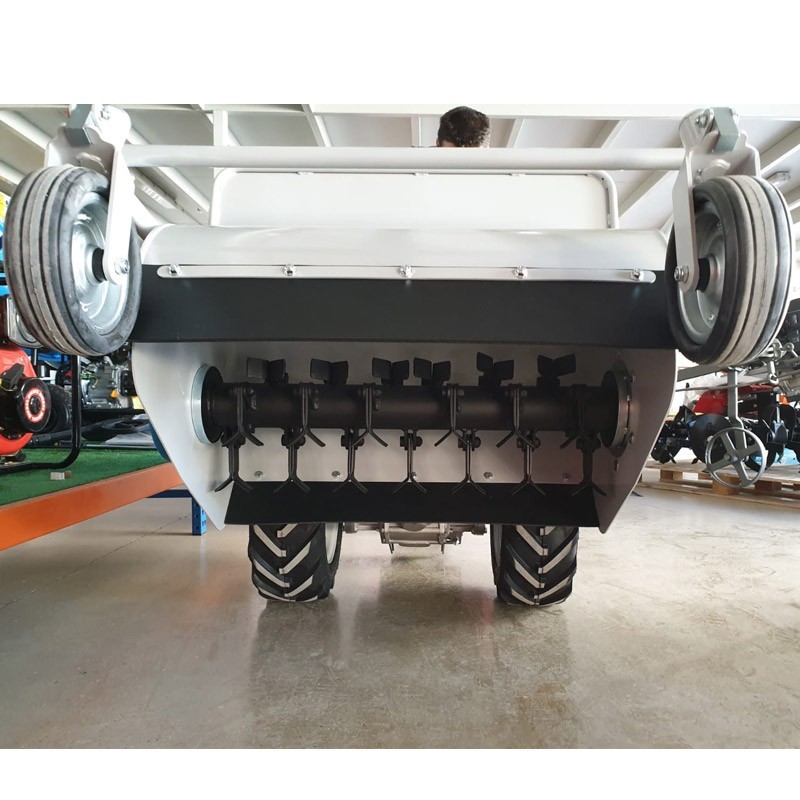

The flail mower is equipped with a cutting unit with a rotor and 38 blades in the shape of a "Y". This model uses swivel wheels with locks for the front and 16/6.50-8" wheels for the rear.
This model of hammer brush cutter Powerful ensures excellent cleaning of the ground, orchards, and vineyards. Thanks to its efficient and powerful cutting unit and the large working width, we can achieve excellent cleaning.
| Engine | Honda GX 340 |
| Power | 10.7 HP - 8.0 kW |
| Gears | 4 speeds, 3 forward + 1 reverse |
| Clutch | With the belt tightened. |

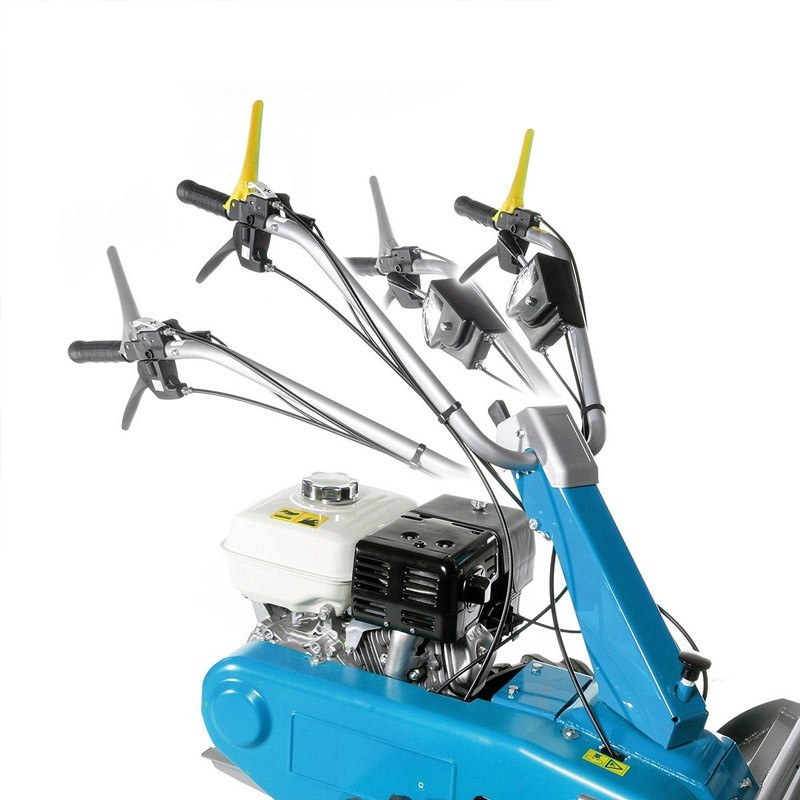

| Handlebar | Height adjustable on the sides |
| Transmission | With gears in an oil bath |
| Service brake | With automatic shut-off |
| Working width | 65 cm |
| Dimensions | 1216 x 1657 x 814 millimeters |
| Weight | 173 kg |
Difference between the oil bath clutch of other brands and the dry multi-disc clutch of Bertolini
Clutch brake in oil bath (Other brands) Inconveniences
Multi-disc dry clutch Bertolini
|
| IMPORTANT It is mandatory for the client to check oil levels and lubrication before starting up! |
| If the merchandise cannot be checked at the time of receipt, it should be noted on the carrier's document that the customer is in agreement pending examination. |
