| Deleks products take about 15 to 25 days. |

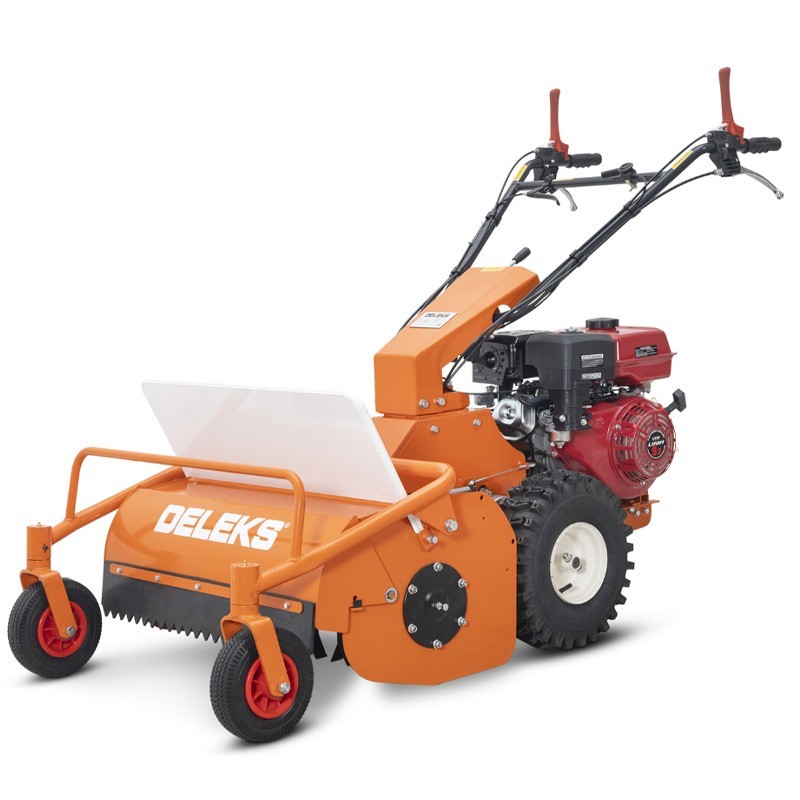

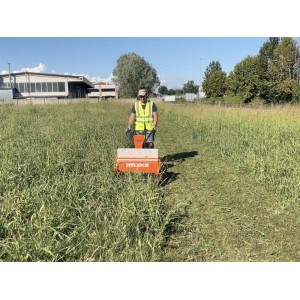

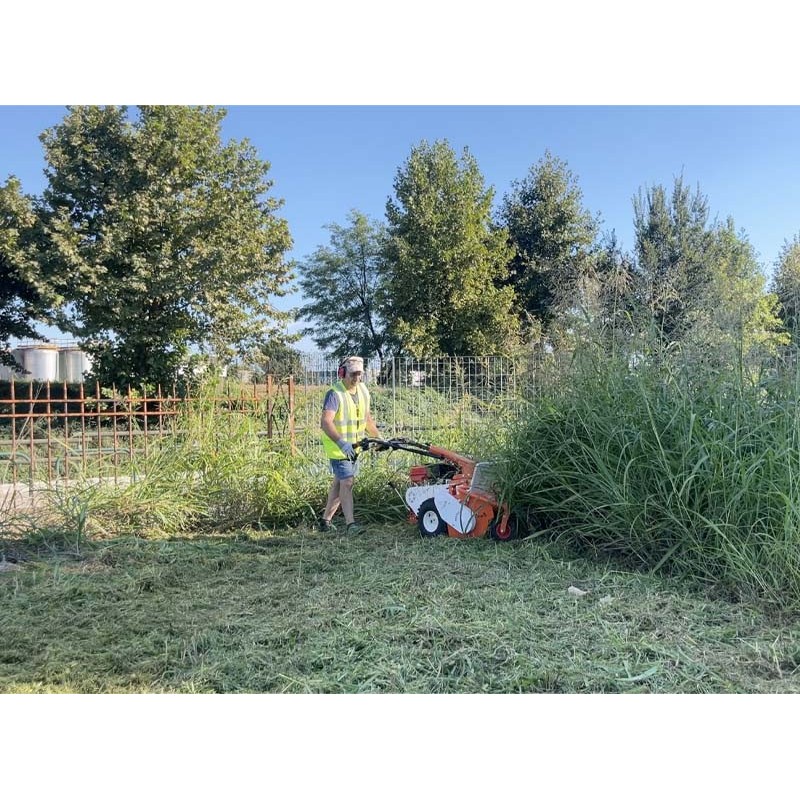

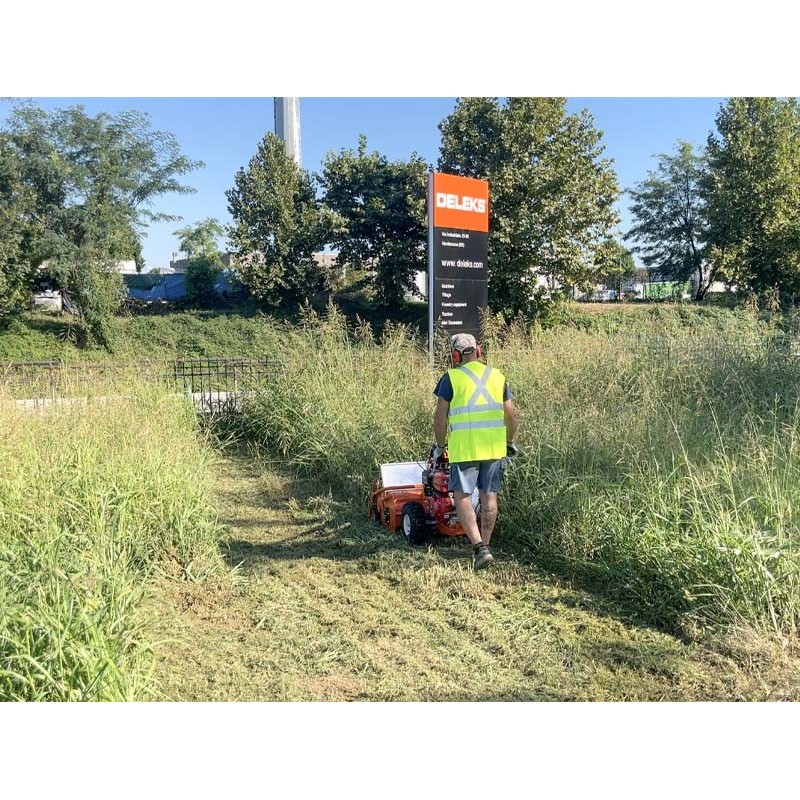

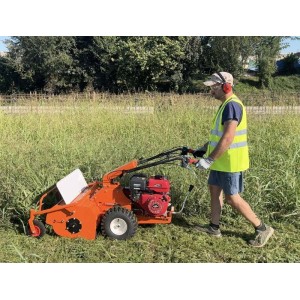

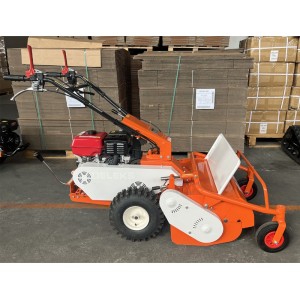

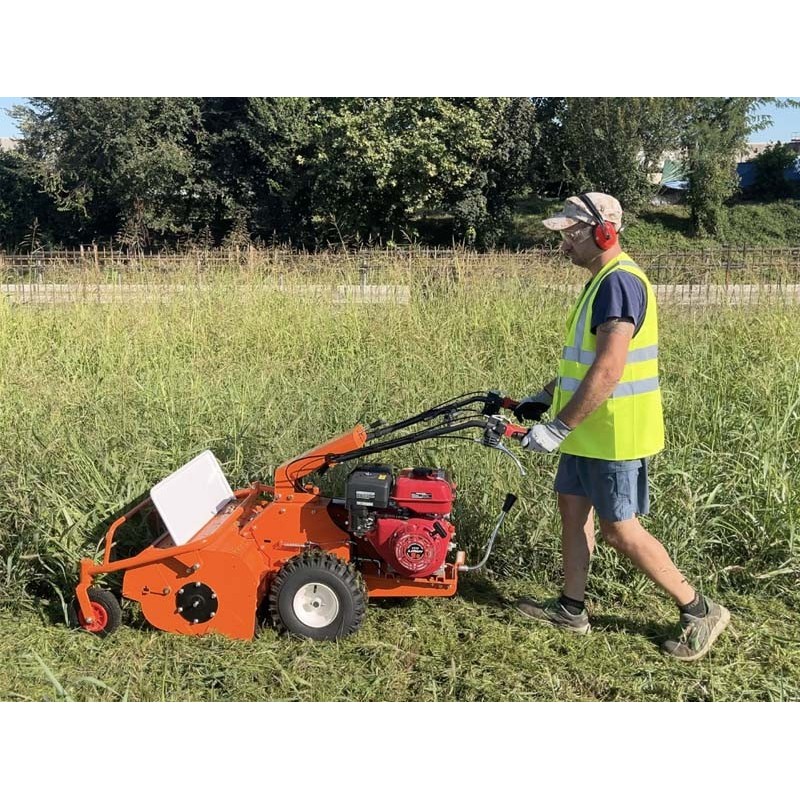

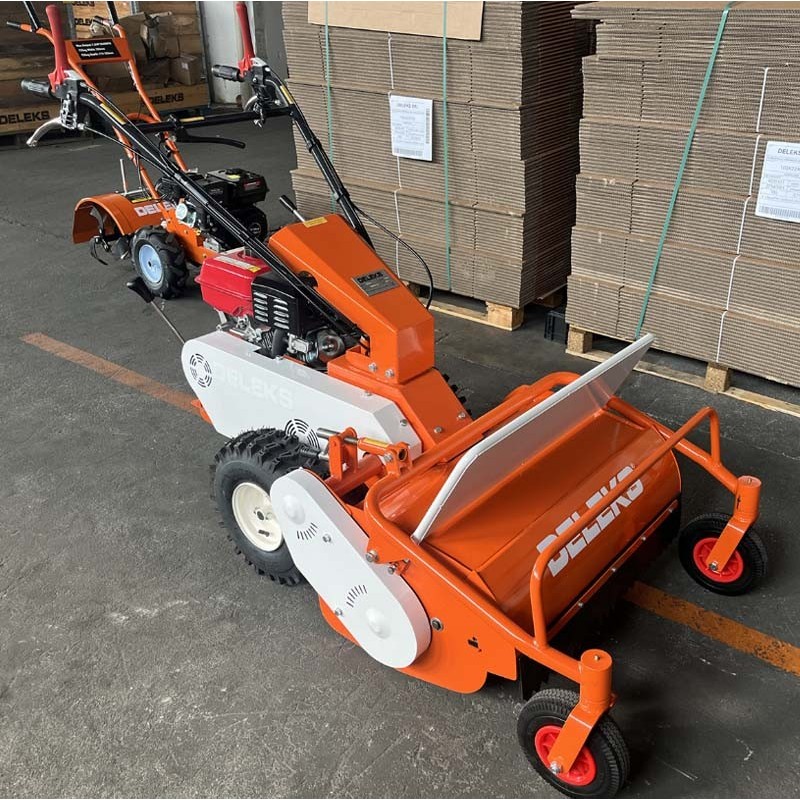

The hammer brush cutter Deleks stands out as a versatile and robust tool, ideal for keeping land clear and free of unwanted vegetation. Its design is intended to tackle demanding tasks, from clearing dense undergrowth to shredding agricultural pruning debris, adapting to sloped terrains, uncultivated areas, and spaces with obstacles.

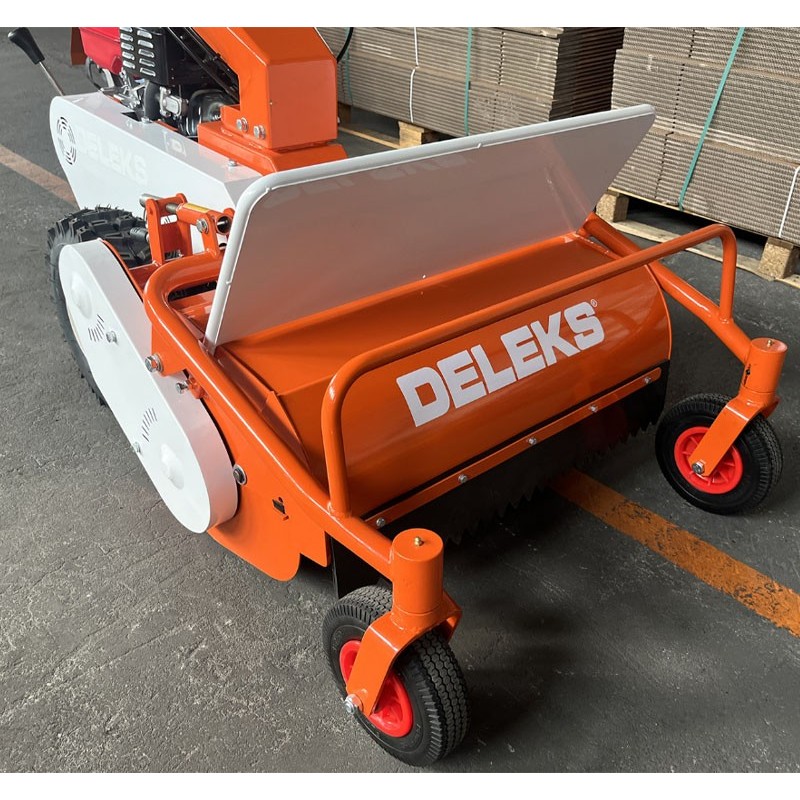

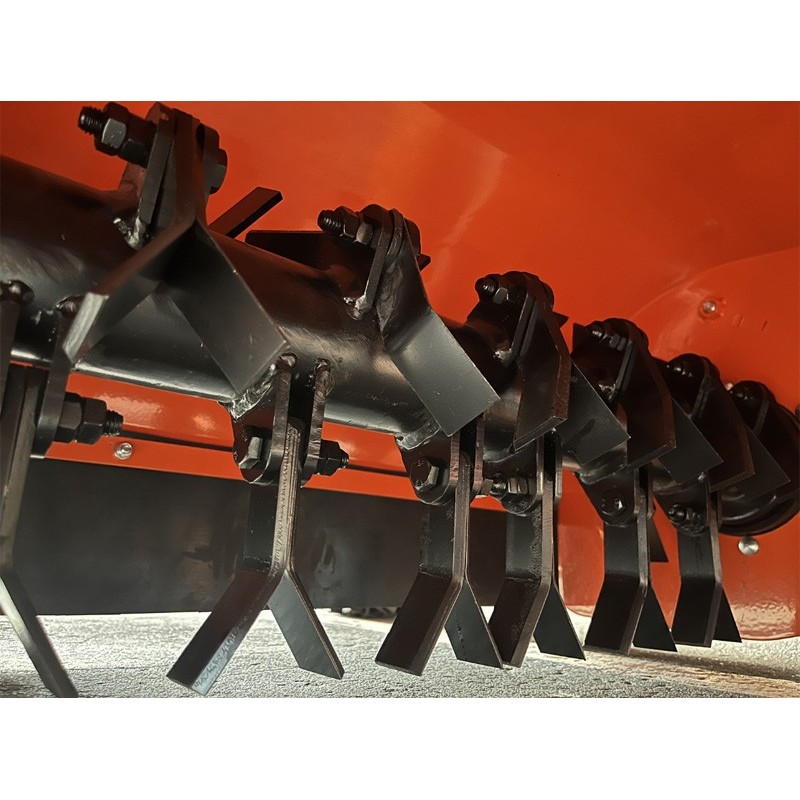

Equipped with a Y-blade rotor, it offers an efficient cutting system that shreds grass, branches, and shrubs without compromising its durability, even when facing stones or other hard objects.

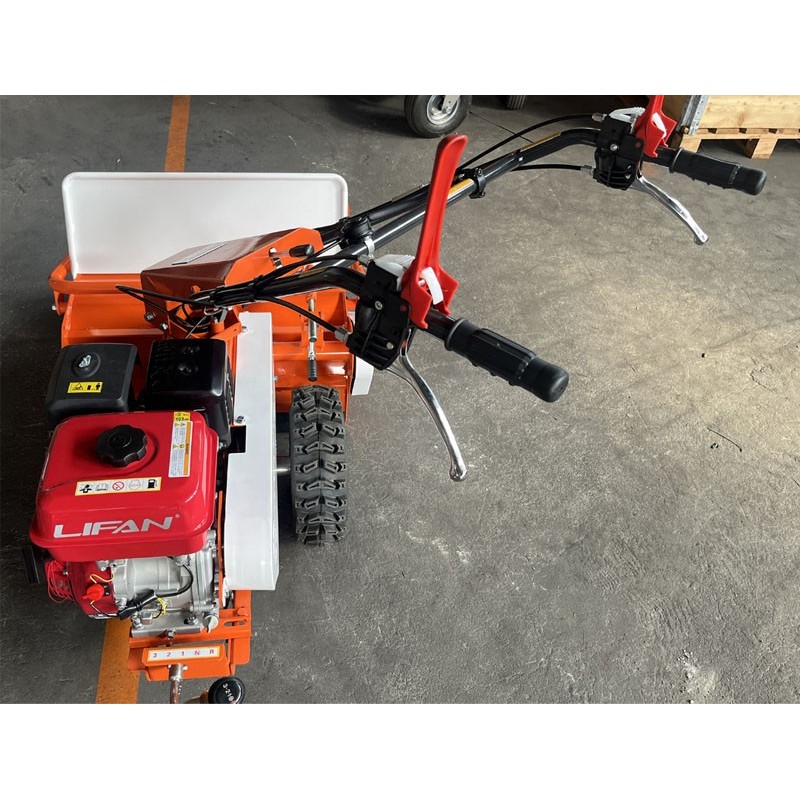

Its adjustable cutting height and ergonomic handlebar allow for comfortable and precise handling, while its pivoting wheels ensure stability on all types of terrain.

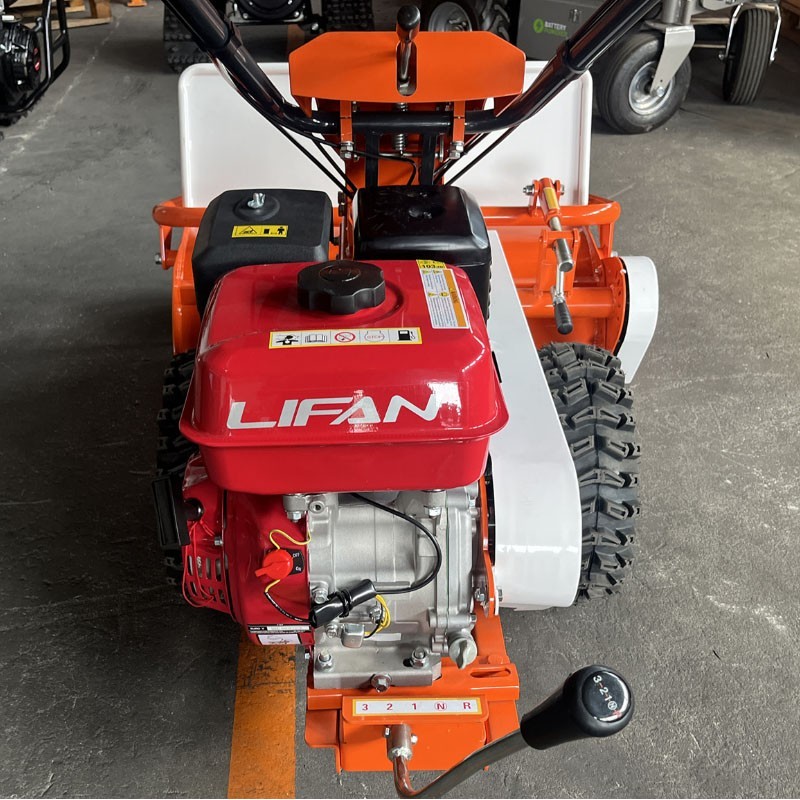

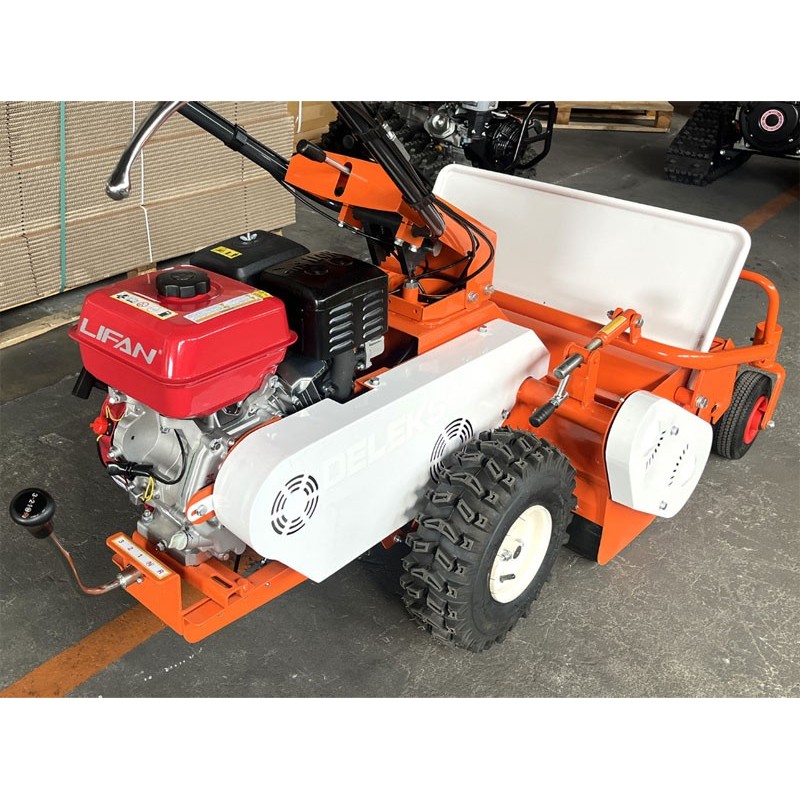

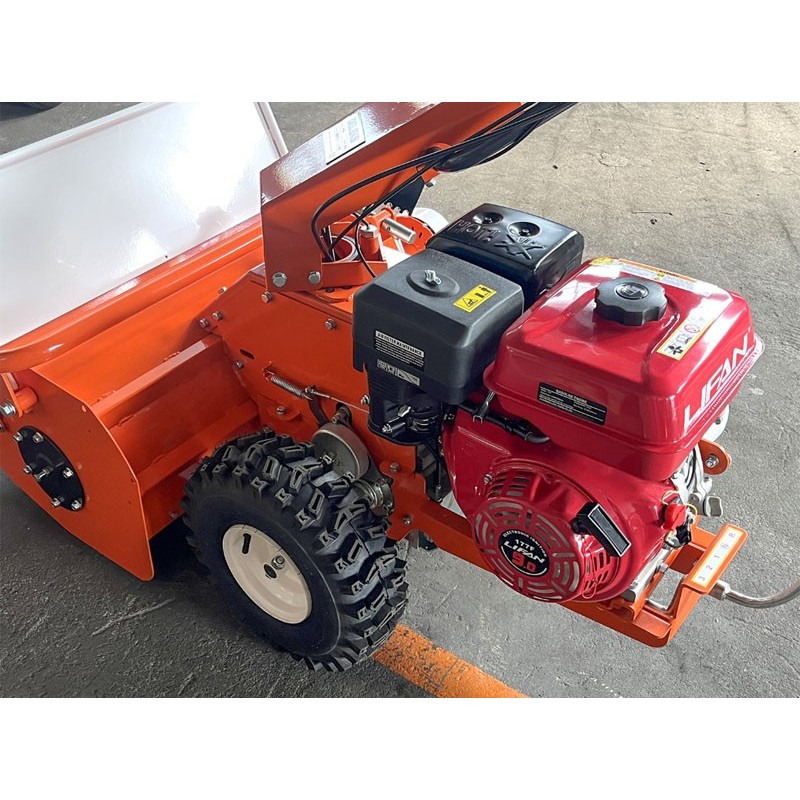

Thanks to its powerful Lifan 177F 9.0 HP engine and multi-speed transmission, this machine guarantees optimal performance, reaching a maximum speed of 2.8 km/h and operating reliably even on steep slopes.

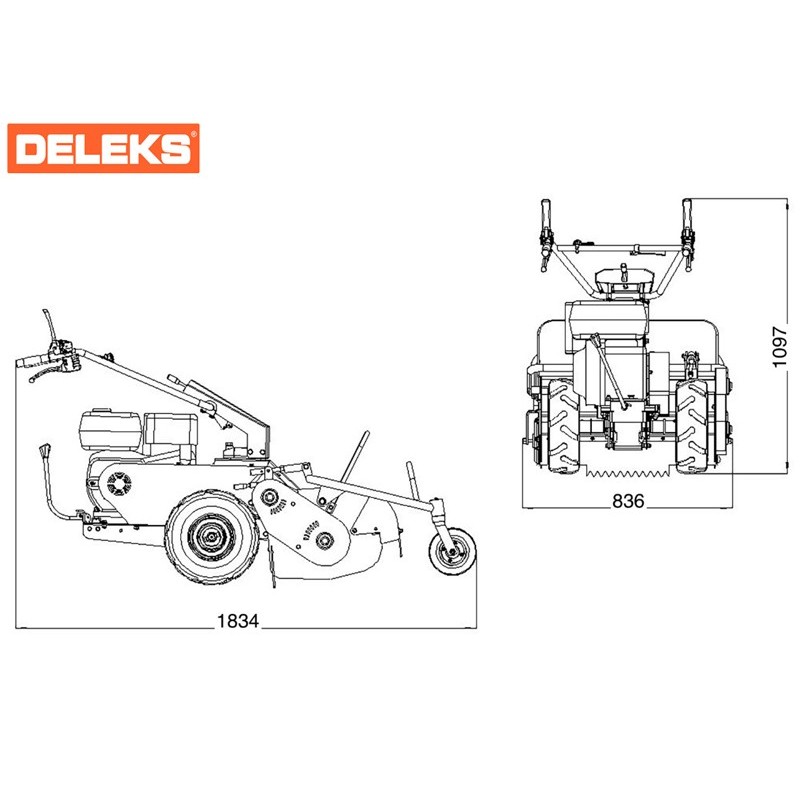

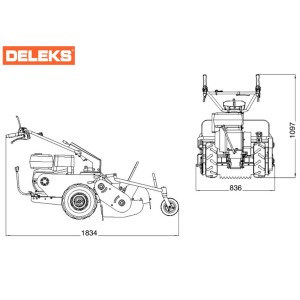

| Working width | 700 mm |
| Total width | 836 mm |
| Cutting height (min/max) | 20 - 80 mm |
| Total height | 1097 mm |
| Maximum cutting diameter | 30 mm |
| Total length | 1834 mm |
| Engine | Lifan 177F |
| Power | 9 HP |
| Start | Pull start |
| Cutting height | Adjustable via lever |
| Handlebar | Adjustable in height and horizontally |
| Transmission | 3 gears forward + 1 reverse |
| Maximum speed | 2.8 km/h |
| Maximum slope | 20° front, 10° side |
| Front wheels | Pivoting and lockable |

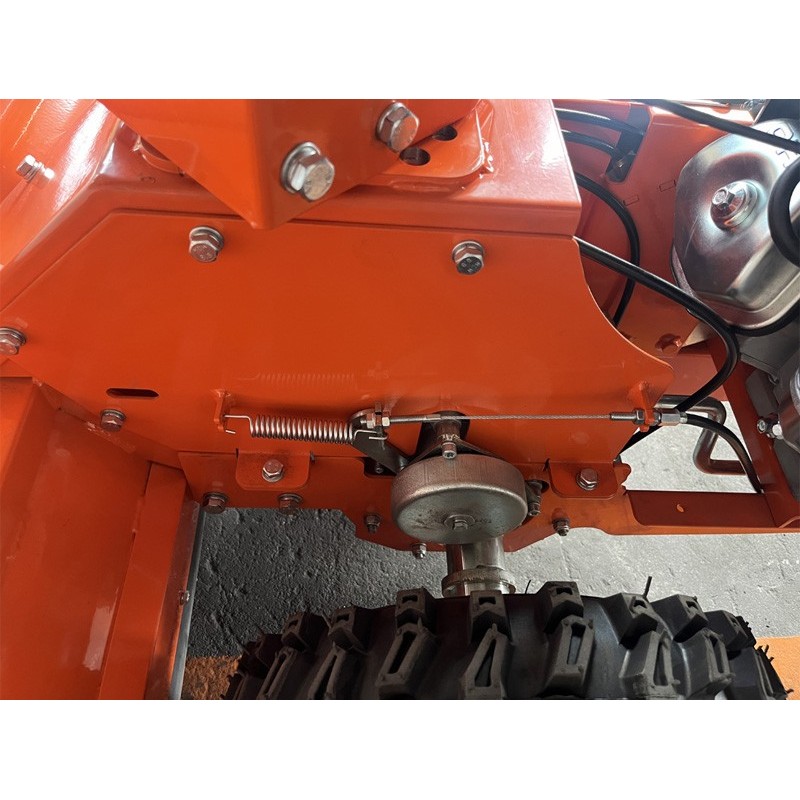

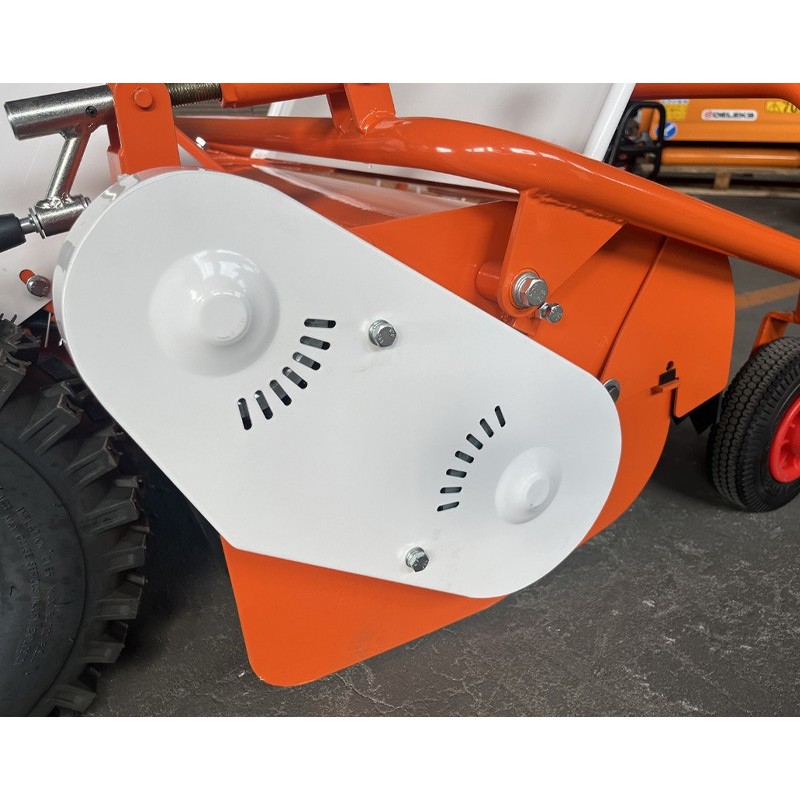

| Type of transmission | V-belts |
| Number of belts | 3 |
| Belt dimensions | AX35 (889LI) |
| Rotor | Electronic balancing |
| Number of blades | 38 |
| Weight | 156 kg |
| Packaging dimensions | 1900 × 900 × 900 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
