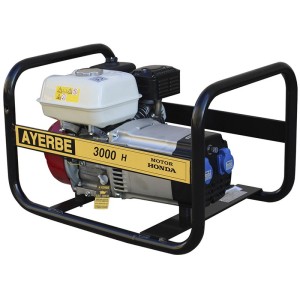

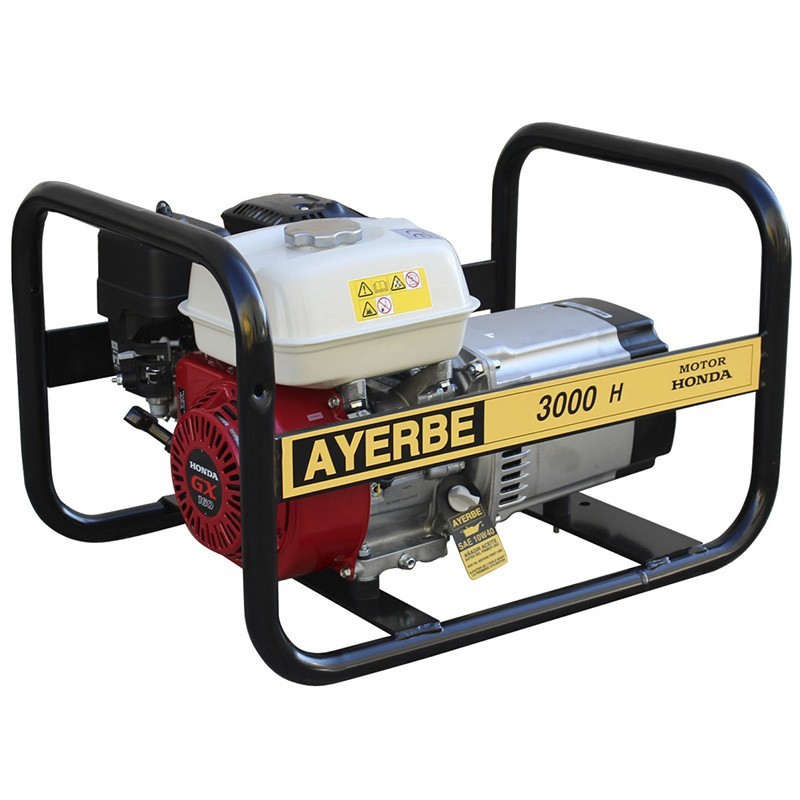

The single-phase gasoline generator Ayerbe AY 3000 H MN is a reliable source of energy with a maximum power of 3 KVA and a nominal power of 2.4 KVA, powered by a Honda GX 160 engine of 5.5 HP and 162 cc displacement.
This generator operates at a speed of 3,000 r.p.m., ensuring a constant supply of electrical power at 230 V and 50 Hz. Equipped with a manual start and a power factor of Cos phi 0.8, it offers efficient performance and easy operation.
With a sound level of 95 LwA / 72 LpA at 7 meters, this generator Ayerbe provides robust power with relatively low noise impact. Its air-cooling system and a mechanical speed governor ensure smooth, long-lasting operation.
In addition, with a fuel consumption of 1.1 L/H at 75%, this generator proves to be an efficient and economical choice for a variety of applications, standing out for its reliability and consistent performance.
| Maximum power | 3 KVA - 2,200 W |
| Rated power | 2,4 KVA - 1.900 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Starting | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 95 LwA / 72 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 160 |
| Power | 5.5 HP |
| Displacement | 162 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.1 L/H |
| Oil capacity | 0,58 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 SB |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 3,1 l |
| Autonomy at 75% | 2.8 hours |
| Weight | 47 kg |
| Dimensions | 650 x 425 x 480 mm |
| Packing volume | 0,13 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
