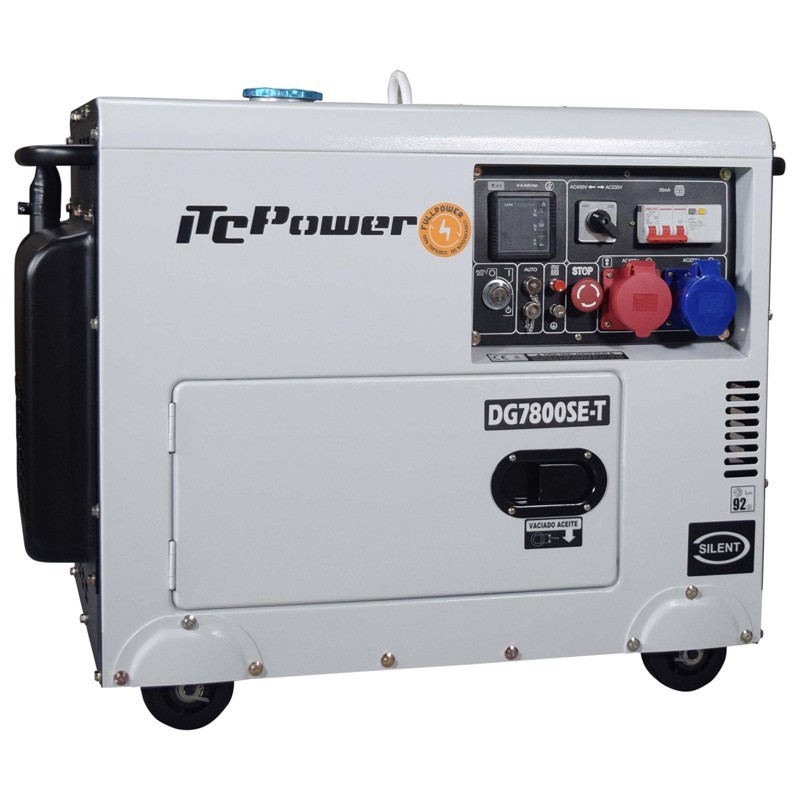

The electric generator ITC Power DG7800SE-T has the full power D500E engine, which provides 5500 W of nominal power and 6000 W of maximum power in its single-phase current, and allows it to reach up to 7900 kVA of maximum power and 7500 kVA of nominal power in its three-phase current, and thanks to the full power alternator we know that both currents will be fed at 100%.
It has an AVR voltage stabilization system with brushes to protect all sensitive devices connected to the generator, in addition to its low oil level alarm with automatic shutdown, as well as its overload protection with current measurement, will protect the generator itself from improper use.

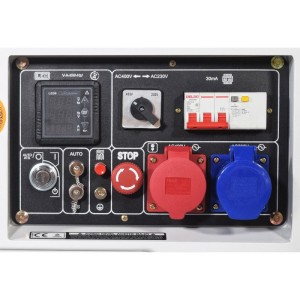

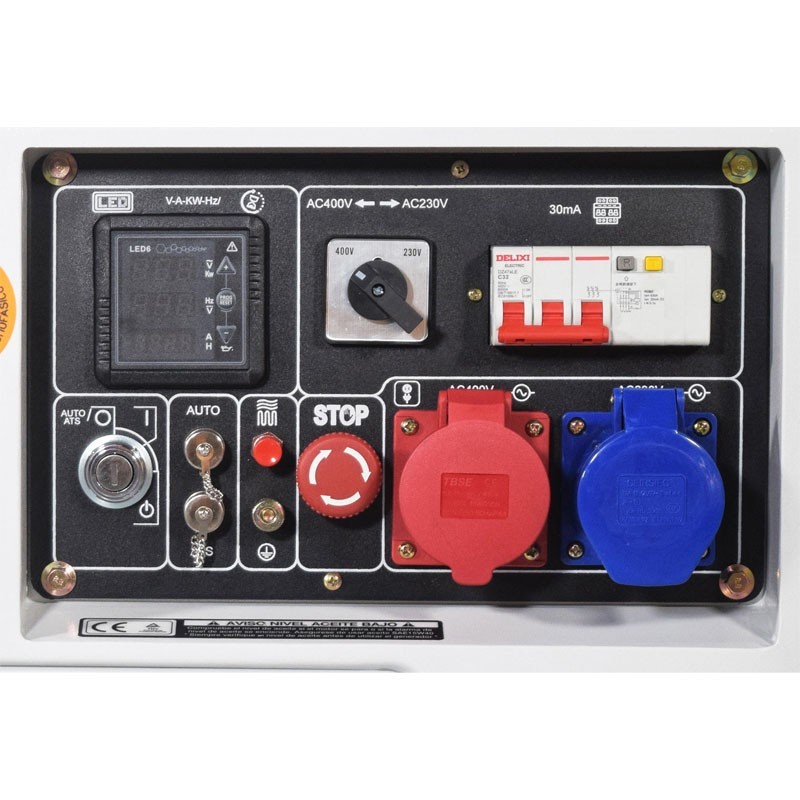

Last but not least, the LED3 electric display will provide maximum comfort when controlling the generator.
| Nominal power | 7500 kVA (400 V) / 5,500 W (230 V) |
| Maximum power | 7900 kVA (400 V) / 6000 W (230 V) |
| Frequency | Full Power 400 / 230 V |
| Outputs | 1 x PCESp (400V) / 1 x 32A (230V) |
| Rated current | 14 A (400V) / 25 A (230V) |
| Display | LED3 |
| Battery | 36 Ah |
| Fuel capacity | 12 liters |
| DC output | 12 V / 8.3 A |
| Autonomy at 50% load | 10 h |
| Noise level at 7 meters | 72 dB |
| Motor model | D500E |
| Power rating | 13 Hp |
| Engine speed | 3000 RPM |
| Starting mode | Electric |
| Displacement | 498 cc |
| Oil capacity | 1.65 liters |
| Alternator model | A6ST |
| Rated alternator power | 7500 VA |
| Alternator Power factor | 0.8 / 1 |
| Voltage regulation | AVR / Brushes |
| Net Weight | 152 kg |
| Gross Weight | 168 kg |
| Product Dimensions | 92 x 52 x 76 cm |
| Packing dimensions | 95 x 57 x 79 cm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
