Battery NOT included in electric start models

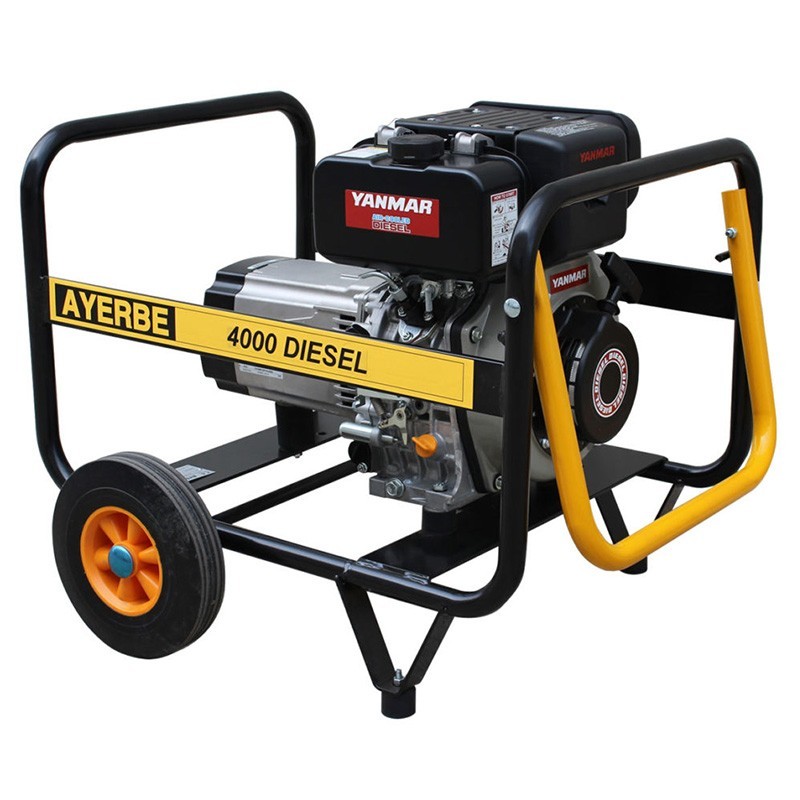

The generator Ayerbe AY 4000 D has a Yanmar LN-70 diesel engine of 6.7 horsepower that is capable of generating a maximum power of 4100 W.
The consumption that this diesel generator has is 1.3 liters per hour and it does it in the voltage of 230 V and 50 Hertz. The alternator included in this generator is the well-known Linz SP10MF model.
The Ayerbe AY 4000 D has two variants of starters depending on the model we choose will come with electric start or manual start.
Finally, we will talk about its weight, and although it weighs 80 kilograms, it comes on a chassis prepared with wheels and handle to be able to transport it much more easily.
| Maximum power | 5 KVA - 4,100 W |
| Nominal power | 4,5 KVA - 3.600 W |
| R.p.m. | 3.000 r.p.m. |
| Voltage / Frequency | 230 V. / 50 Hz. |
| Start | Manual or Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 108 LwA / 79 LpA@7m |
| Motor | |
| Brand | YANMAR |
| Model | LN 70 |
| Power | 6.7 HP |
| Displacement | 320 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. of engine | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | DIESEL |
| Fuel consumption at 75% | 1.3 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual or electric |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 MF |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity (manual start model) | 3,5 l |
| Tank capacity (electric start model) | 15 l |
| Autonomy at 75% (manual start model) | 3 hours |
| Autonomy at 75% (electric start model) | 12 hours |
| Weight | 80 kg |
| Dimensions | 770 x 746 x 625 mm |
| Packing volume | 0,36 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
