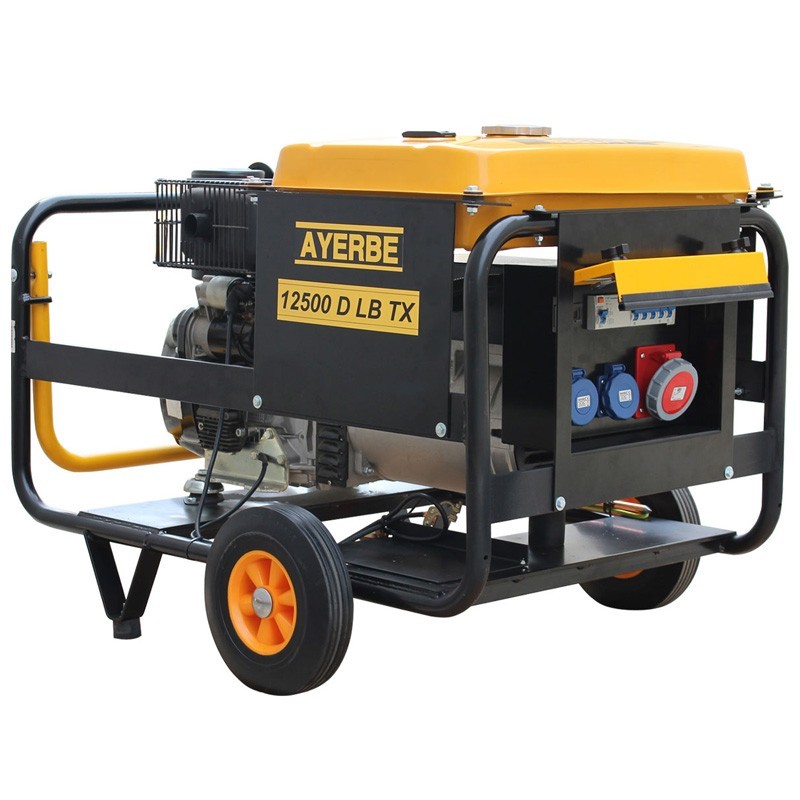

Three-phase diesel electric generator Ayerbe AY 12500 D E


  • Engine: Lombardini 19 HP 851 cc
  • Maximum power: 12.5 kVA
  • Voltage: Three-phase and single-phase
  • Starting: Electric

Battery NOT included in electric start models

En stock
icon Power Supply
Power Supply
Diesel
icon Stabilization
Stabilization
Compound
icon Current
Current
Three-phase
icon Startup
Startup
Electric
icon Engine
Engine
Lombardini
icon Engine model
Engine model
25 LD 425
icon Displacement
Displacement
851 cc
icon Engine type
Engine type
4 times
icon Power rating
Power rating
8000 W
icon Maximum power
Maximum power
10000 W
icon Type of winding
Type of winding
Copper
icon Type of generator
Type of generator
With handle and wheels
€4,583.47 excl. VAT
- 4%
€4,400.13 excl. VAT
€5,324.16 VAT incl.
Finance in 3 months with no interest Pago KLARNA
Finance in 3 months with no interest Pago PAYPAL
Shipments to all Europe
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Three-phase diesel electric generator Ayerbe AY 12500 D E
€5,324.16
Qty

Diesel Generator Ayerbe AY 12500 D E

The generator Ayerbe 12500 D E is powered by a Lombardini 25 LD 425 diesel engine that is capable of drawing a maximum power output of 12 kVA or 10,000 watts.

The engine has 19 horsepower and its cooling is based on the use of air. As for its consumption, we can say that it has a very low consumption of only 2.4 liters.

This together with its 25-liter tank gives us an autonomy of up to 10 hours of continuous use. Undoubtedly, it will hold perfectly a day's work. We should also mention that it has facilities such as electric start.

On the other hand let's talk about its weight, and is that it weighs 140 kilograms but we have to take into account that it comes equipped with wheels and a handle to carry it much more comfortably.

Technical data

Maximum power 12,5 KVA 400 V. / 5 KVA 230 V.
Nominal power 10 KVA 400 V. / 4 KVA 230 V
R.p.m. 3.000 r.p.m.
Voltage / Frequency 400 - 230 V. / 50 Hz
Start Electric
Power factor Cos phi 0,8
Noise level 108 dB
Motor
Brand LOMBARDINI
Model 25 LD 425
Power 19 HP
Displacement 851 cc
Cooling system Air
Engine oil type SAE 20W40 / IPE grade CD, CF
Intake Natural
R.P.M. of engine 3.600 r.p.m.
Speed governor Mechanics
Fuel Diesel
Fuel consumption at 75% 2.4 L/H
Oil capacity 1,8 L
Starting system Electric
Alternator
Brand MECC ALTE
Model T20 S
Type With brushes
Insulation type Class H
IP protection IP 23
Excitation system Compound
Voltage Tolerance + - 5%
Poles 2
Voltage / Frequency 230 / 50 Hz.
Type of coating Standard (without impregnation)
Dimensions and Weight
Tank capacity 25 l
Autonomy at 75% 2,5 hours
Weight 140 kg
Dimensions 950 x 800 x 730 mm
Packing volume 0,44 m³

IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending.
The batteries included in some machines are a free gift, so they are exempt from warranty.
