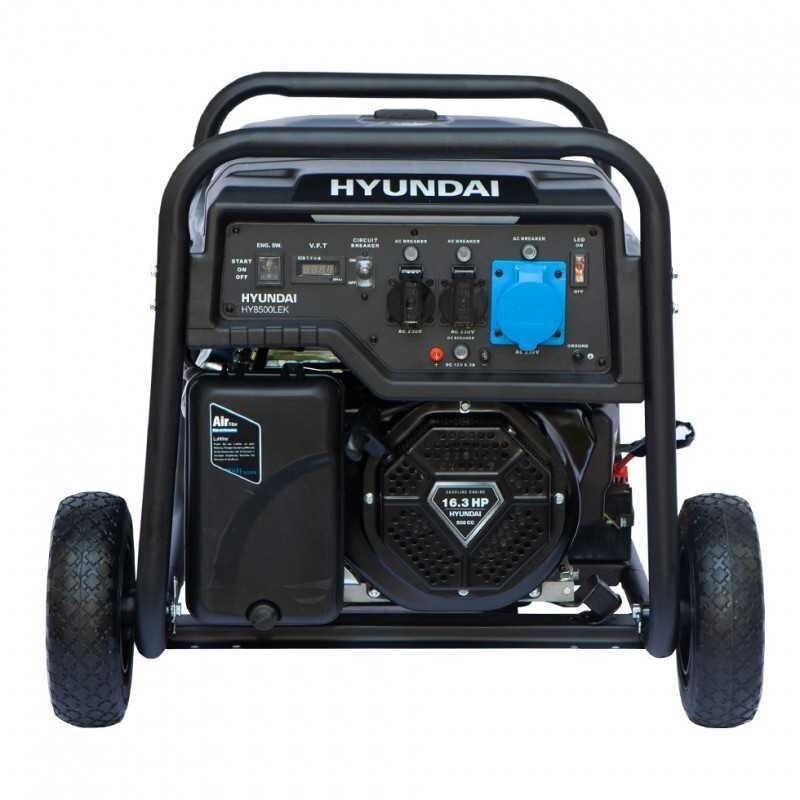

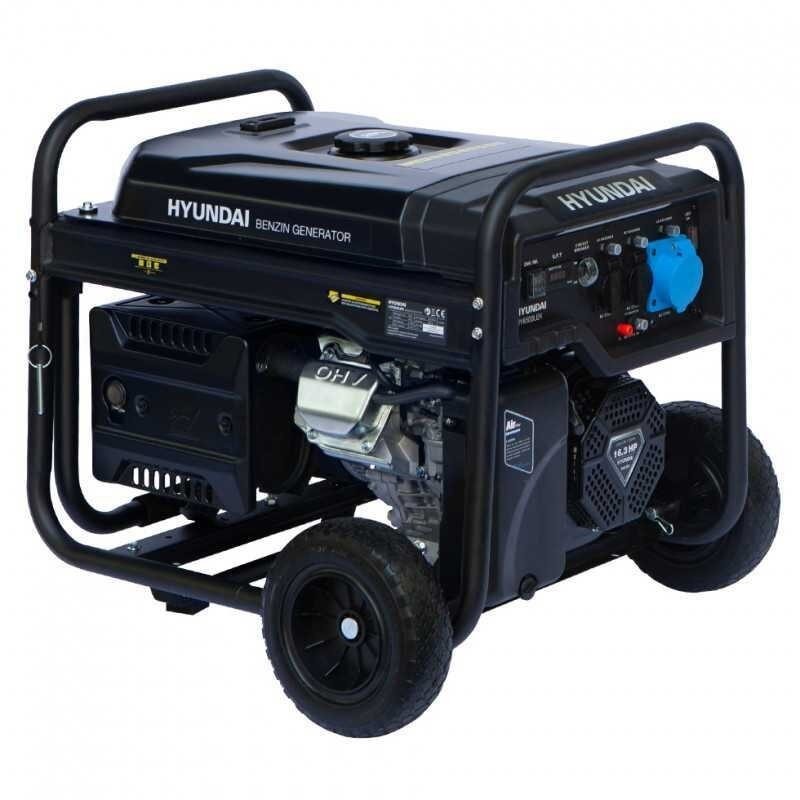

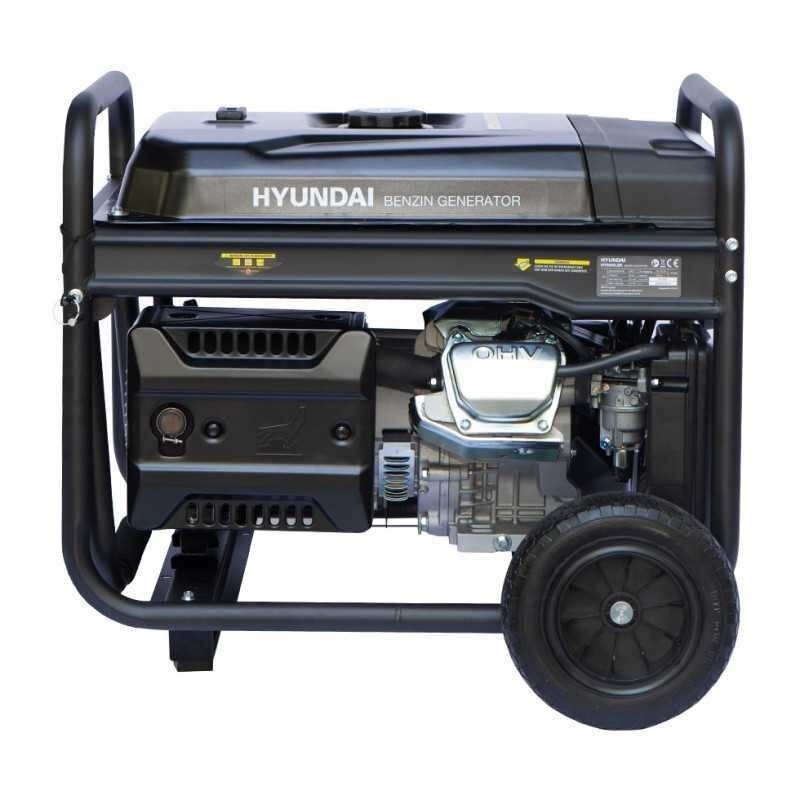

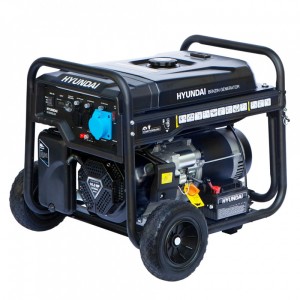

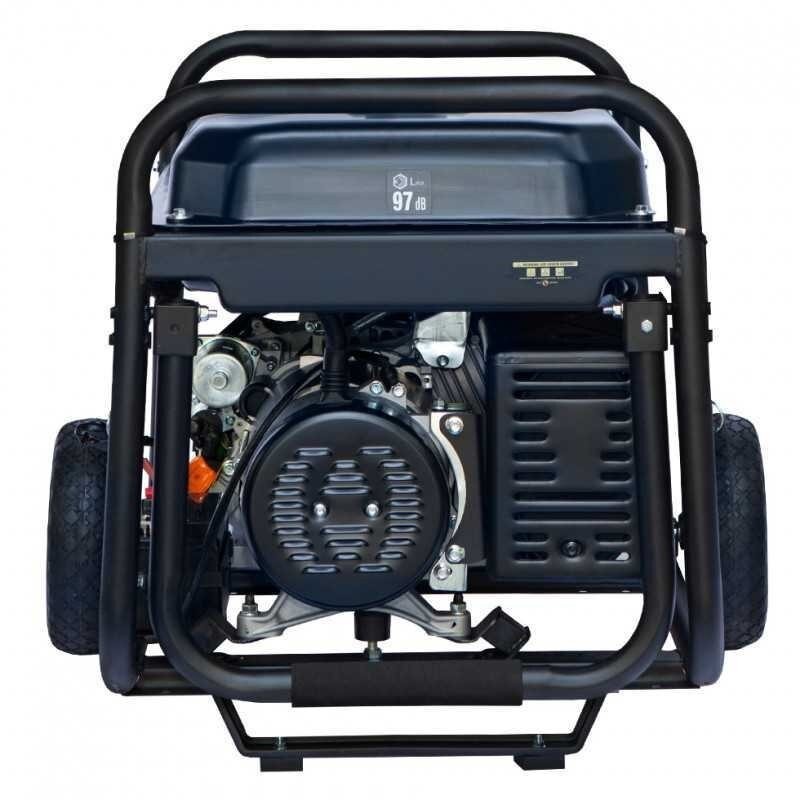

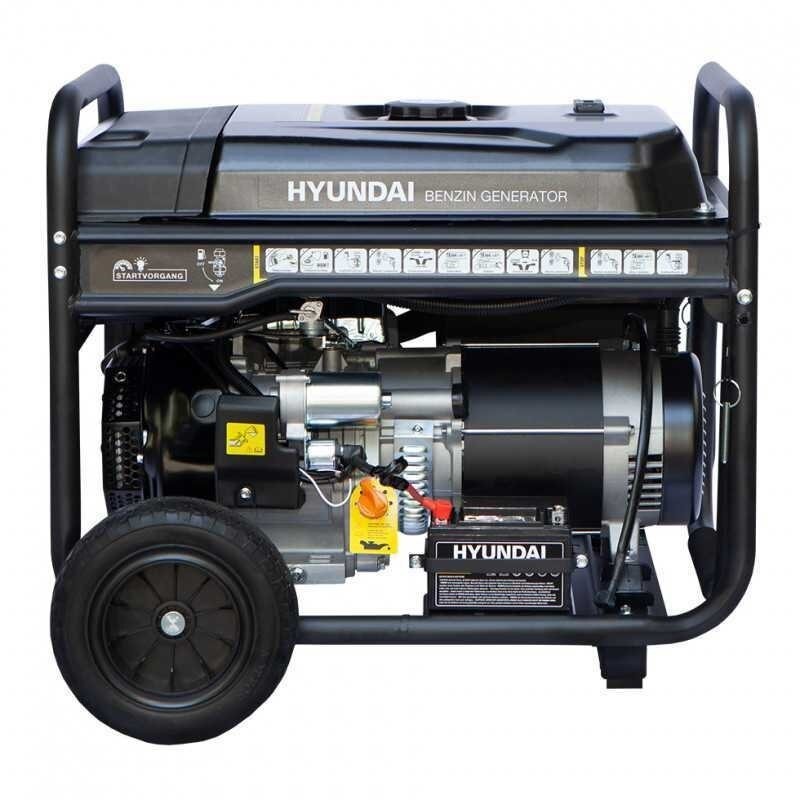

The HYUNDAI HY10100LEK generator is equipped with a 4-stroke gasoline engine Hyundai, which includes electric start and an integrated battery. It offers a rated power of 8 kW and operates on a voltage of 230 V at 50 Hz, ensuring efficient and reliable performance for various applications.
Among its outstanding features are overload protection and automatic shutdown in case of low oil level, providing safe operation and extending the equipment's service life. In addition, it has an air cooling system and an LED display for easy monitoring of its operation.
To ensure stable current, the HY10100LEK is equipped with an AVR (Automatic Voltage Regulator) and a built-in fuse, providing constant and safe power.
| Voltage | 230 V-50 Hz |
| Rated Power | 8.0 Kw |
| Maximum Power | 8,5 Kw |
| Tank Capacity | 28 L |
| Operation at 50% Load | 10,5 h |
| Continuous Current Output | 1x12V / 8,3A |
| Continuous Current Output | 1x12V / 8,3A |
| Engine Type | 4 Stroke Gasoline Engine, OHV |
| Engine Power | 16,3 HP |
| Starter | Manual / Electric |
| Oil Capacity | 1,2 L |
| Gross Weight | 101,7 Kg |
| Nominal Intensity | 34,8 A |
| Output | 2x16A + 1x32A |
| Sound Level | 74 dBA |
| Product Dimensions | 74x57,6x57,7 cm |
| Box Dimensions | 75x85,5x58 cm |
| Net Weight | 95,5 Kg |
| IMPORTANT NOTICE |
| It is compulsory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
