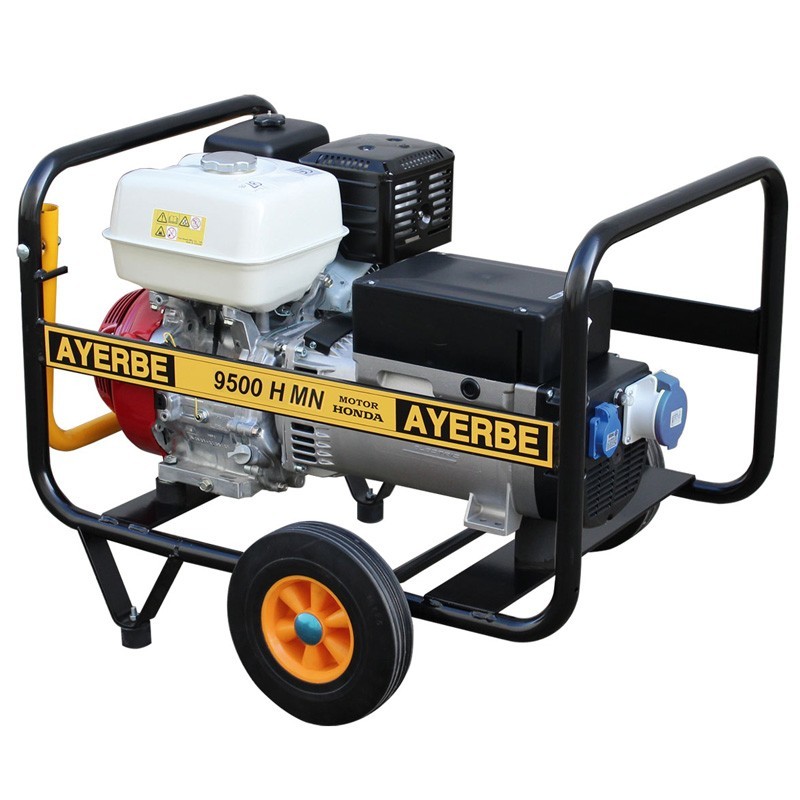

The electric generator Ayerbe AY 9500 H MN is a powerful power source with a maximum capacity of 7,000 W and a rated power of 6,000 W, ensuring a stable and reliable supply of electricity. Its 13 hp 390 cc Honda GX 390 engine with an air-cooling system ensures optimum performance and long durability.
With a manual start and a mechanical speed regulator, this generator offers a sound level of 97 LwA / 74 LpA at 7 meters, making it suitable for different environments without compromising its efficiency.
The combination of a high oil capacity of 1.1 liters and an efficient fuel consumption of 2.1 L/H at 75% load, together with a naturally aspirated design, demonstrates its energy efficiency.
With a voltage of 230 V and a frequency of 50 Hz, this generator is ideal for domestic or commercial applications where a continuous and stable supply of electricity is required.
| Maximum power | 9,5 KVA - 7.000 W |
| Rated power | 8 KVA - 6,000 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 97 LwA / 74 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 390 |
| Power | 13 HP |
| Displacement | 390 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Aspiration | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 2.1 L/H |
| Oil capacity | 1,1 L |
| Starting system | Manual |
| Alternator | |
| Brand | LINZ |
| Model | E1C11 M C |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz. |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 6,5 l |
| Autonomy at 75% | 3 hours |
| Weight | 82 kg |
| Dimensions | 830 x 660 x 730 mm |
| Packing volume | 0,39 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
