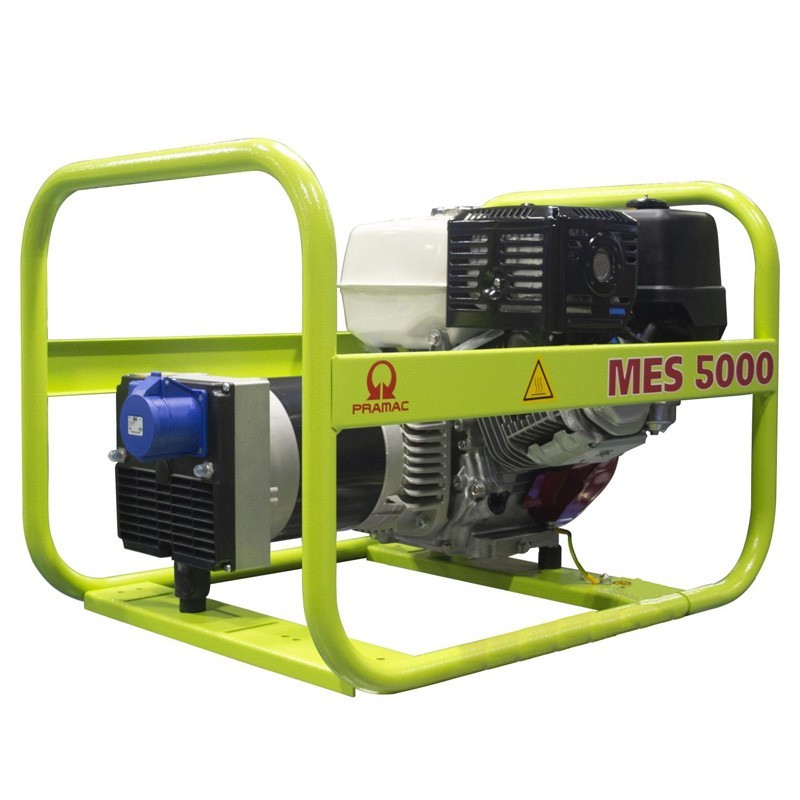

The Gasoline Electric Generator Pramac MES5000 4600 W is a reliable source of power with two models available to suit your needs. One model includes an AVR (Automatic Voltage Regulator) stabilization system, while the other operates without this feature. This gives you the flexibility to meet your specific power requirements.
Both models operate at a frequency of 50 Hz and a voltage of 230 V, with a power factor of 0.9 cos ϕ. Their maximum power reaches 4600 W, with a rated power of 3900 W, ensuring a stable supply of electricity. The reliable engine driving these generators is a Honda GX270 Recoil, with an air-cooled, naturally aspirated system.
In addition, the Pramac MES5000 has a mechanical speed regulator and manual start system, making it easy to operate. Its robust construction and IP23 protection ensure durability and resistance in diverse conditions. Whether with or without AVR, these generators offer optimum performance, with efficient fuel consumption and a fuel tank capacity of 5.3 liters that provides adequate autonomy, even at 100% load.
| Model | Without AVR | With AVR |
| Frequency | 50 Hz | |
| Voltage | 230 V | |
| Power factor | 0.9 cos ϕ | |
| Phases | 1 | |
| Maximum power | 4600 W | |
| Nominal power | 3900 W | |
| Engine Brand | Honda | |
| Model | GX270 Recoil | |
| Cooling System | Air | |
| Aspiration | Natural | |
| Speed regulator | Mechanical | |
| Nominal operating speed | 3000 rpm | |
| Fuel | Gasoline | |
| Starting system | Manual | |
| Oil tank | 1.1 l | |
| Displacement | 270 cc | |
| Alternator type | Brushless | With brushes |
| Class | H | |
| IP protection | 23 | |
| Poles | 2 | |
| Voltage tolerance | +5; -10 (cosϕ1) %; +5; -10 (cosϕ1) %; +5; -10 (cosϕ1) % | 2 % |
| Voltage regulation system | Compound | Electronic |
| Standard AVR regulation | AVR 520 | |
| Fuel consumption at 75% load | 1.67 l/h | 1.66 l/h |
| Autonomy at 75% load | 3.17 h | 3.19 h |
| Fuel consumption at 100% load | 2.22 l/h | |
| Autonomy at 100% load | 2.39 h | |
| Fuel tank capacity | 5.3 l | |
| Dimensions | 750 x 543 x 520 | |
| Dry weight | 61 Kg | |
| Sockets | SCHUKO 230V 16A IP54 | |
| 2P+T CEE 230V 16A IP44 | ||
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
