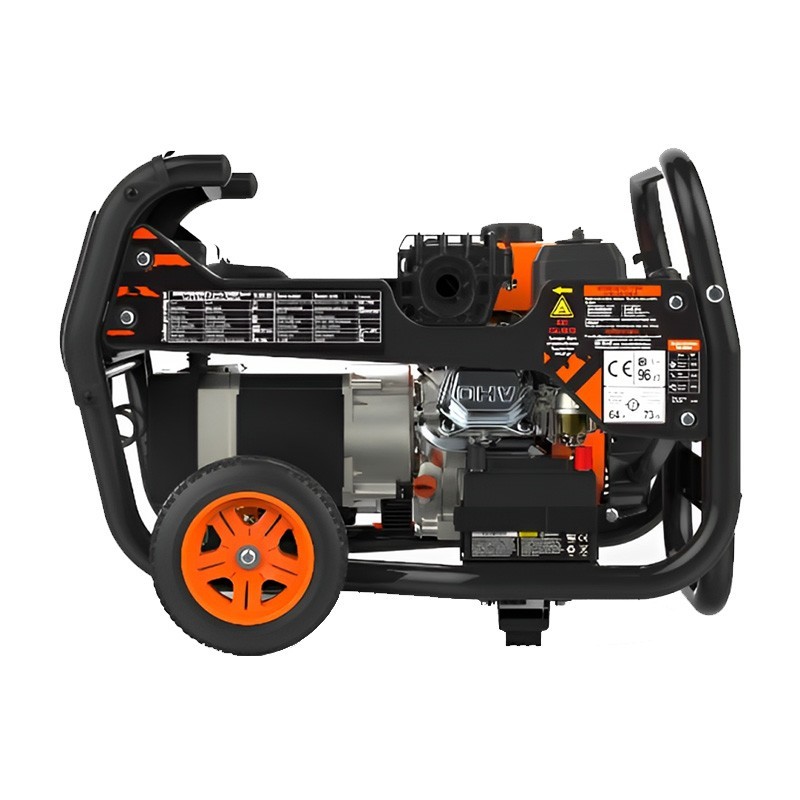

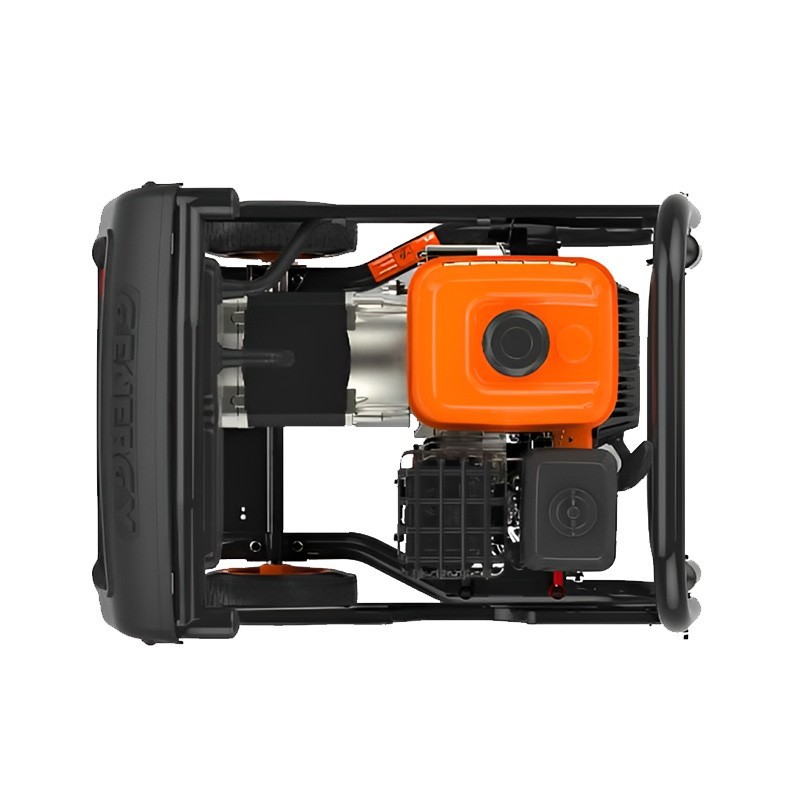

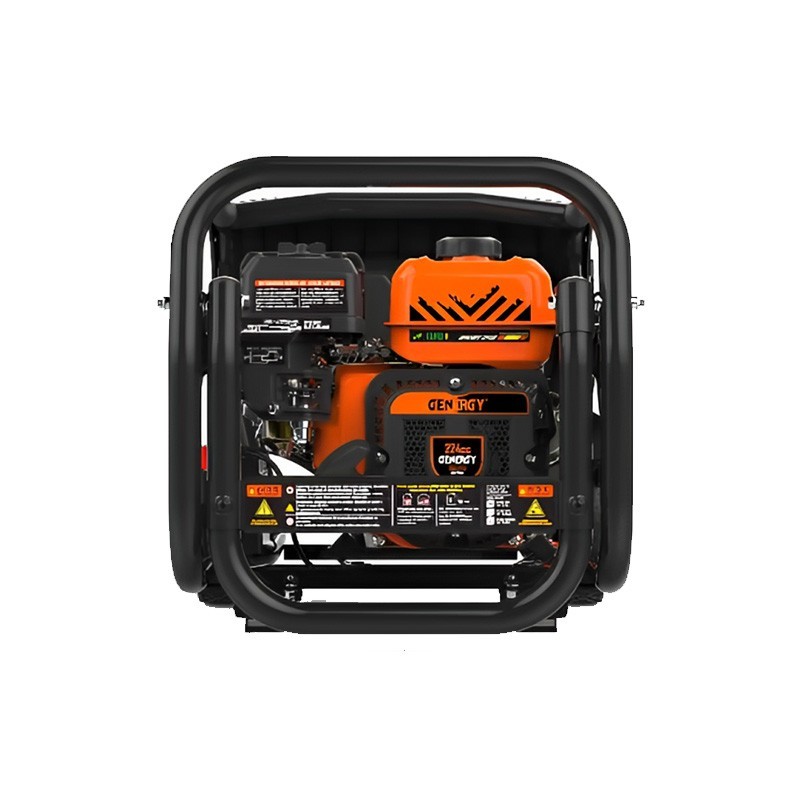

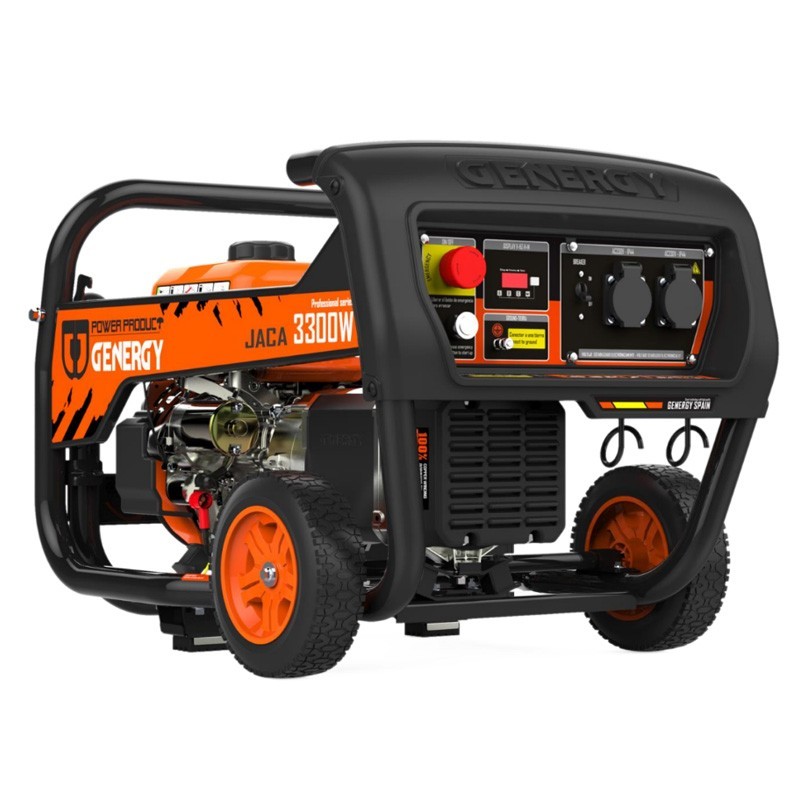

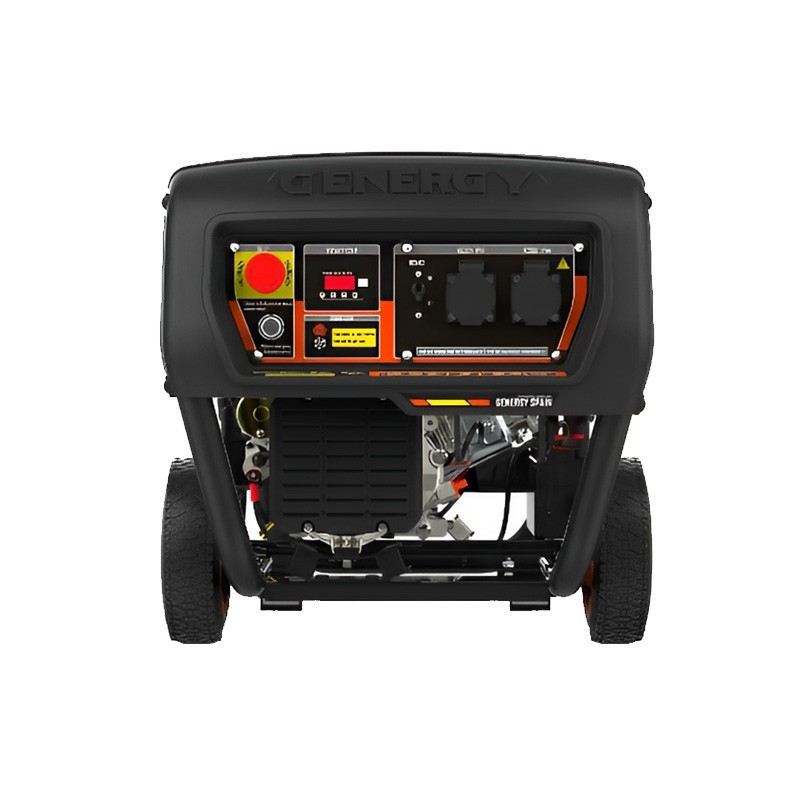

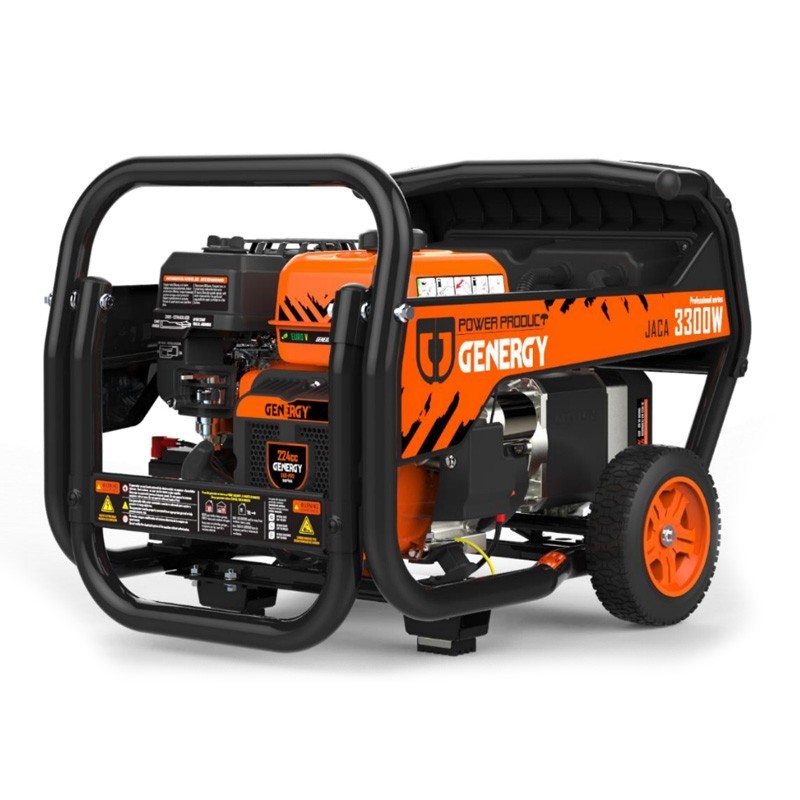

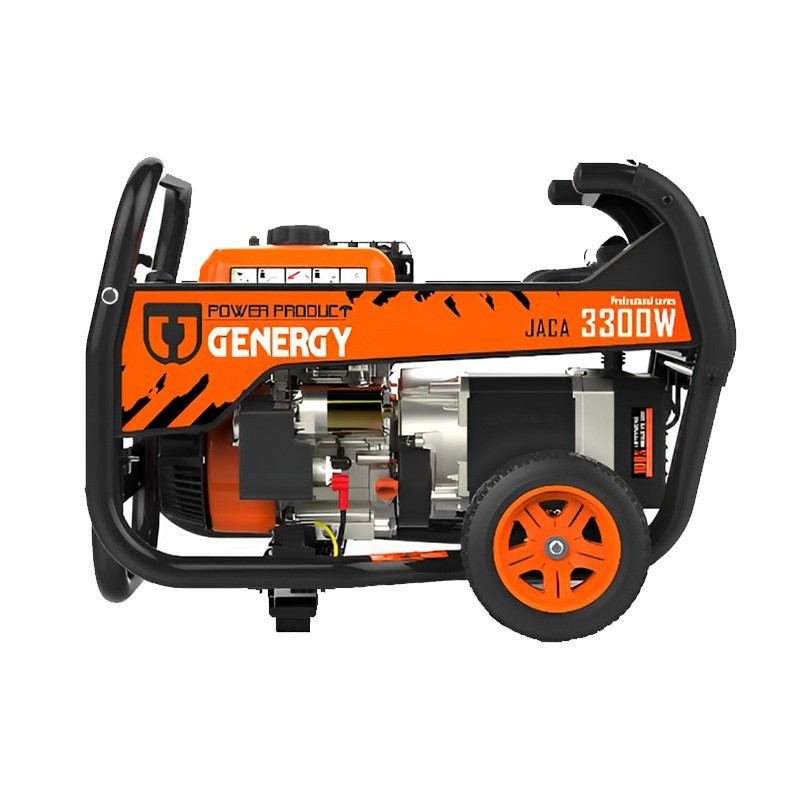

The gasoline electric generator Genergy Jaca 3300W has a weight of 57 Kg, a nominal power of 3000 W, a maximum power of 3300 W, and its current is single-phase type.
It has a 4-stroke OHV air-cooled gasoline engine, a voltage of 230 V, a frequency of 50 Hz and has dimensions of 710x517x527 mm. It has an oil capacity and oil grade of 0.6L - SAE10W40.
The Gasoline Electric Generator Genergy Jaca 3300W has an Electronic Stabilization System "SVR", with a displacement of 224 cc, and is equipped with a copper coil.
| Stabilization system | Electronic "SVR" |
| Voltage - Frequency | 230V - 50Hz |
| Maximum Power | 3300 W |
| Nominal Power | 3000 W |
| Type by number of phases | Single-phase |
| Power factor | 1 |
| Motor Model | SGB225PRO |
| Displacement | 224 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 64 dB - 73 dB |
| Guaranteed sound power level LwA | 96 dB |
| Starting type | Electric and Manual |
| Fuel tank capacity | 2.6 L |
| Consumption at 25-50-75% load | 0.8 L/H - 1.0L/H - 1.4L/H |
| Autonomy 25-50-75% load | 3.25H -2.6H - 1.85H |
| Oil capacity and grade | 0.6L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G1 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 8" wheels |
| Dimensions | 710x517x527 mm |
| Weight | 57 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
