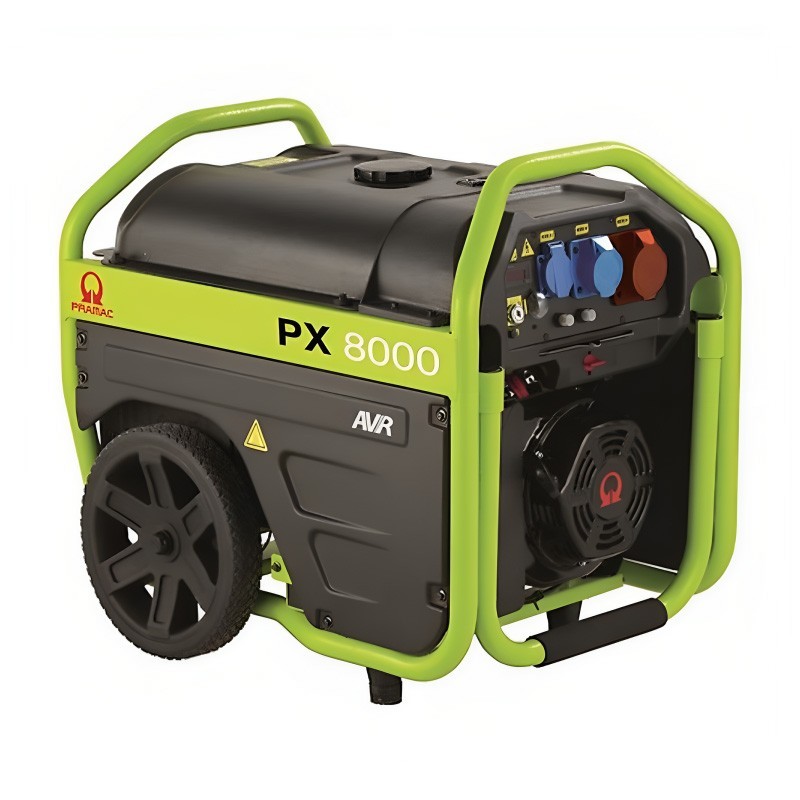

The Gasoline Electric Generator Pramac PX8000 three-phase generator operates at a frequency of 50 Hz and offers a voltage of 400/230 V, with a power factor of 0.8 cos ϕ. Its maximum three-phase capacity is 4800 W, with a nominal three-phase power rating of 4000 W. In addition, it can provide a maximum single-phase power rating of 2000 kVA and a single-phase power rating of 1500 kVA.
In terms of versatility, the Pramac PX8000 comes equipped with a variety of sockets including SCHUKO 230V 16A IP54, 2P+T CEE 230V 16A IP44 and 3P+N+T CEE 400V 16A IP44. This facilitates the connection of devices and equipment with different power requirements.
The generator control panel features a voltmeter, frequency meter, hour meter and fuel level indicator, allowing for accurate monitoring and efficient operation. Overall, the Pramac PX8000 is a reliable solution to ensure a constant and quality power supply in a variety of applications.
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Power factor | 0.8 cos ϕ |
| Phases | 3 |
| Maximum three-phase power | 4800 W |
| Nominal three-phase power | 4000 W |
| Maximum single-phase power | 2000 kVA |
| Single-phase rated power | 1500 kVA |
| Model | SR190F |
| Cooling system | Air |
| Aspiration | Natural |
| Speed regulator | Mechanical |
| Nominal operating speed | 3000 rpm |
| Fuel | Gasoline |
| Starting system | Electric |
| Oil tank | 1.1 l |
| Displacement | 420 cc |
| Class | F |
| IP protection | 23/44 |
| Poles | 2 |
| Voltage regulation system | Electronic |
| Stabilization | AVR |
| Guaranteed sound level (LWA) | 97 dBA |
| Noise pressure level @ 7 mt | 69 dB(A) |
| Fuel tank capacity | 27 l |
| Fuel consumption at 75% load | 2.06 l/h |
| Fuel consumption at 100% load | 2.75 l/h |
| Autonomy at 75% load | 13.11 h |
| Autonomy at 100% load | 9.82 h |
| Dimensions | 727 x 515 x 670 |
| Dry weight | 97 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
Data sheet
Specific References
Battery NOT included in electric start models
