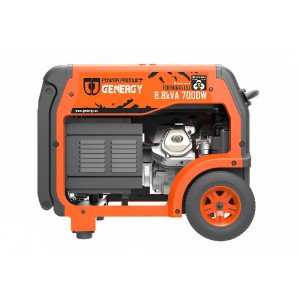

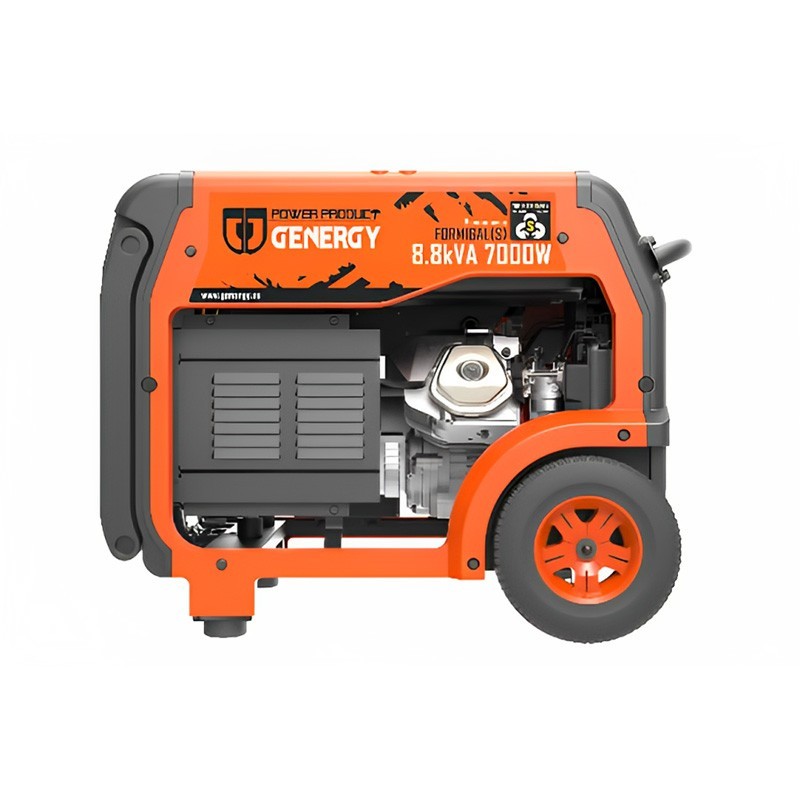

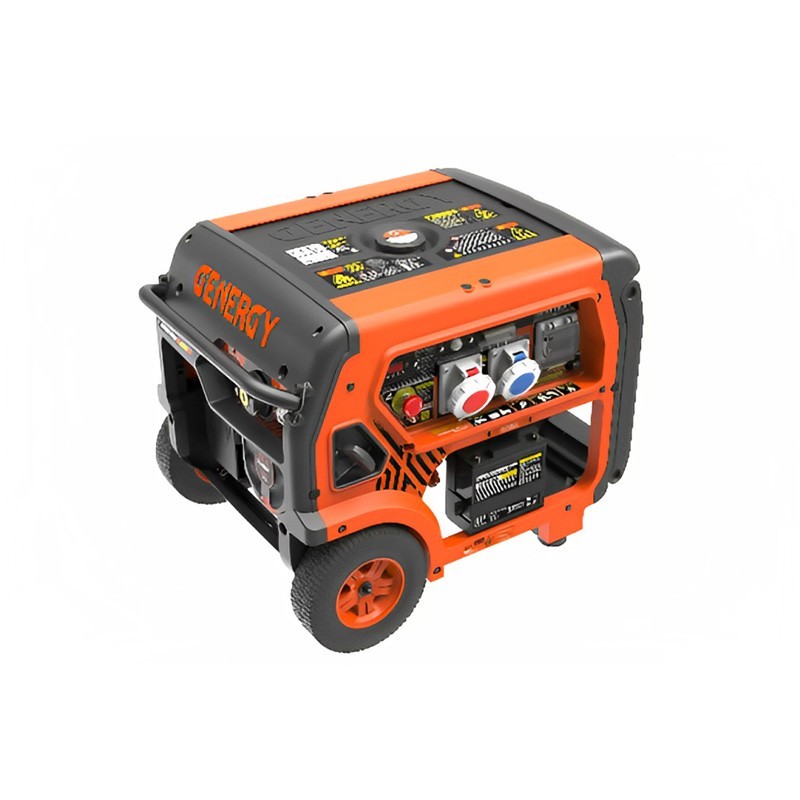

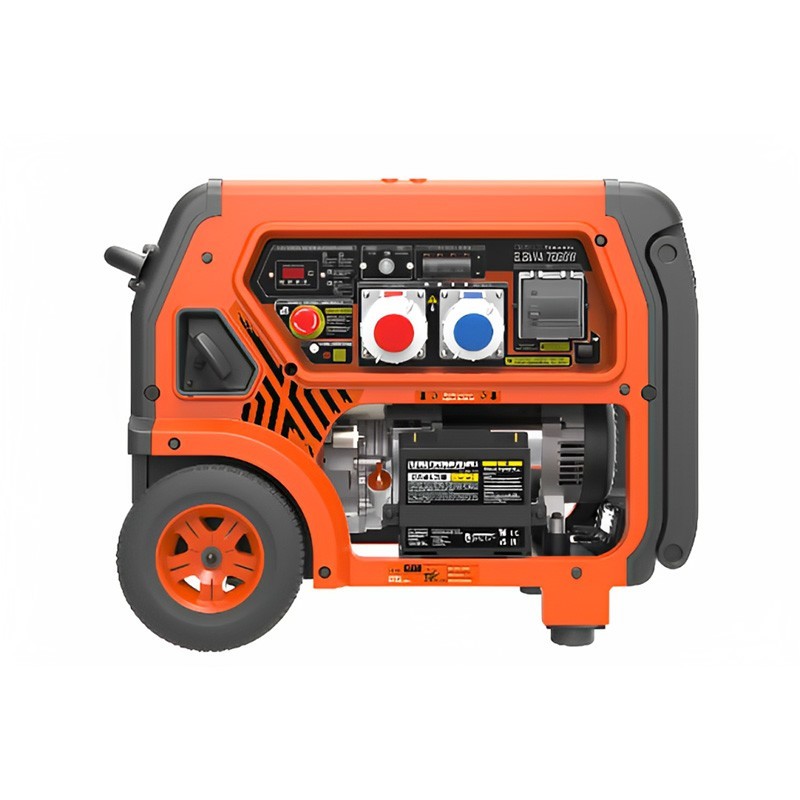

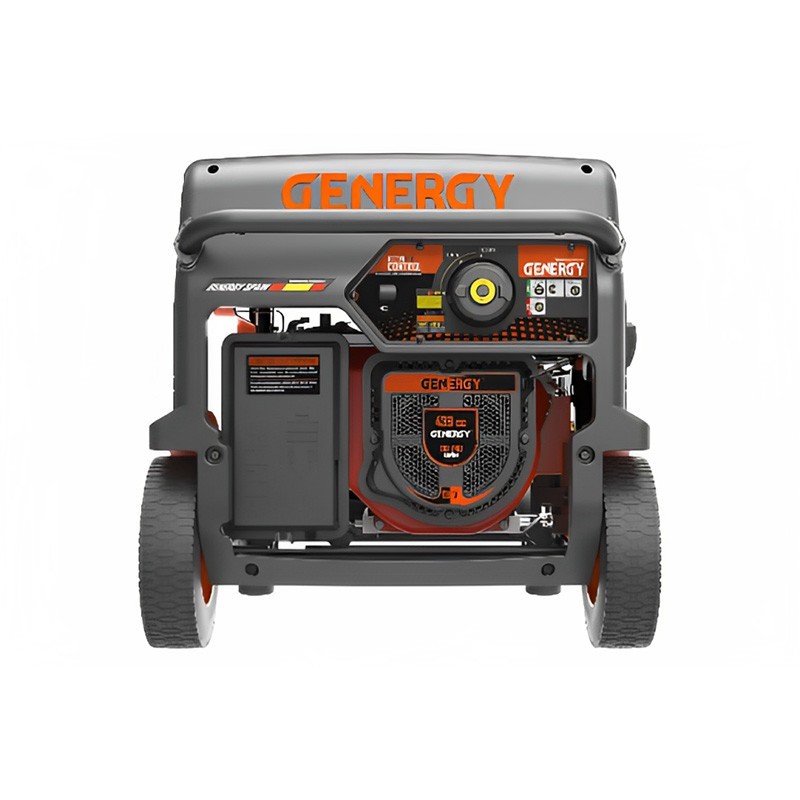

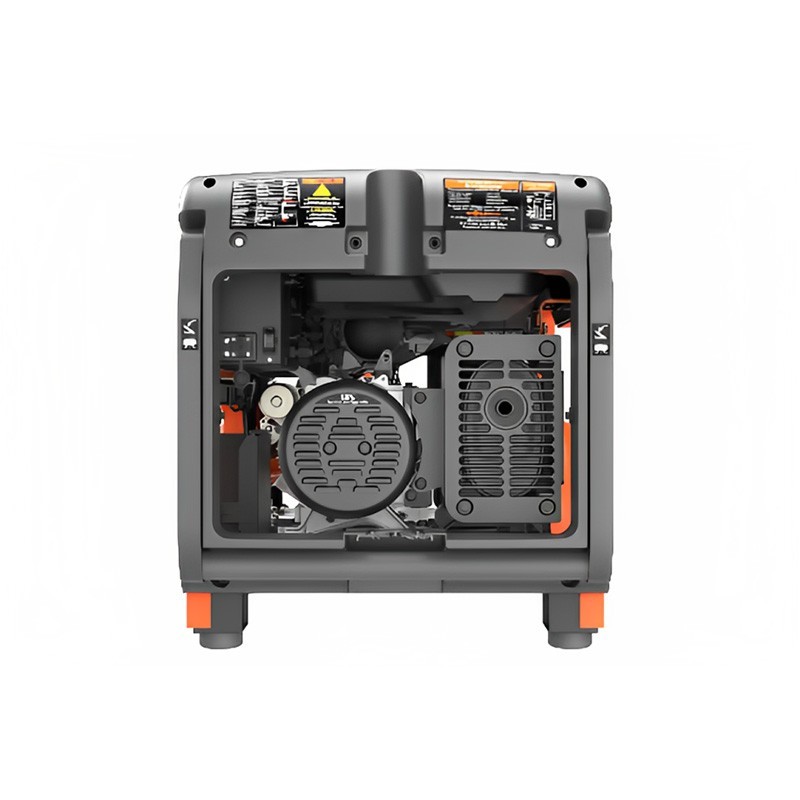

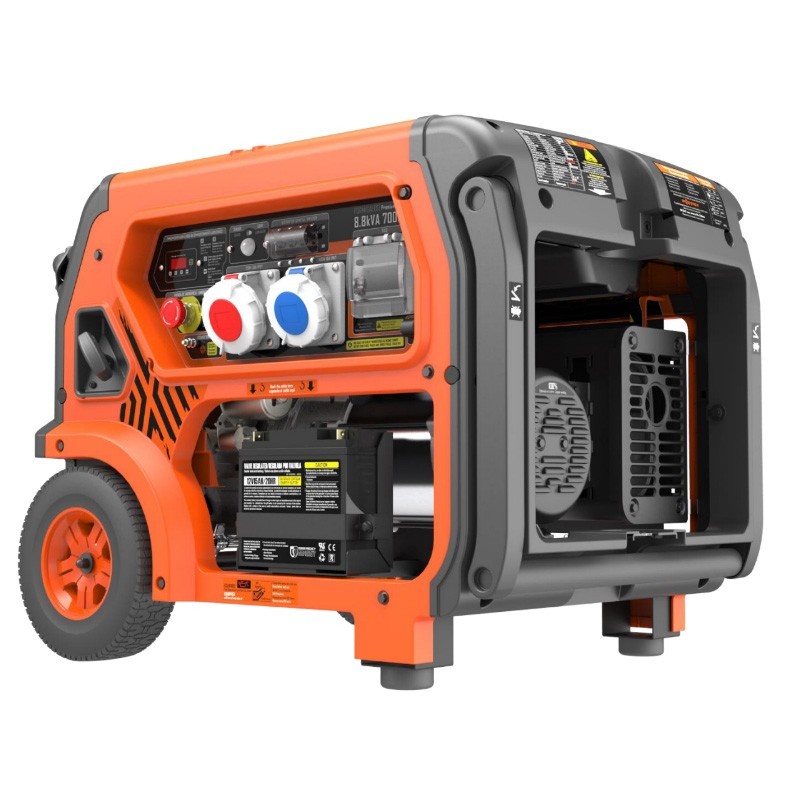

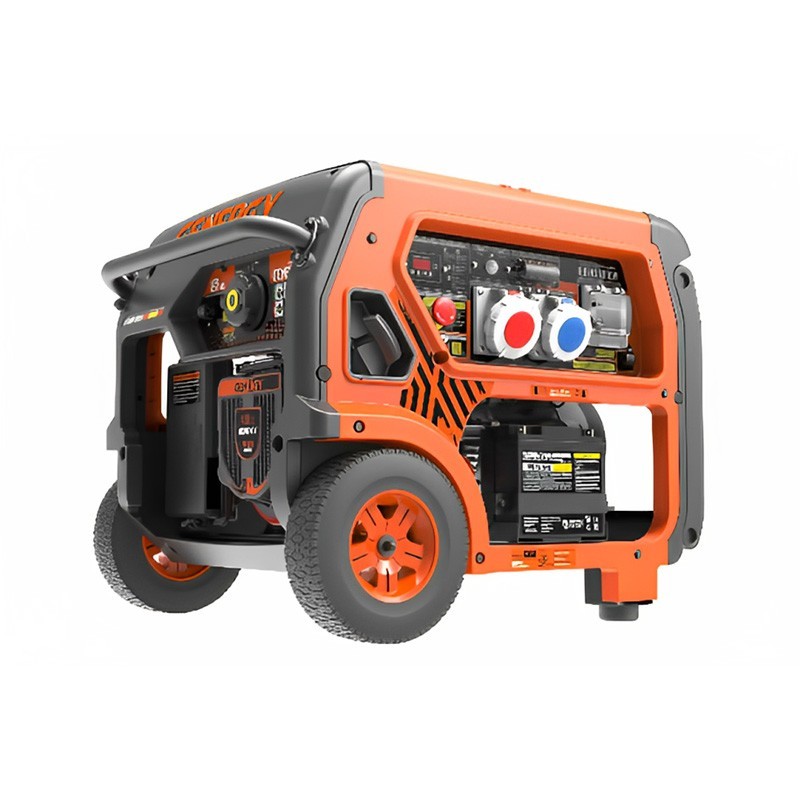

The Gasoline Electric Generator Genergy Formigal S 7000W Dual Volt has dimensions of 859x664x667 mm, a nominal power of 6500 W and a maximum power of 7000 W, it has a Dual Volt type current.
It has a 4-stroke OHV air-cooled gasoline engine, equipped with a copper coil, has an electronic stabilization system "SVR" and has a weight of 105 kg.
The Gasoline Electric Generator Genergy Formigal S 7000W Dual Volt has a voltage of 400/230V and a frequency of 50 Hz. It has an oil capacity and grade of 1.1L - SAE10W40, a displacement of 625 cc. Integrated with 10" wheels.
| Stabilization system | SVR" electronics |
| Voltage - Frequency | 400/230V - 50Hz |
| Maximum Power (230V) | 6500 W |
| Nominal Power (230V) | 6000 W |
| Maximum Power (400V) | 7000W (8.8kVA) |
| Rated Power (400V) | 6500W (8.1kVA) |
| Type by number of phases | Dual voltage |
| Power Factor | 0.8 - 1 |
| Motor Model | SGE440PRO |
| Displacement | 439 cc |
| Engine type | Gasoline, 4-stroke OHV air-cooled |
| Average sound pressure level 7mts LpA (Idle-nominal) | 70 dB - 77 dB |
| Guaranteed sound power level LwA | 97 dB |
| Starting type | Manual AND Electric |
| Fuel tank capacity | 28 L |
| Consumption at 25-50-75% load | 1.9 L/H - 2.6L/H - 3.2L/H |
| Autonomy 25-50-75% load | 14.7H - 10.7H - 8.75H |
| Oil capacity and grade | 1.1L - SAE10W40 |
| Insulation level | F |
| Class according to insulation quality | A |
| Performance class | G2 |
| Standard | ISO 8528-13:2016 |
| Transport kit | Integrated with 10" wheels |
| Dimensions | 859x664x667 mm |
| Weight | 105 Kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
