Gas Electric Generator Pramac GA10000 10kVA


  • Starting : Electric
  • Displacement : 999 cc
  • Stabilization : AVR
  • Engine : Generac
  • Current : Single-phase
  • Rated power : 10000 W
  • Power supply : Gas
  • Type of winding : Copper
  • Silent: Yes
  • Digital panel : Yes
  • Engine model : G-force 1000 series
  • Generator type : Fixed
En stock
icon Power Supply
Power Supply
Gas
icon Stabilization
Stabilization
AVR
icon Current
Current
Single-phase
icon Startup
Startup
Electric
icon Engine
Engine
Other engines
icon Engine model
Engine model
G-force 1000 series
icon Displacement
Displacement
999 cc
icon Power rating
Power rating
10000 W
icon Type of winding
Type of winding
Copper
icon Panel
Panel
digital
icon Type of generator
Type of generator
Fixed
icon ✔️
✔️
Quiet
€5,846.71 excl. VAT
- 4%
€5,612.84 excl. VAT
€6,791.54 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Gas Electric Generator Pramac GA10000 10kVA
€6,791.54
Qty

Gas Electric Generator Pramac GA10000 10kVA

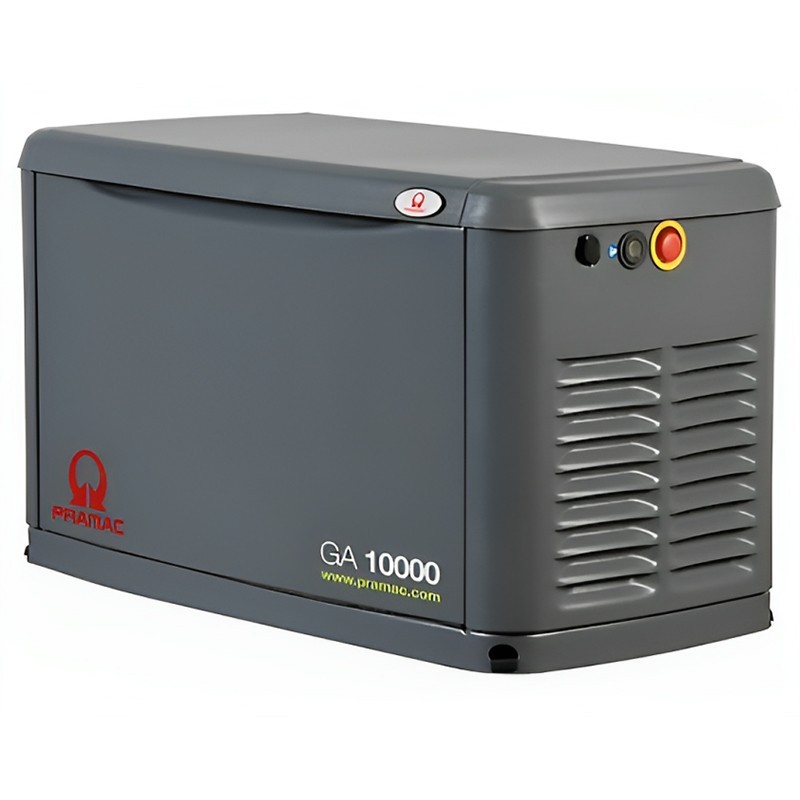

The Gas Electric Generator Pramac GA10000 is a powerful power source with a Generac G-Force OHV engine that guarantees reliable performance. This generator is versatile, as it can run on natural gas or LPG, making it an environmentally friendly option.

Its electronic speed regulator ensures a stable power supply, and its soundproof aluminum body reduces operating noise to a minimum, making it ideal for noise-sensitive environments. In addition, it features True Power™ electrical technology that provides high-quality electricity and a multilingual digital Evolution™ controller with a two-line LCD display for easy generator monitoring.

LED indicators for system status and maintenance intervals ensure trouble-free operation, and the inclusion of Wi-Fi connectivity enables remote monitoring via the Mobile Link™ app, providing additional convenience and control.

Features and benefits

Engine:

The Generator features the innovative Generac G-Force design, maximizing engine "breathing" for optimal fuel efficiency. Cast iron cylinder walls ensure durability and long life, while electronic ignition and ignition advance ensure smooth starting. Pressure lubrication and low oil pressure or over-temperature shutdown features protect the engine from catastrophic damage.

Generator:

Rotating field design and tilted stator allow for more efficient operation and compatibility with electronic equipment. Phase-shifted excitation maximizes starting capability, and automatic voltage regulation prevents voltage spikes. True Power™ technology ensures total harmonic distortion of less than 5%.

Evolution™ settings:

Illuminated Auto/Manual/Stop pushbuttons offer operation options, while the voltage sensor constantly monitors values. Features such as switch closure delay, motor warm-up and cooling, weekly scheduler and smart battery charger provide advanced functionality. Wi-Fi connectivity adds an additional level of convenience.

Equipment:

With a weather-resistant aluminum body designed to withstand winds up to 150 mph (240 km/h), the Generator operates quietly thanks to the built-in residential-type muffler. Its small, compact and attractive design makes it easy to assemble.

Mounting system:

The flexible fuel connection absorbs vibrations, the Composite material mounting platform prevents settling, and the integrated sediment trap protects against particulates and moisture, prolonging the life of the fuel regulator and engine.

Technical Data

Emergency power ESP (LPG) 10000 VA
Emergency power ESP (Natural Gas) 10000 VA
Frequency 50 Hz
Voltage 230 V
Phases 1
Power factor 1 cos ϕ
Brand Motor Generac
Model G-force 1000 series
Engine type OHV air-cooled
Number of cylinders and arrangement 2 in V
Displacement 999 cc
Compression ratio 9.5:1
Starting system Electric
Electrical circuit 12 V
Speed regulator Electronic
Nominal operating speed 3000 rpm
Oil capacity 1.8 l
Fuel Natural gas or LPG
Natural gas: fuel consumption 50% 3.51 m³/h
Natural gas: fuel consumption 100% 5.30 m³/h
Liquid Propane Gas: fuel consumption 50% 79 l/h 4.79 l/h
Liquid Propane Gas: fuel consumption 100% 62 l/h 7.62 l/h
Voltage regulation system AVR
Poles 2
Maximum current (LPG) 43.48 A
Maximum current (Natural Gas) 43.48 A
Magnetothermal circuit breaker 40 A
Guaranteed sound level (LWA) 95 dBA
Noise pressure level @ 7 mt 63 dB(A)
Quiet-Test Mode 54 dB(A)
Dimensions L x W x H 1232 x 648 x 733 mm
Dry weight 176 kg

Control panel features and safeguards

  • Useful information: Ready to operate and maintenance messages, along with an hour meter for efficient monitoring.
  • Start-up flexibility: Programmable start-up delay is available, as well as programmable start-ups and alarm status verification.
  • Detailed logging: Maintenance, operation and alert logs with space for up to 50 entries in each category.
  • Engine start sequence: Provides a cyclic start sequence that includes a 16-second start, a 7-second pause, and a maximum duration of 90 seconds.
  • Intelligent battery charger to keep the battery in optimal condition.
  • Comprehensive protection: In addition, it provides alerts in case of AC power or load failure, battery failure protection and battery status indicator, automatic voltage regulation with over/under voltage protection, underfrequency, overload and motor overcurrent protection, fuse failure protection and automatic shutdown for low oil pressure/high oil temperature.
  • Advanced safety: Safety features such as motor failure detection shutdown, overspeed (72 Hz), rpm and overheating, as well as internal bypass and misconnection protection.
  • External bypass capability for versatility.
  • Easy upgrade: Firmware can be upgraded on-site to keep the generator up to date with the latest features.
  • MOBILE LINK™ mobile Wi-Fi connection for remote monitoring and control.
  • Magneto-thermal circuit breaker for added safety in operation.

IMPORTANT NOTICE
Mandatory by customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
The batteries included in some machines are a free gift, so they are exempt from warranty.

259029

Data sheet

Power Supply
Gas
Stabilization
AVR
Current
Single-phase
Startup
Electric
Engine
Other engines
Engine model
G-force 1000 series
Displacement
999 cc
Power rating
10000 W
Type of winding
Copper
Displacement (cc)
900 cc - 999 cc
Nominal power (W)
10000 W - 10999 W
Panel
digital
Type of generator
Fixed
✔️
Quiet

Specific References

MPN
PS103YXM000
