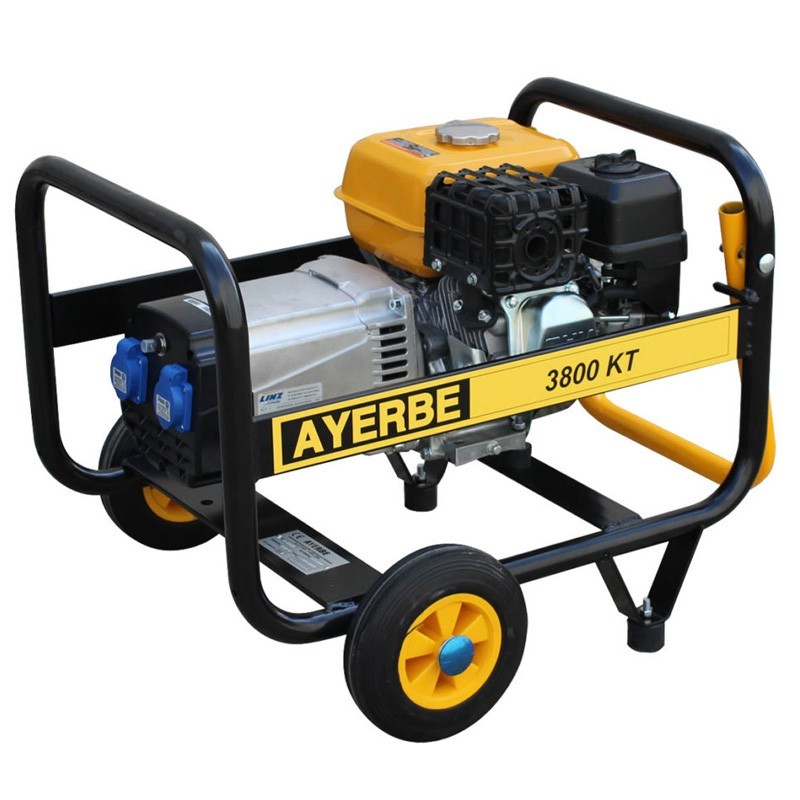

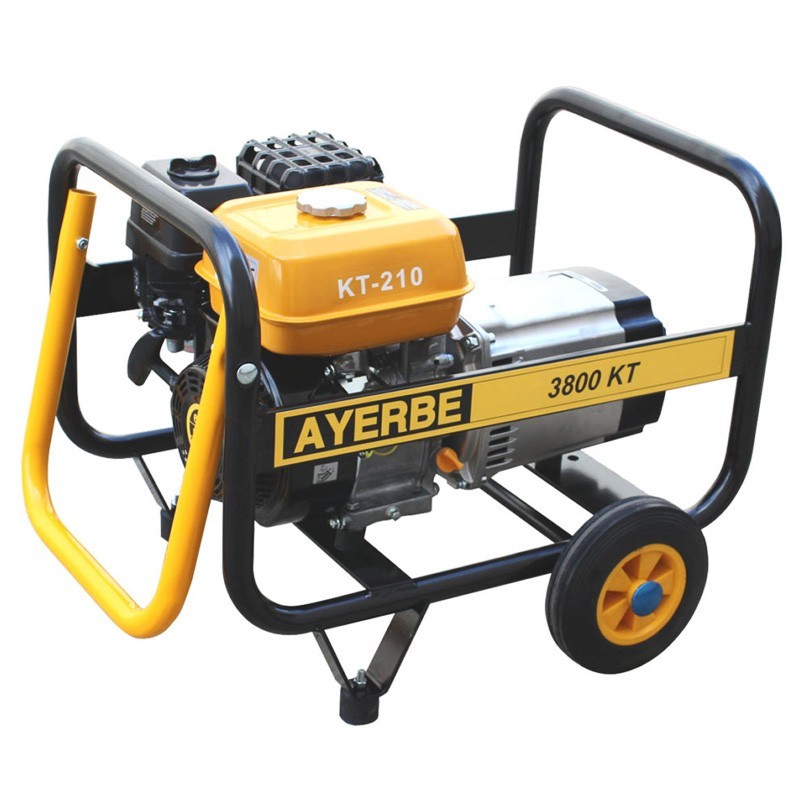

The Ayerbe AY 3800 KT MN electric generator features a LINZ brand brushless alternator, ensuring smooth operation and Class H insulation that makes it rugged and durable. In addition, its brushless self-excited excitation system and mechanical speed regulator keep the output voltage within a 5% range, ensuring constant and stable power.
The KIOTSU KT-210 6.5 hp 208 cc engine provides the power needed to power this generator. With an air-cooled system and an efficient fuel consumption of 1.1 L/H at 75% load, this generator is an economical choice for power applications in various situations.
In addition, its electric start system simplifies its use, and its 0.6 L oil capacity ensures smooth and reliable operation.
| Maximum power | 3,8 KVA - 3.000 W |
| Rated power | 3,2 KVA - 2.500 W |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 230 V. / 50 Hz |
| Start | Manual |
| Power factor | Cos phi 0,8 |
| Noise level | 96 LwA / 73 LpA@7m |
| Motor | |
| Brand | KIOTSU |
| Model | KT-210 |
| Power | 6.5 HP |
| Displacement | 208 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 1.1 L/H |
| Oil capacity | 0,6 L |
| Starting system | Electric |
| Alternator | |
| Brand | LINZ |
| Model | SP 10 SE |
| Type | Brushless |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Self-excited brushless |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 230 / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 3,6 l |
| Autonomy at 75% | 3,3 hours |
| Weight | 50 kg |
| Dimensions | 650 x 540 x 630 mm |
| Packing volume | 0,22 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
