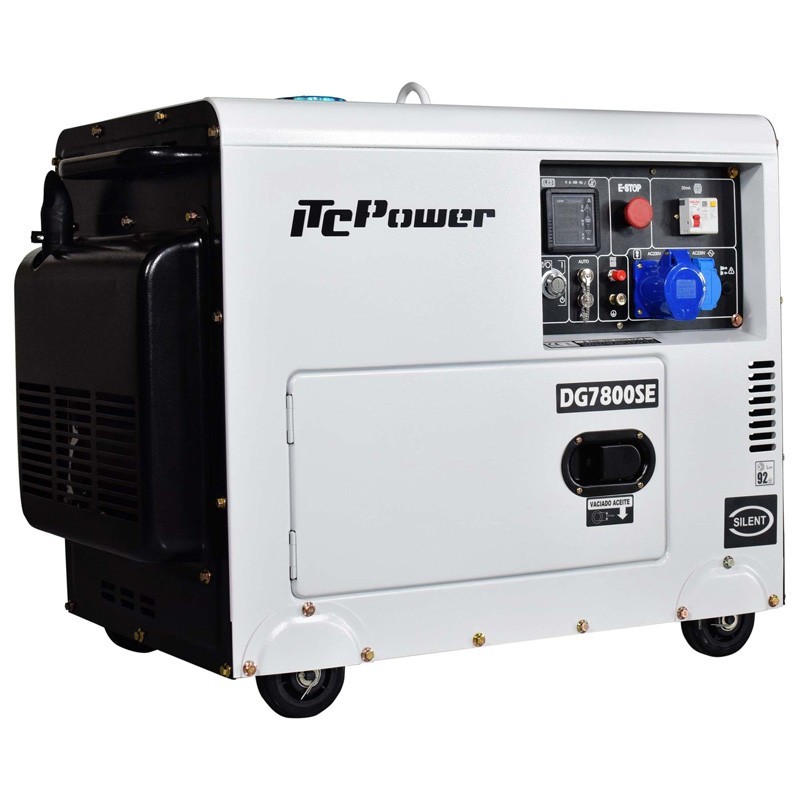

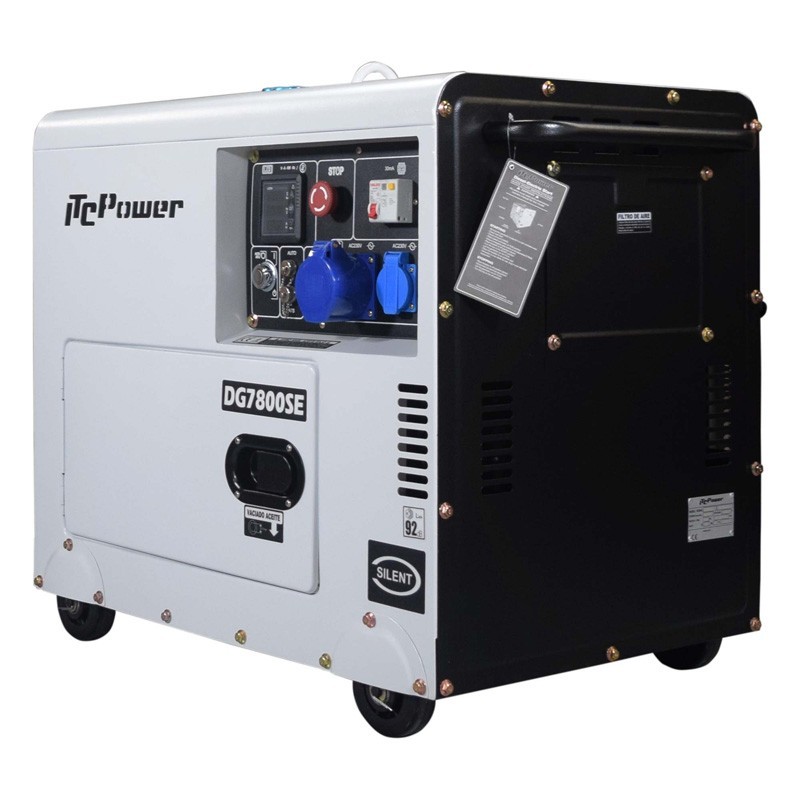

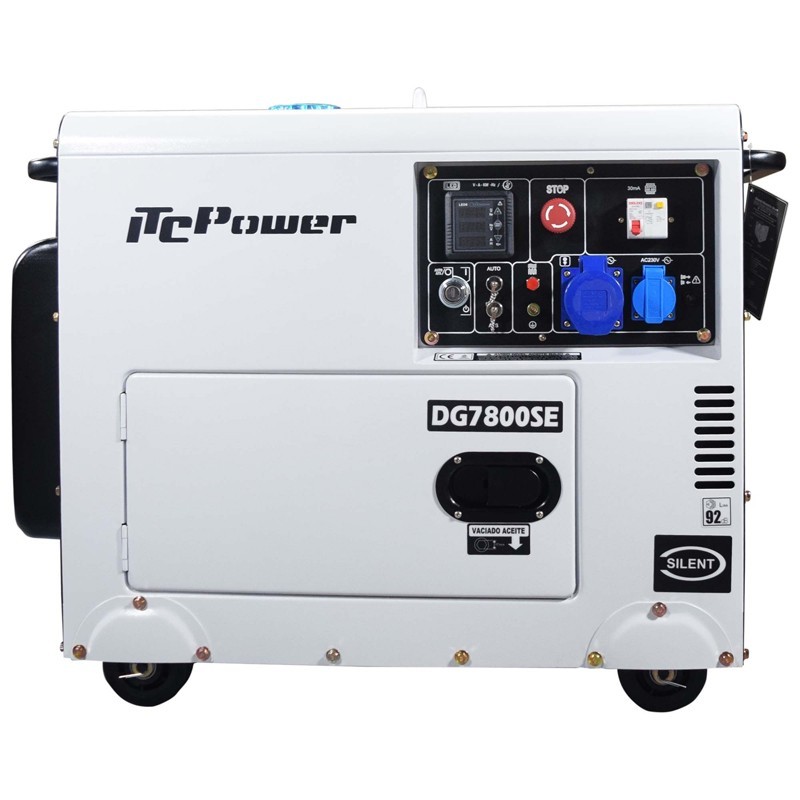

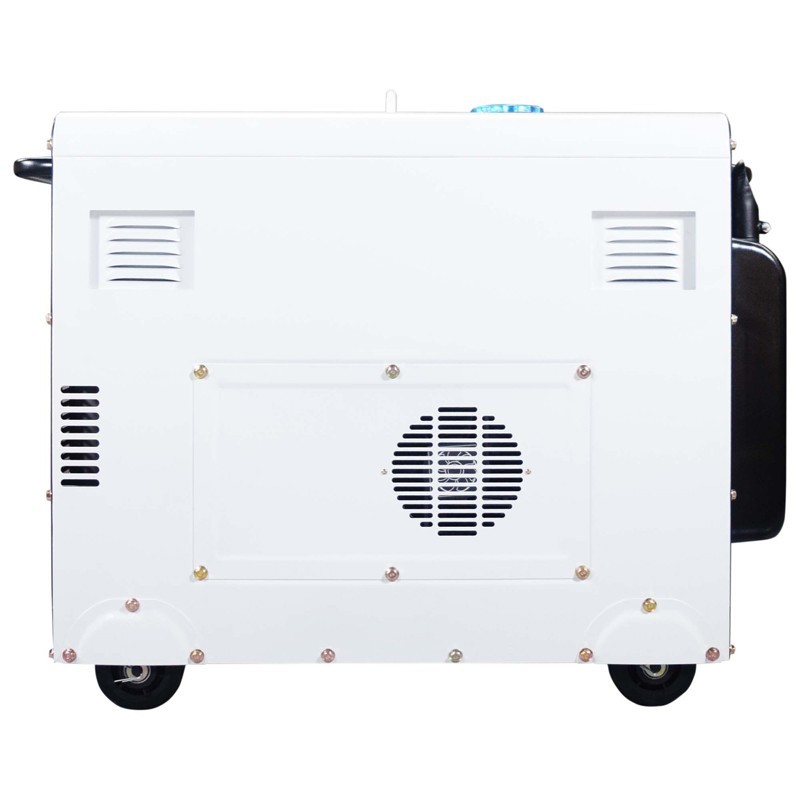

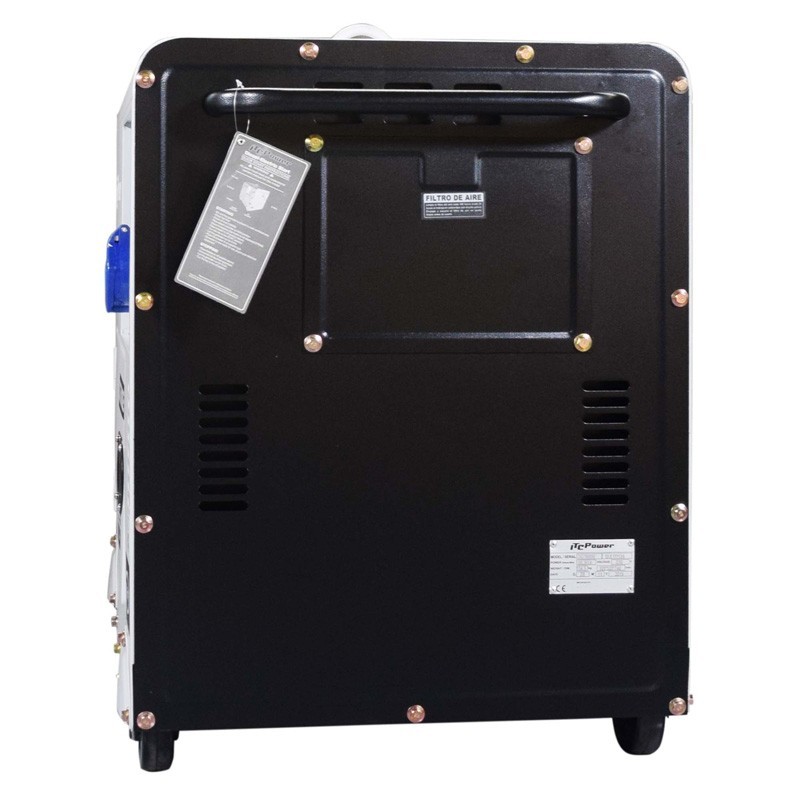

The electric generator ITCPower DG7800SE has a nominal power of 6000 W and a maximum power of 6300 W, in addition to working with a frequency of 50 Hz and a voltage of 230 V.
The generator ITCPower DG7800SE has two sockets one of 16A and the second is 32 A, in addition to working with a 36 Ah battery.
The machine has an engine D500E gasoline, with electric starter that works at 3000 RPM and has a displacement of 498cc. It also has an oil capacity of up to 1,65 L.
| Model | DG7800SE |
| Voltage | 230 V |
| Maximum Power | 6300 W |
| Nominal Power | 6000 W |
| Rated current | 28 A |
| Outputs | 1 x 16A / 1 x 32A |
| Display | LED5 |
| Battery | 36 Ah |
| DC output | 12 V / 8.3 A |
| Fuel Capacity | 12 L |
| Autonomy at 50% load | 10 h |
| Noise level at 7 meters | 72 dBA |
| Engine model | D500E |
| Engine - Rated Power | 13 Hp |
| Engine - Revolutions | 3.000 RPM |
| Engine - Starting Mode | Electric |
| Engine - Displacement | 498cc |
| Engine - Oil Capacity | 1,65 L |
| Alternator - Model | A6S |
| Alternator - Rated Power | 6 kVA |
| Alternator - Power Factor | 1 |
| Alternator - Voltage Regulation | AVR / Brush |
| Net Weight | 152 Kg |
| Gross Weight | 168 Kg |
| Product Dimensions | 920x520x760 mm |
| Box Dimensions | 950x570x790 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
