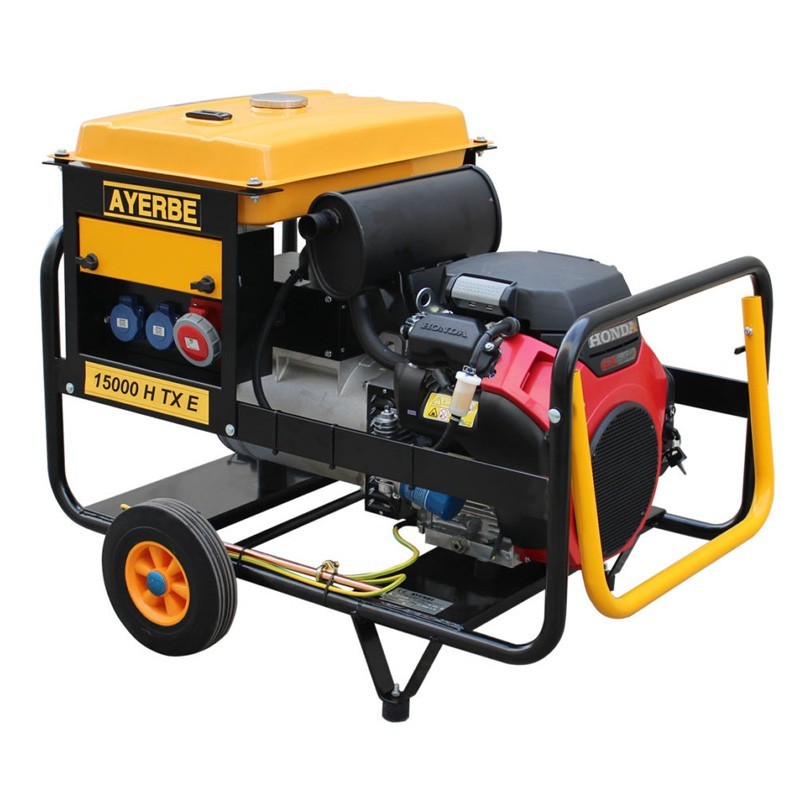

The three-phase generator Ayerbe AY 15000 H TX is a powerful and versatile machine powered by a 26 HP HONDA GX 690 engine with a displacement of 688 cc, with an air cooling system that ensures optimum performance in different conditions.
With a maximum three-phase power rating of 15 KVA (12,000 W) and a three-phase power rating of 12.5 KVA (10,000 W), it offers exceptional capacity to power multiple industrial or domestic devices efficiently.
With a speed of 3,000 r.p.m., it provides a voltage of 400 V - 230 V at a frequency of 50 Hz, ensuring stable current for optimal operation of sensitive equipment.
In addition, its 25 liter tank allows an autonomy of up to 6.5 hours at 75% load, making it reliable and durable for long periods of continuous use.
| Maximum three-phase power | 15 KVA - 12,000 W |
| Nominal power Three-phase | 12,5 KVA - 10.000 W |
| Maximum single-phase power | 7 KVA |
| Single-phase rated power | 5 KVA |
| R.p.m. | 3.000 r.p.m |
| Voltage / Frequency | 400 V - 230 V / 50 Hz |
| Starting | Electric |
| Power factor | Cos phi 0,8 |
| Noise level | 99 LwA / 76 LpA@7m |
| Motor | |
| Brand | HONDA |
| Model | GX 690 |
| Power | 26 HP |
| Displacement | 688 cc |
| Cooling system | Air |
| Engine oil type | SAE 20W40 / IPE grade CD, CF |
| Intake | Natural |
| R.P.M. engine oil | 3.600 r.p.m. |
| Speed governor | Mechanics |
| Fuel | Gasoline |
| Fuel consumption at 75% | 3.8 L/H |
| Oil capacity | 1,9 L |
| Starting system | Electric |
| Alternator | |
| Brand | MECC ALTE |
| Model | T20F 200 |
| Type | With brushes |
| Insulation type | Class H |
| IP protection | IP 23 |
| Excitation system | Compound |
| Voltage Tolerance | + - 5% |
| Poles | 2 |
| Voltage / Frequency | 400 & 230 V. / 50 Hz |
| Type of coating | Standard (without impregnation) |
| Dimensions and Weight | |
| Tank capacity | 25 l |
| Autonomy at 75% | 6,5 hours |
| Weight | 170 kg |
| Dimensions | 1000 x 790 x 870 mm |
| Packing volume | 0,68 m³ |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
| The batteries included in some machines are a free gift, so they are exempt from warranty. |
