An ideal machine for shredding pruning debris, easy to transport thanks to its light weight of 57 kg and its wheels.

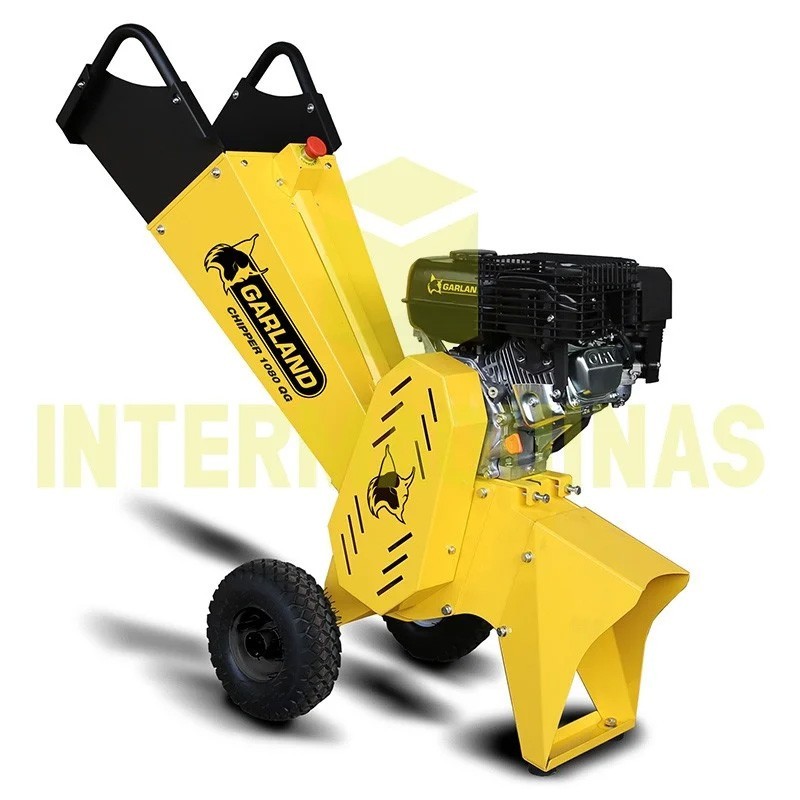

Bio shredder Garland Chipper 1080QG-V24 with roller shredder with high speed axial blades and counter-blade on the chassis, allows the shredding of branches up to 8 cm in diameter, depending on the hardness of the wood.

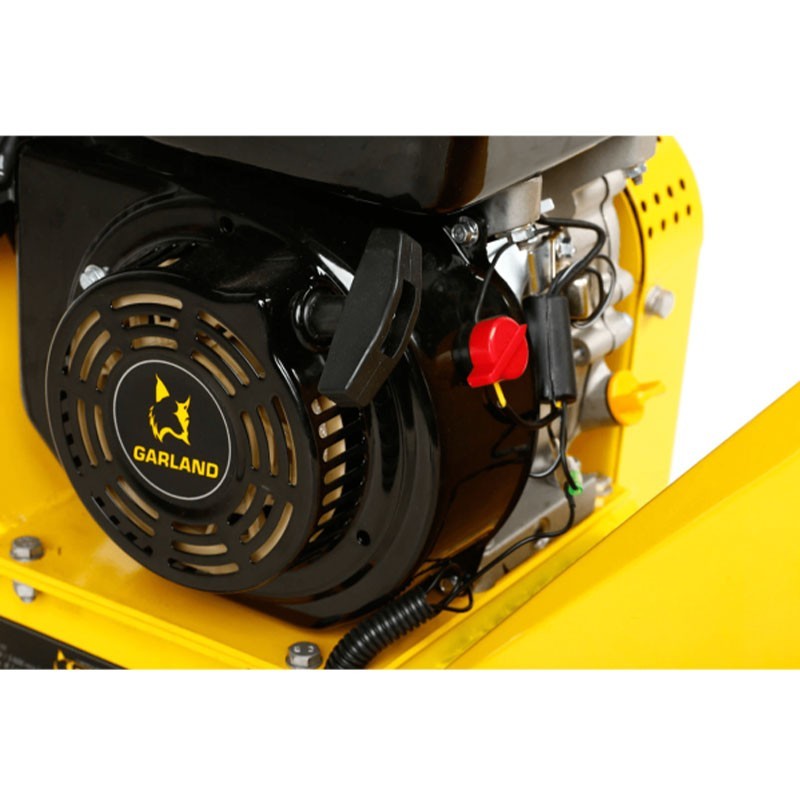

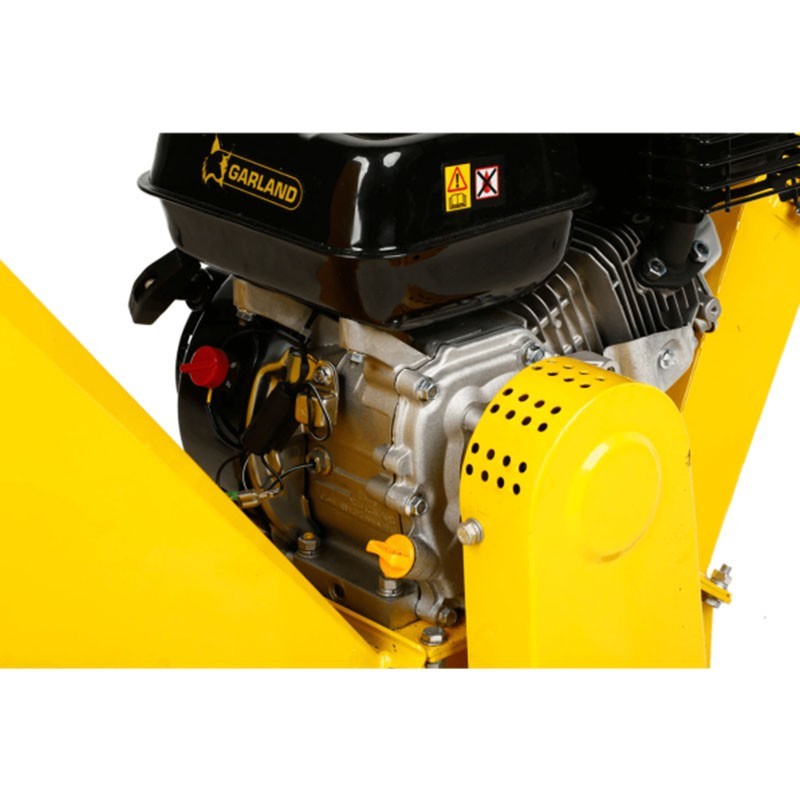

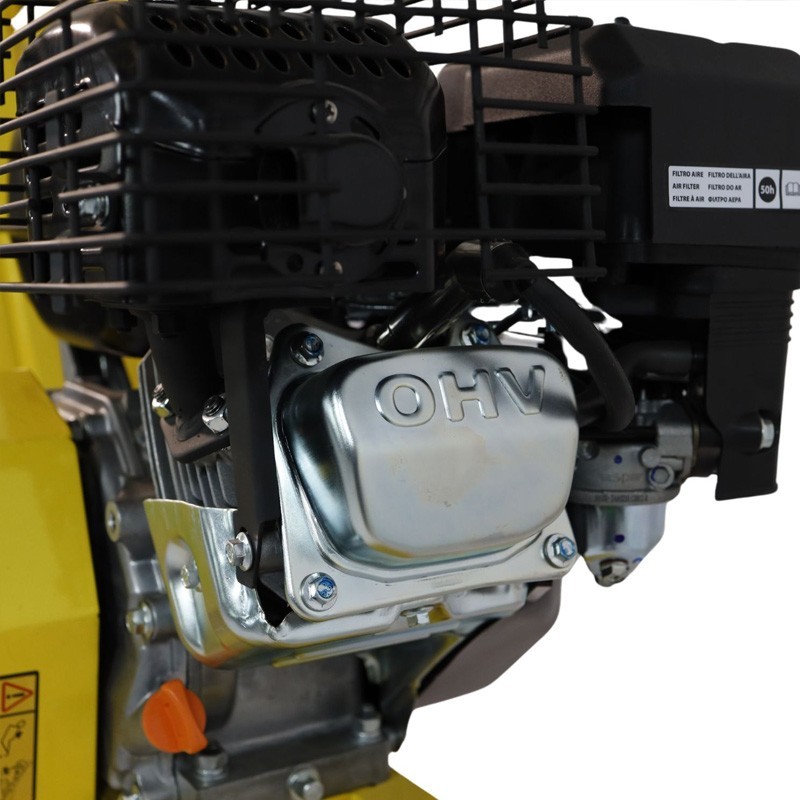

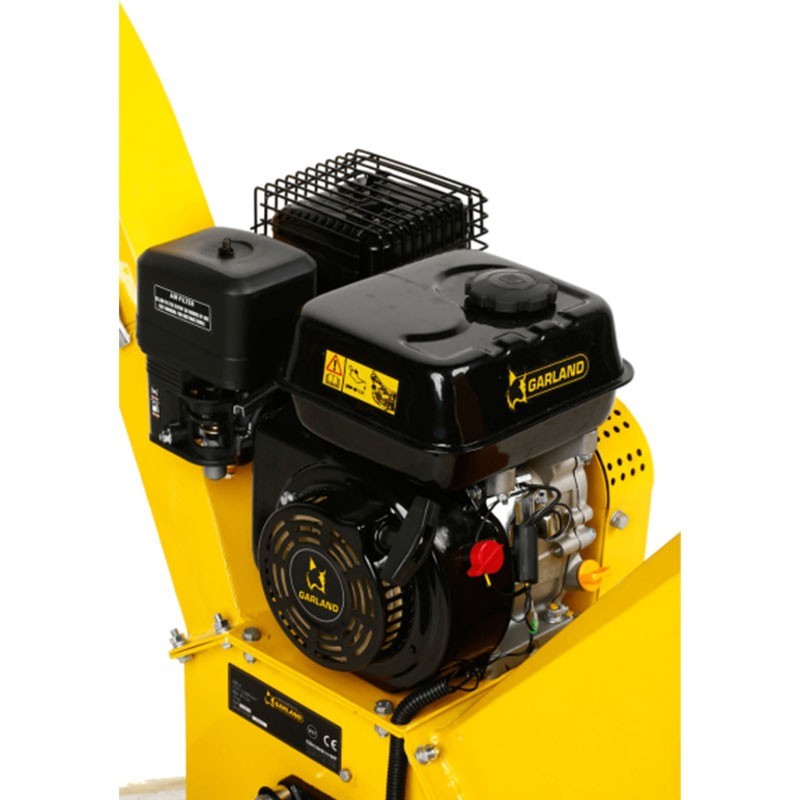

4-stroke gasoline engine with overhead valves, 225 CC and 6.6 HP of power, equipped with centrifugal clutch, which facilitates starting

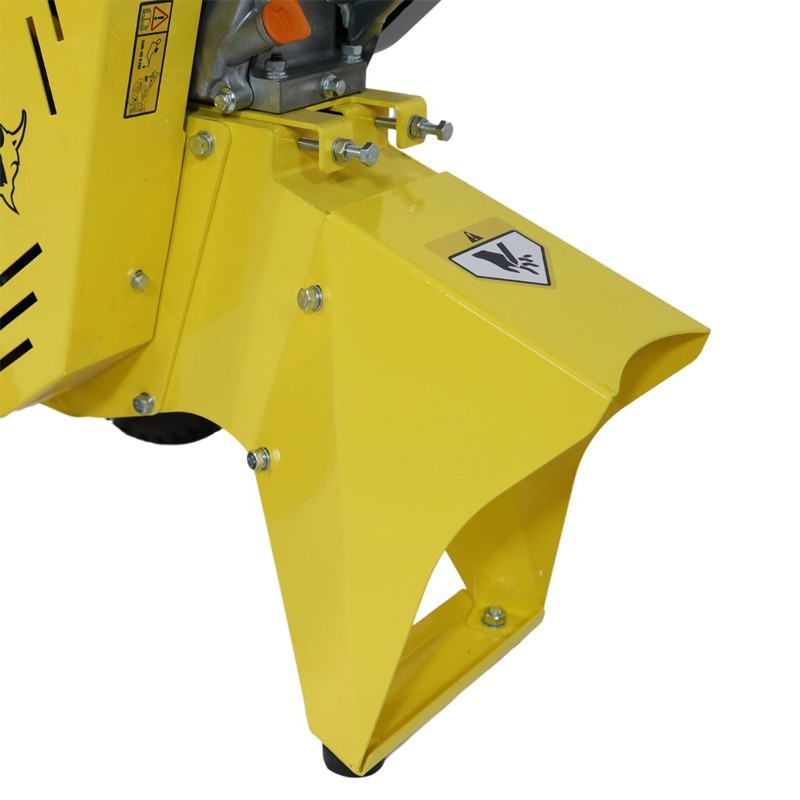

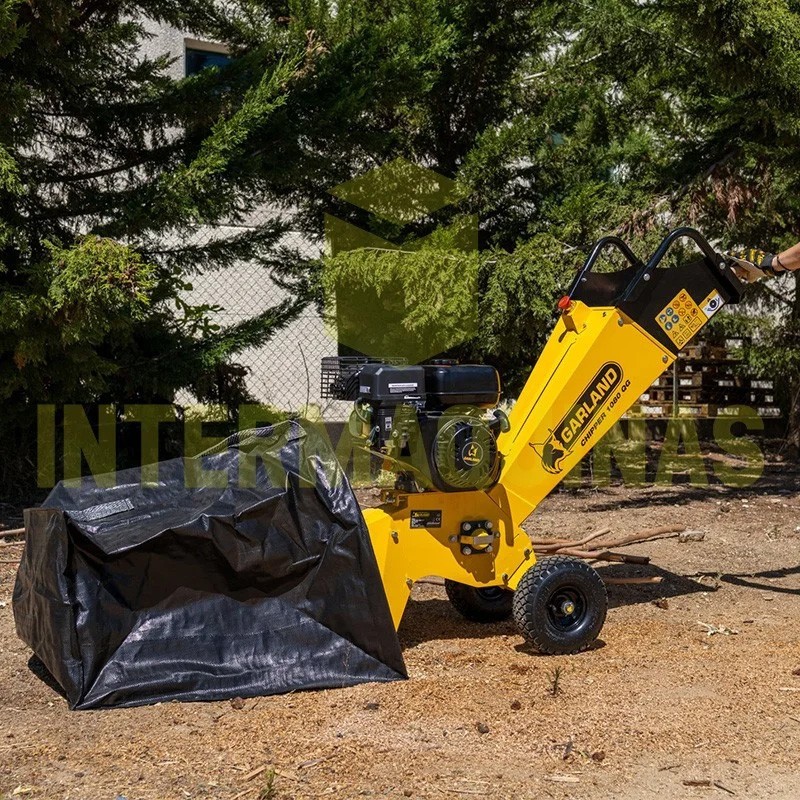

It has a direct debris outlet to the collection bag (included) without an outlet pipe to avoid any kind of clogging.

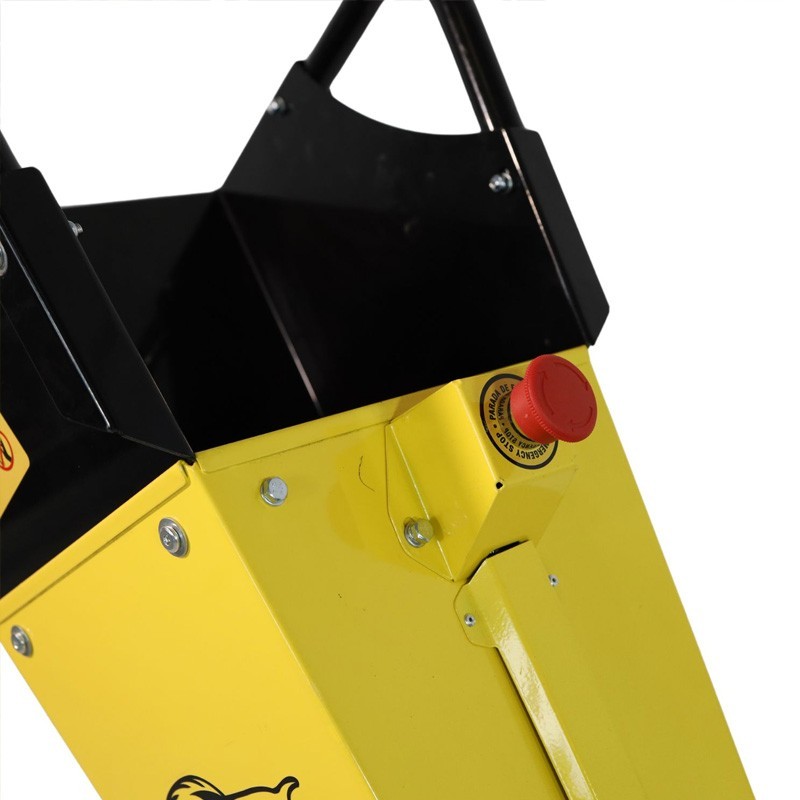

SC SYSTEM Automatic stop system in case of pressure. Designed for emergency stop in case the operator unintentionally inserts a hand in the hopper.

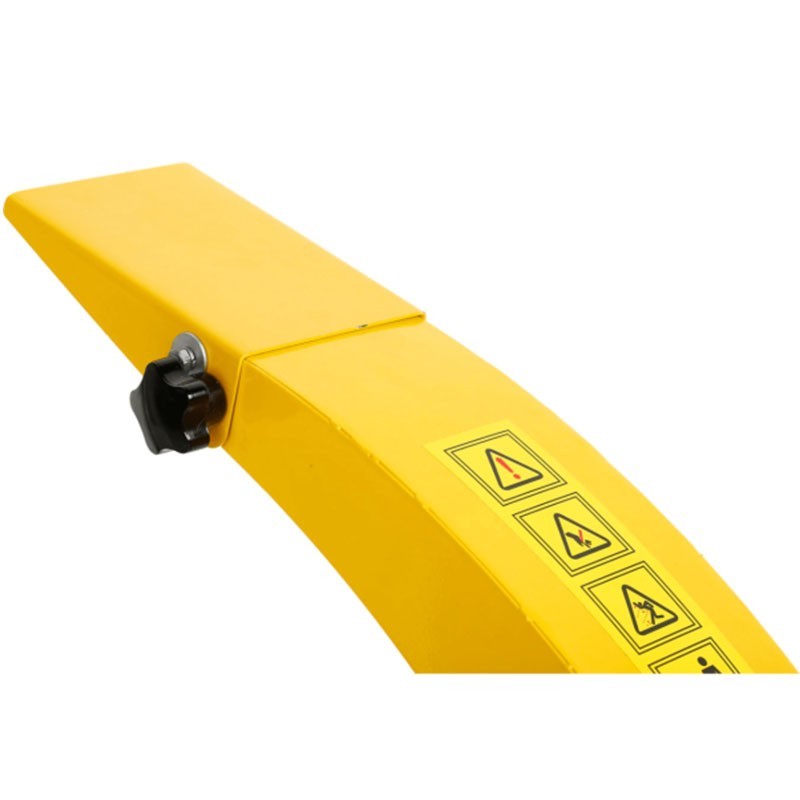

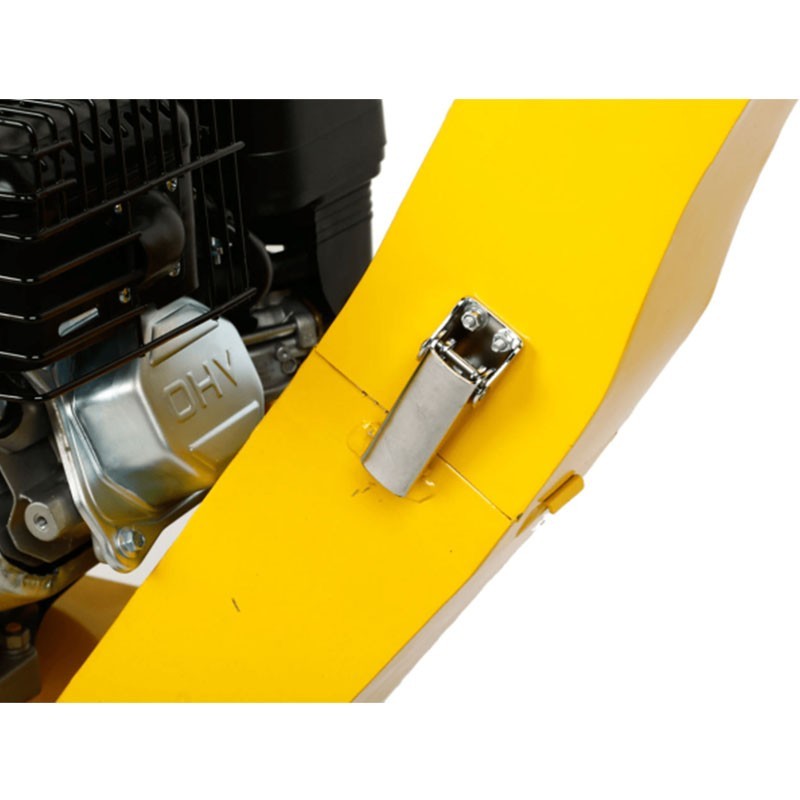

It has a quick opening hopper with hinges, facilitating the opening in case of jamming to reduce to the maximum the stopping time
| Engine type | Garland 4T | |
| Displacement | 225 cc | |
| Emission standard | Euro V | |
| Electronic ignition | Yes | |
| Start | Manual | |
| Fuel type | Gasoline 95 | |
| Power | 4.9 kW / 6.6 hp | |
| Maximum engine speed | 3600 min-¹ | |
| Torque | 14.3 Nm | |
| Consumption | 0,395 kg/kWh | |
| Autonomy | 75.89 min | |
| Hopper at power Supply without tools | Yes | |
| Tool-less ejection hopper | Yes | |
| Directional ejector | No | |

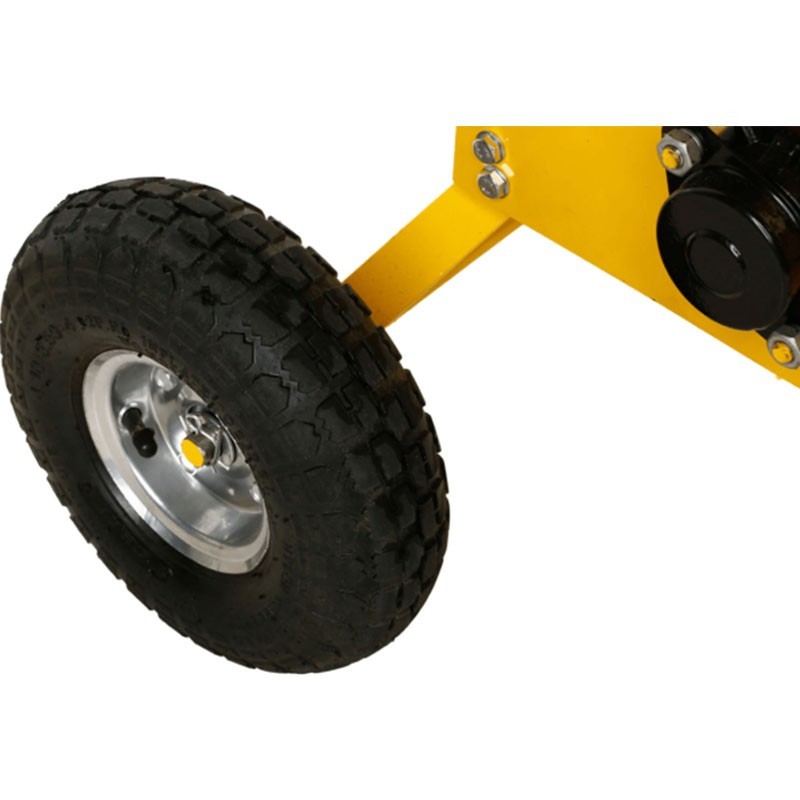

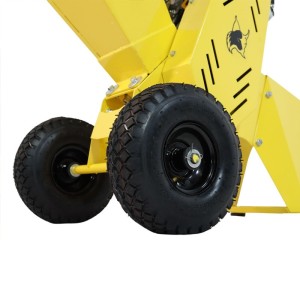

| Transport wheels | Yes | |
| Carrying handle | Yes | |
| Towing hook | No | |
| Intake system | Manual | |
| Cutting type | 2 opposed blades on rotor and counter-blade on chassis | |
| Working width | 800 mm | |
| Cutting element speed | 2500 min-¹ | |
| Blade dimensions | 100 × 50 mm | |
| Number of hoppers | 1 | |
| Grid | Yes | |
| Number of blades | 2 | |
| Fuel tank volume | 3,6 L | |
| Oil sump volume | 0,55 L | |
| Engine oil type | 10W-40 | |
| Packing weight | 63 kg | |
| Packing dimensions (L x W x H) | 68 × 72 × 45 cm | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
