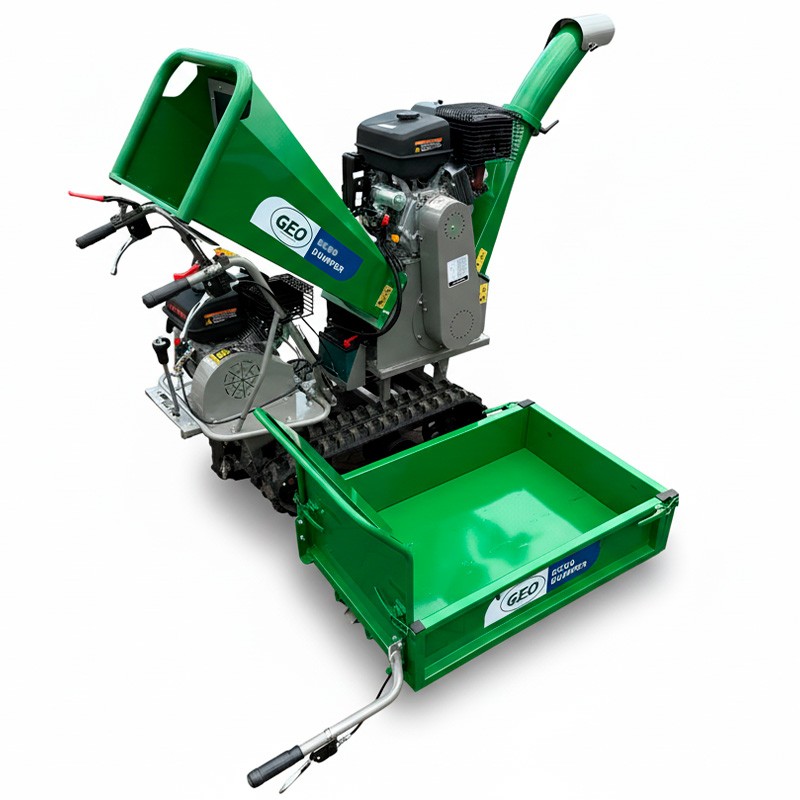

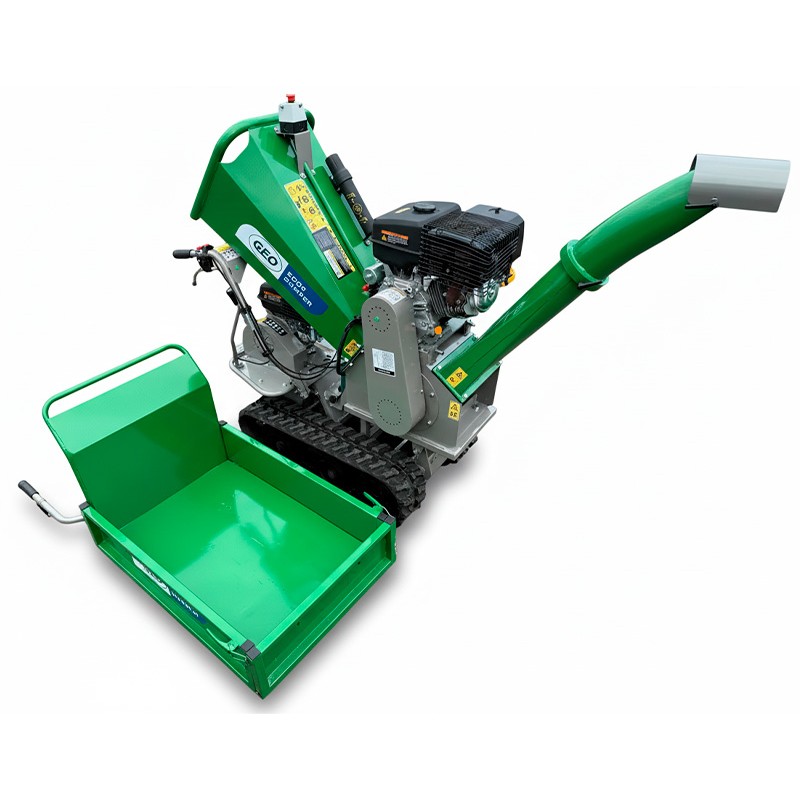

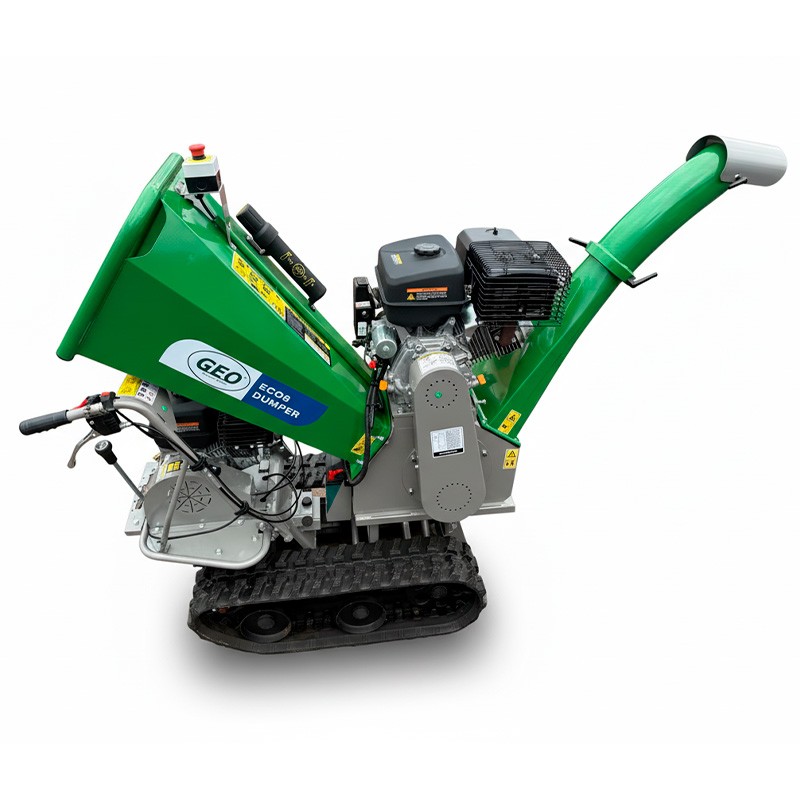

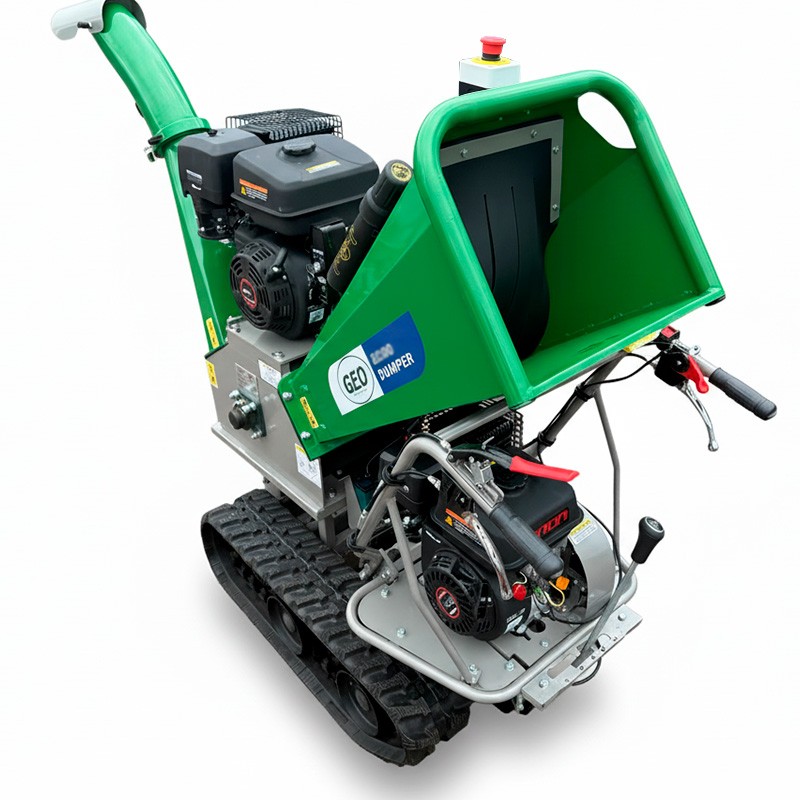

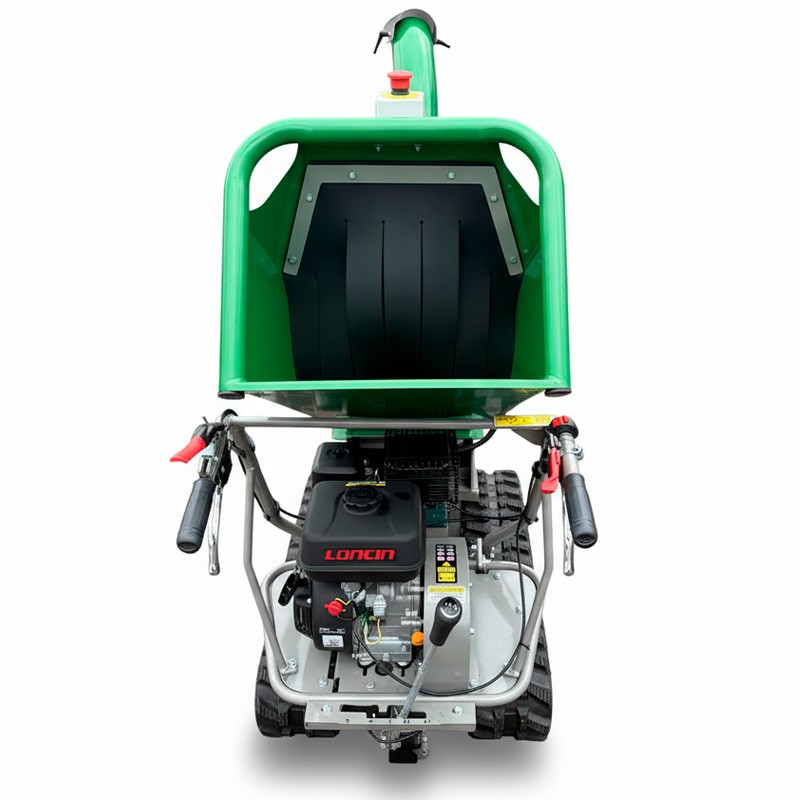

The GEO Italy ECO8 Dumper combines bio shredder and tracked mini-dumper to work in the garden, construction site and bush with total mobility. The shredder has a 15 hp 420 cc Loncin engine with electric starter and the tracked platform has a 5.5 hp Loncin engine with manual starter. The set weighs 370 kg and measures 190 x 65 x 155 cm for access to narrow passages.

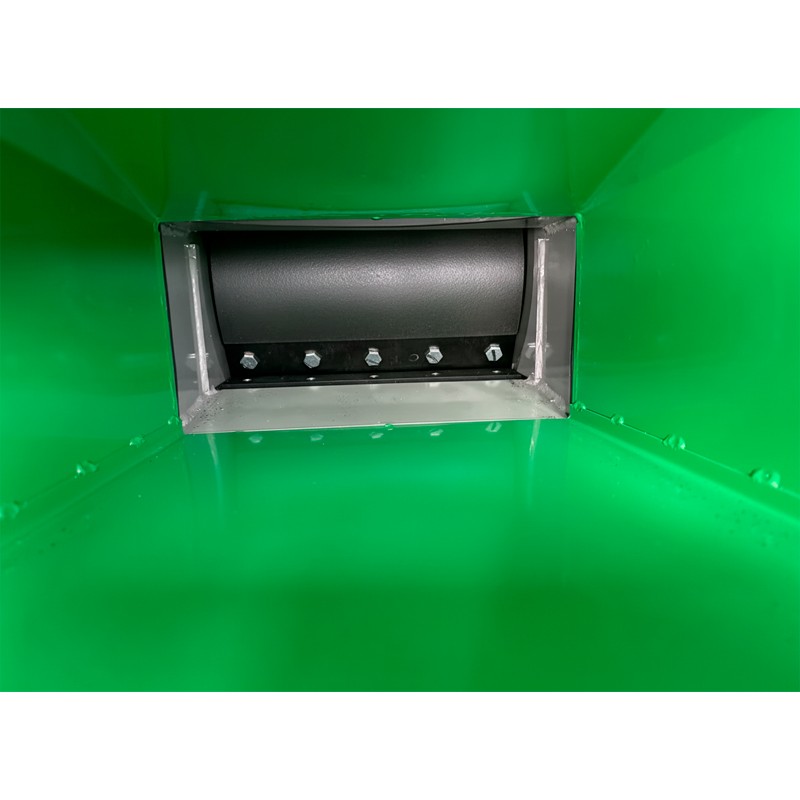

High yields in pruning and cleaning thanks to the drum with 2 blades and counter-blade that self-feeds the material. It shreds dry and green wood up to 7 cm and reaches a flow rate of approximately 4 to 5 m³ per hour. It ejects at a height of 160 cm and the spout rotates 360 degrees to load directly into the bin or into a trailer.

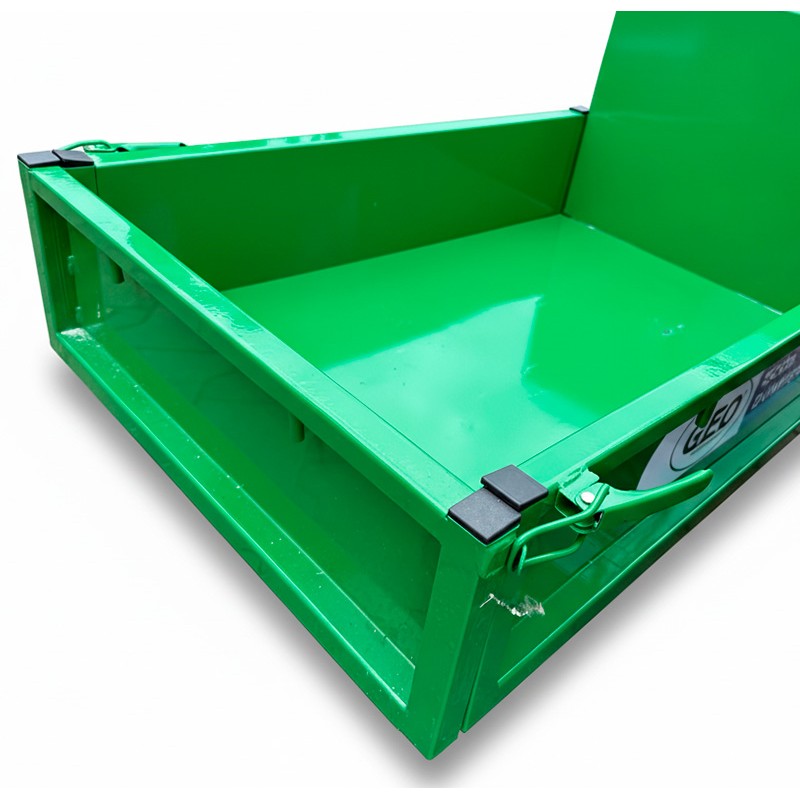

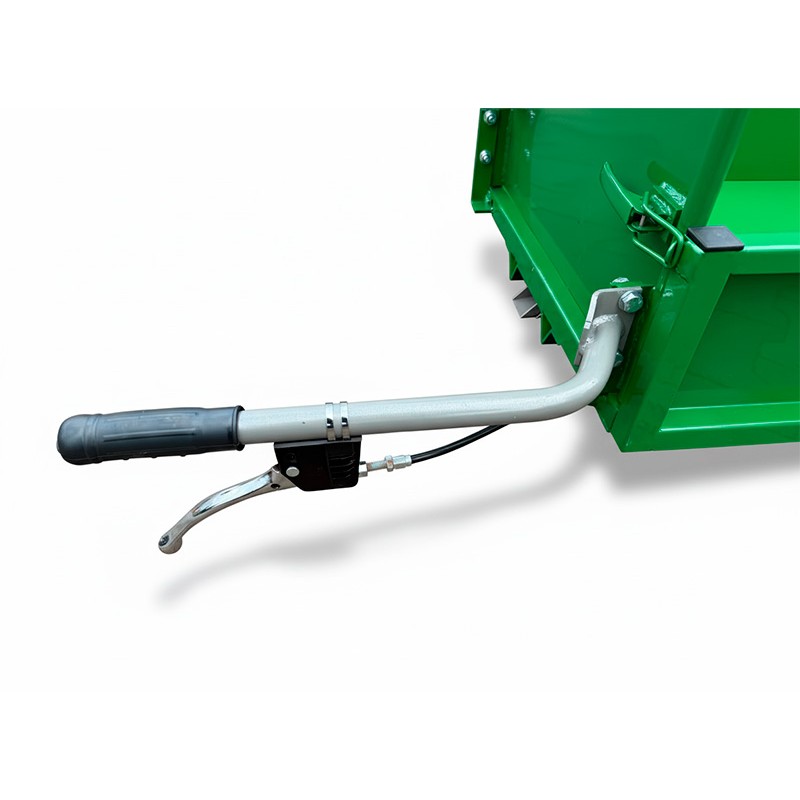

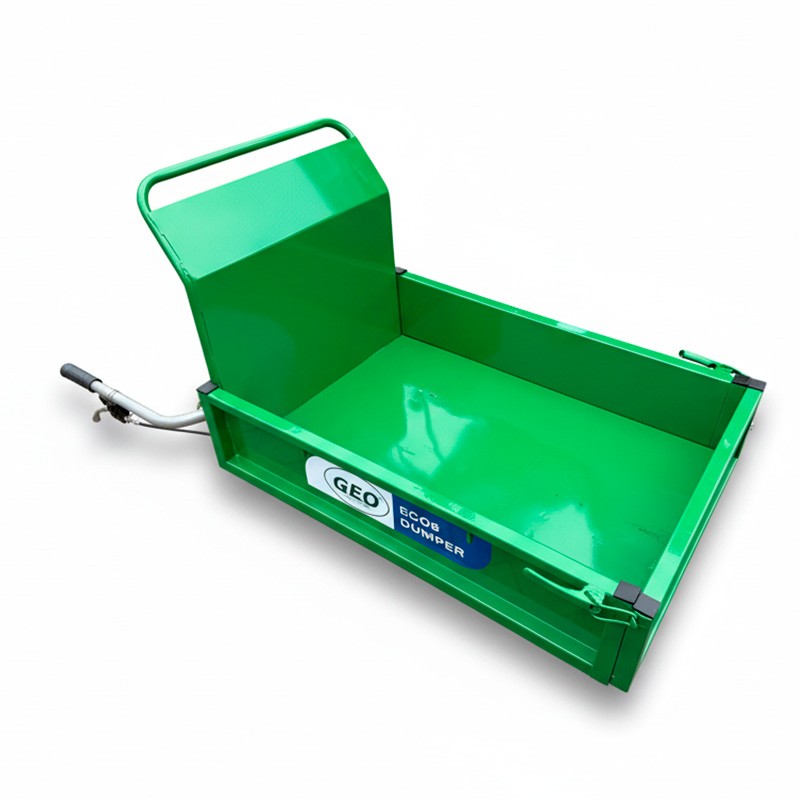

The minidumper has a 300 kg payload and its 90 x 65 x 21 cm box is tilting and has folding sides for quick unloading. The tracked traction improves stability in difficult terrain and climbs slopes of 20 percent while maintaining maneuverability and grip.
Designed for intensive use, it includes an emergency stop button and a safety cover on the hopper. 6.5 liter tank for unleaded gasoline and easy maintenance with accessible greasing points. The GEO Italy ECO8 Dumper allows you to switch between platform and bio shredder depending on the job, taking advantage of its 15 hp power and the versatility of the 5.5 hp dumper.
| Shredder engine | |
|---|---|
| Brand | Loncin |
| Type | 4 stroke OHV |
| Displacement | 420 cc |
| Power | 15 hp |
| Starter | Electric |
| Fuel | Unleaded gasoline |
| Tank capacity | 6,5 L |
| Cutting system and performance | |
| Configuration | Drum with 2 blades + 1 counter blade |
| Power Supply | Self-cleaning per drum |
| Maximum branch diameter | 70 mm |
| Working flow rate | 4-5 m³/h |
| Height of power Supply | 125 cm |
| Ejection height | 160 cm |
| Ejector outlet | 360° orientable |
| Minidumper / tracked | |

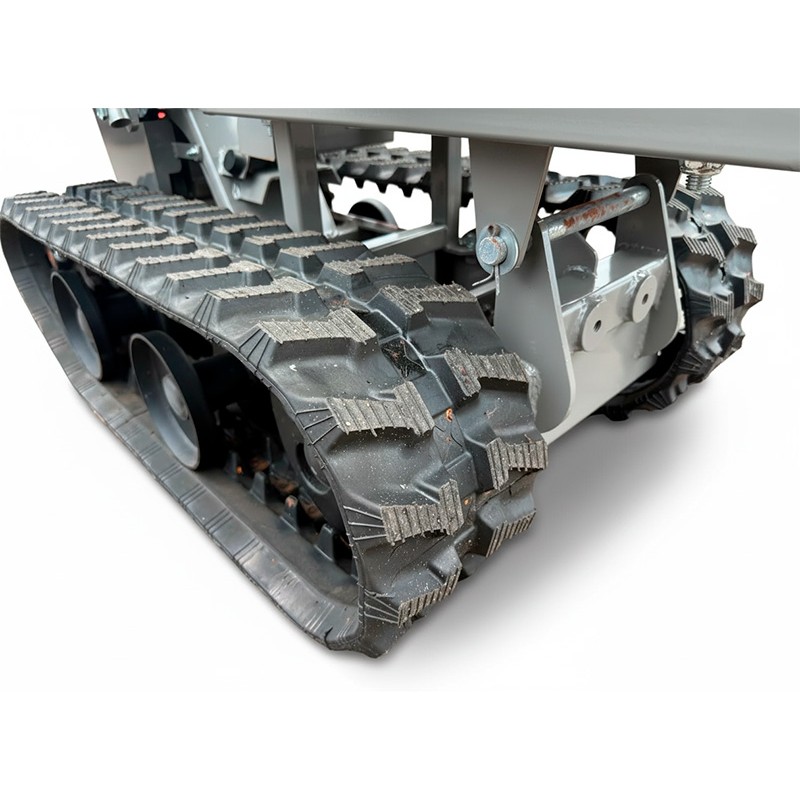

| Type of traction | Tracked rubber |
| Maximum slope | 20 % |
| Minidumper engine | Loncin 4T OHV |
| Displacement minidumper | 196 cc |
| Minidumper power | 5,5 hp |
| Minidumper starter | Manual |
| Loading box | |
| Included | Yes, with tilting and folding sides |
| Dumper payload | 300 kg |
| Internal dimensions of the box | 90 x 65 x 21 cm |
| Overall dimensions and weight | |

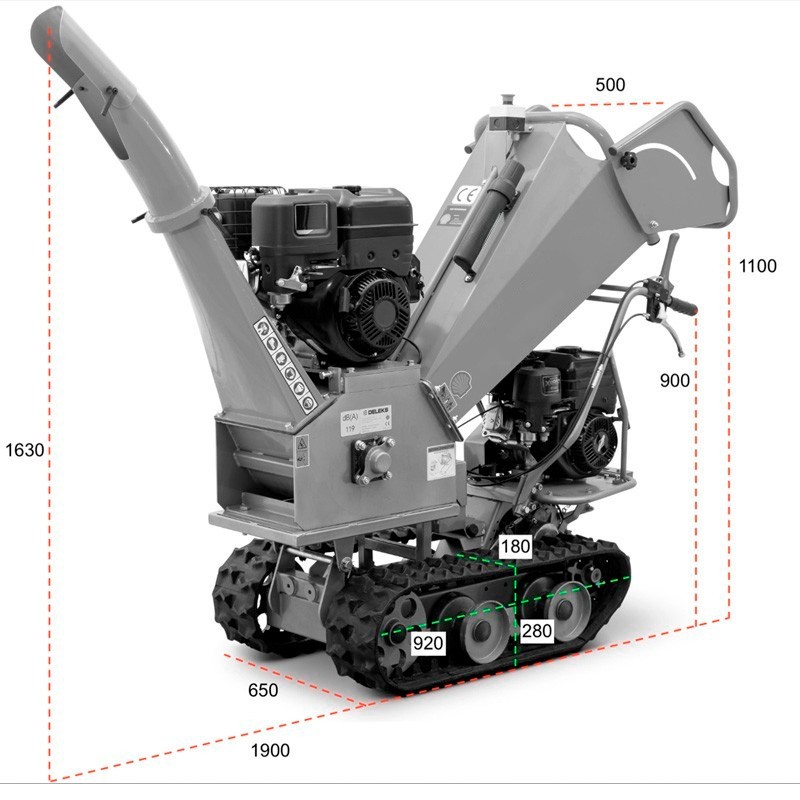

| Overall dimensions | 190 x 65 x 155 cm |
| Weight | 370 kg |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
