Raymo TORPEDO 4WD ZTR electric brushcutter and mower robot

Multifunction robot Raymo B TORPEDO

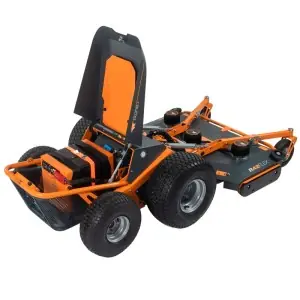

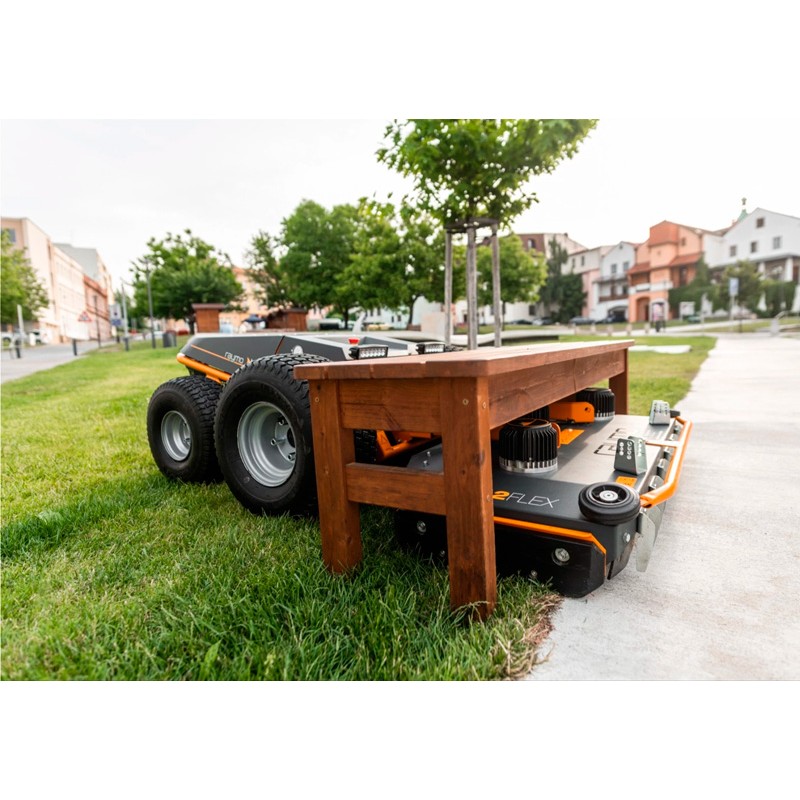

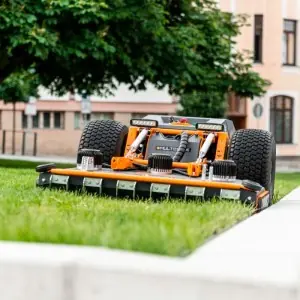

Professional remote-controlled cuttingplatform with ultra-low height of 50 cm that fits under solar panels, benches, trees and small passages. It operates without emissions and with very low noise for parks, residential areas and eco-sensitive areas. The TORPEDO chassis is delivered without cutting head and battery and is custom configured with optional decks and power packs.

Key advantages

• Modularity with Powerswap to mount electric or hybrid power cartridges and change heads in minutes.
• Very low cost per hour with electric drive and high energy efficiency.
• Minimal maintenance with no belts, hydraulics, oil or filters.

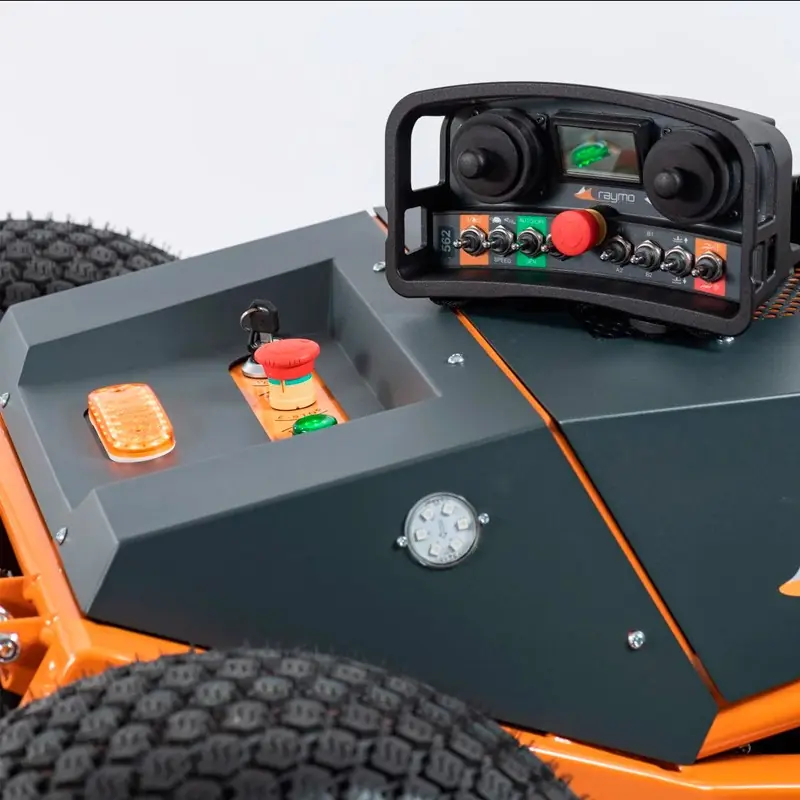

• Operator safety with remote operation, zero body vibration and low dust and noise exposure.

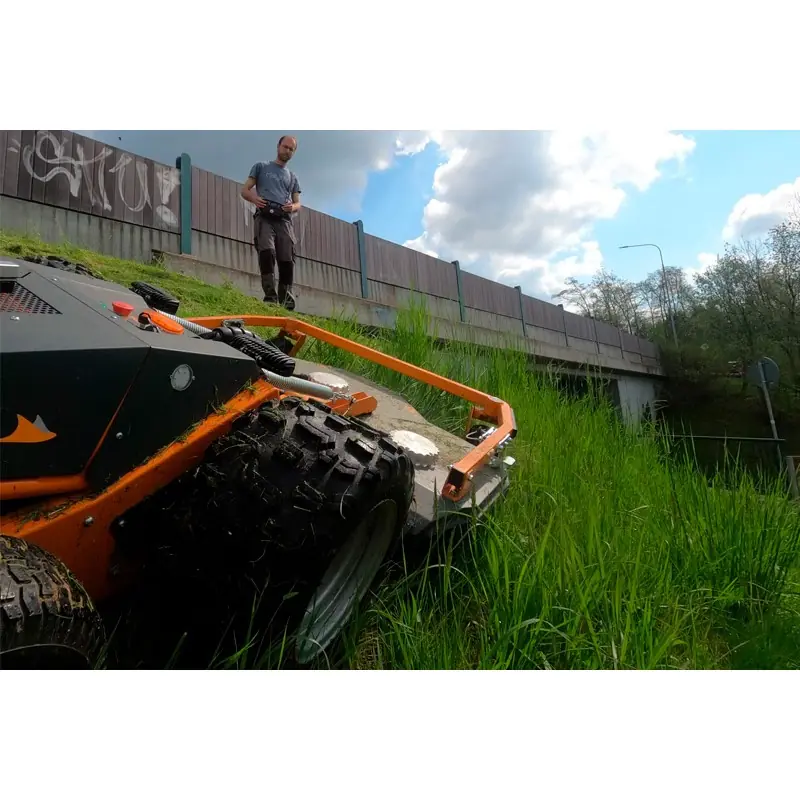

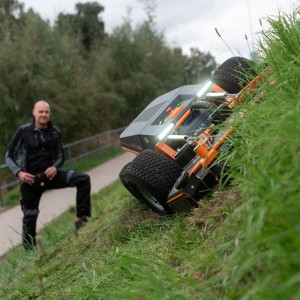

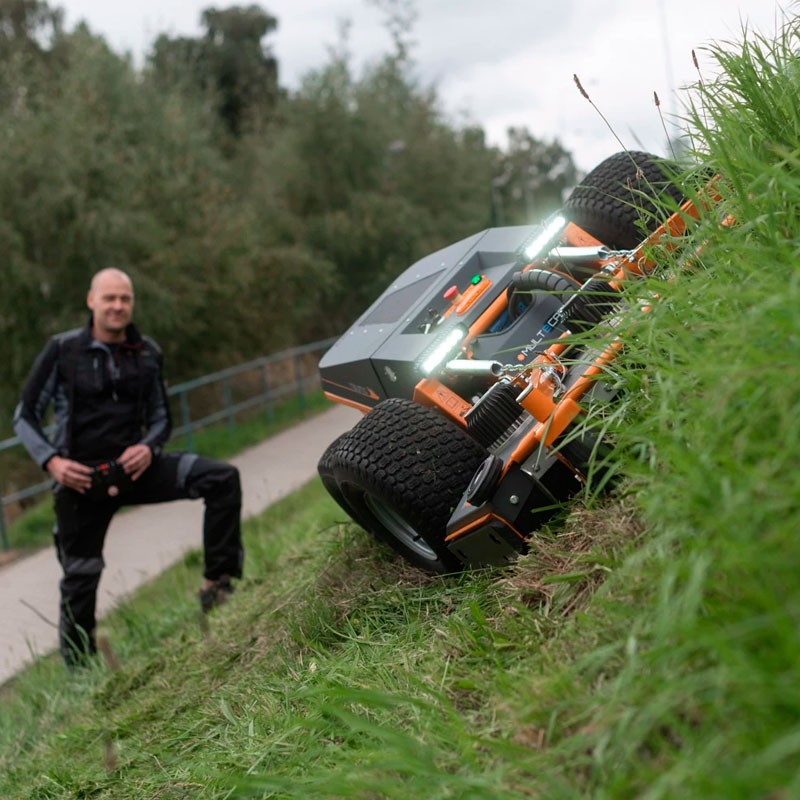

• Working on slopes with very low center of gravity, four-wheel drive and zero turning for stability and maneuverability.
• 50 cm profile reduces manual clearing in photovoltaic and low clearance areas.

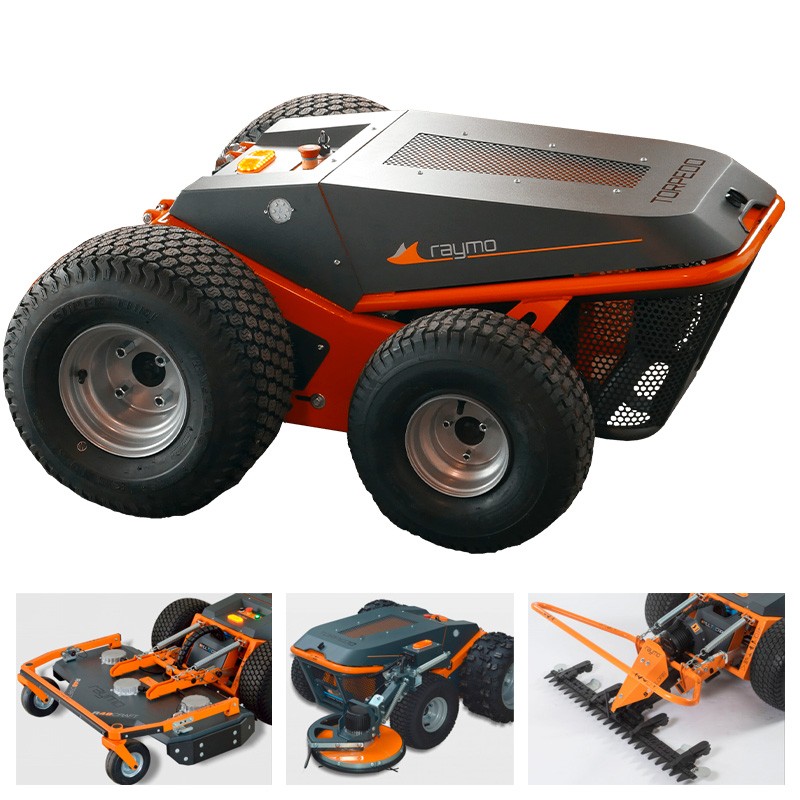

Interchangeable cutting decks

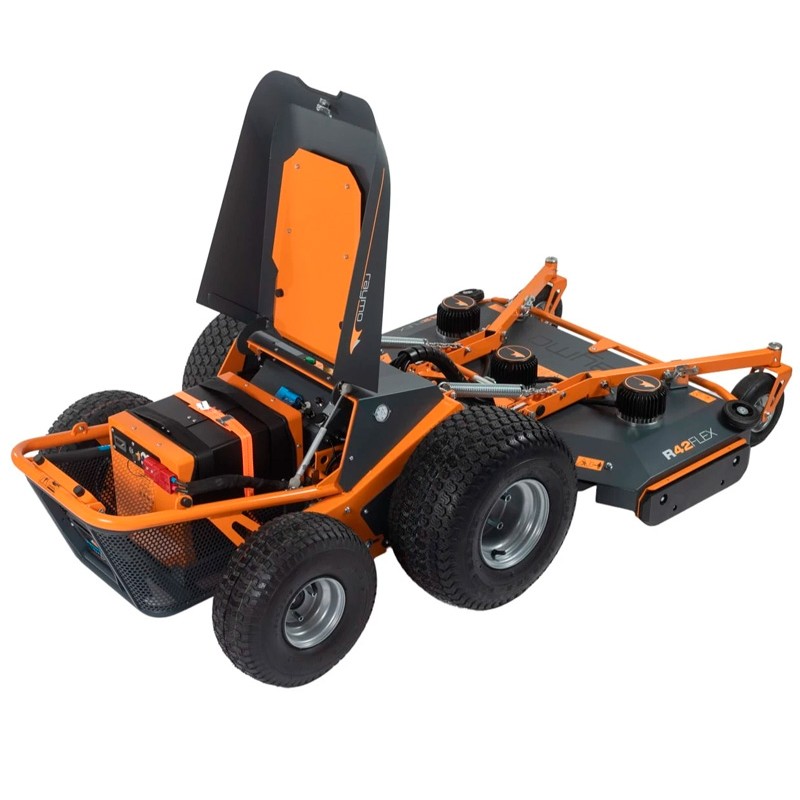

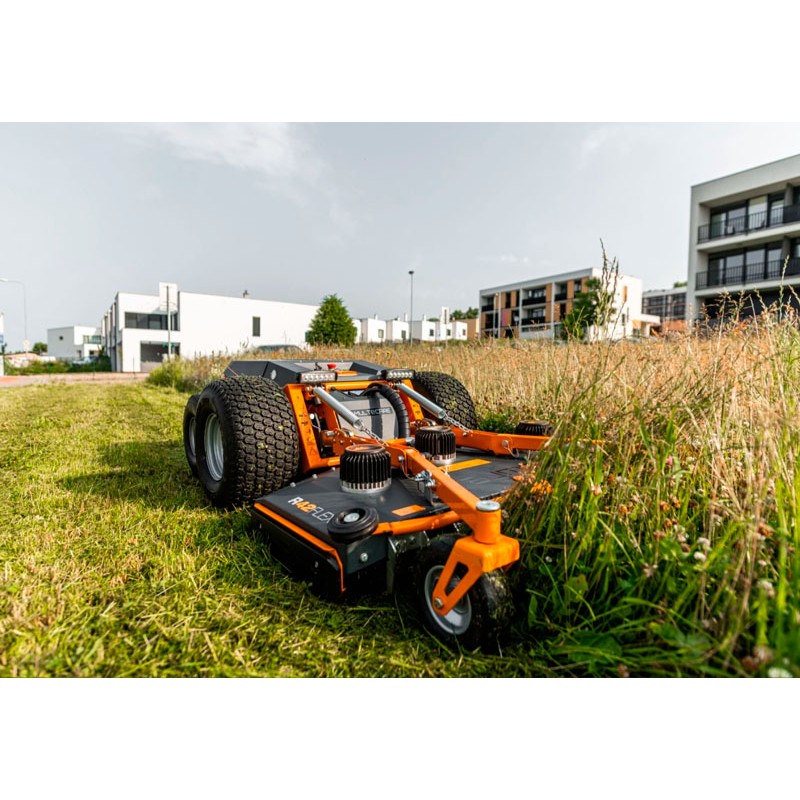

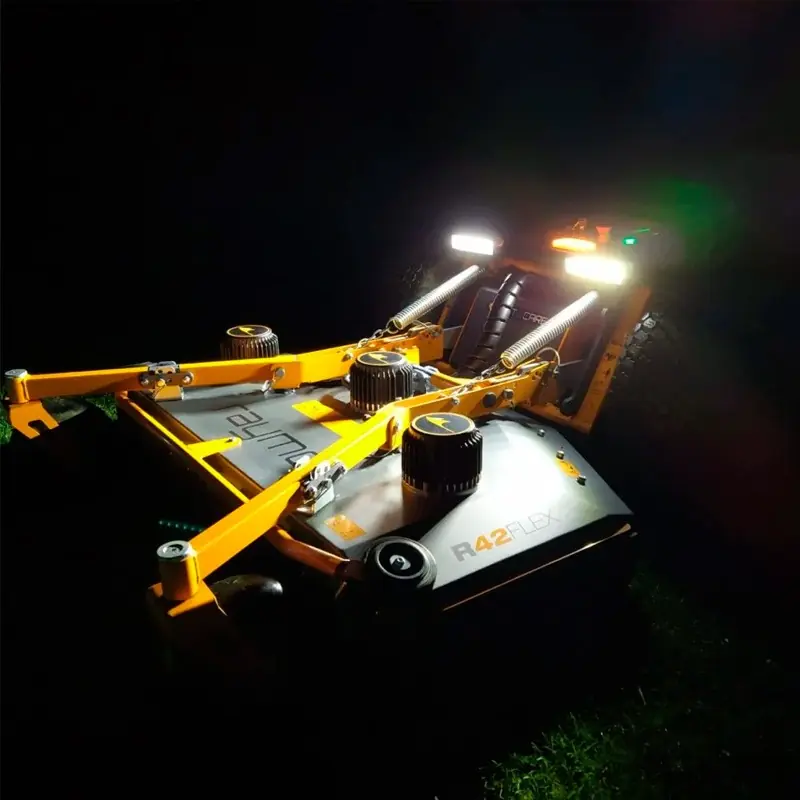

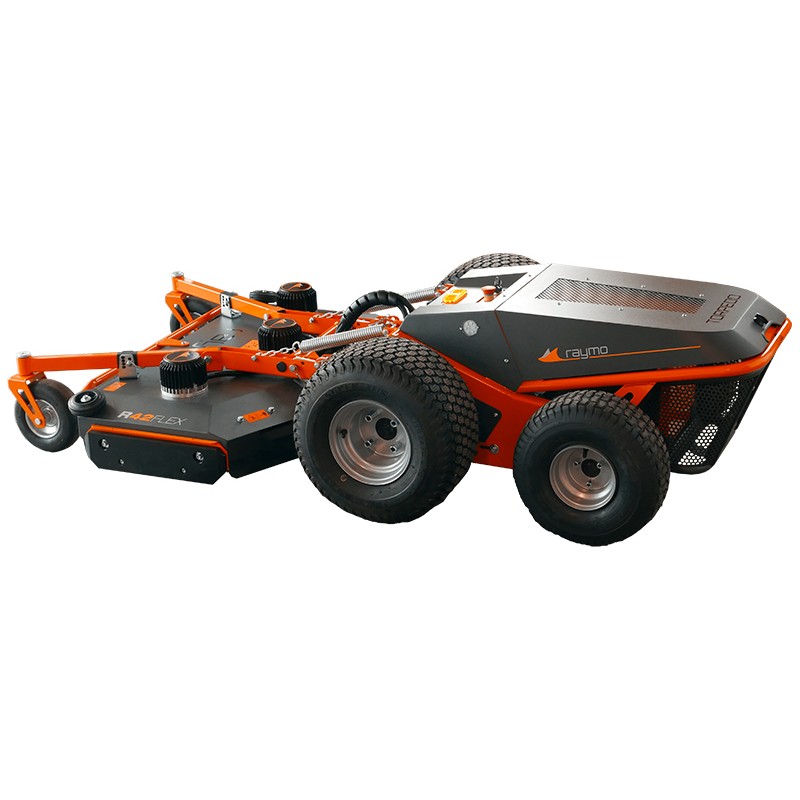

• Multifunction mower head R42 FLEX 104 cm 70 kg
  Versatile use with rear discharge or mulching thanks to the mulching kit included. Height from 40 to 100 mm. Removable idler wheels or skids for edges and areas with obstacles.

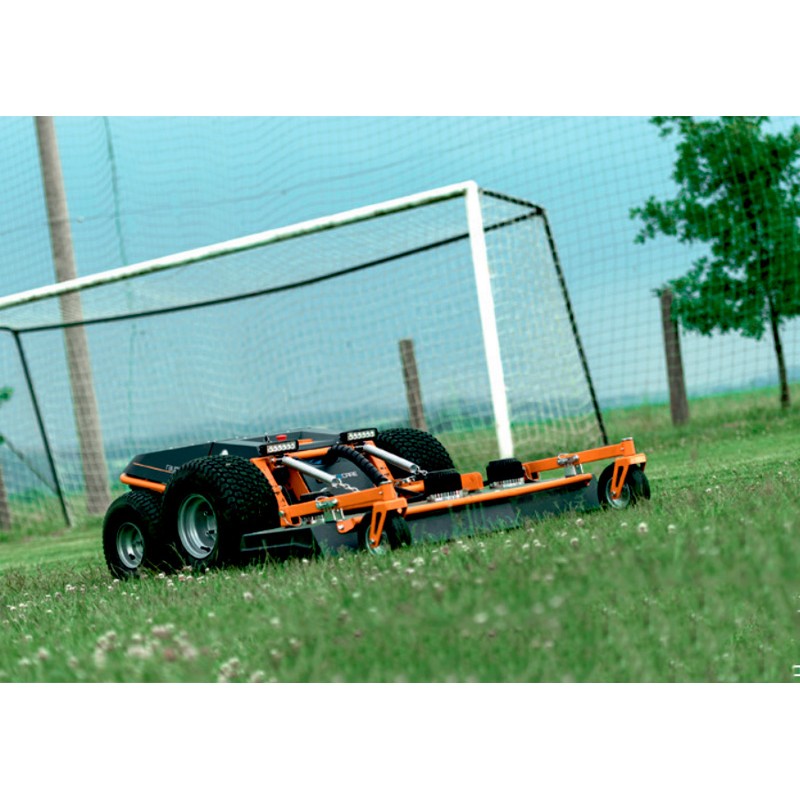

• R52 TURF 132 cm 80 kg
  High productivity with closed platform for improved mulching. Includes two mulching kits. Adjustment from 40 to 100 mm and hourly output of up to 8000 m² in regular areas.


• R48 CRAFT 120 cm 88 kg

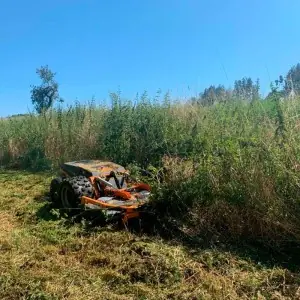

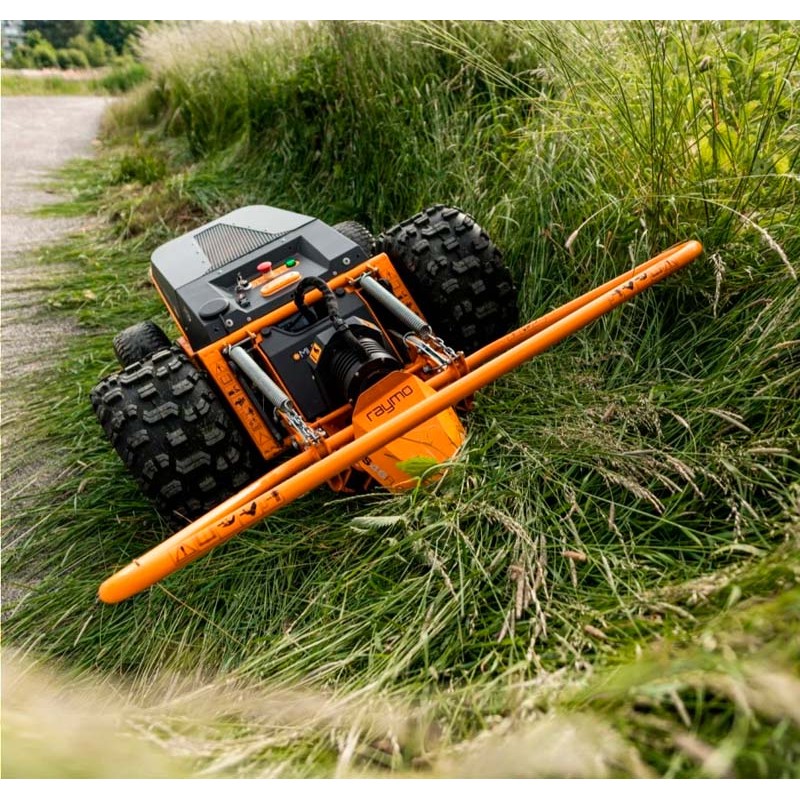

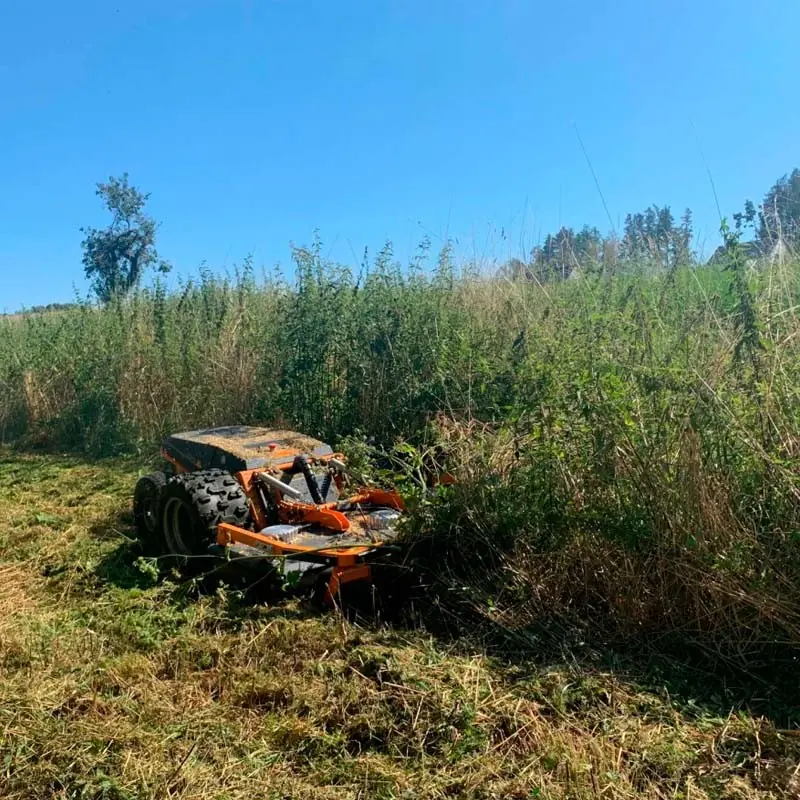

  Designed for tall vegetation and uneven areas. Vibration-absorbing suspended idler wheels and adjustable height from 60 to 140 mm. Ideal for vegetation control in large areas.

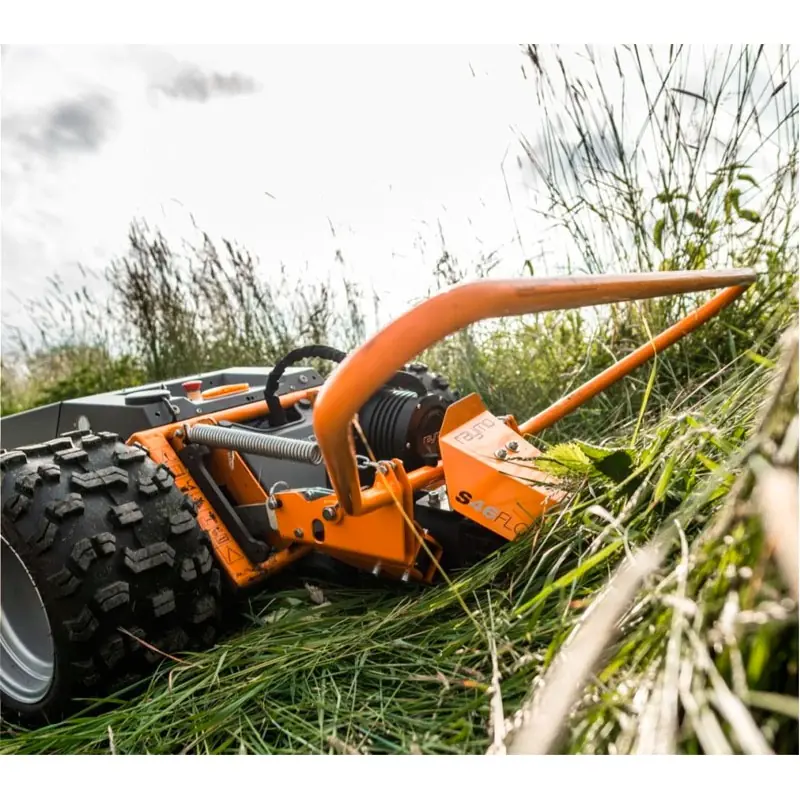

• S46 FLORIS single actioncomb mower head 117 cm 60 kg
  Ecological cut that protects wildlife and wildflowers. High quality Busatis blades. Height from 30 to 90 mm.


• S46 FLORIS double action comb mower head 117 cm 60 kg
  Same philosophy as the single version with higher forward speed in biodiverse meadows.

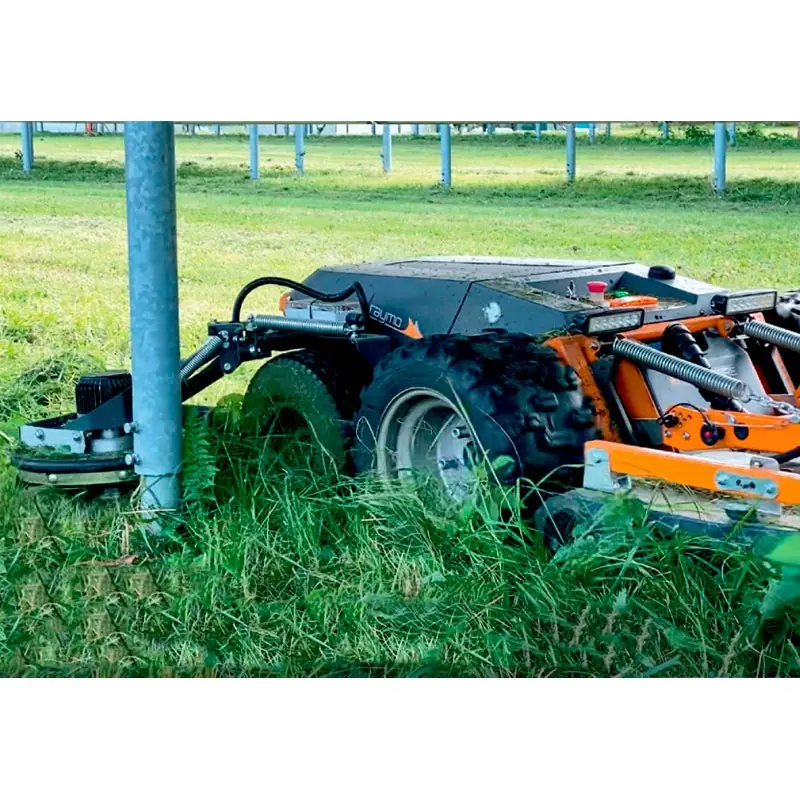

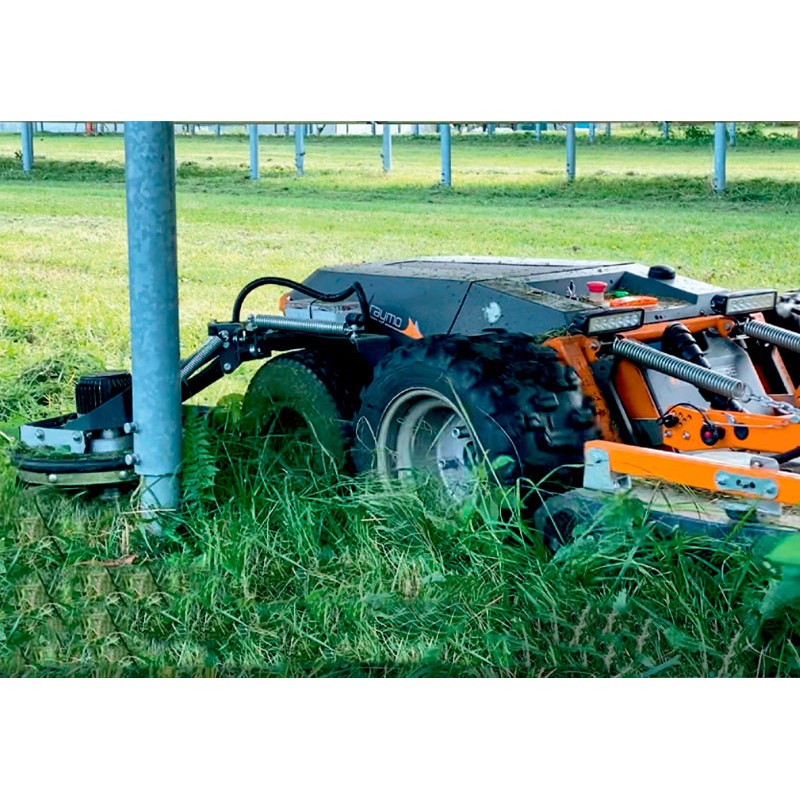

• R14 SFINX inter-row head with 350 mm disc
  Suspended oscillating arm for working next to posts, trees, guardrails and structures in photovoltaic and vineyards. Electric motor and quick disassembly. Designed to be combined with a front head.

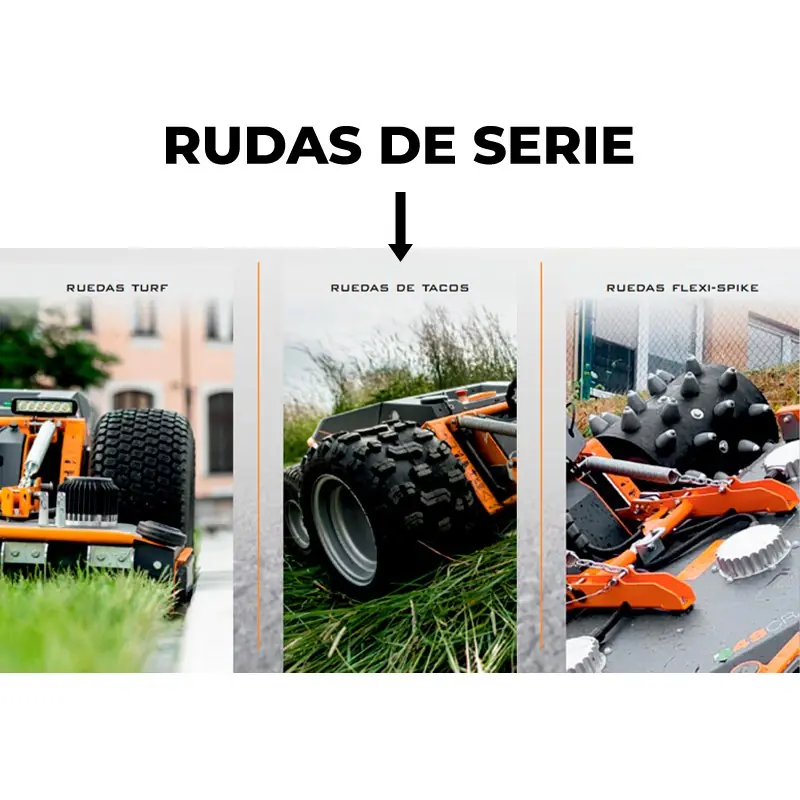

Wheels available

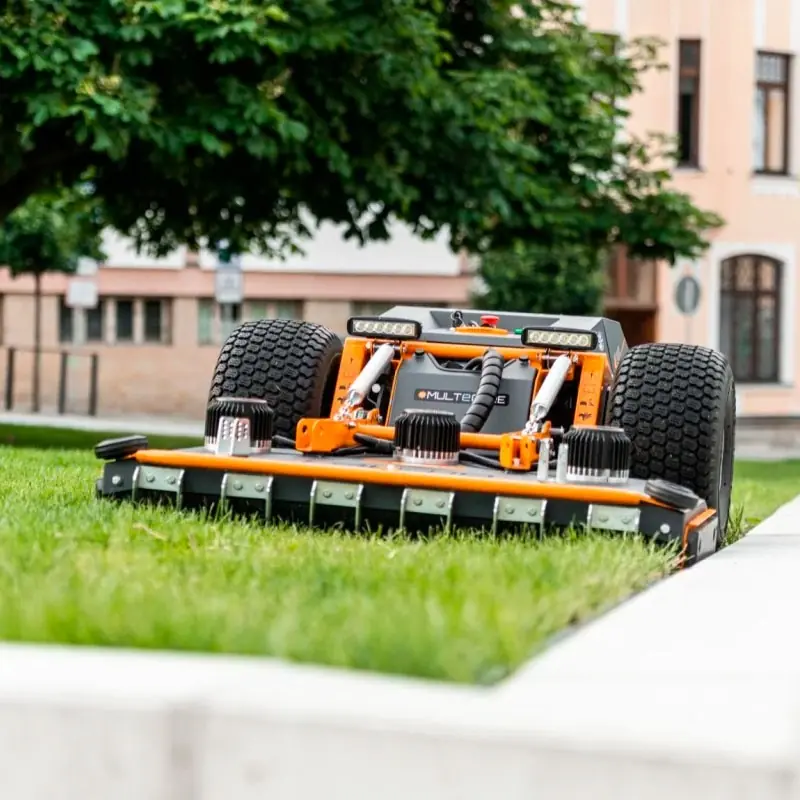

• Turf for manicured lawns
• Lugs for general grip
• Flexi Spike for maximum traction on slopes

Power, charging and connectivity

Raymo battery packs compatible with Basic 15 A chargers 10 hour typical charge for 150 Ah, Smart 25 A 6 hours and Smart 50 A Dual 3 hours with standard plug in

Raylink telemetry with GNSS position, hours, battery status and job reporting for fleet management

Where it performs best

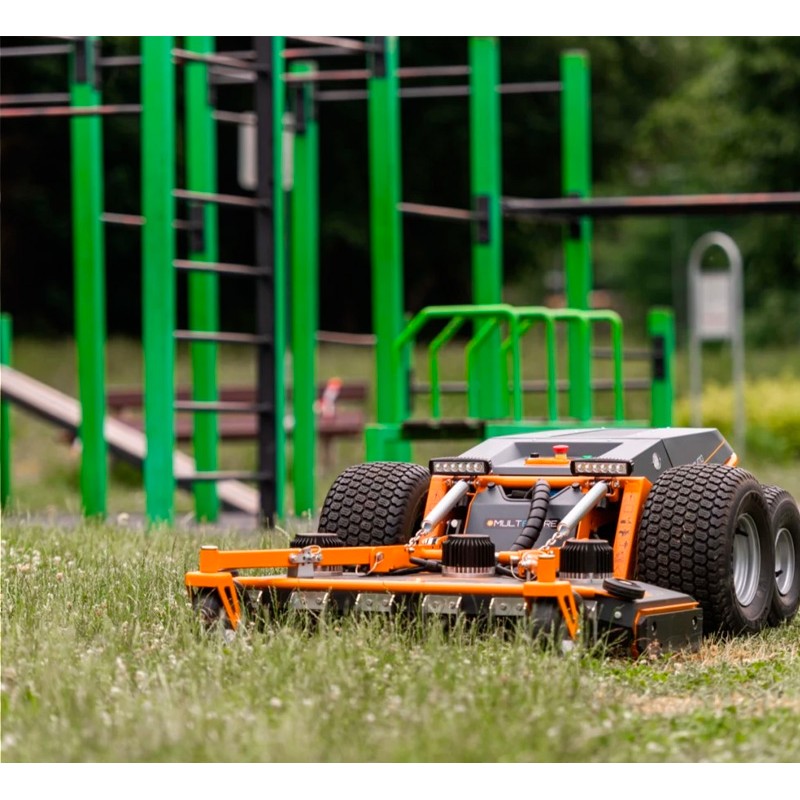

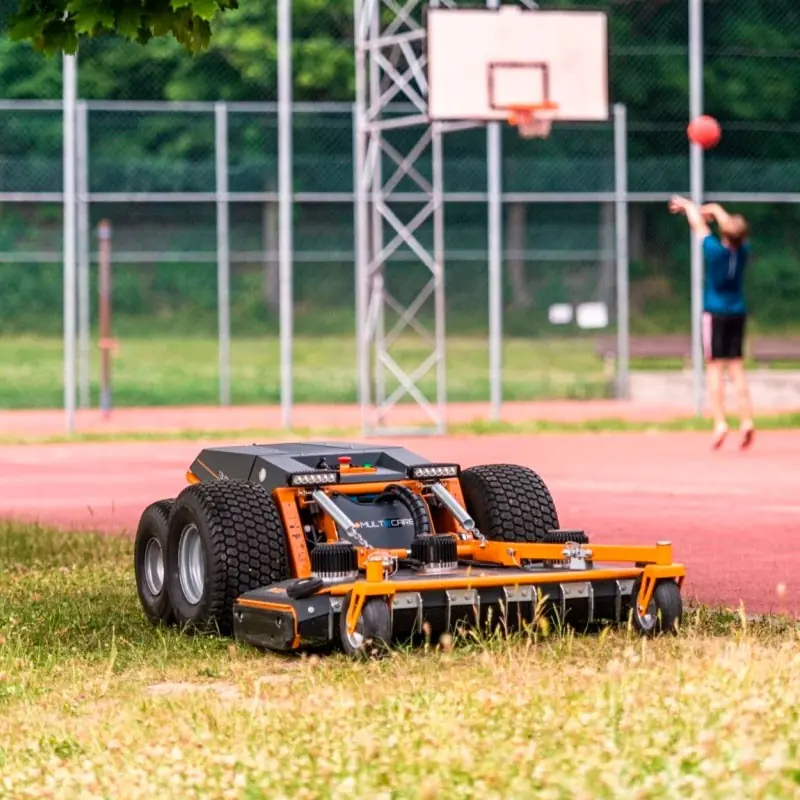

• Parks, campuses, hospitals and noise-restricted areas

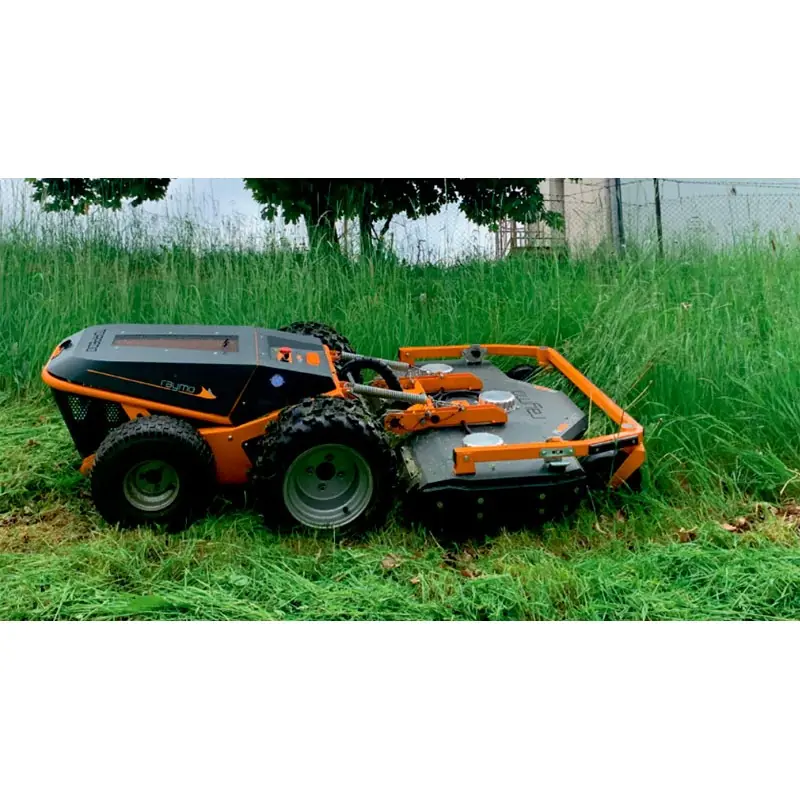

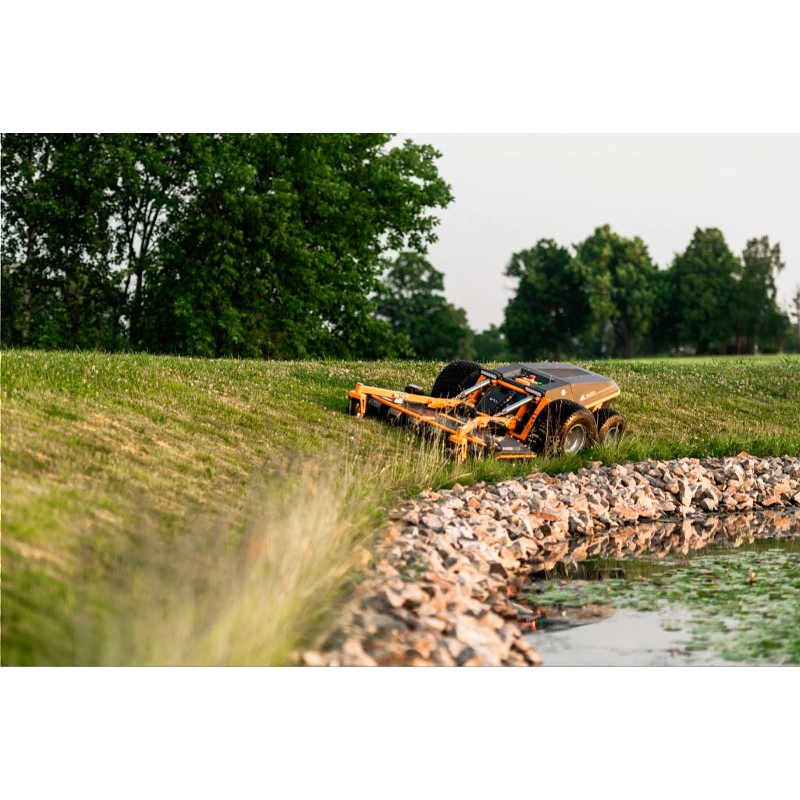

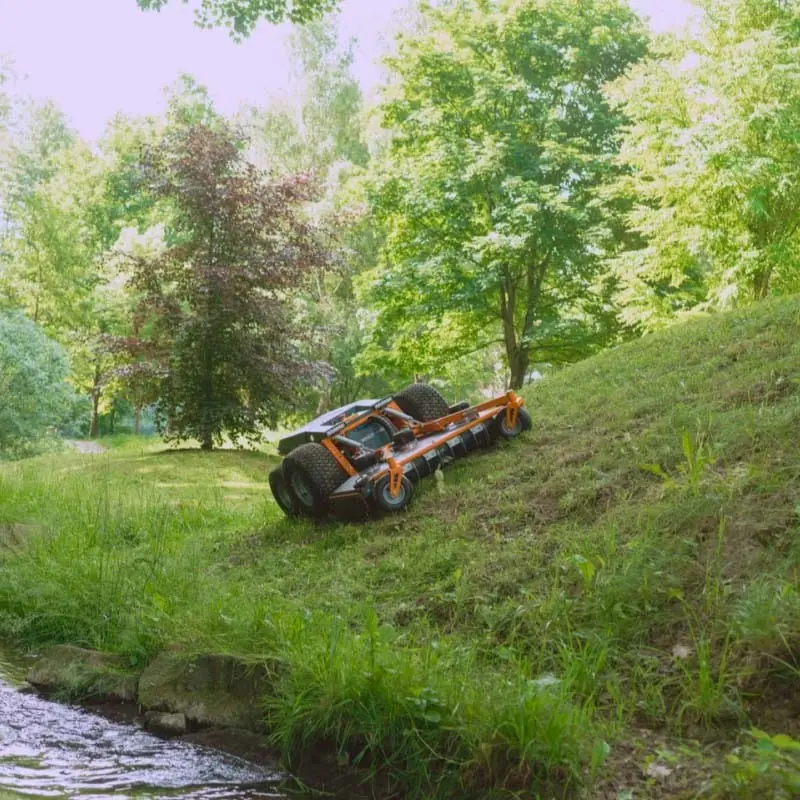

• Slopes, slopes and undulating ground with tall grass

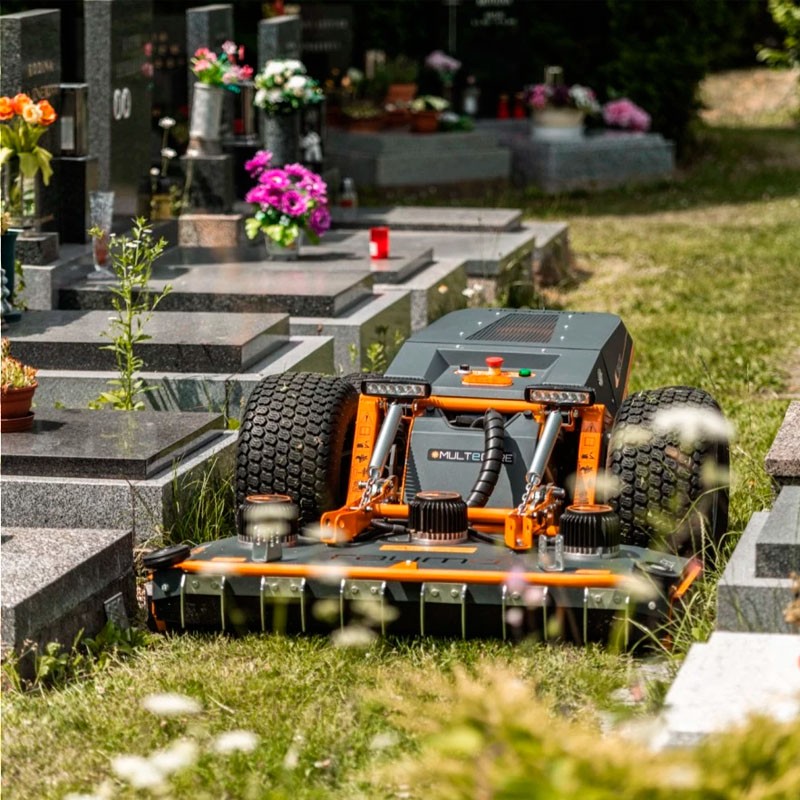

• Cemeteries and eco-sensitive spaces with no emissions or leakage
• Meadows and vegetation control in ditches and borders

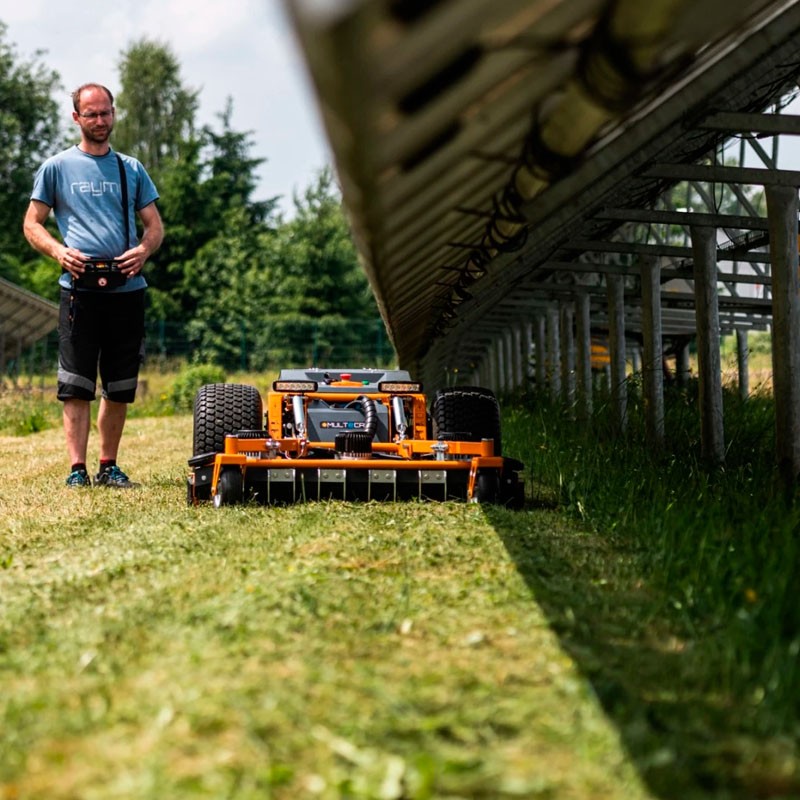

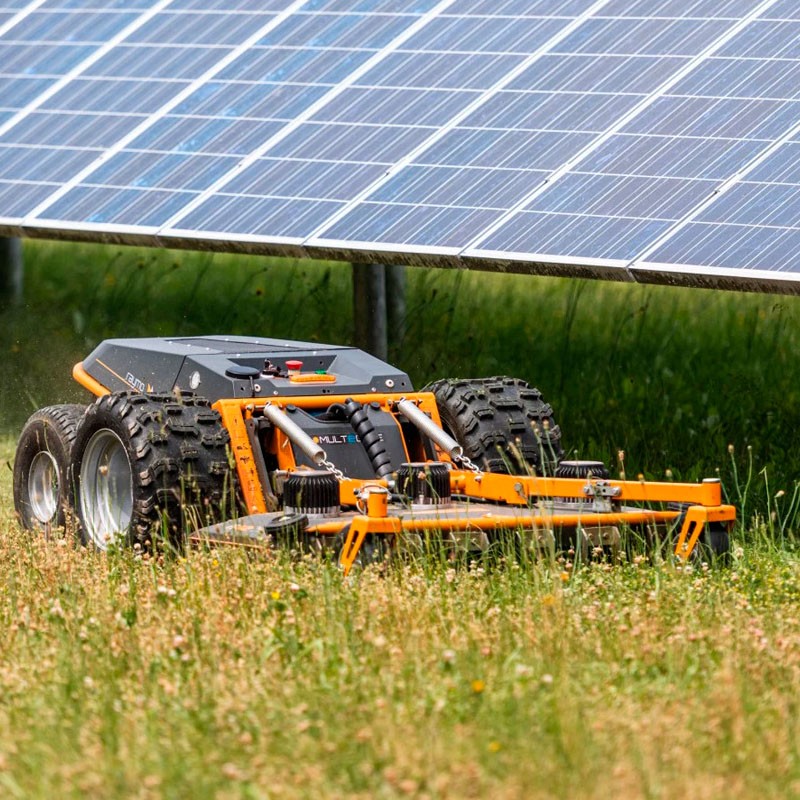

• Photovoltaic plants and low headroom sites

Maintenance and costs

Blade sharpening and basic cleaning. No belts, no oil, no filters. Optimized electrical consumption reduces the cost per hectare

Technical data
