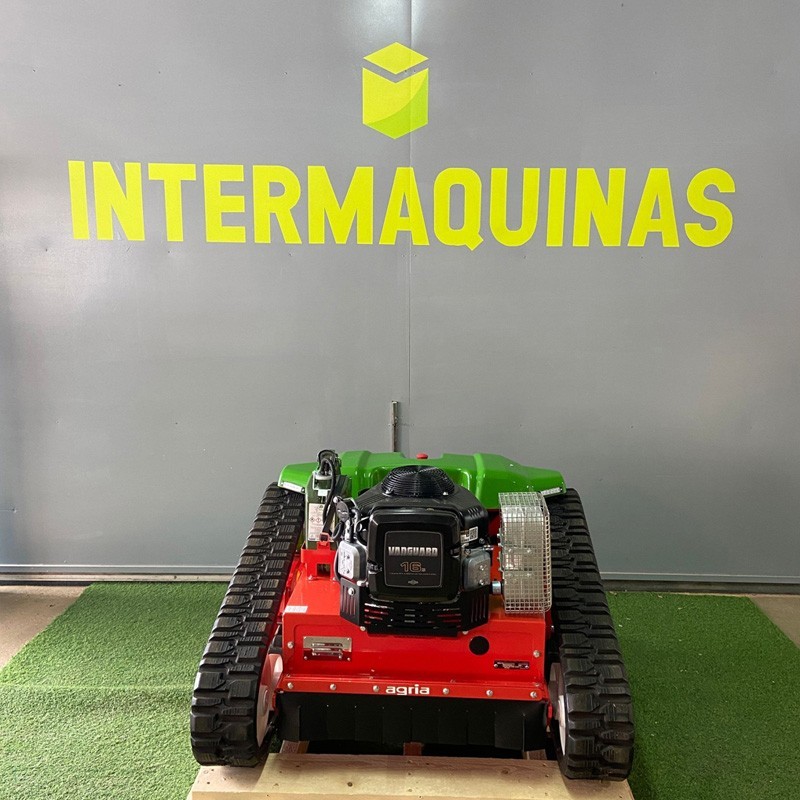

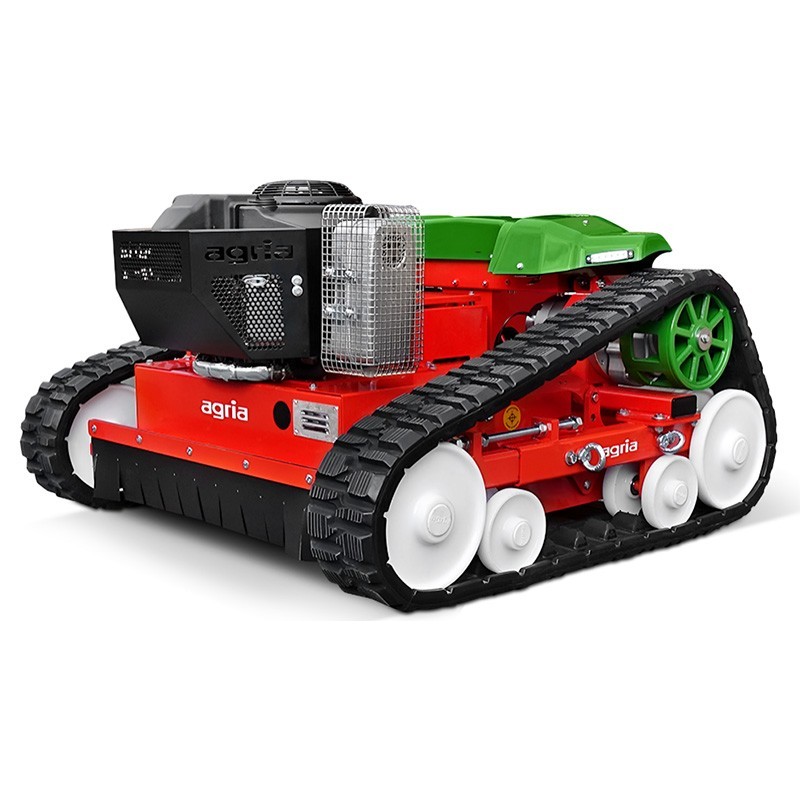

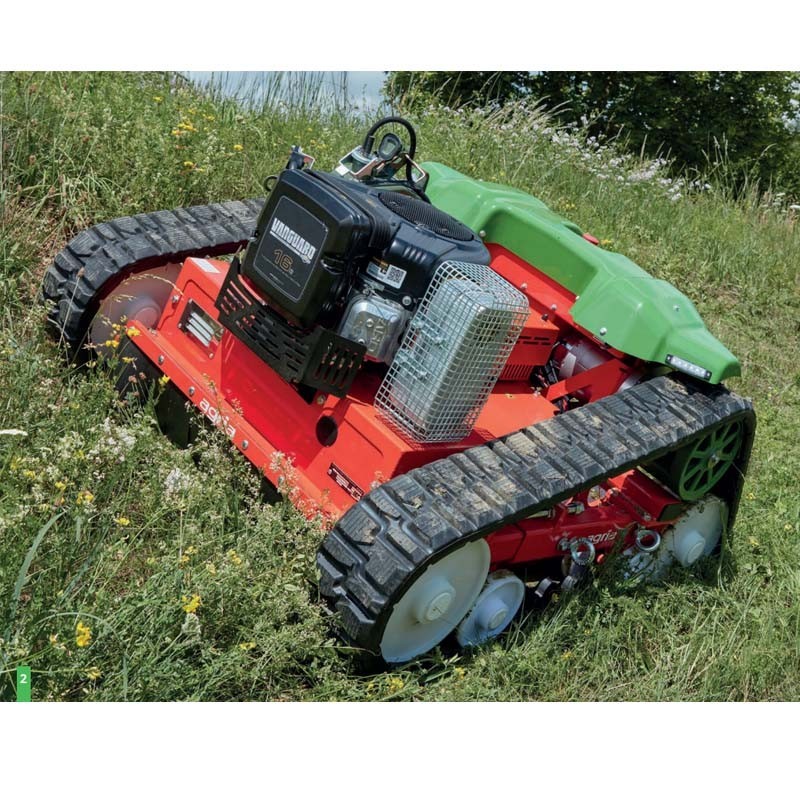

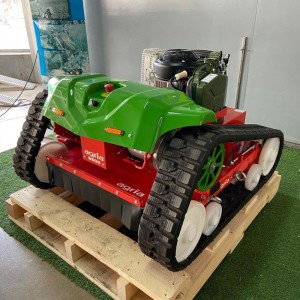

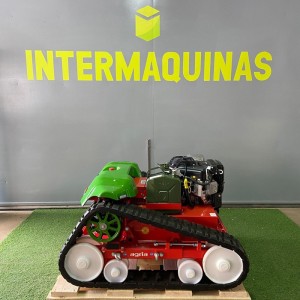

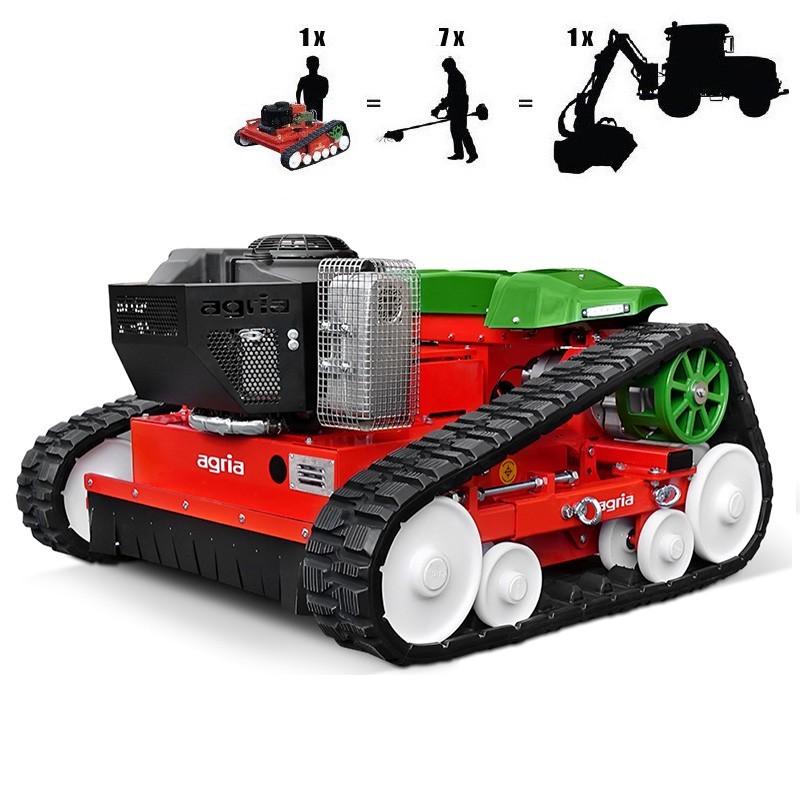

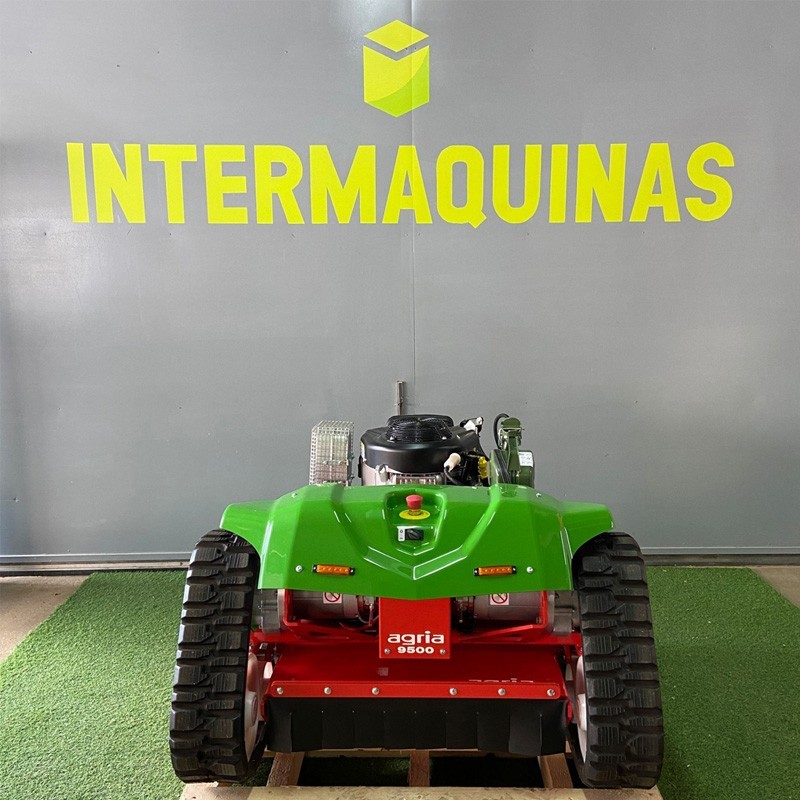

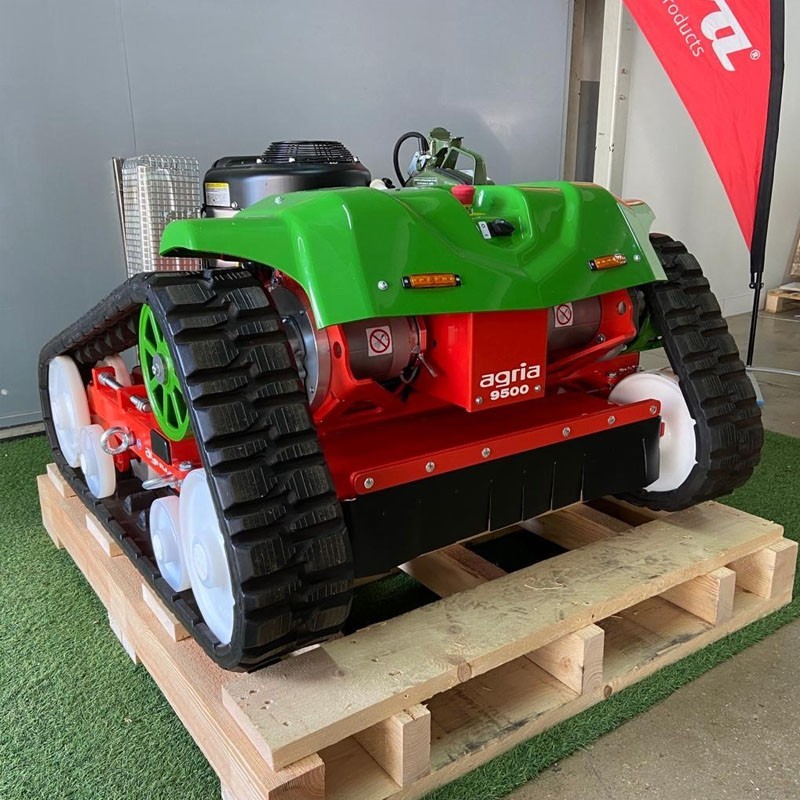

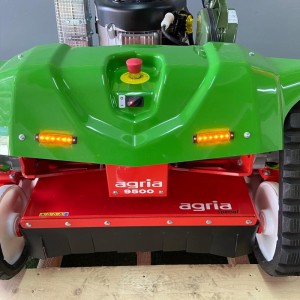

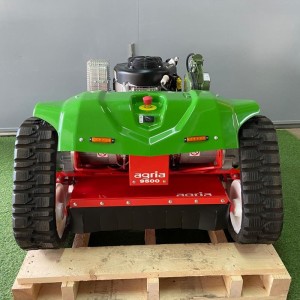

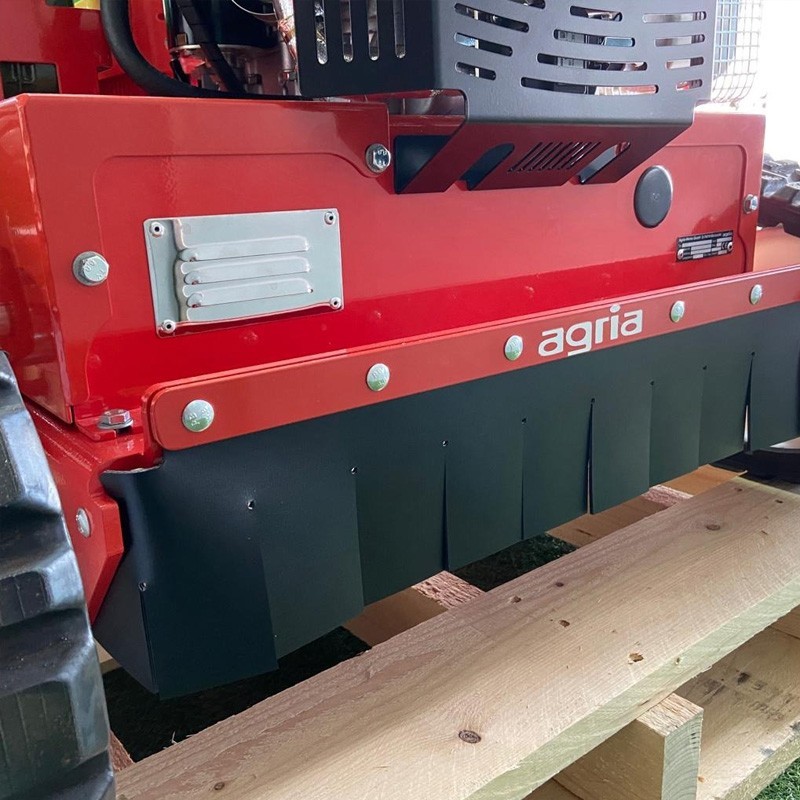

The Agria RS9500-80 Brushcutter Robot equipped with safety flaps dLG tested to EN12733, as well as emergency shutdown switches on both the machine and the remote control, ensure a safe operating environment.
It also features additional measures such as automatic shutdown in the event of loss of signal from the remote control and a 48 V low voltage system, providing extra layers of security.

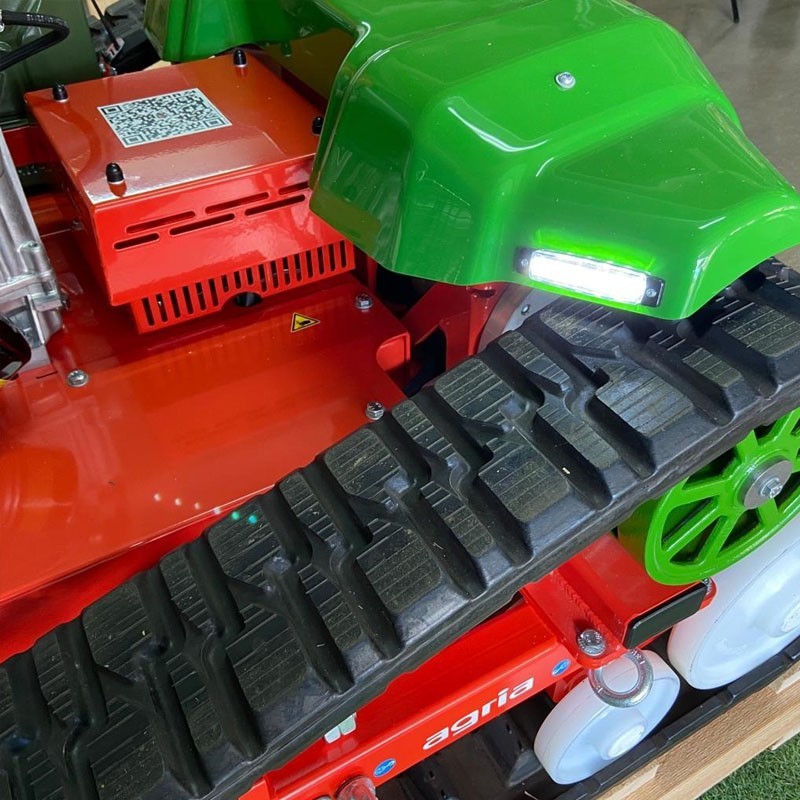

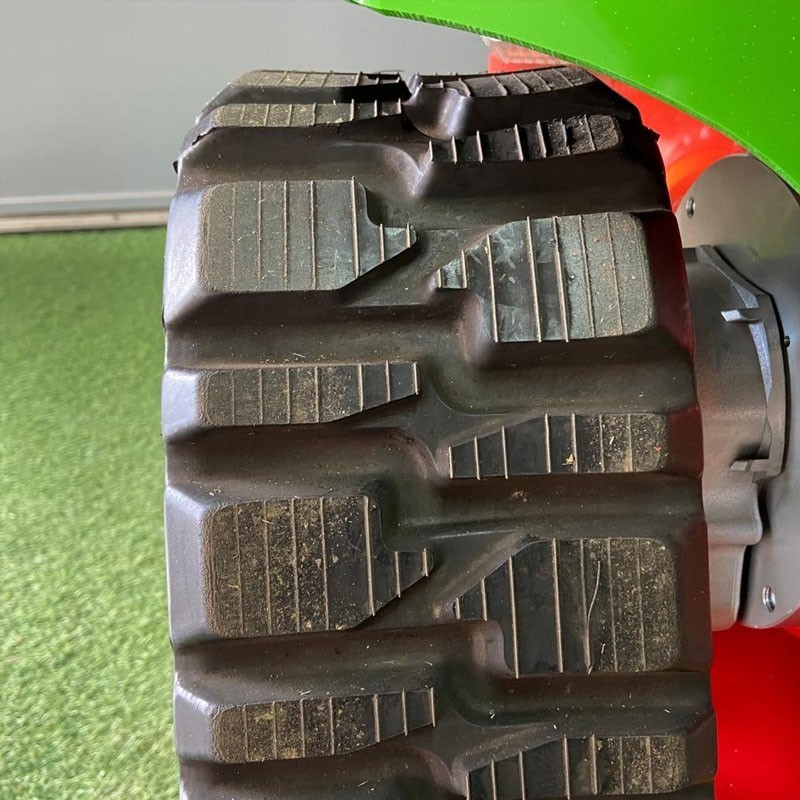

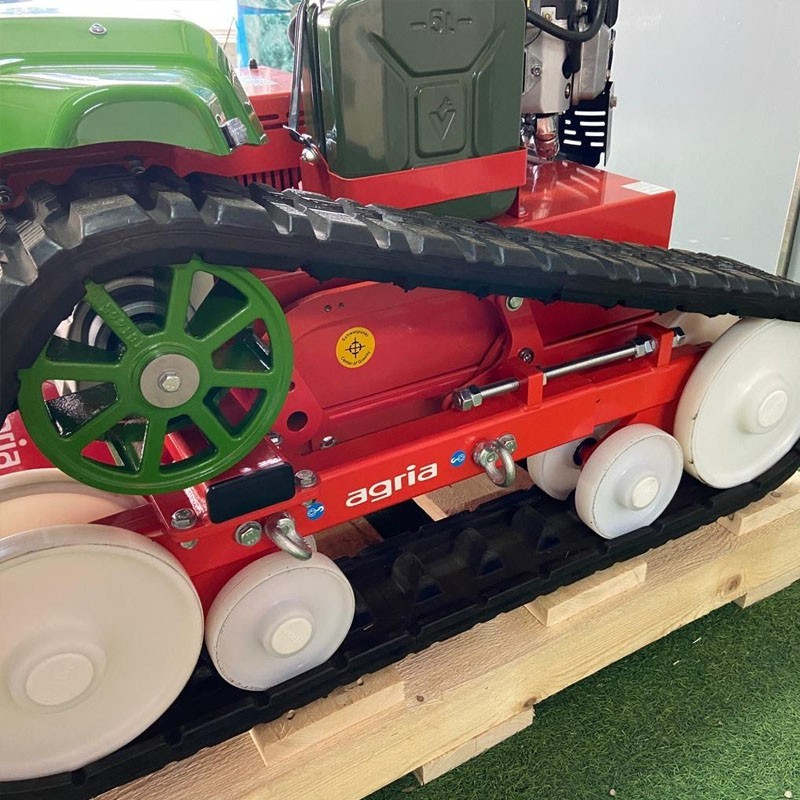

This innovative brushcutting robot is also distinguished by its efficient and comfortable design. With a low center of gravity and located in the center of the machine, together with tracked maintenance-free induction motor and an electromechanical safety brake ensure safe transport and stable performance.
The electronic box, the housing, which houses all electronic components, protects against dust and moisture, while rubber dampers provide vibration resistance.

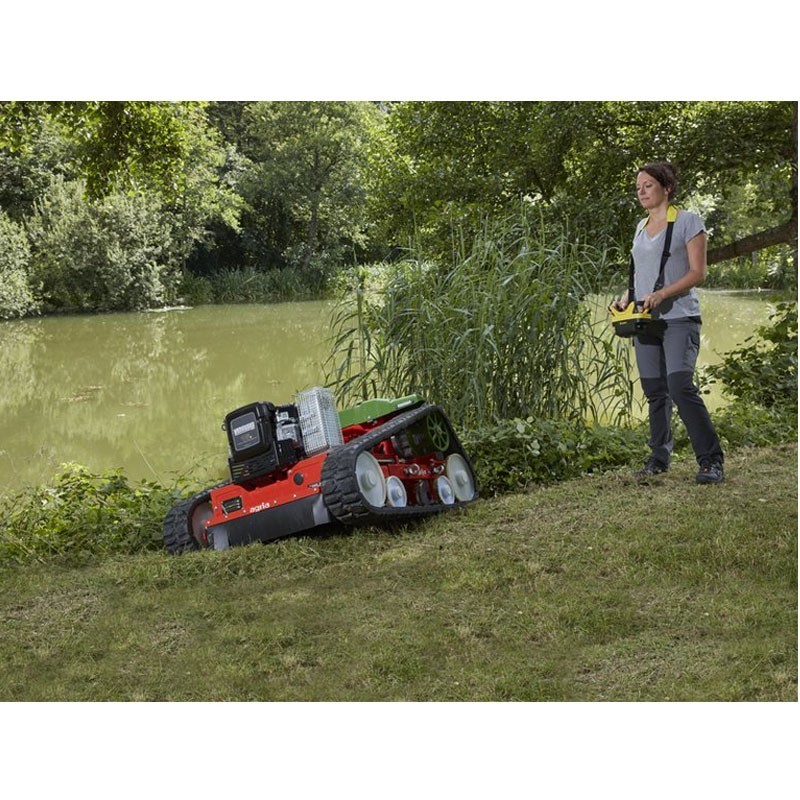

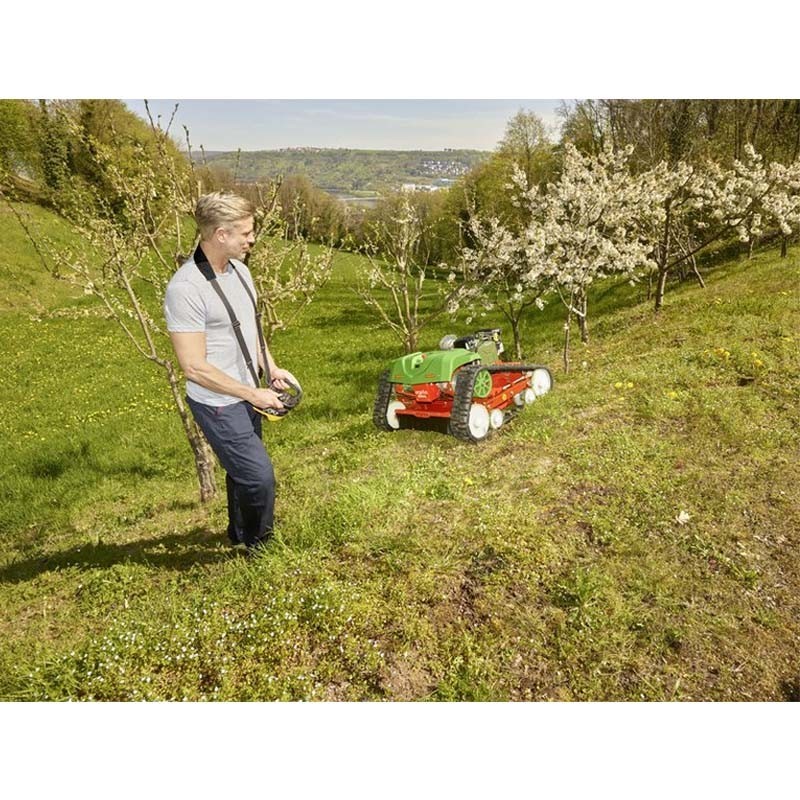

In terms of versatility and performance, the Agria RS9500-80 proves to be ideal for solar parks thanks to its generators and motors of tracked of induction. Its ability to work on slopes, a good mulching cut finish and the constant availability of the operator's manual through a QR code, make this machine a flexible and efficient option.
In addition, the remote control with a 2.8" color display gives the operator a clear and easy-to-use total control, the system is designed to keep you informed of various device statuses and provide crucial alerts, such as movements on critical slopes or the need to refuel.
|
Robust shredding blades
Oscillating blades designed for dense vegetation, with a blade holder that holds four blades manufactured in mild steel and hardened. |
Electrical cutting height
The remotely controlled height adjustment allows the cutting height to be set in a single step range 30 to 130 mm, the information is displayed on the control screen. |
Safe loading
The team has four cast bolts that simplify the secure attachment of lashing hooks during transport, ensuring a smooth transfer. |
|
Easy transport
Thanks to its compact design, in addition to simplifying transportation with small vehicles, it also improves mobility and adaptability in various environments. |

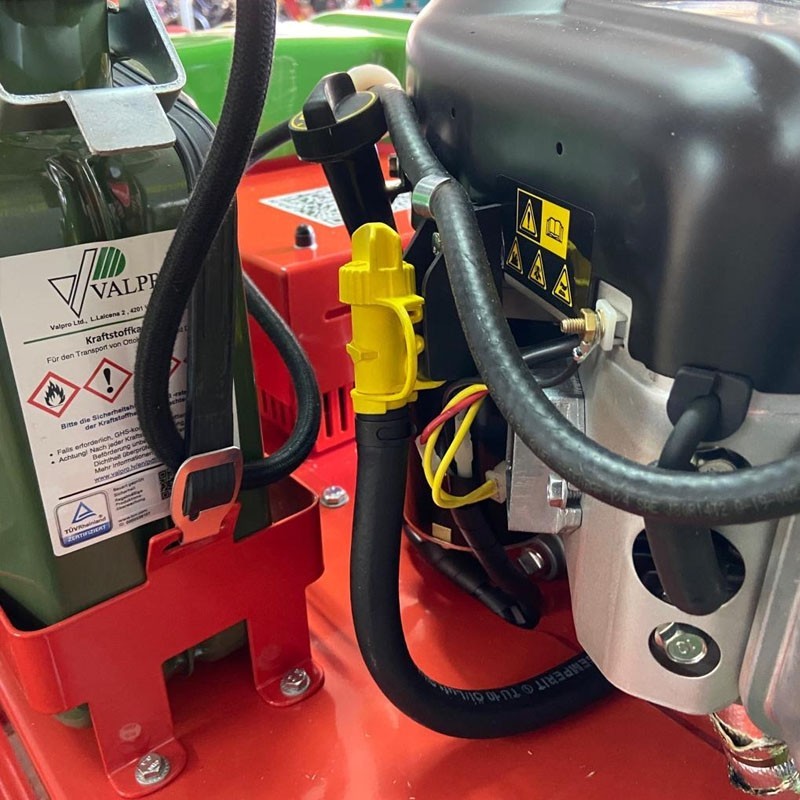

Removable and quick-release fuel tank
Thanks to the quick-release fuel tank system, refueling becomes even more efficient efficient, using standard drums of 10 liters. |
Automatic tensioning of the
The automatic V-belt tensioner eliminates the need for manual adjustments, always guaranteeing the recommended voltage automatically. |
| Motor model | Kawasaki FS 600V |
| Motor type | 2-cylinder 4-stroke |
| Power | 12.7 kW (17.3 hp) |
| Torsional stress | 40.4 Nm at 2200 rpm |
| Fuel system | 1 x 10 liters; removable Agria fuel tanks |
| Speeds | Selectable 3 speed ranges |
| Speed range 1 | 0 - 2 km/h |
| Speed range 2 | 0 - 3.8 km/h |
| Speed range 3 | 0 - 5.8 km/h |
| Brake | Fail-safe electromechanical brakes |

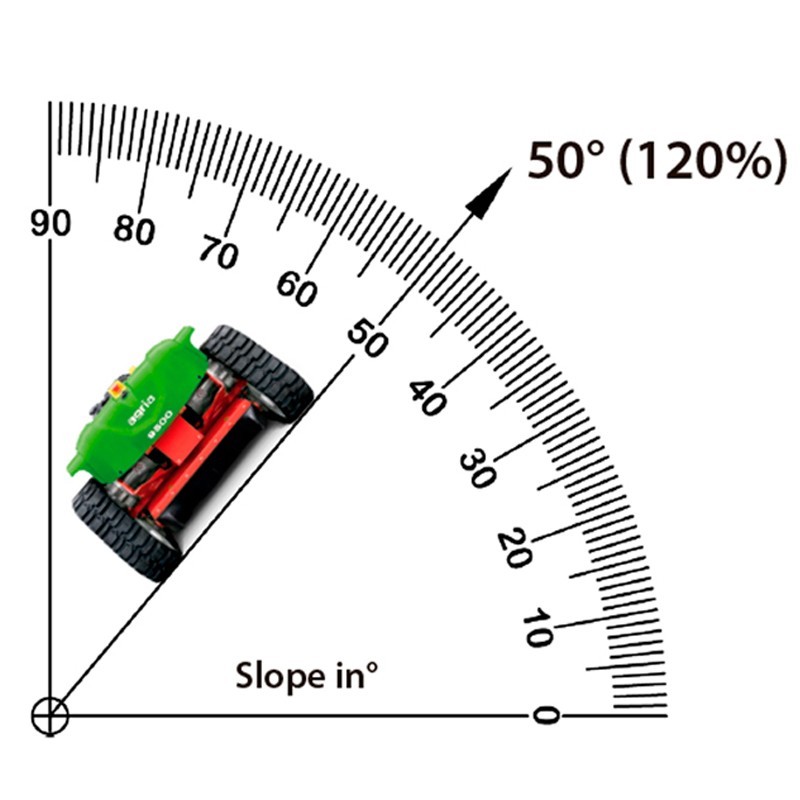

| Slope capacity | 50° (120%) |
| Type of cut | Rotary shredder for tall grass |
| Blade type | Oscillating blades for dense vegetation, 1 blade holder with 4 oscillating blades |
| Equipment drive | Belt drive with electromagnetic clutch |
| Working width | 80 cm |
| Cutting height | 30 - 130 mm, adjustable by remote control |
| Performance | max. 3,000 m²/h (5 km/h) |
| Remote control | Autec-Safety RC-System with 2,8" display |
| Max. working range | max. 300 meters |
| Recommended working range | max. 100 meters |
| Dimensions | 110 x 115 x 65 - 75 cm |
| Ground pressure | 0.08 kg/cm² (0.08 kg/cm²) |
| Weight (with full drums) | 350 kg |
 |
 |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
