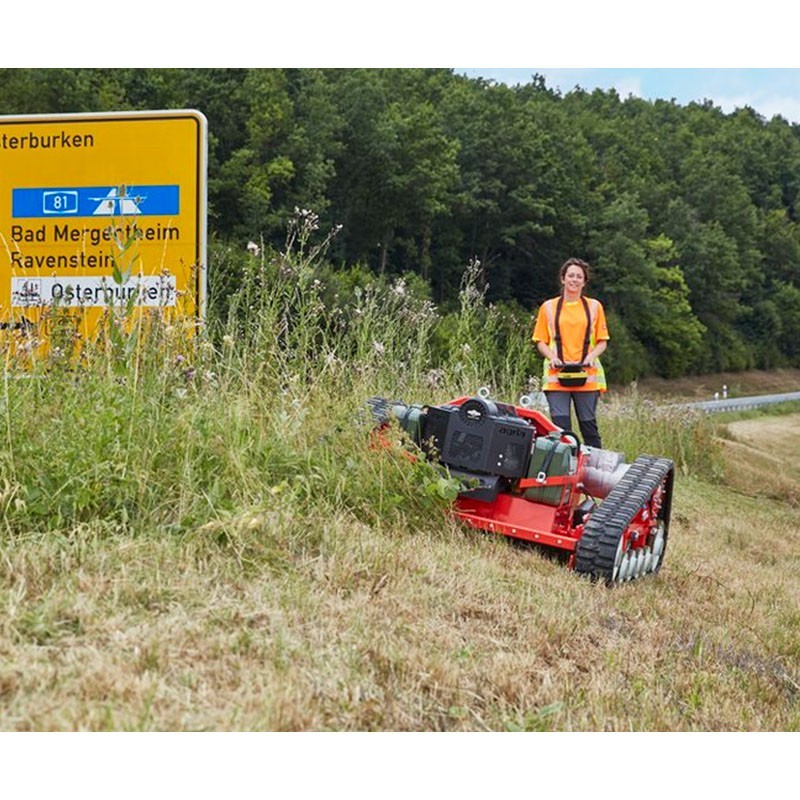

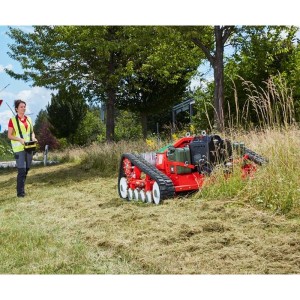

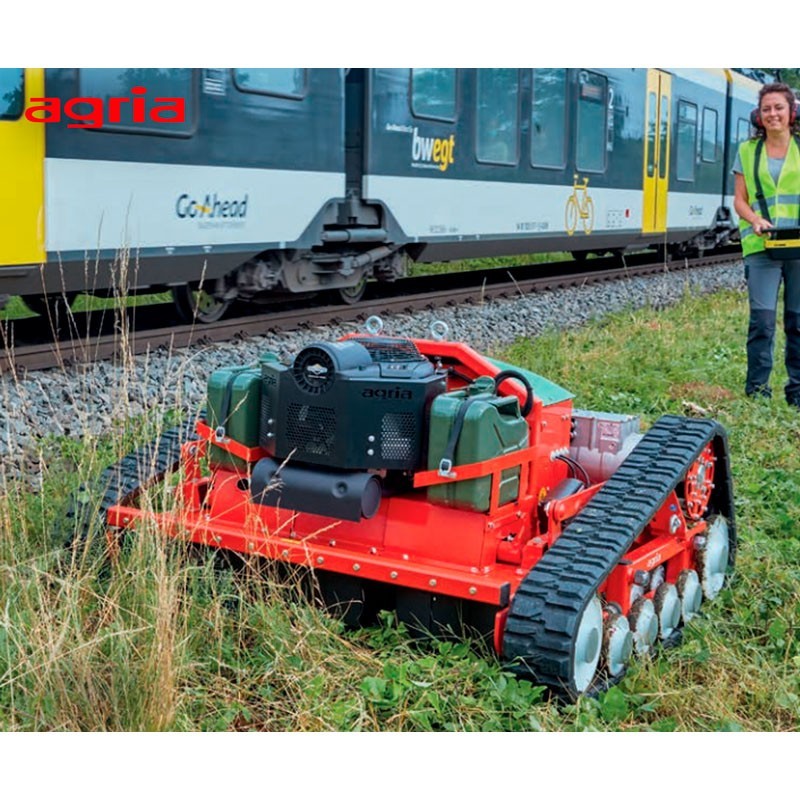

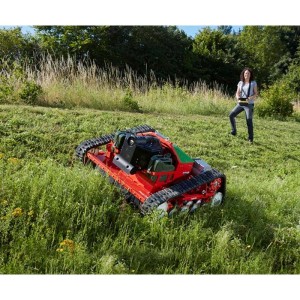

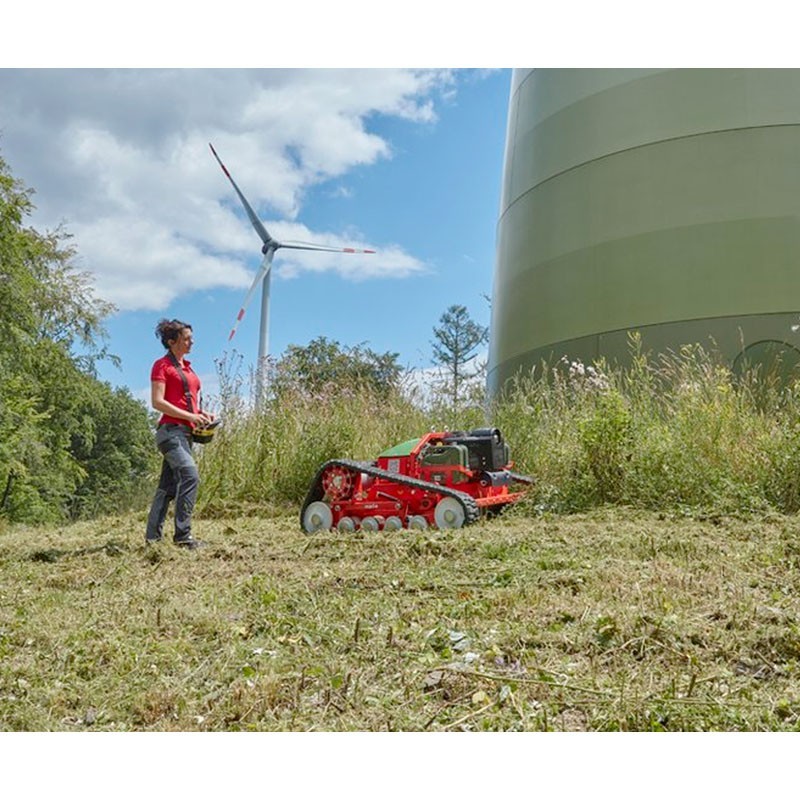

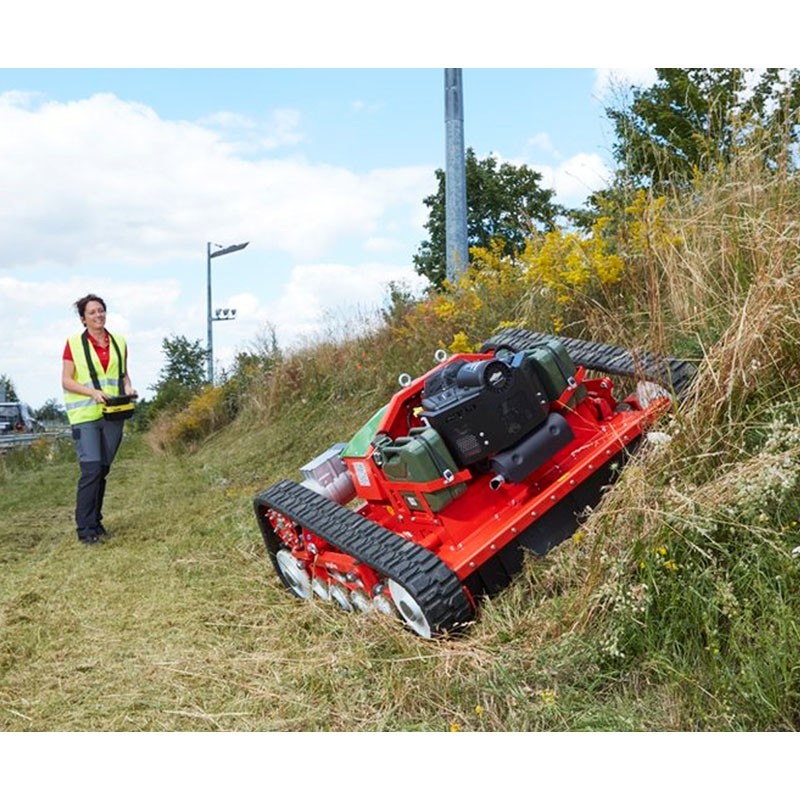

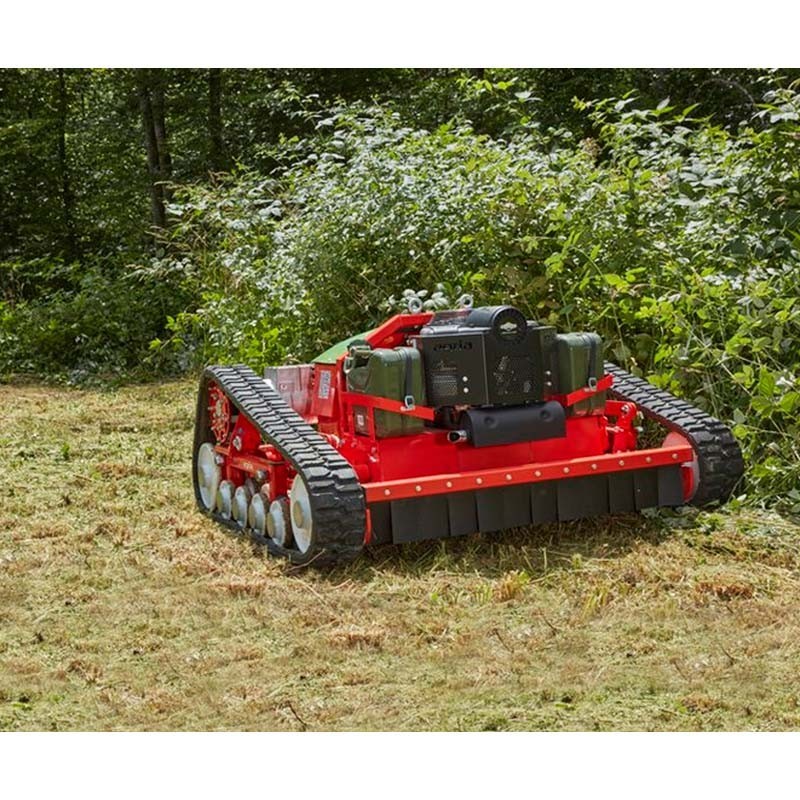

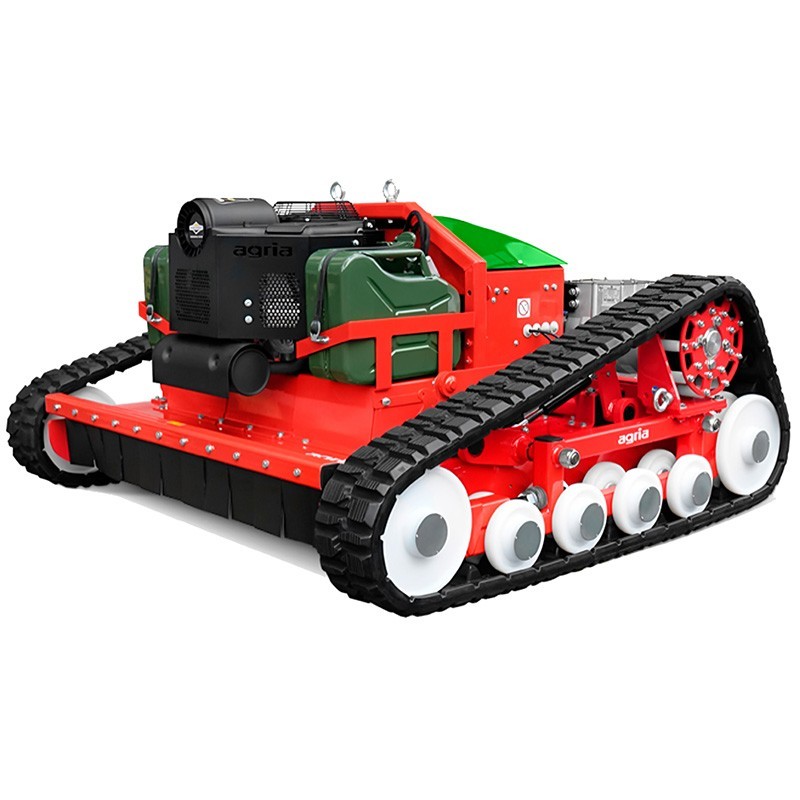

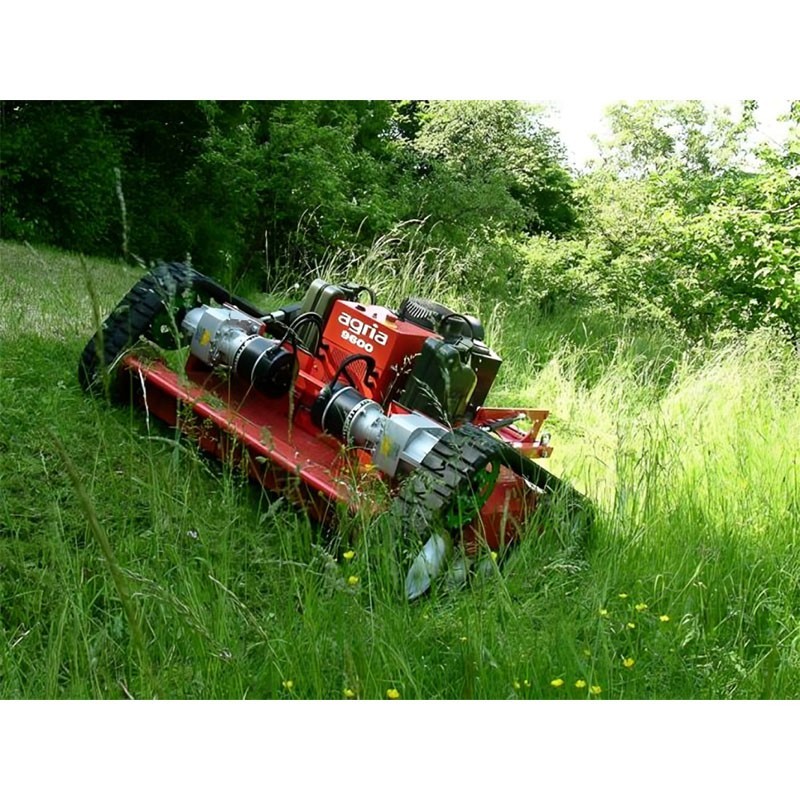

The Agria RS9600-112N Agria Mower Robot RS9600-112N equipped with a fast tensioning system of the tracked by means of a hexagonal wrench, guarantees optimal performance even on steep terrain thanks to its low center of gravity, providing exceptional stability on steep slopes.
With a generator that produces electricity in Safety Low Voltage (48 V), this mowing robot incorporates two maintenance-free reduction gears that transmit power to the drive wheels.

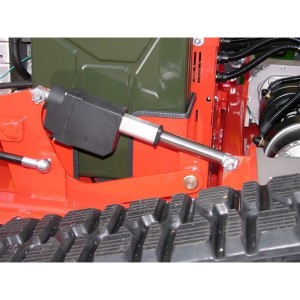

The tracked, each with a torque of more than 500 Nm, the rollers are tensioned at a single point with a standard tool, while their robust polyamide rollers, equipped with two bearings each, ensure durability by being sealed against dirt and moisture.

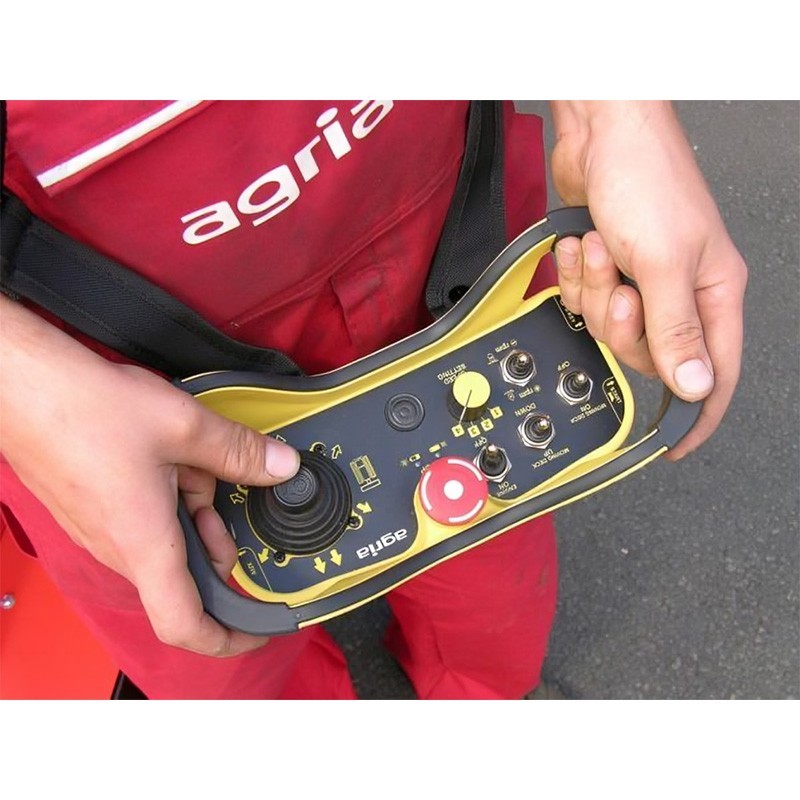

In addition, full control is in the user's hands thanks to the remote control, the 2.8" color display keeps the operator informed of various device statuses, including warnings of critical slopes or the need to refuel. The 2.8" color display keeps the operator informed about various device statuses, including warnings about critical slopes or the need to refuel.
|

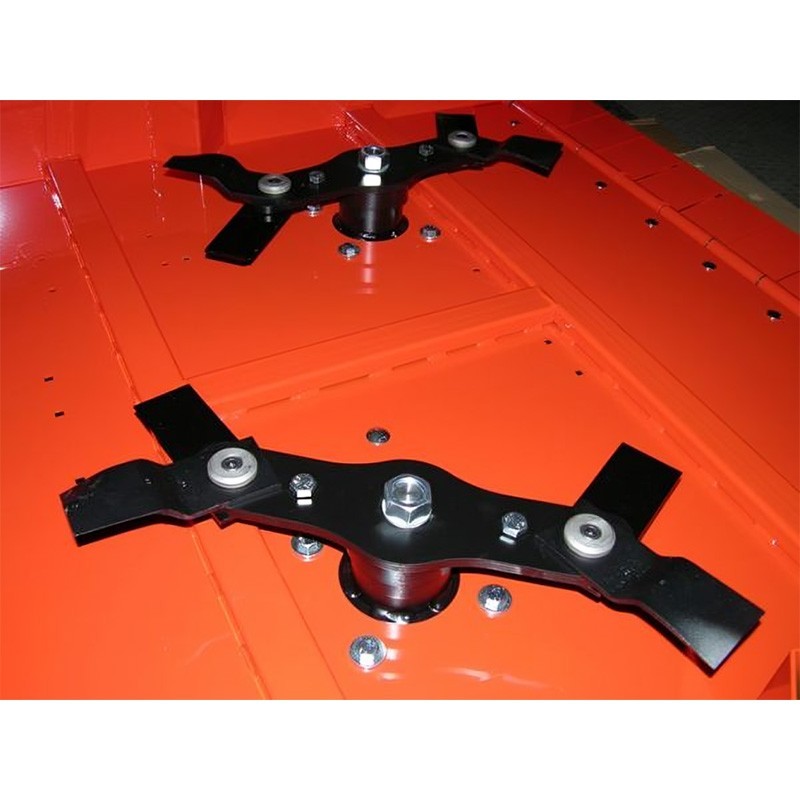

Robust shredding blades
Rotary shredding blades in mild steel with a remarkable cutting capacity. Equipped with 2 blade holders, each with 4 rotating blades. |

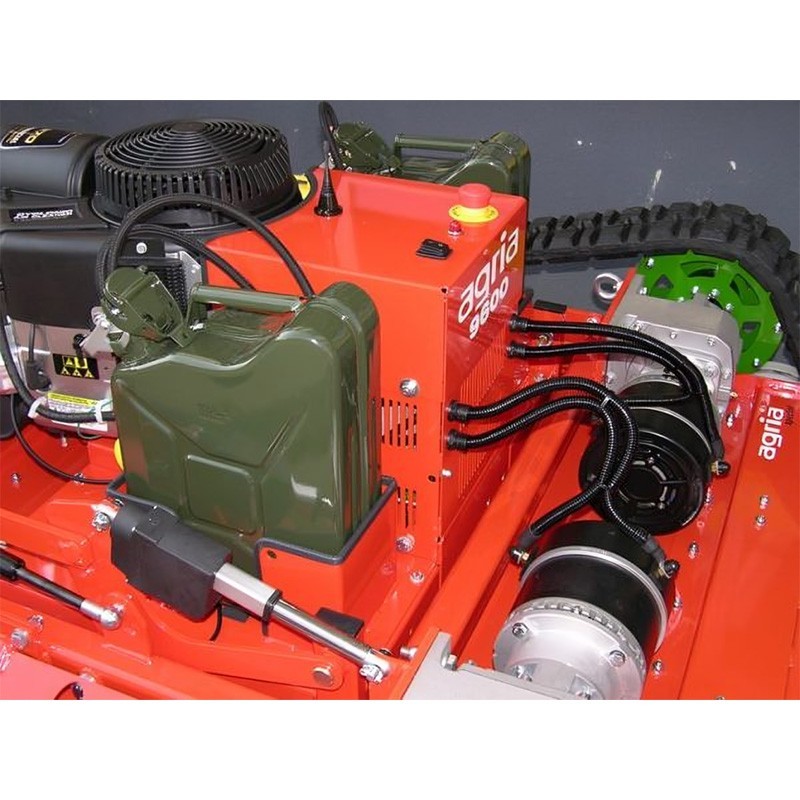

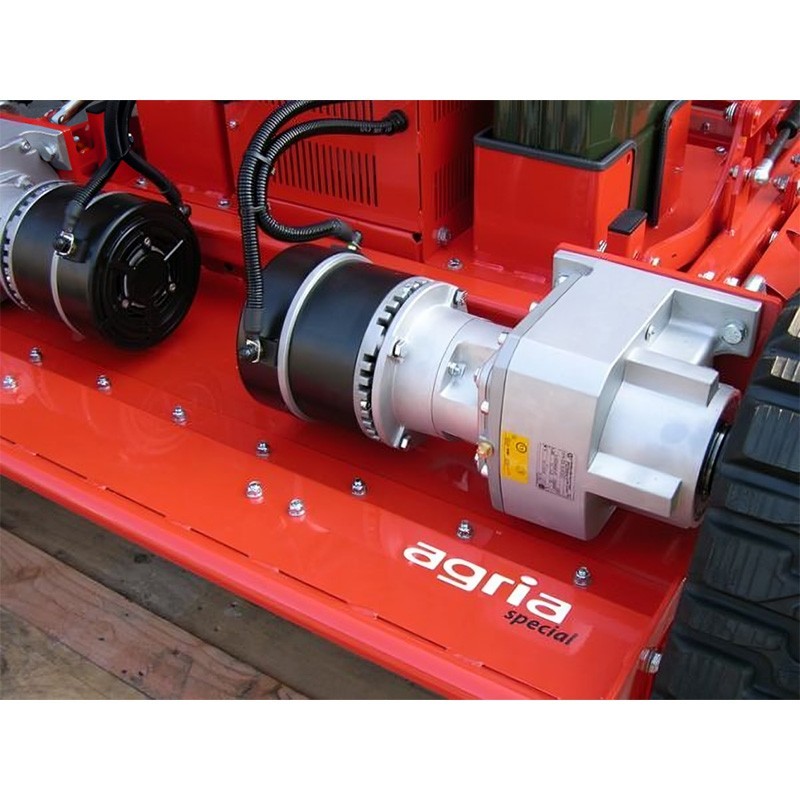

Electric induction motors
Powerful electric induction motors and generator maintenance-free, the power supply is free of periodic services, efficiently converting current into power. |
Safe loading
The team has four eyelets fused that facilitate the strategic positioning of lashing hooks during transport to ensure safe loading. |
|
Emergency stop
The machine and its remote control are equipped with emergency stop switches, which stop the machine operation immediately when actuated. |
Removable fuel tank
With two standard 10-liter canisters, they can be easily removed, replaced and connected. The fuel capacity provides approximately 6 hours of use, with a level indicator and reserve warning on the remote control. |
Safety flaps
Certification of protection by an independent institute DLG. Certified safety flaps protect against projections of objects such as stones and wood. |
| Motor model | Briggs & Stratton Series 8270 |
| Motor type | 2-cylinder and 4-stroke |
| Power | 17.9 kW (24.3 HP) |
| Torsional stress | 53.4 Nm at 2800 rpm |
| Fuel system | 2 x 10 liters; removable Agria fuel tanks |
| Speeds | Selectable 4 speed ranges |
| Speed range 1 | 0 - 2.5 km/h |
| Speed range 2 | 0 - 4 km/h |
| Speed range 3 | 0 - 6 km/h |
| Speed range 4 | 0 - 10 km/h |
| Brake | Fail-safe electromechanical brakes |
| Slope capacity | 55° (143%) |
| Type of cut | Rotary shredder for tall grass, with object protection according to DLG |
| Blade type | 2 blade holders, each with 4 rotating blades |
| Equipment drive | Belt drive with electromagnetic clutch |
| Working width | 112 cm |
| Cutting height | 50 - 185 mm, Adjustable by remote control |
| Performance | approx. 5,000 m²/h (5 km/h) |
| Remote control | Autec-Safety RC-System 2.4 GHz with 2.8" color display |
| Max. working range | 300 meters |
| Recommended working range | 100 meters |
| Remote control tilt sensor | Standard |
| Dimensions L x W x H | 145 x 150 x 72 - 85.5 cm (145 x 150 x 72 - 85.5 cm) |
| Ground pressure | 0.18 kg/cm² (0.18 kg/cm²) |
| Weight (with full drums) | 653 kg |
 |
 |
| IMPORTANT NOTICE |
| Mandatory on the part of the customer, review oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
