Manual band saw Ayerbe AY 260 SCI PLUS MN/TX 1100 W
- Power : 1,1 Kw
- Voltage : 230 - 400 V
- Saw blade size : 2460 x 27 x 0,9 mm
€2,371.20 VAT incl.

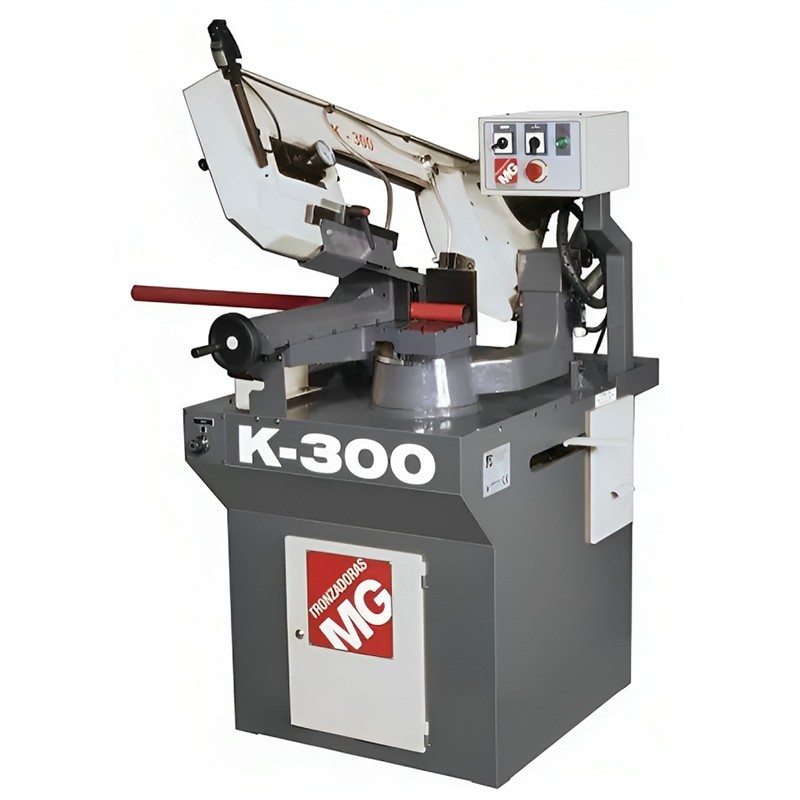

The MG K-300/2 M manual bands aw is distinguished by its robust construction, with hard metal band guides and high quality bearings. These components ensure long service life and precise cuts in a variety of materials.
Its impressive 310 mm maximum jaw opening and up to 60 degrees right tilt capability offer exceptional versatility to accommodate cutting projects with different cut sizes and angles. This saw doesn't skimp on power, with a 0.5/1.2 HP motor and two adjustable cutting speeds between 35 and 70 meters per minute.
In addition, it complies with CE standards, ensuring safety at work, and its noise level of 70 dB makes it suitable even for sound-sensitive environments. With its cooling equipment and mechanical belt tensioning system, the MG K-300/2 M is a reliable and precise cutting tool in industrial and workshop environments.
Motor | 0.5 / 1.2 Hp |
Cutting speeds | 35-70 mt/min |
Working height | 990 mm |
Belt dimensions | 2750x27x0,9 mm |
Phase | Single phase |
Coolant pump | 0,16 Hp |
Noise level | 70 Db |
90º round cutting capacity | 240 mm |
Rectangular cutting capacity 90º | 300x230 mm |
90º square cutting capacity | 220x220 mm |
Cutting capacity round 45º | right 200 mm |
Rectangular cutting capacity 45º right | right 190x220 mm |
Cutting capacity square 45º right | right 190x190 mm |
Cutting capacity round 60º right | right 110 mm |
Rectangular cutting capacity 60º right | right 110x140 mm |
Cutting capacity square 60º right | right 100x100 mm |
Weight | 320 Kg |
Dimensions | 1400x750x1450 mm |
