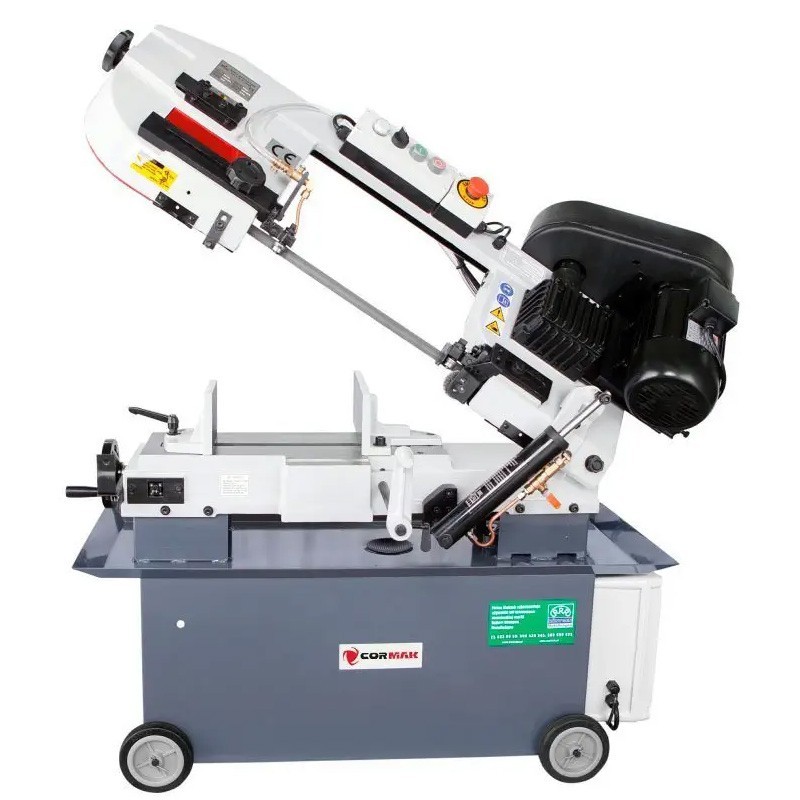

Bandsaw Features
Designed to provide accurate and efficient cuts. The gravity-driven, oil-flow driven descent of the arc in a two-chamber hydraulic cylinder ensures precise control throughout the process.
Adjust the saw speed easily by changing the gear ratio between the worm gear and drive motor via the pulleys. Accurate regulation of the down speed is achieved by a valve that controls the oil flow between the chambers, ensuring optimum performance.
With a robust, profiled ductile iron arm, the FAT BS 712 provides rigidity during operation and absorbs unwanted vibrations. The control panel, strategically located next to the worm gear, provides convenient and efficient operation.
The saw blade, mounted on two cast iron pulleys, offers exceptional cutting quality. The first pulley is adjusted by a tensioning lever, while the second, the drive pulley, transmits power directly from the gearbox driven by an electric motor.
The bandsaw rests on a solid steel plate base with a rectangular prism, housing a coolant tank with built-in pump. With a swing angle of up to 45° to the right, this saw provides versatility for a variety of applications.
Equipped with an electrical installation that complies with CE standards. Features a limit switch that stops the machine at the end of the cut, an emergency stop switch and limit switches that shut down the machine in critical situations.
Includes a blade cleaning brush to prevent clogging and ensure efficient cuts. Elevate your cutting experience with our advanced hydraulic saw, designed to deliver unmatched performance, precision and safety.
Technical Data
| Cutting capacity |
|
90º |
45º |
|
 |
180 |
130 |
|
 |
180x180 |
125x125 |
|
 |
300x180 |
120x125 |
| Saw speed |
22, 34, 36, 72 |
| Saw dimensions |
2360 x 20 x 0,9 mm |
| Motor |
S1 100%: 0,75W | S6 40%: 1,1W |
| Power |
Three-phase 400V |
| Working table height |
600 mm |
| Packing dimensions |
1250x510x1150 mm |
| Net/gross weight |
227 |
