Manual FAT BS 712 N band saw
- precise and efficient cuts
- swivel angle up to 45º
€1,742.40 VAT incl.

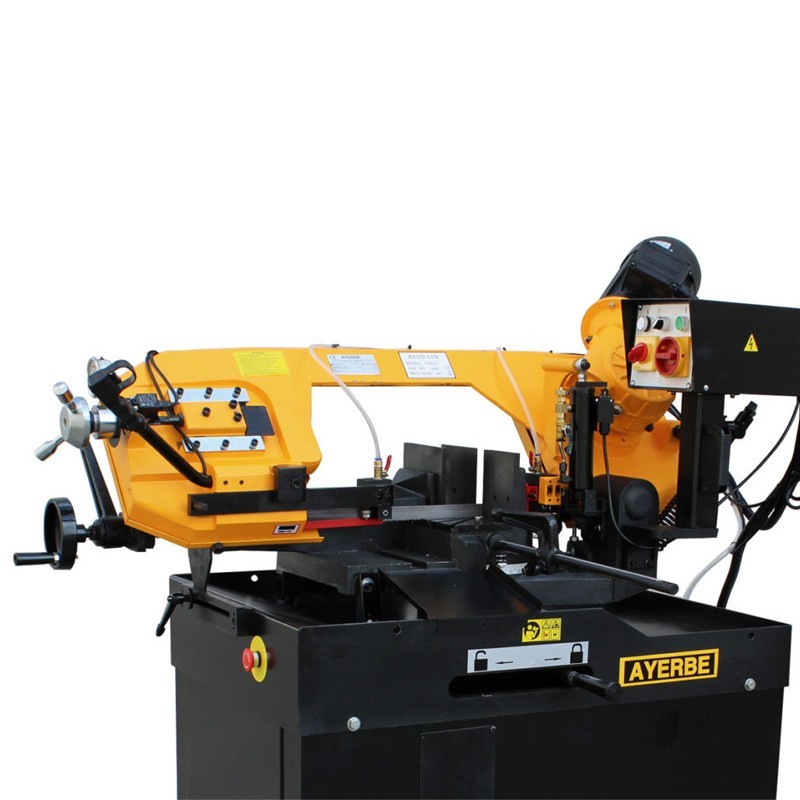

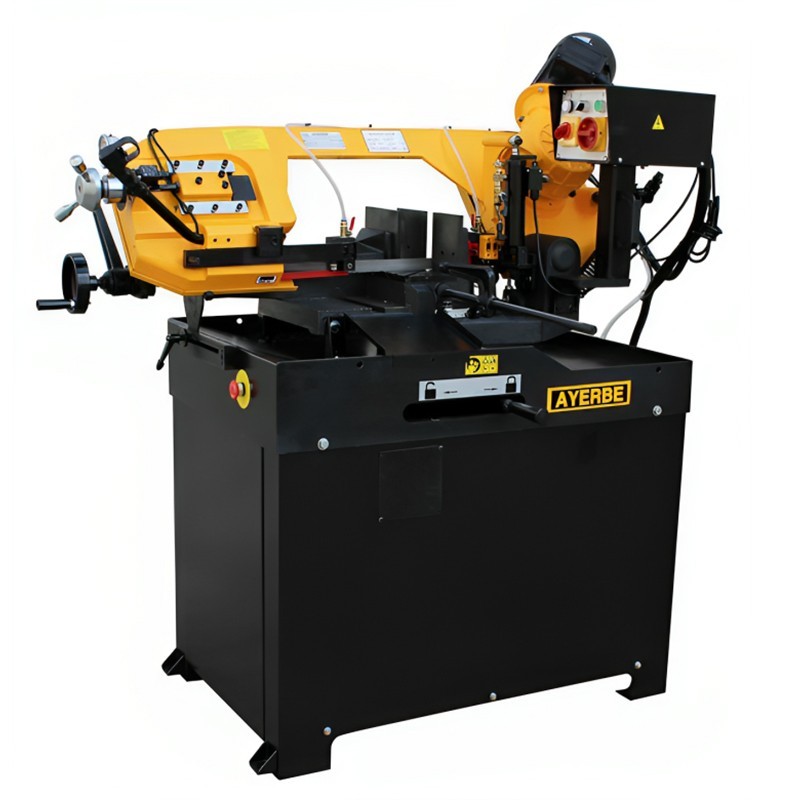

The Manual Bandsaw Ayerbe AY 310 SCI PLUS is a robust and powerful machine with a 1.5 KW motor and 400 V power, making it capable of tackling a wide range of cutting applications. Its band is 2715 mm long, 27 mm wide and 0.9 mm thick, ensuring precise and clean cuts.
In addition, this saw offers flexibility with its two cutting speeds of 36 m/min and 72 m/min, allowing it to adapt to different materials and work requirements. Weighing 341 kg, the Ayerbe AY 310 SCI PLUS is stable and durable, making it easy to handle in the workshop.
Its cutting capacity is impressive, with the ability to cut tubes up to 250 mm at 0°, squares up to 240x240 mm, and rectangles up to 310x240 mm. In addition, the inclusion of gears and cooling system ensures optimum performance and long saw life.
0º tube | 250 mm |
45º tube | 200 mm |
60º Tube | 120 mm |
Tube -45º | 150 mm |
Square 0º | 240x240mm |
Square 45º | 170x170mm |
Square 60º | 95 x 95mm |
Square -45º | 130x130mm |
Rectangle 0ª | 310x240mm |
Rectangle 45º | 190x170mm |
Rectangle 60º | 120x95 mm |
Rectangle -45º | 170x190mm |
2 Speeds | 36 m/min - 72 m/min |
Power | 1,5 KW. / 400 V |
Saw blade size | 2715 x 27 x 0,9 mm |
Weight | 341 kg |
