Vibrating compactor plate Ayerbe AY 5021 PC H 21 Kn
- Engine : Honda
- Engine type : 4 stroke
- Weight : 115 Kg
- Power Supply gasoline
- Power : 5,5 Hp
- Engine model : GX 160
€2,125.44 VAT incl.

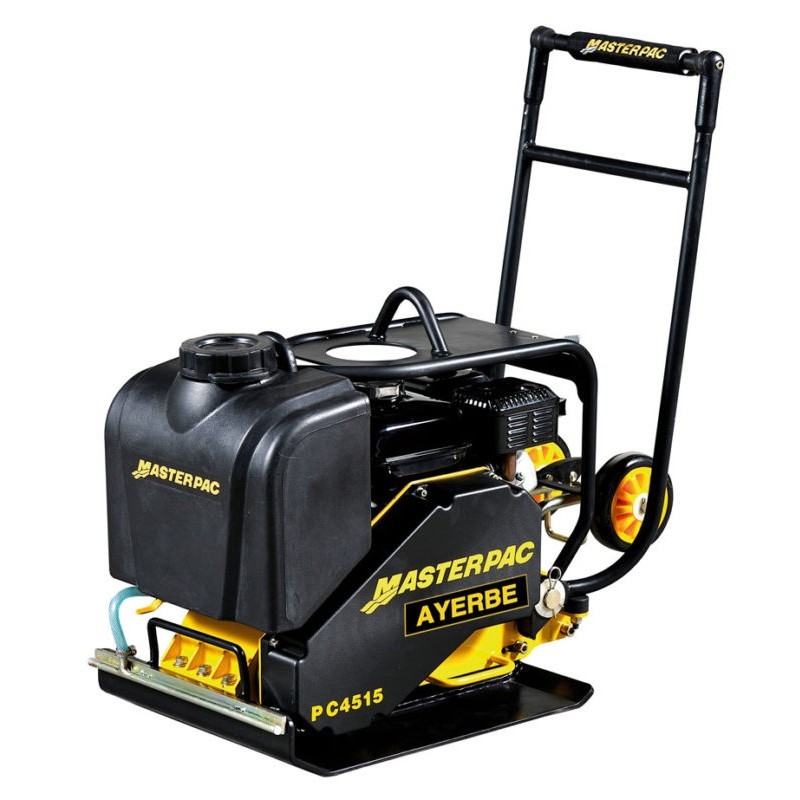

The Ayerbe AY 4515 PC H compaction tray equipped with a powerful 5.5 HP HONDA GX160 engine, this compactor offers reliable performance. With plate dimensions of 570 x 450 mm, the machine ensures effective coverage during the compaction process.
Its centrifugal force of 15 kN and a frequency of 90 Hz ensure efficient and fast compaction. The travel speed of 24 meters per minute facilitates mobility on the job site.
Additional features include a wheel kit for convenient transport, a water tank for cooling during prolonged operations, and a paving pad that improves the quality of the finish.
Wheel kit |
Convenient throttle lever |
Handle |
Special asphalt water tank |
Paving pad |
Engine | HONDA GX 160 |
Power | 5,5 HP |
Plate dimensions | 570 x 450 mm |
Travel speed | 24 m./min |
Frequency | 90 Hz |
Centrifugal force | 15 Kn |
Fuel | Gasoline |
Weight | 90 Kg |
Dimensions | 1070 x 450 x 940 mm |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination. |
