Vibrating plate Ayerbe AY 3610 PC H Honda engine 5.5 HP
Vibrating plate Ayerbe AY 3610 PC H Honda engine 5.5 HP

Vibrating tray Ayerbe AY 3610 PC H Honda 5.5 HP engine

Rating:
(0)
  • Engine : Honda
  • Engine type : 4 stroke
  • Weight : 62 Kg
  • Power Supply gasoline
  • Power : 5,5 Hp
  • Engine model : GX 160
En stock
icon Power Supply
Power Supply
Gasoline
icon Engine
Engine
Honda
icon Engine model
Engine model
GX 160
icon Power
Power
5.5 Hp
icon Engine type
Engine type
4 strokes
icon Weight
Weight
62 Kg
€1,280.17 excl. VAT
- 4%
€1,228.96 excl. VAT
€1,487.05 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


Vibrating tray Ayerbe AY 3610 PC H Honda 5.5 HP engine
€1,487.05
Qty

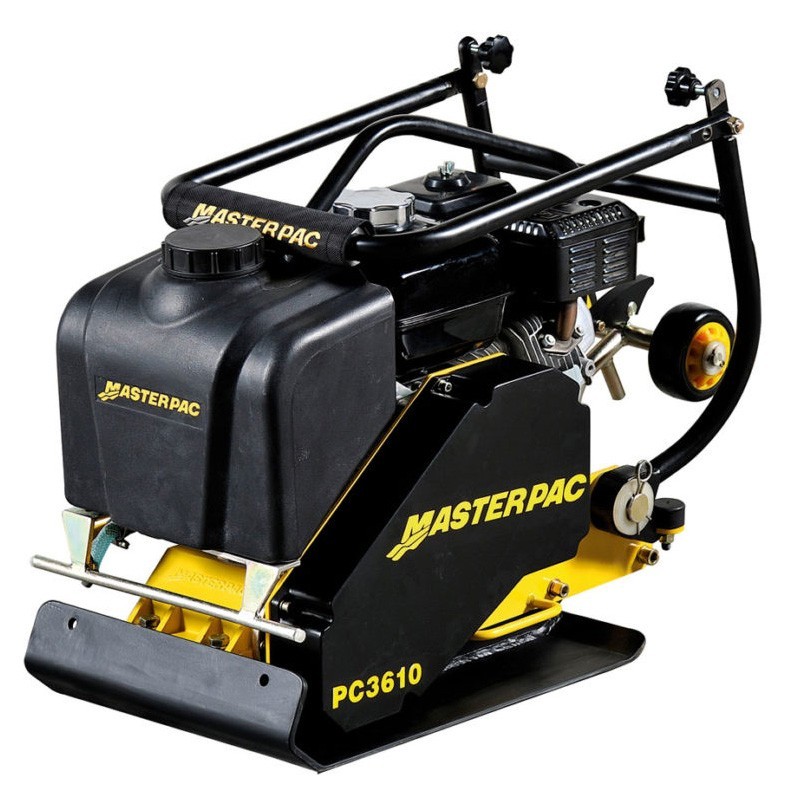

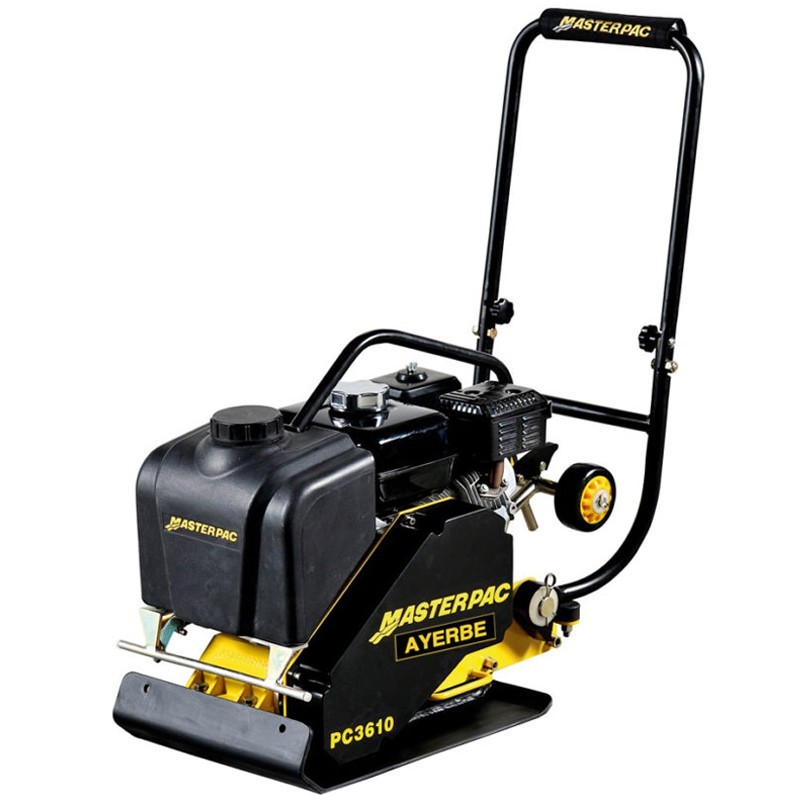

Vibrating pan Ayerbe AY 3610 PC H

The Ayerbe AY 3610 PC H vibratory pan equipped with a 5.5 HP Honda GX160 engine, this vibratory pan guarantees a centrifugal force of 10 kN and a frequency of 98 Hz, providing efficient soil compaction.

Its compact dimensions of 1000 x 360 x 890 mm make it easy to maneuver, and its weight of 62 kg makes it a versatile choice for various construction applications.

In addition to its performance, the Ayerbe AY 3610 PC H is designed for user convenience, including a wheel kit for easy transport, a water tank to maintain plate temperature, and an asphalt plate for added versatility.

With a travel speed of 20 m/min, this vibrating plate stands out as an efficient and practical tool in the construction field.

Features

Kit de ruedas bandeja bibrante ayerbe

Wheel kit

palanca bandeja bibrante ayerbe

Convenient acceleration lever

mango bandeja bibrante ayerbe

Handle
anti-vibration

deposito de agua bandeja bibrante ayerbe

Special asphalt water tank

almohadilla bandeja bibrante ayerbe

Paving pad

Technical data

Engine HONDA GX 160
Power 5,5 HP
Plate dimensions 490 x 360 mm
Travel speed 20 m./min
Frequency 98 Hz
Centrifugal force 10 Kn
Fuel Gasoline
Weight 62 Kg
Dimensions 1000 x 360 x 890 mm
IMPORTANT NOTICE
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the carrier's sheet that the customer is in agreement except for pending examination.
