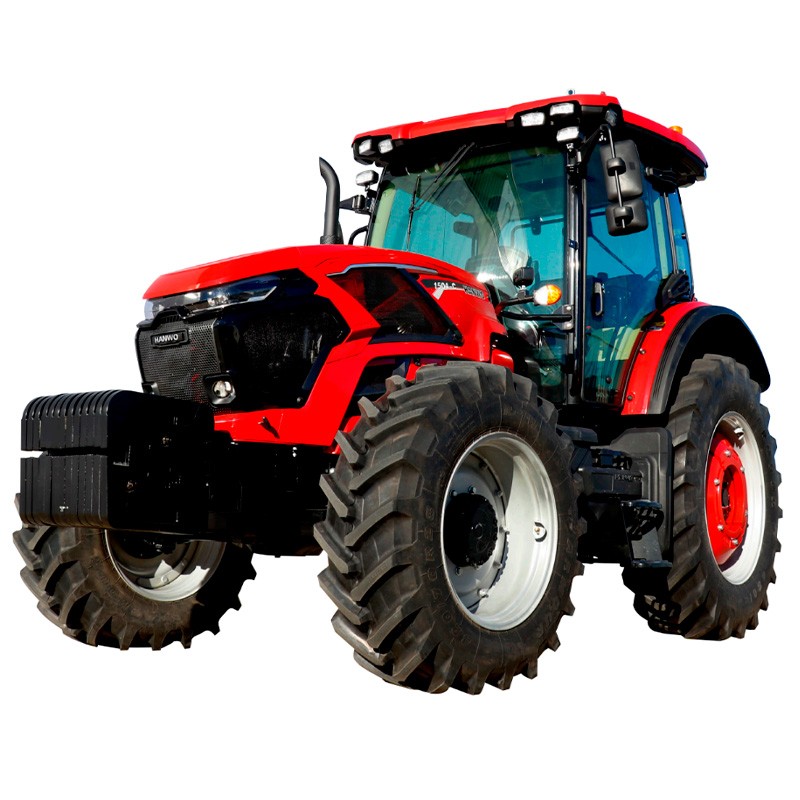

The Hanwo 1504 Tractor is a large-scale machine designed for heavy-duty farming where the power of 150 HP is essential for moving heavy implements. Its 4-cylinder, water-cooled YN Stage II engine delivers 110.5 kW at 2200 rpm, offering very solid torque for deep draft work. One of its major advantages for intensive work is the huge 500 L fuel tank, which ensures exceptional range and drastically reduces refueling downtime on large farms.
The enclosed cab of this model is designed to offer an ergonomic and protected operator's station, isolating the operator from outside noise and dust during longer campaigns. Measuring 5280 mm in length and 3100 mm in height, the Hanwo 1504 maintains excellent visibility of the terrain and implements. The 4WD 4WD, combined with 14.9 26 front and 18.4 38 rear tires, ensures efficient power transfer to the ground, preventing skidding even under maximum load conditions.
As for work management, it incorporates a 16 gears transmission at the front and 8 at the rear that allows precise speed control, reaching up to 35.44 km/h in forward motion. The semi-split hydraulic system with single position adjustment linkage and the three-group rear control with quick coupling facilitate the connection of any professional implement. In addition, it has hydraulic steering, dual stage clutch and 540 and 1000 rpm PTO, making it a robust and versatile tractor for the farmer looking for performance and reliability in the 150 HP range.
| Model | ||
| Model | HANWO 1504 | |
| Engine | ||
| Engine | YN Stage II | |
| Type | Vertical, water cooled, 4 cylinders | |
| Rated / maximum power | 110.5 kW / 150 hp | |
| Rated / maximum speed | 2200 rpm | |
| Fuel tank | 500 L | |
| Dimensions | ||
| Overall length | 5280 mm | |
| Width | 2280 mm | |
| Height | 3100 mm (with cab) | |
| Transmission | ||
| Clutch | Dry friction, double stage | |
| Front tires | 14.9-26 | |
| Rear tires | 18.4-38 | |
| Steering | Hydraulic | |
| Transmission | 16 front and 8 rear | |
| Hydraulic control system | Semi-split, single position adjustment linkage | |
| Rear control | Three groups with hydraulic quick hitch | |
| PTO power | 540 / 1000 | |
| Drive | 4x4 (4WD) | |
| Maximum speed | Forward 1.65-35.44 km/h / Reverse 2.46-22.68 km/h | |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels prior to start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement , unless an examination is pending. |
| Depending on the carrier, this product may require means of unloading for delivery. If you do not have one, the carrier can take care of it at an additional cost. Please contact us before placing the order to evaluate your case. |
