2-furrow plow for tractor Deleks DDP-30 25-40HP


  • Tractor power: 25 - 40 HP
  • Working width: 31 cm
  • Total height: 112 cm
  • Weight: 116 Kg
Deleks products take about 15 to 30 days.
En stock
icon Working width
Working width
30 - 39 cm
icon Country of manufacture
Country of manufacture
Italy
€575.95 excl. VAT
- 4%
€552.91 excl. VAT
€669.02 VAT incl.
Free shipping for Spain (Peninsula)
Qty

Request a quote
close

Request a quote


2-furrow plow for tractor Deleks DDP-30 25-40HP
€669.02
Qty

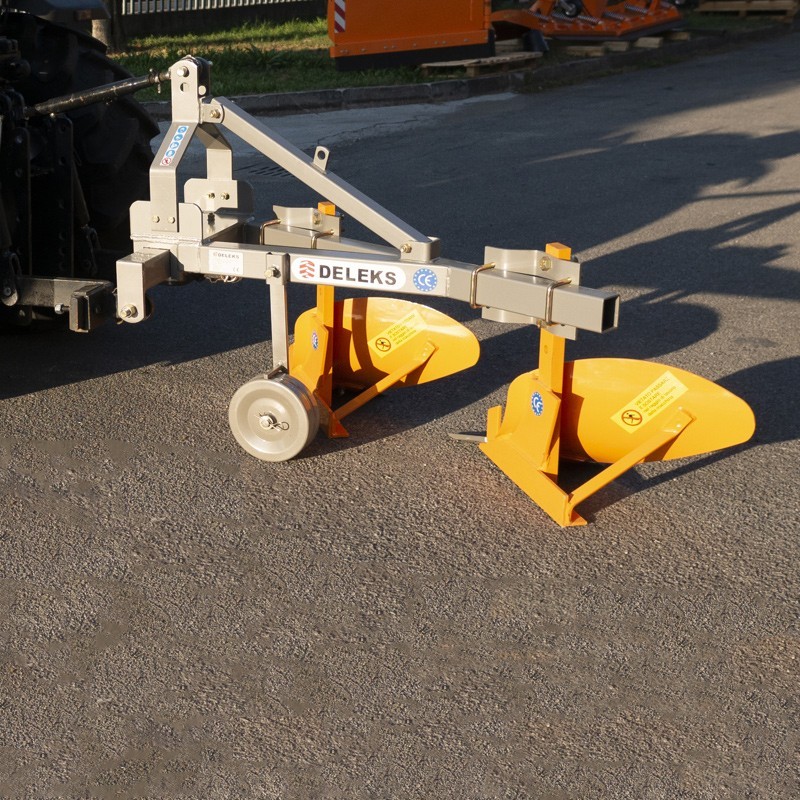

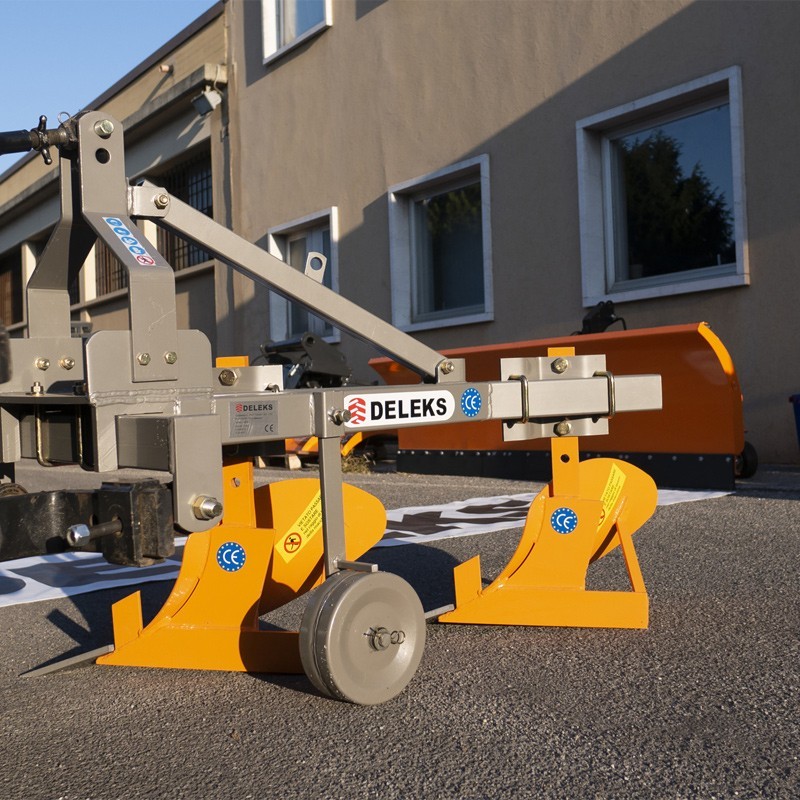

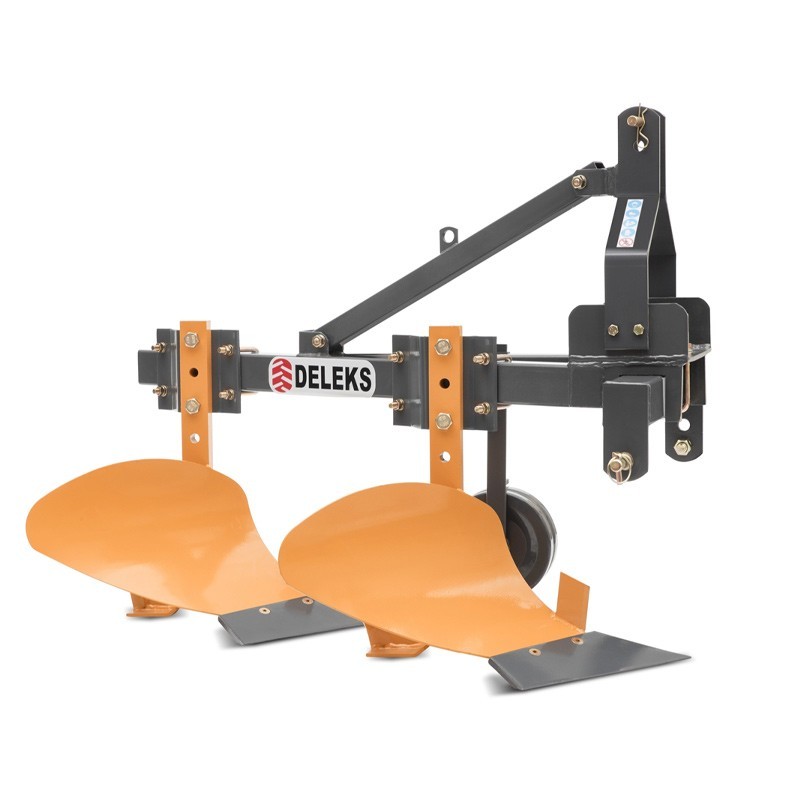

2 furrow plow for tractor Deleks DDP-30

The DDP-30 plow from Deleks has a width of 85cm, height of 112cm and length of 125cm. In addition to two coulters with a diagonal distance of 85cm with a working width of 31cm.

This mini-tractor attachment requires a power of 25 to 40HP with three-point linkage 19.0-22mm.. It also offers a 36cm offset with a blade length of 46cm.

The thickness of the arm it provides is 80 by 55mm, making this attachment much more resistant to hard work. The plow has a blade thickness of 15mm with a hitch tube of 80mm².

The wheel dimensions of the DDP-30 plow wheel from Deleks are 25mm diameter by 10mm wide. This plow has a distance between the lower hitches from 59cm to 85cm.

Features

Total width 850 mm
Weight 116 kg
Overall height 1120 mm
Tractor power 25 - 40 HP
3-point hitch Cat. 1 (ø 19-22mm)
Distance between lower points 590 - 850 mm
Total length 1250 mm
Number of coulters 2
Grating diagonal 850 mm
Working width 310 mm
Other dimensions See pictures
Displacement 360 mm
Arm thickness 80*55 mm
Blade length 460 mm
Blade thickness 15 mm
Hitch tube dimension 80*80 mm
Wheel dimension ø 25 * 10 mm
Working depth 160 - 250 mm
Packing dimension 1200*800*500 mm

Advantages

  • Bending capacity and fuel economy
  • Stressed parts made of treated steel
  • Blade can be easily changed
  • The wheel allows to regulate the working depth

Use

The DDP30 double plough allows you to save time (and fuel economy) thanks to its 2 furrows in treated steel. It is suitable for most tractors from 25 to 40 hp: Kubota, McCormick, Iseki, Ford, New Holland etc... The plough has a universal 3-point hitch. Not suitable for tracked tractors.
