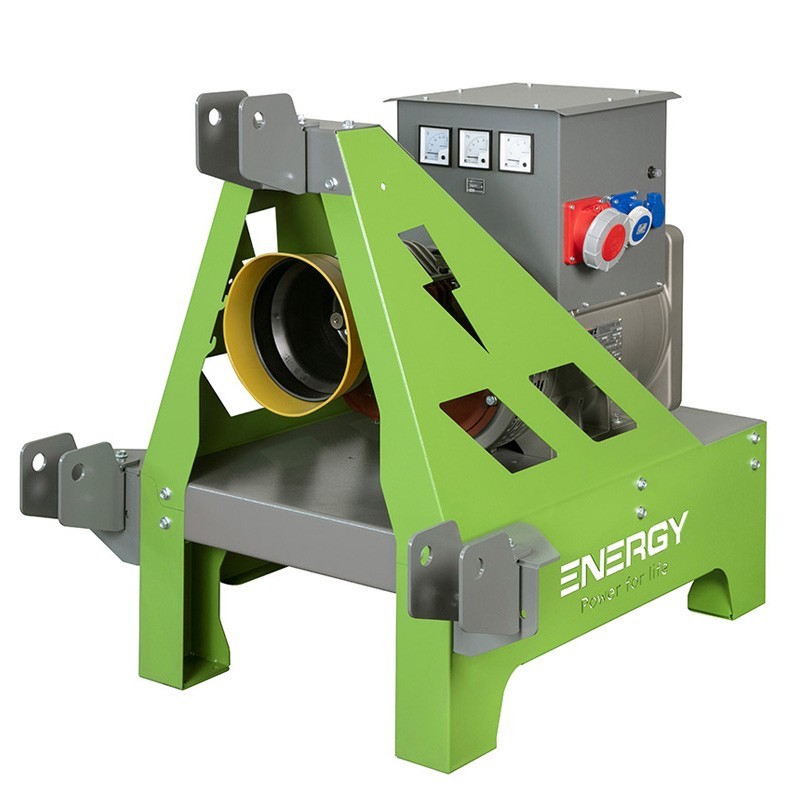

The PTO electric generator Energy EY-20TCS with its four-pole, three-phase alternator, this brushed generator offers an IP21 protection rating, guaranteeing operation even in challenging conditions. Its ability to vary voltage by ±5% makes it adaptable to various power needs, ensuring stable and consistent delivery.
In addition, it is available in two models: one with AVR regulator and one with compound regulator, which broadens its applications and adaptability. The electronic voltage regulator (AVR) is integrated in a board equipped with three analog instruments that provide accurate measurements: voltmeter, frequency meter and ammeter.
| Nominal power | 20 kVA / 16 kW |
| Maximum Power | 22 kVA / 17.6 kW |
| Amps | 32 A |
| Revolutions | 1500 rpm |
| Frequency | 50 Hz |
| Voltage | 400/230 V |
| Min. tractor power | 45 Hp |
| Gearbox | |
| Gearbox ratio | 1 : 3.5 |
| Oil capacity | 0.5 liters |
| Tractor revolutions | 430 rpm |
| Alternator | |
| Regulator | AVR / Condenser |
| Number of poles | 4 |
| Number of phases | 3 |
| Type | With brushes |
| Degree of protection | IP 21 |
| Voltage variation | ± 5% |
| Permissible overload | 10% |
| Standard compound panel | Voltmeter and hour meter. |
| Standard AVR panel | Voltmeter, hour meter, frequency meter and ammeter. |
| Weight | 175 kg |
| Dimensions W | 1152 mm |
| Dimensions B | 960 mm |
| Dimensions C | 1025 mm |
| IMPORTANT NOTICE |
| It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
