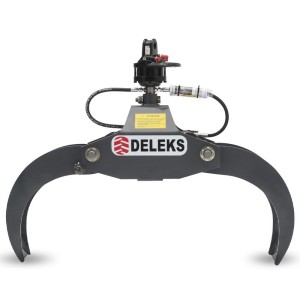

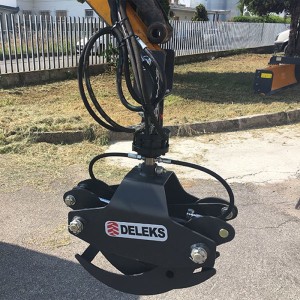

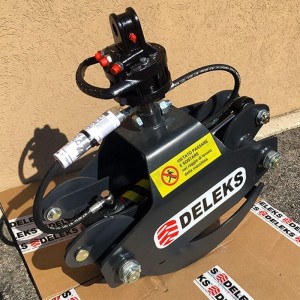

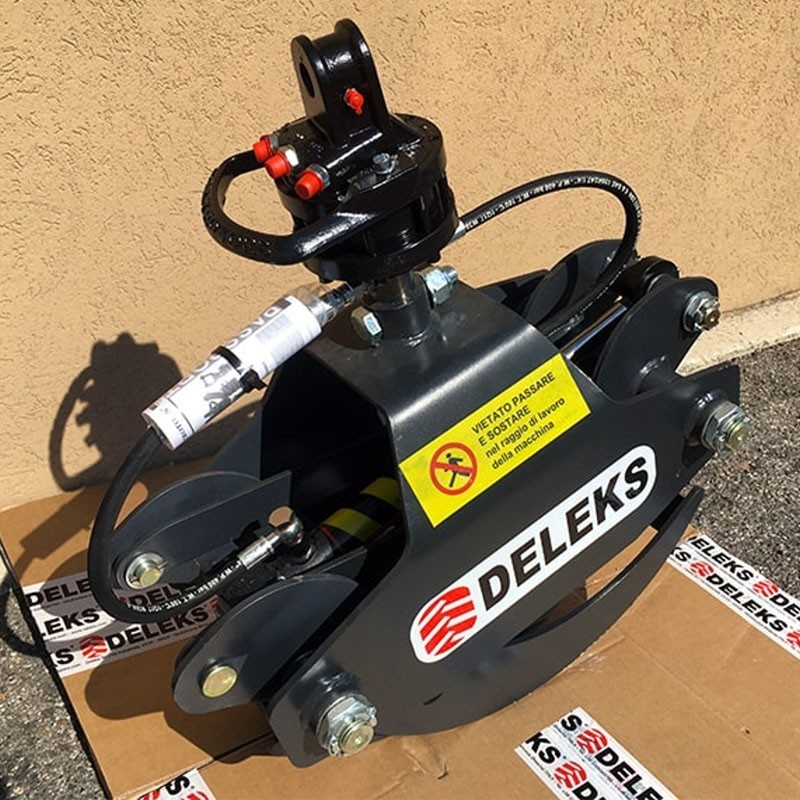

Forestry Grapple for Mini Tractors Deleks DK-10+GR-10
The Forestry Grapple for Mini Tractors Deleks DK-10+GR-10 is an attachment for mini excavators and forestry cranes. This grapple features a robust design that provides a maximum capacity of 400 kg. It also has a lightweight of only 63 kg.
The model of forestry grapple DK-10+GR-10 from Deleks is ideal for wood, stones for forestry work, or for moving debris. This is thanks to its lifting capacity. This model is adapted for some mini excavators.

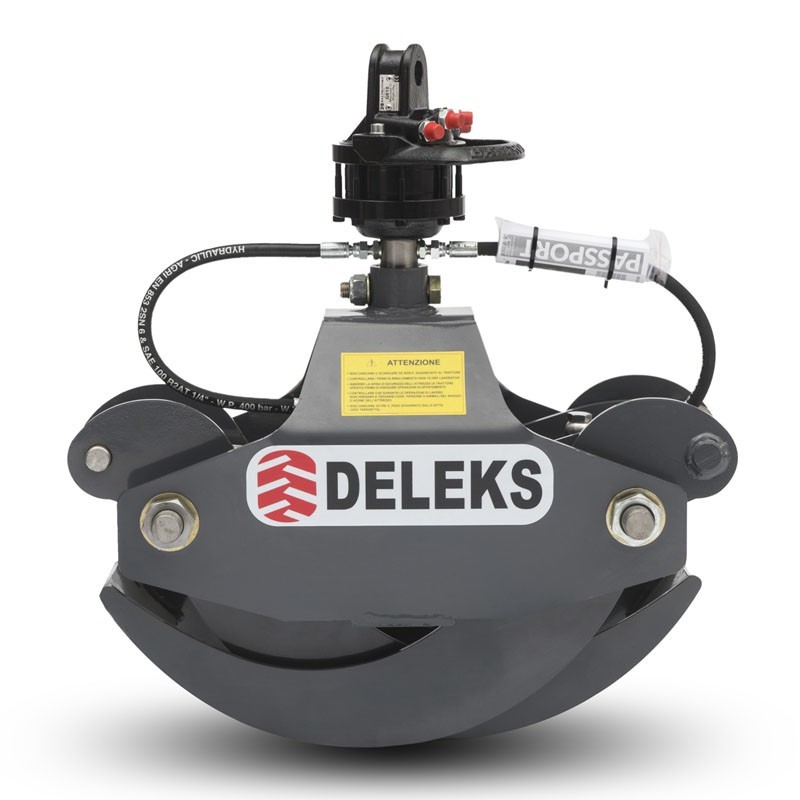

The forestry grapple DK-10+GR-10 features a unique design of the tongs. This design allows for holding debris or rocks. It also has a high clamping tension and the tongs are reinforced. The model offers an option with a rotator and hydraulic kit.
This forestry grapple has a sheet thickness of 8mm and an oil pressure of 80/120bar. It also has an optimal oil flow of 18 to 22 l/min and a maximum pressure of 200 Bar. Additionally, it has a maximum opening of 1055 mm.
The model DK-10+GR-10 from Deleks ensures great comfort for the operator to perform the work. This is thanks to the remarkable features provided by the model. Among these, we highlight its hydraulic hoses that have a pressure of 400 bar.

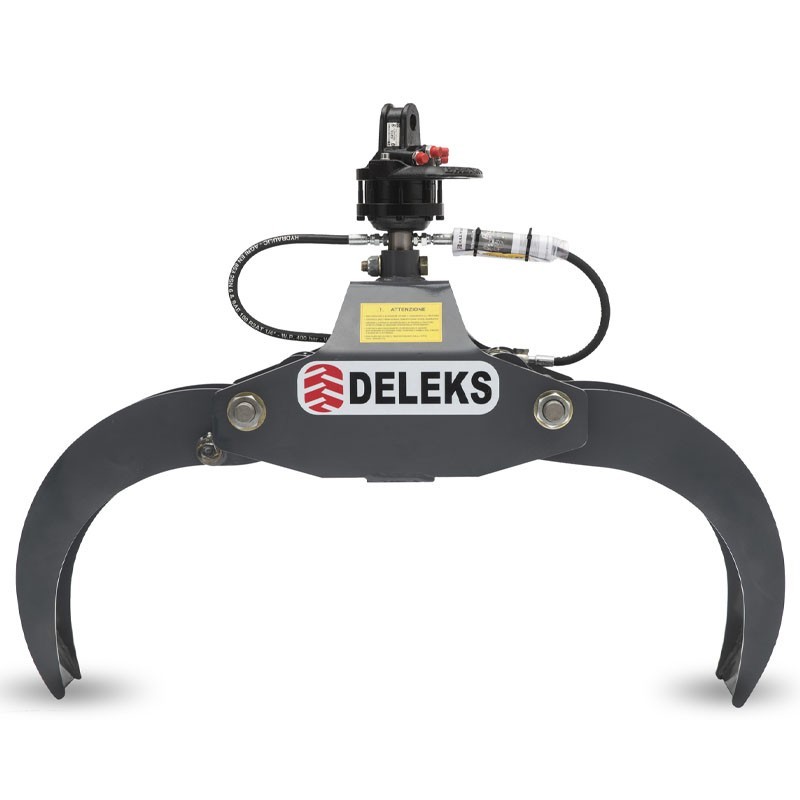

We can also highlight some of the grapple's measurements. It has a height of open grapple of 885 mm and a closed grapple height of 720 mm. It offers a width of open grapple of 1159 mm and a closed grapple width of 660 mm.

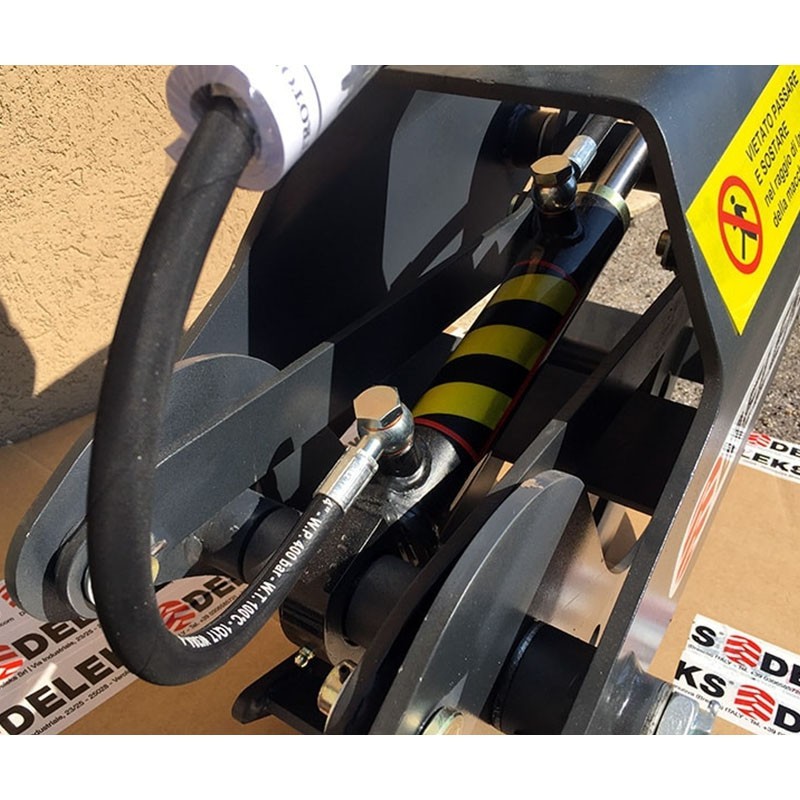

The Forestry Grapple for Mini Excavators DK-10+GR-10 from Deleks has a minimum branch diameter of 50 mm. The model has a total depth of up to 350 mm. Additionally, it has hydraulic piston dimensions of 50-25 mm.

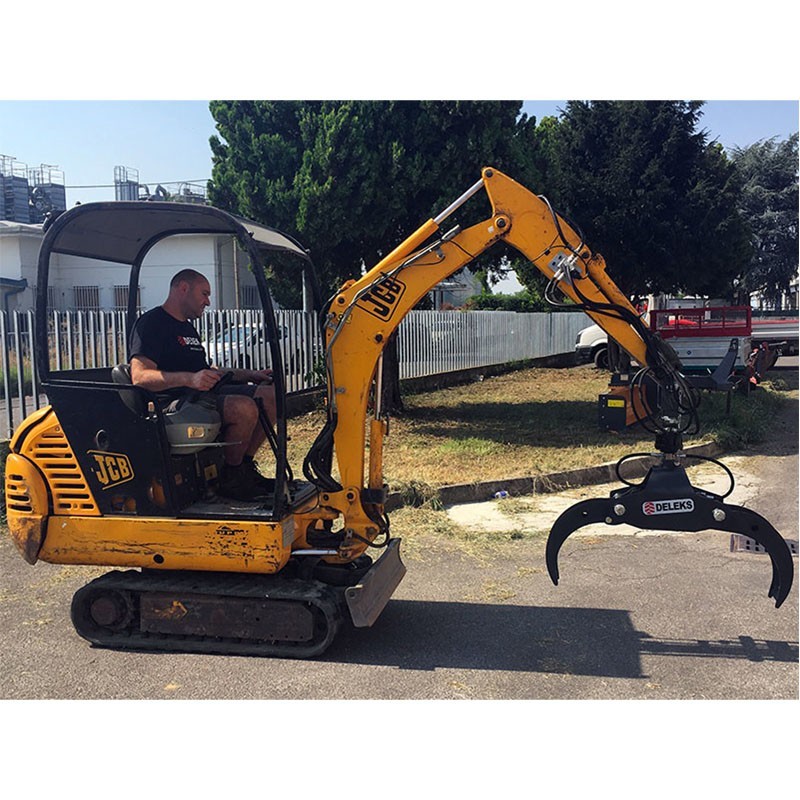

The model from Deleks, DK-10+GR-10, is for a range of excavators from 1.5 to 2.5 tons. It has dimensions of 600 mm x 800 mm x 450 mm. The GR10 rotor is powerful, robust, and reliable. It is designed to lift a load of 1000kg with great effectiveness, minimizing downtime.
Features
Weight
63 kg
Load capacity
400 kg
Sheet thickness
8 mm
Oil pressure min./max
80 - 120 bar
Optimal oil flow
18 - 22 l/min
Other dimensions
See photos
Hydraulic tubes
400 bar pressure
Maximum opening
1055 mm
Height, clamp open
885 mm
Height, clamp closed
720 mm
Width, clamp open
1150 mm
Depth
350 mm
Minimum branch diameter
50 mm

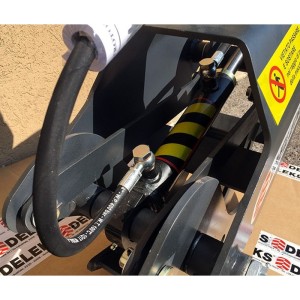

ø hydraulic piston
50 - 25 mm
Maximum pressure
200 Bar

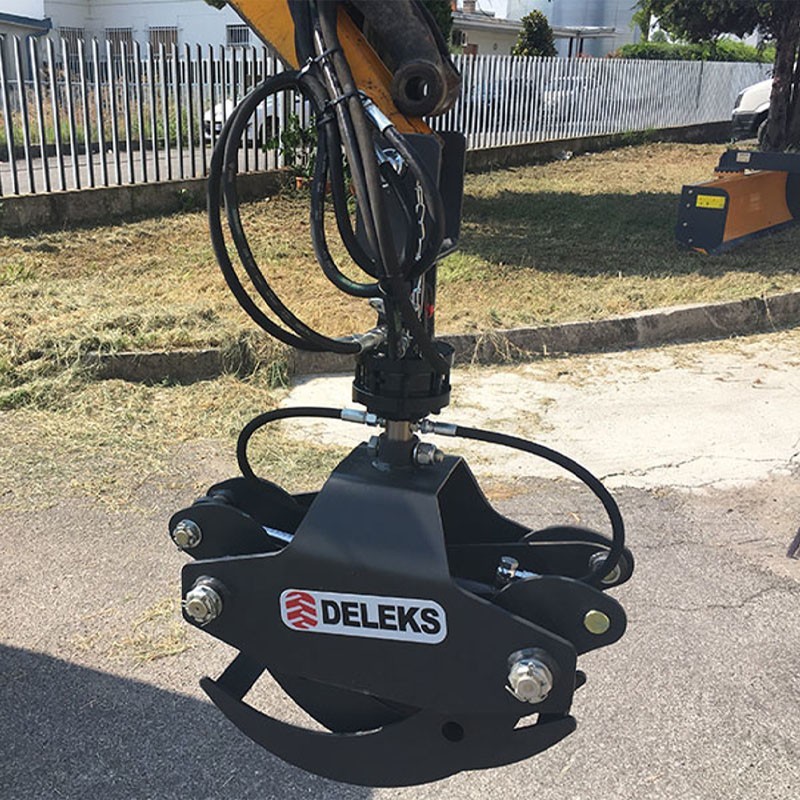

Rotator
Lombarda Ingranaggi GR-10 (1.0 ton)
Excavator range
1.5 - 2.5 ton
Width, clamp closed
660 mm
Packaging dimension
600*800*450 mm
Video of the Forestry Clamp for Mini Excavators Deleks DK-10 with GR-10
258167
Data sheet
Load capacity
400 - 499 Kg
Country of manufacture
Italy
Specific References
EAN-13
8053470230141
