Three-point loader for tractor Deleks DK-3 12-60 HP
- Tractor power: 12-60HP
- Fork length 125cm - 385cm
- Load capacity 700kg
- Distance between forks 65cm
€289.91 VAT incl.

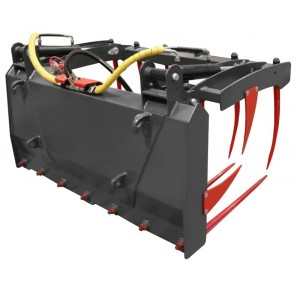

The Zeppelin tractor-mounted desprouting grapples offer an efficient and versatile solution for the handling of agricultural materials with different models that adapt to the specific needs of each task. From the first model with 1500 mm working width to the fourth model with 2200 mm.
These grapples stand out for their robustness and load capacity, making them an ideal choice for a variety of applications. Each model is equipped with two hydraulic cylinders that ensure optimum performance and smooth operation. With heights ranging around 870 mm and lengths of approximately 1040 mm.
These grapples provide excellent gripping and handling capabilities. In addition, with a maximum opening of up to 1000 mm, they are capable of adapting to different bale sizes or materials, which increases their versatility on the campo.Independientemente of the chosen model, these grapples offer a load capacity of up to 1600 kg.
This makes them a reliable and efficient tool for unstretching tasks in agricultural operations. Their rugged design and optimized weight ensure durability and ease of handling.
Model | ES70547 | ES70548 |
Working width | 1500 mm | 1800 mm |
Weight | 218 kg | 253 kg |
Clamps | 6/7 | 7/8 |
Capacity | 0,84 m3 | 1,02 m3 |
Model | ES70549 | ES77514 |
Working width | 2000 mm | 2200 mm |
Weight | 281 kg | 304 kg |
Clamps | 8/9 | 8/9 |
Capacity | 1,14 m3 | 1,26 m3 |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the moment of reception, it must be indicated on the transporter's sheet that the customer is in agreement except for pending examination. |
