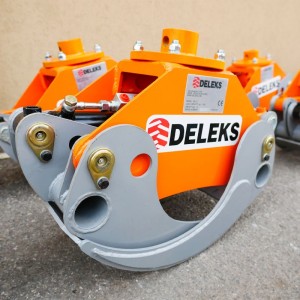

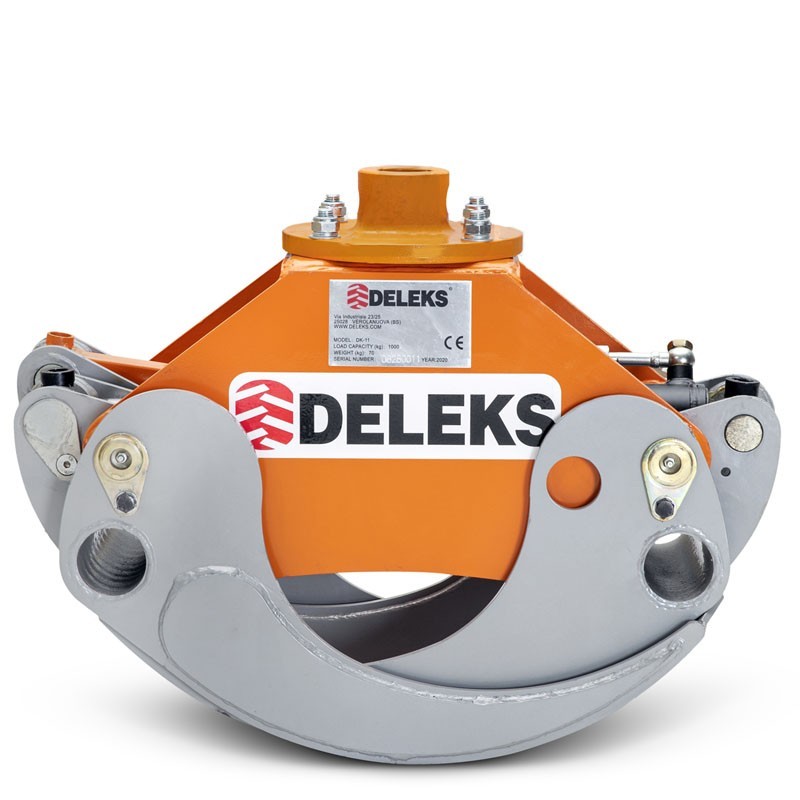

The forestry grapple for mini tractors Deleks DK-11-C is an attachment for mini excavators and forestry cranes. This grapple features a robust shape that provides a maximum capacity of 1000 kg. It also has a light weight of only 88 kg.
The DK-11-C forestry grapple model from Deleks is ideal for timber, forestry stones or moving debris. This is thanks to its lifting capacity. This model is suitable for some mini excavators. It has a gripping area of 0.16 m2.
The DK-11-C forestry grapple has a unique grapple design. This conception allows to hold debris or rocks. It also has a high clamping tension and the grapples are reinforced. The model is available with optional rotator and hydraulic kit.
This forestry grapple has a plate thickness of 8mm and an oil pressure of 80/120bar. It also has an optimum oil flow of 18 to 22 l/min and a maximum pressure of 200 bar . In addition, it has a maximum opening of 1080 mm.
The DK-11-C model from Deleks guarantees the operator a great comfort to perform the work. This is thanks to the outstanding features provided by the model. Among these, we highlight its hydraulic hoses that have 400 bar of pressure.
We can also highlight some of the measures of the clamp. It has an open caliper height of 700 mm and closed caliper height of 500 mm. It offers an open grapple width of 1230 mm and a closed grapple width of 720 mm.
The DK-11-C mini excavator forestry grapple from Deleks has a minimum branch diameter of 40 mm. The model has a total depth of up to 260 mm. In addition, it has hydraulic piston dimensions of 70-30 mm.
The Deleks model, DK-11-C, is for the 1.8 to 3.5 ton excavator range. It has dimensions of 600 mm x 800 mm x 450 mm.
Weight | 88 kg |
Load capacity | 1000 kg |

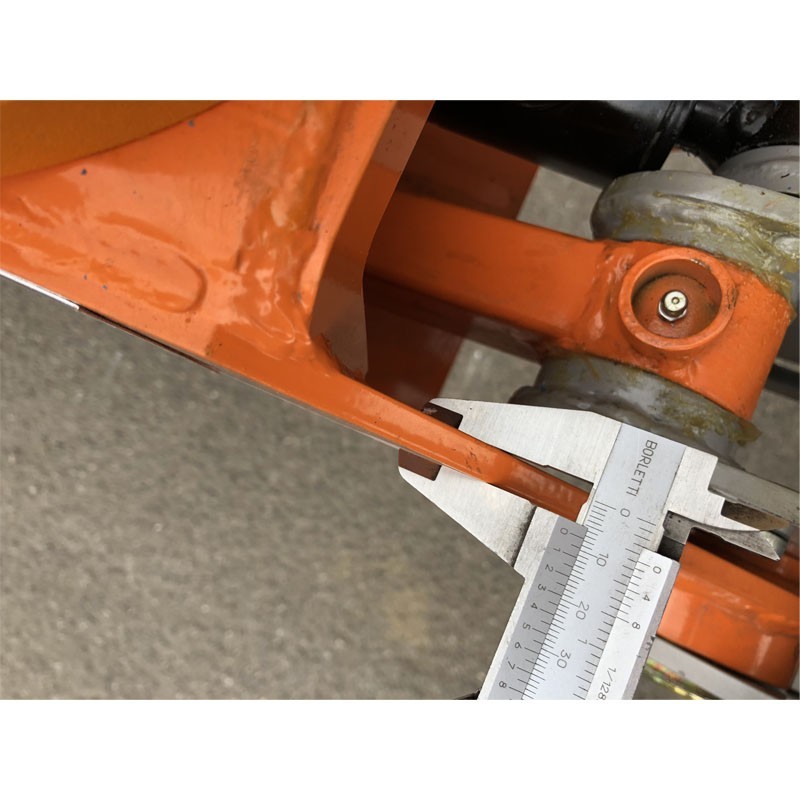

Plate thickness | 8 mm |
Min./max. oil pressure | 80 - 120 bar |
Optimum oil flow | 18 - 22 l/min |
Other dimensions | See pictures |
Hydraulic hoses | 400 bar pressure |

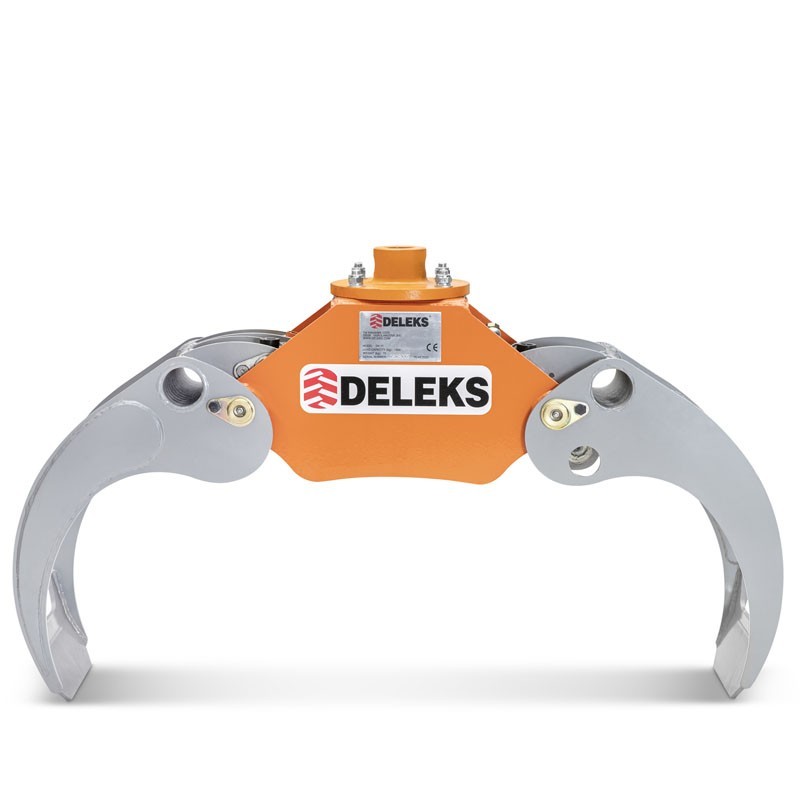

Maximum opening | 1080 mm |
Height, clamp open | 700 mm |
Height, clamp closed | 500 mm |
Width, clamp open | 1230 mm |
Depth | 260 mm |
Minimum branch diameter | 40 mm |

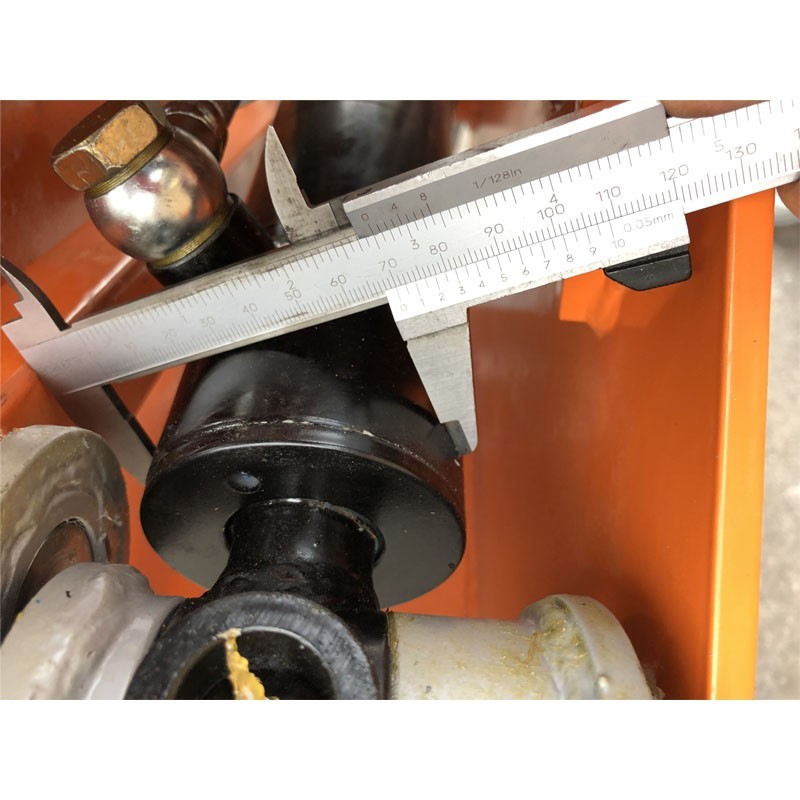

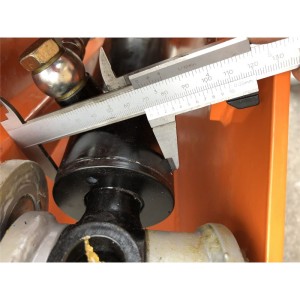

ø hydraulic piston | 70 - 30 mm |
Maximum pressure | 200 bar |
Rotator | x |
Excavator range | 1.8 - 3.5 ton |
Width, closed grapple | 720 mm |
Packing dimensions | 600*800*450 mm |
