1600 Multifunction Pot Zeppelin ESMSSCMZ
- Working width: 1600 mm
- Load capacity: 0,83 m3
€6,530.04 VAT incl.

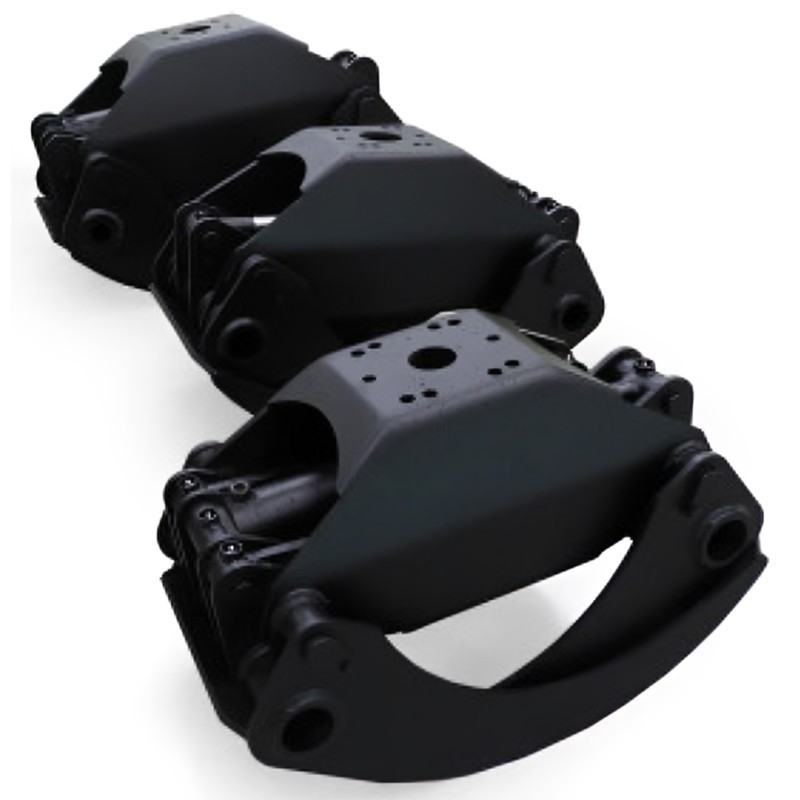

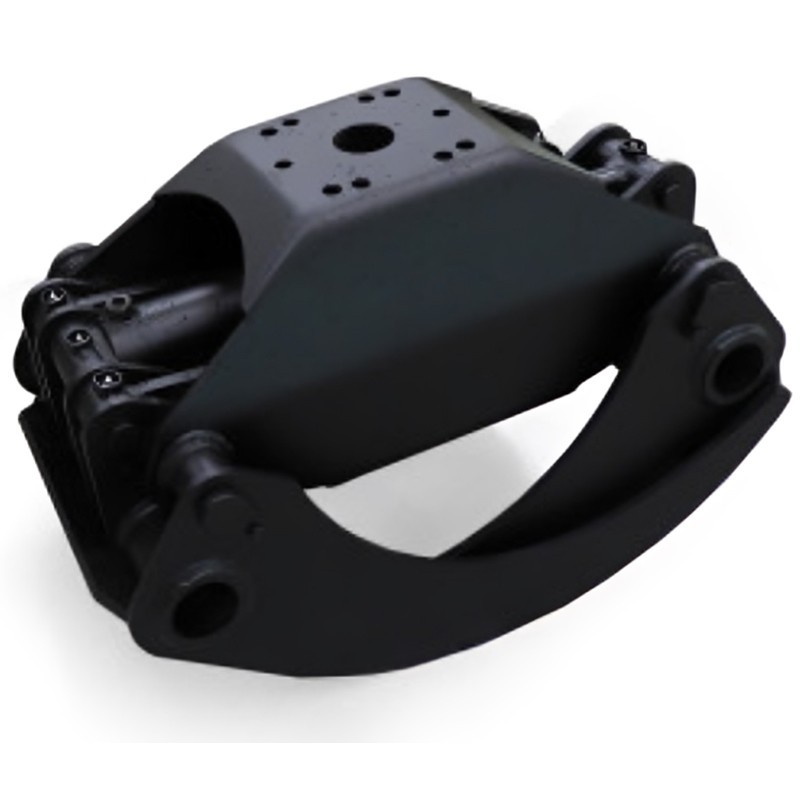

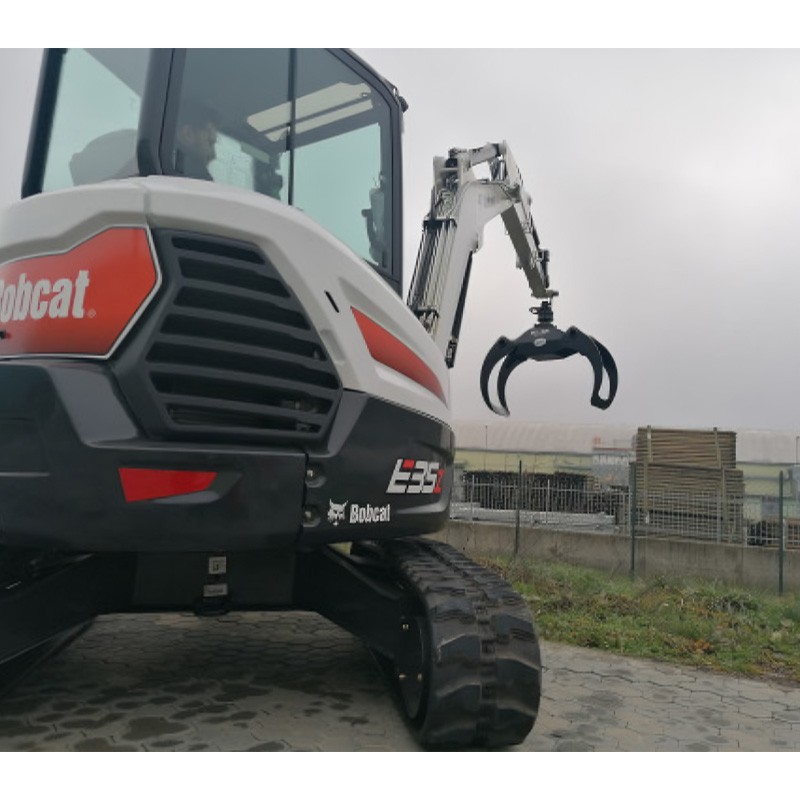

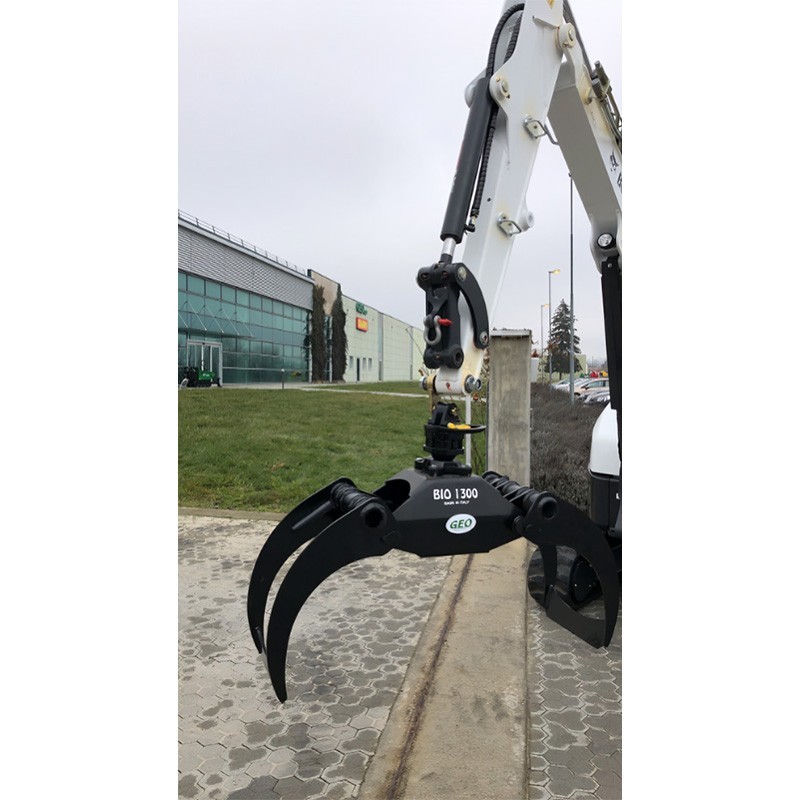

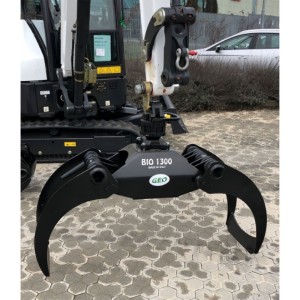

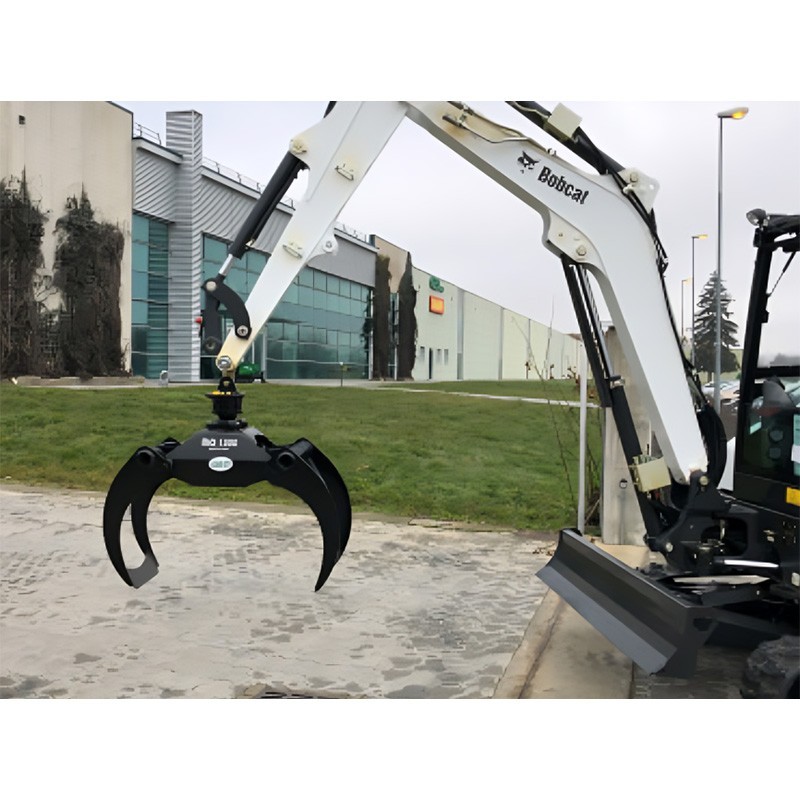

The Geo Italy BIO hydraulic wood grapples offer a robust and versatile solution for the efficient handling of heavy loads in industrial environments. With three different models BIO 1300, BIO 1500 and BIO 1800, these clamps are capable of adapting to a wide range of applications, from log handling to plank stacking.
With load capacities ranging from 1800 kg to an impressive 3500 kg, these grapples are designed to handle heavy loads with ease and safety. In addition, with a maximum pressure of 180 Bar, they ensure a firm and reliable grip at all times.
The clamps' opening capacity, ranging from 1300 mm to 1800 mm, provides excellent adaptability to different load sizes, while their moderate weight ensures easy handling and assembly.
Model | BIO1300 | BIO1500 |
Maximum load capacity | 1800 kg | 2600 kg |
Maximum pressure | 180 Bar | 180 bar |
Open | 1300 mm | 1500 mm |
Closed | 700 mm | 780 mm |
Weight | 115 kg | 135 kg |
Model | BIO1800 |
Maximum load capacity | 3500 kg |
Maximum pressure | 180 Bar |
Open | 1800 mm |
Closed | 1000 mm |
Weight | 260 kg |
IMPORTANT NOTICE |
It is mandatory for the customer to check oil and grease levels before start-up. If it is not possible to check the goods at the time of receipt, it must be indicated on the carrier's sheet that the customer is in agreement unless an examination is pending. |
