Forestry grapple for mini tractors Deleks DK-16 with GR-30F 1460mm
- Load capacity: 2000 kg
- Clamp open width: 1460 mm
- Hydraulic hoses: 400 bar pressure
- Weight: 173 kg
€1,886.56 VAT incl.
Deleks products take about 15 to 25 days. |

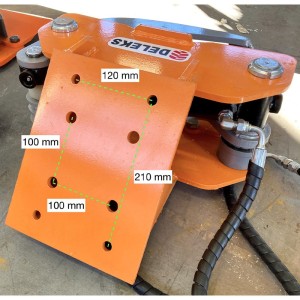

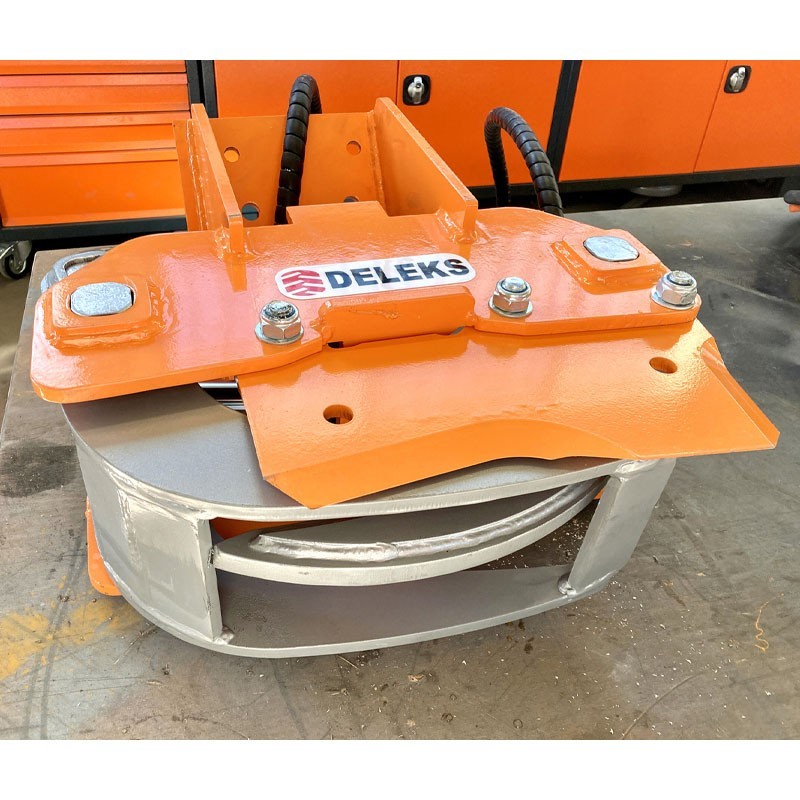

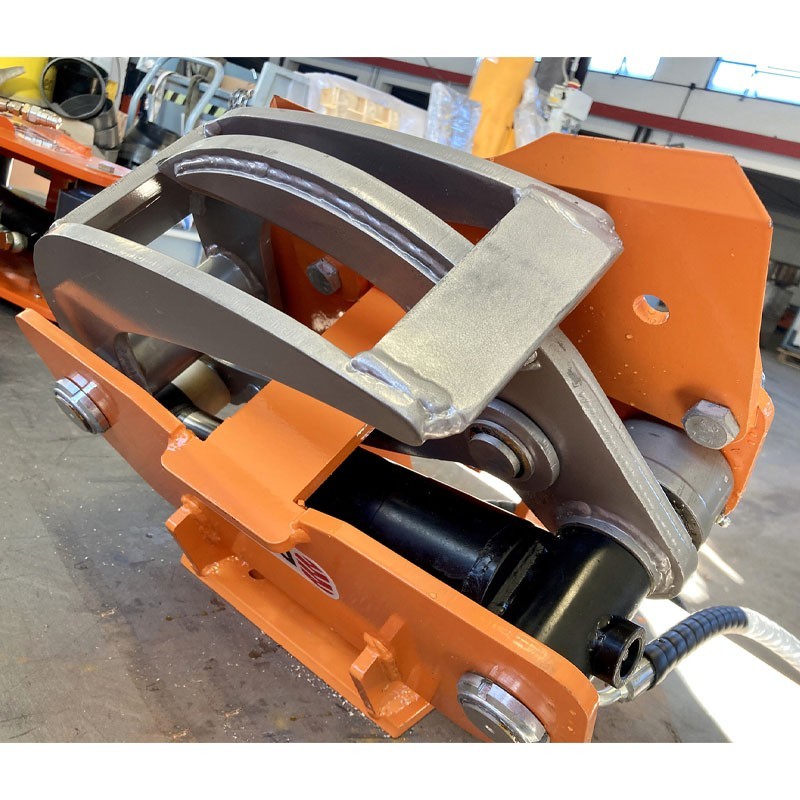

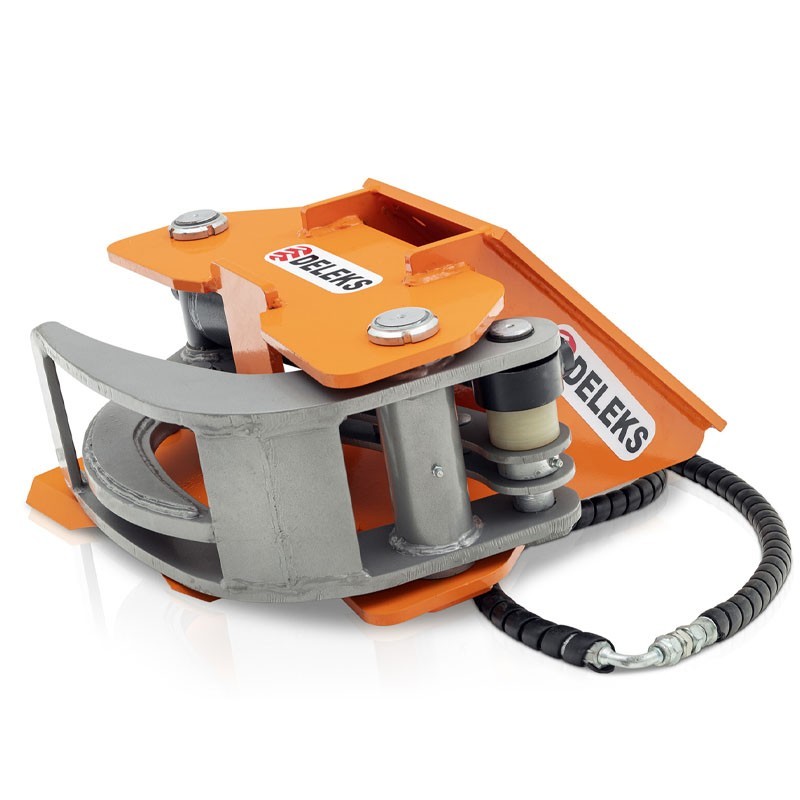

The Forestry Head for Mini Excavator Deleks CF-10 is designed for versatile professional use. It is adapted for mini excavators up to 2 tons or mounted on a compact loader, a telescopic handler, or a tractor.
The CF-10 forestry head model is ideal for felling and collecting wood for energy use, for clearing fields and roadside edges. This model can also cut thinner trees or group wood with the head.

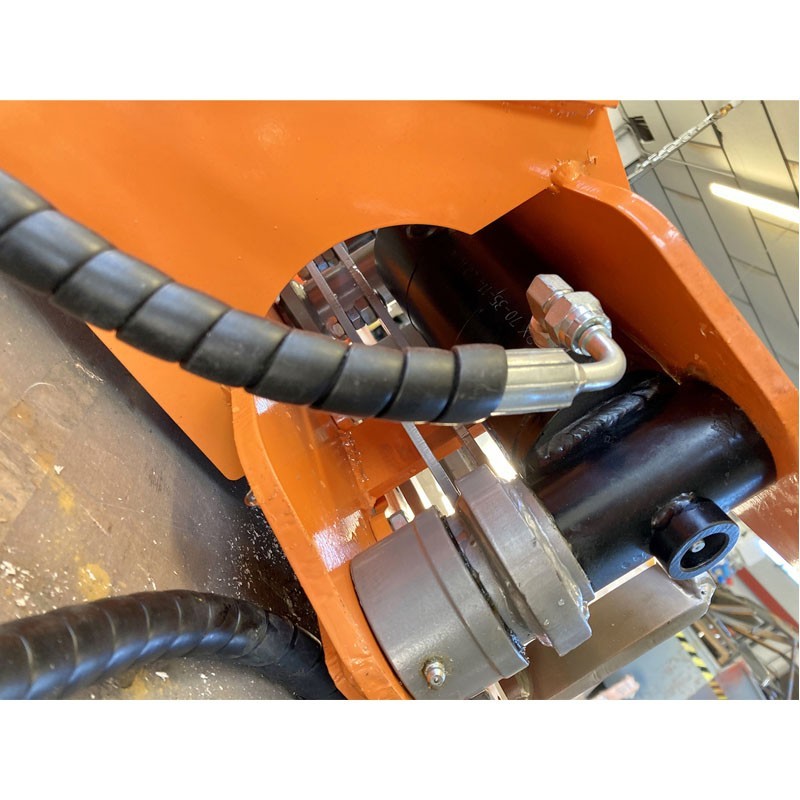

The head has a powerful reinforced blade that ensures clean and safe wood cutting. It has couplings for excavators. Additionally, it features fixed or full 360-degree rotation. It includes a hydraulic rotor for pruning trees or cutting fallen wood.
This model of forestry head from Deleks guarantees the operator good comfort and ease of installation and use. Moreover, the CF-10 model is the smallest in the range and has a lightweight of 52 kg. This allows the mini tractor to maintain its capacity.
The CF-10 forestry head cuts at ground level, allowing for low-height stump cutting. It cuts wood cleanly and precisely at the desired point at ground level. It features two-in-one, cuts and collects.
Thanks to the large opening of the CF-10 head from Deleks, it is also easy to cut several small trees at once. If necessary, the cutting blade can be removed. If removed, the head acts as a classic log clamp.
Weight | 52 kg |
Maximum cutting diameter | 90-120 mm |
Oil pressure min./max | 150 - 210 bar |
Optional oil flow | 8+ l/min |
Hydraulic hoses | 400 bar pressure |
Maximum opening | 500 mm |
ø hydraulic piston | 80 - 35 mm |
Excavator range | 1 - 2 ton |
Packaging dimension | 600*800*450 mm |
