Mini disc harrow for tractor Dimago 125 cm
- Working width: 125 cm
€1,316.24 VAT incl.
Assembly and set-up INCLUDED |

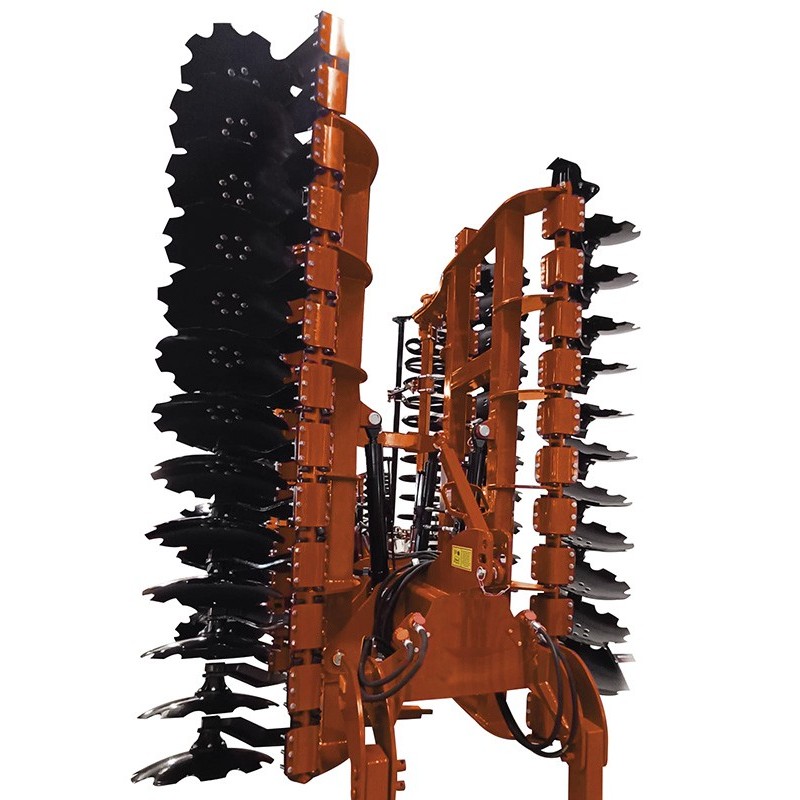

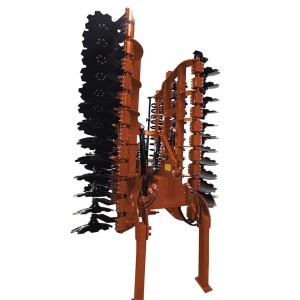

The quick harrow Zeppelin ESGRADARAP600ZC is a high-performance agricultural tool designed to maximize efficiency on large tracts of land. With a working width of 6 meters and equipped with 48 boron steel discs of 610 mm in diameter, it ensures a homogeneous cutting and mixing of residues.
Its hydraulic system deployable in two bodies facilitates operation and transport, optimizing time in the field. The robust design of the reinforced structure and the maintenance-free SKF 6-hole bushings ensure exceptional durability even in the most demanding conditions.
The inclusion of rubber shock absorbers and side deflectors improves stability and precision during work, while the standard tube roller ensures a uniform soil finish.

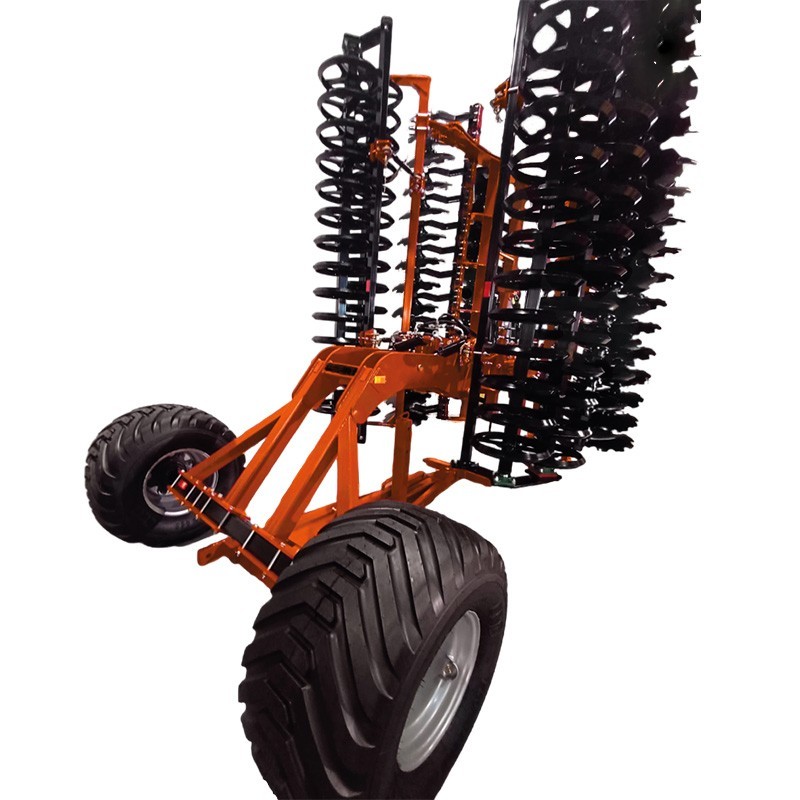

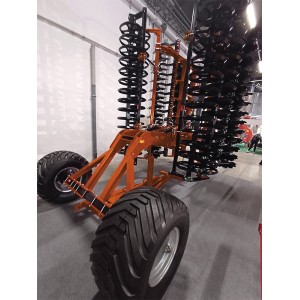

Additionally, its transport cart, with 500/50-17 wheels and a weight of 1150 kg, offers efficient and safe mobility. With a power demand between 180 and 250 HP, this harrow is ideal for farmers seeking performance, reliability, and versatility in a single machine.
Working width | 6 m |
Number of cylinders | 4 |
Number of discs | 48 |
Disc diameter | 610 mm |
Spacing between disc rows | 120 cm |
Weight (with 560 mm discs) | 3600 kg |
Power demand | 180-250 HP |
Transport cart weight with drawbar | 1150 kg |
Transport cart wheels | 500/50-17 |
Discs | Boron steel |
Structure | Reinforced |
Bushings | 6 holes, maintenance-free, SKF type |
Shock absorbers | Rubber |
Side deflectors | Included |
Standard roller | Tube roller |
Optional rollers | Other types of rollers available |
IMPORTANT NOTICES |
It is mandatory for the customer to check oil and grease levels before starting. If the merchandise cannot be checked at the time of receipt, it must be indicated on the carrier's sheet that the customer agrees pending examination. |
